INFINITI QX4 2005 Factory Service Manual LAN-26 [CAN] CAN SYSTEM (TYPE 1) Revision: October 20052005 QX56 Case 2 Check harness between driver seat control unit and data link connector. Refer to LAN-41, "Circuit Check Between Driver Seat Cont

Page 2306 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-27 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 3 Check harness between data link connector and IPDM E/R. Refer to LAN-42, "Circuit Check Between Data

Page 2307 of 3419

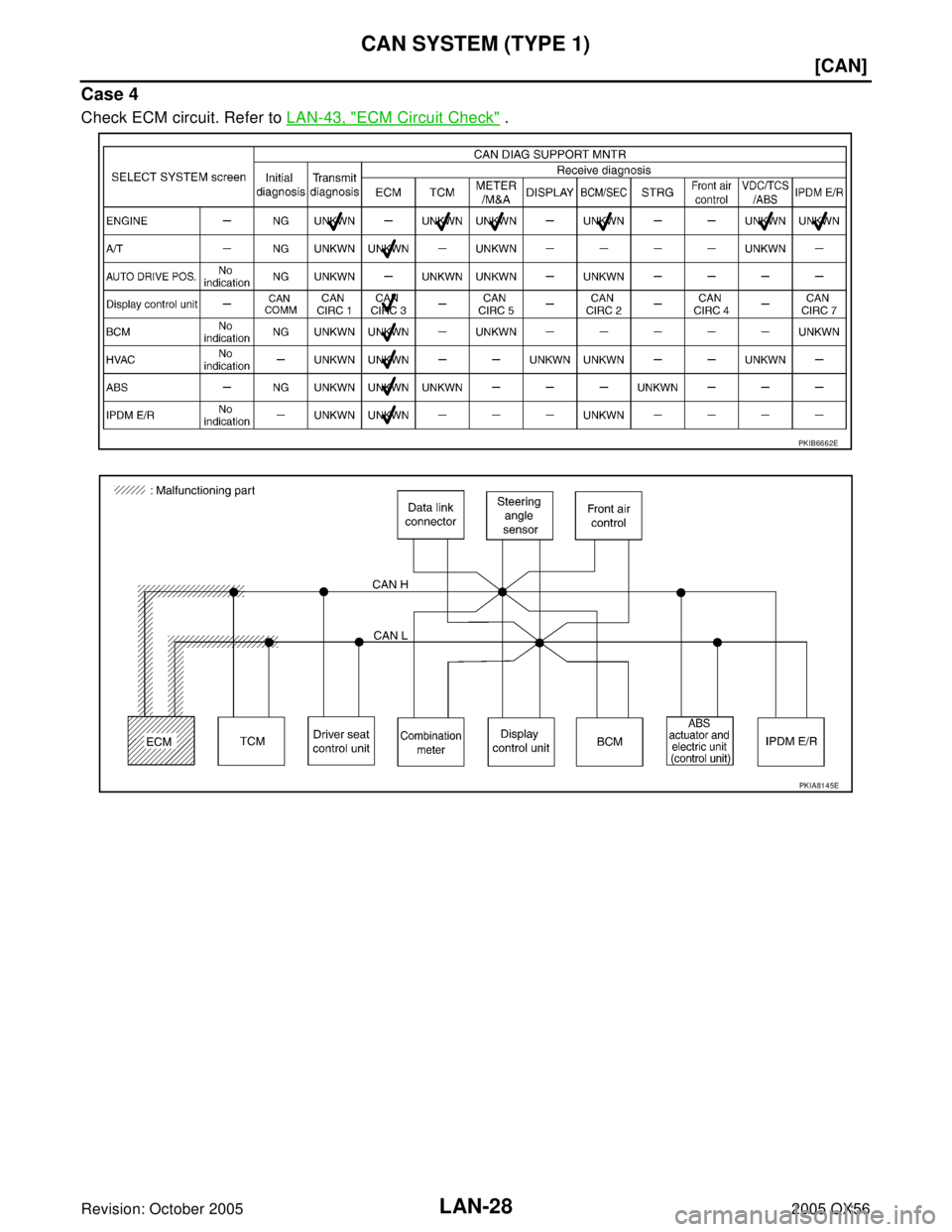

INFINITI QX4 2005 Factory Service Manual LAN-28 [CAN] CAN SYSTEM (TYPE 1) Revision: October 20052005 QX56 Case 4 Check ECM circuit. Refer to LAN-43, "ECM Circuit Check" . PKIB6662E PKIA8145E

Page 2308 of 3419

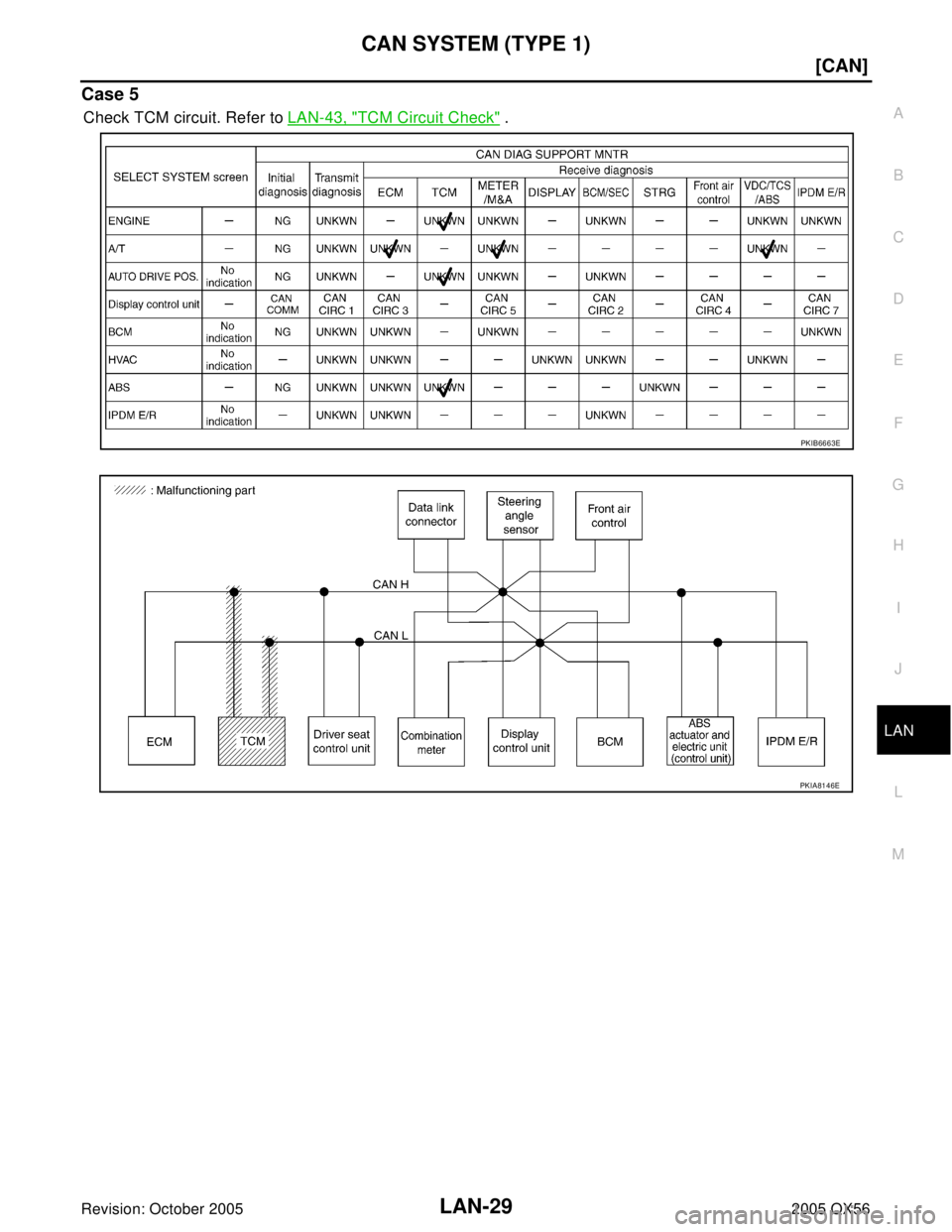

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-29 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 5 Check TCM circuit. Refer to LAN-43, "TCM Circuit Check" . PKIB6663E PKIA8146E

Page 2309 of 3419

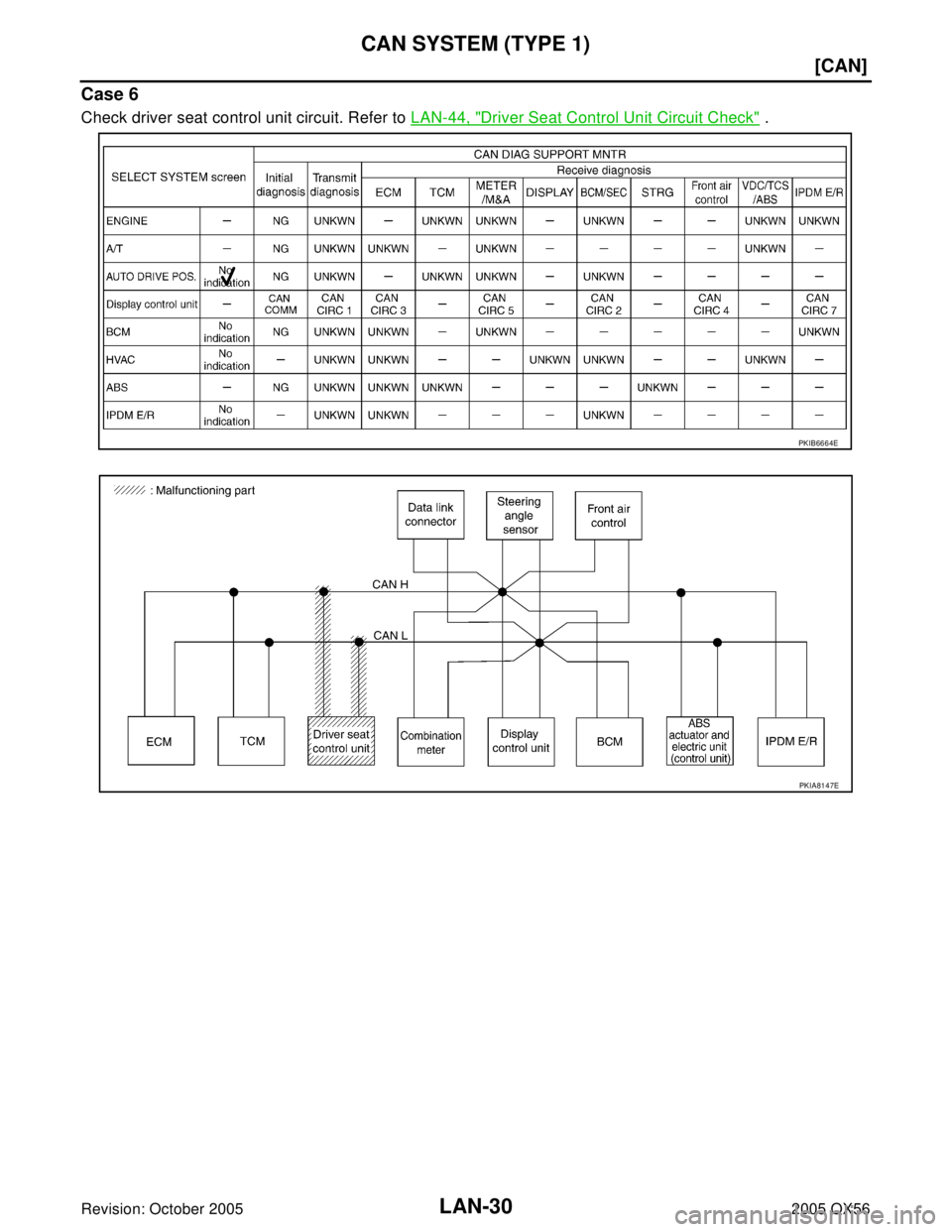

INFINITI QX4 2005 Factory Service Manual LAN-30 [CAN] CAN SYSTEM (TYPE 1) Revision: October 20052005 QX56 Case 6 Check driver seat control unit circuit. Refer to LAN-44, "Driver Seat Control Unit Circuit Check" . PKIB6664E PKIA8147E

Page 2310 of 3419

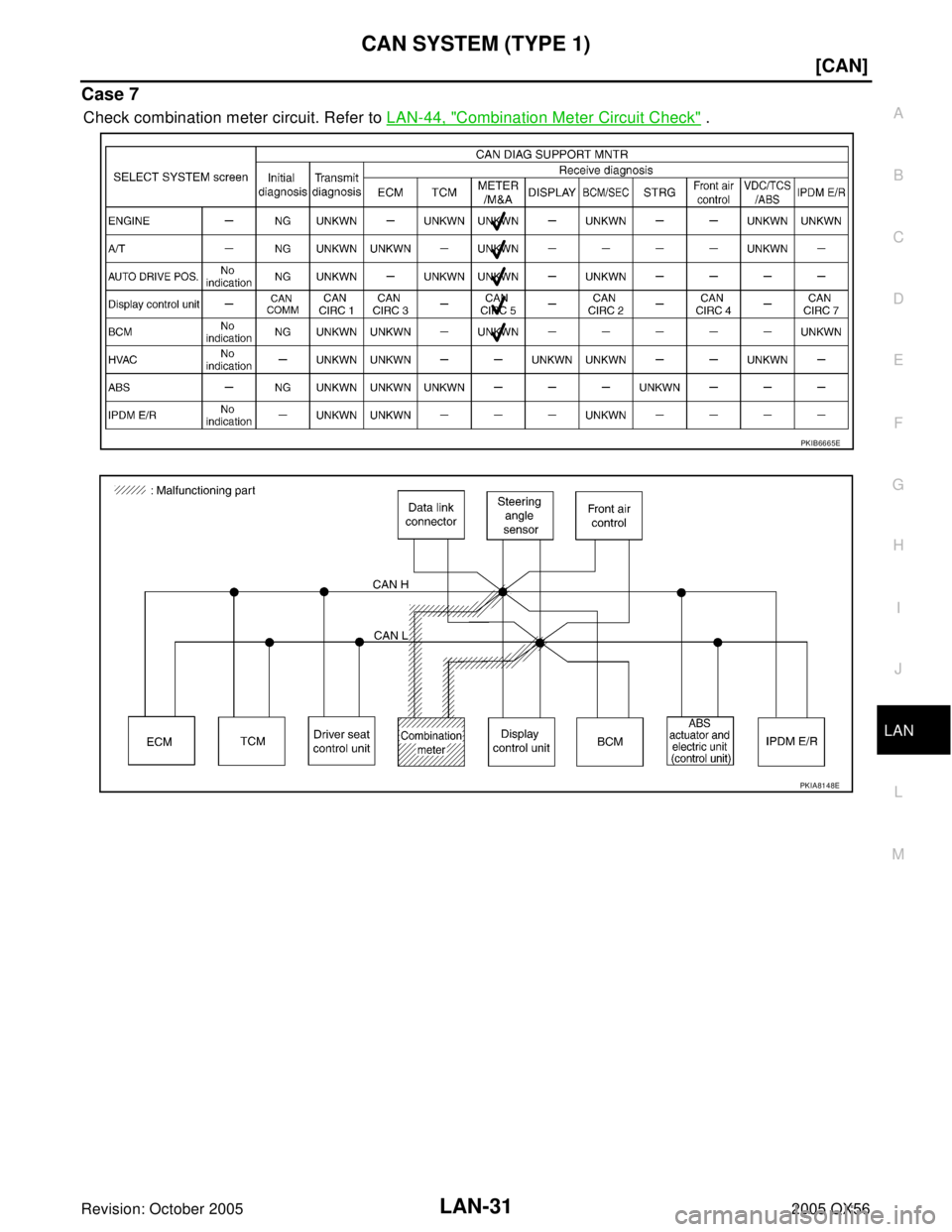

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-31 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 7 Check combination meter circuit. Refer to LAN-44, "Combination Meter Circuit Check" . PKIB6665E PKIA8

Page 2311 of 3419

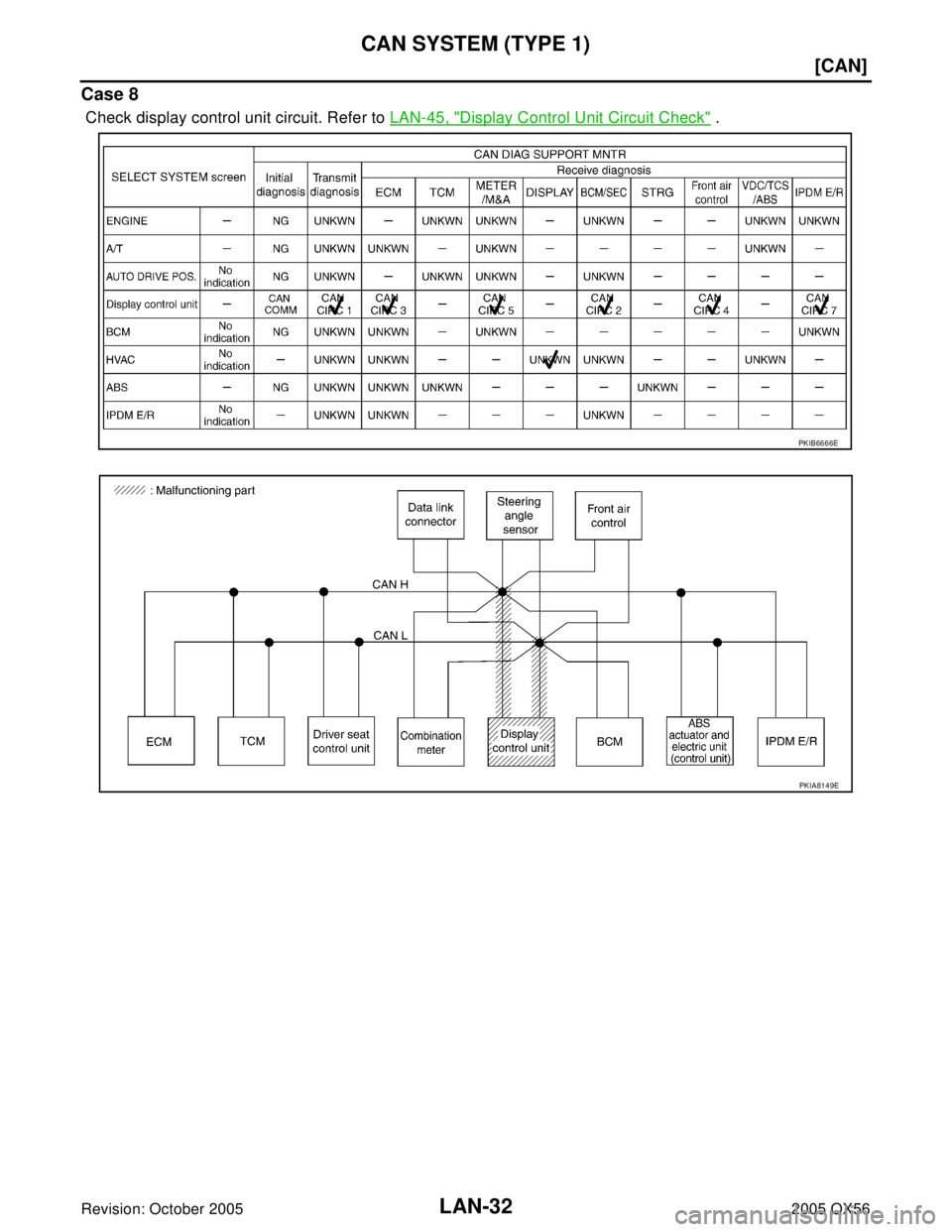

INFINITI QX4 2005 Factory Service Manual LAN-32 [CAN] CAN SYSTEM (TYPE 1) Revision: October 20052005 QX56 Case 8 Check display control unit circuit. Refer to LAN-45, "Display Control Unit Circuit Check" . PKIB6666E PKIA8149E

Page 2312 of 3419

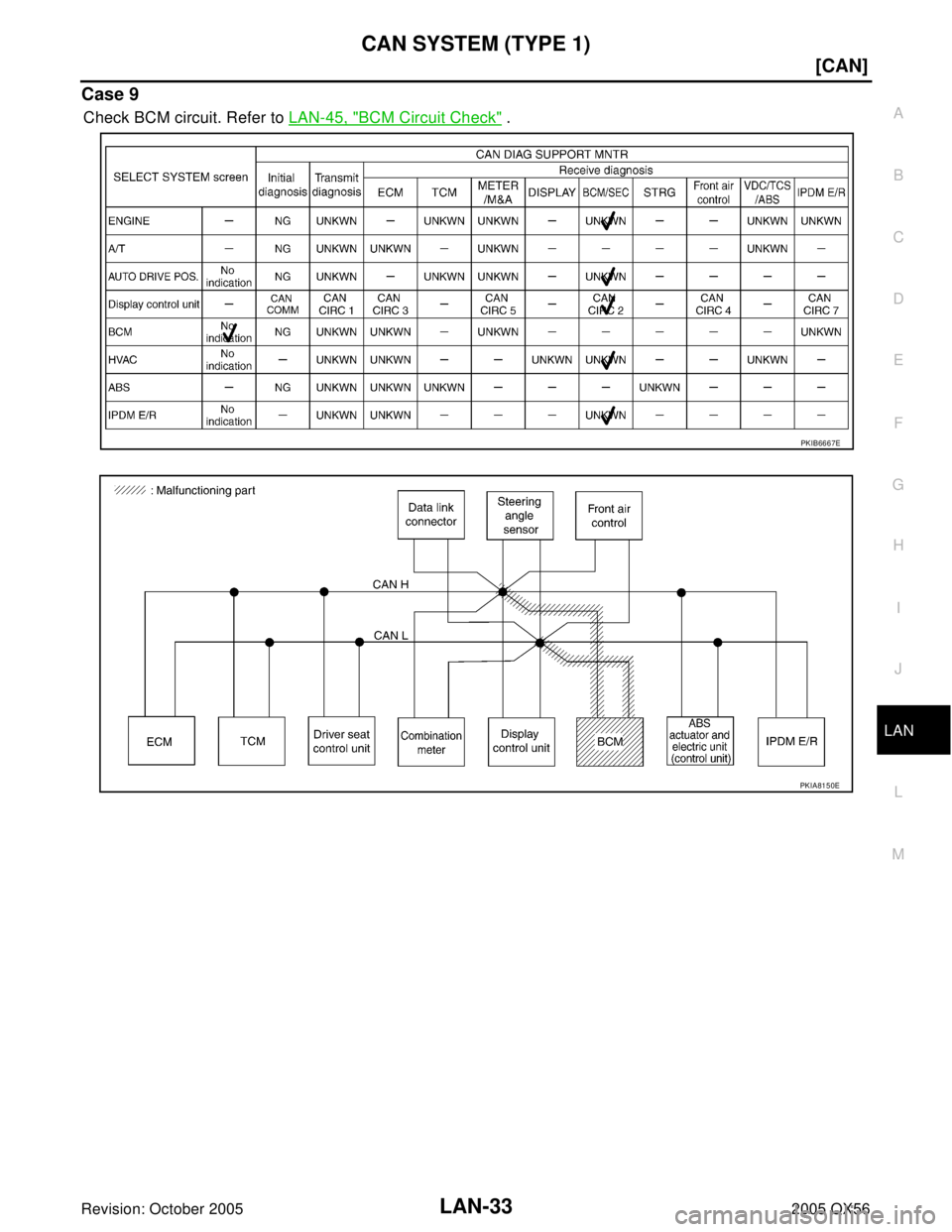

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-33 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 9 Check BCM circuit. Refer to LAN-45, "BCM Circuit Check" . PKIB6667E PKIA8150E
