Page 2353 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-74 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 16 Check front air control circuit. Refer to LAN-87, "Front Air Control Circuit Check" . SKIB3471E PKIA8815E

Page 2354 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-75 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 17 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-87, "ABS Actuator and Elec

Page 2355 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-76 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 18 Check IPDM E/R circuit. Refer to LAN-88, "IPDM E/R Circuit Check" . SKIB3473E PKIA8817E

Page 2356 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-77 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 19 Check CAN communication circuit. Refer to LAN-88, "CAN Communication Circuit Check" . Case 20 Check

Page 2357 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-78 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 21 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-89, "IPDM E/R Ignition Relay Cir- cuit Check"

Page 2358 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-79 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ICC sensor connector. 2. Check continuity between harness co

Page 2359 of 3419

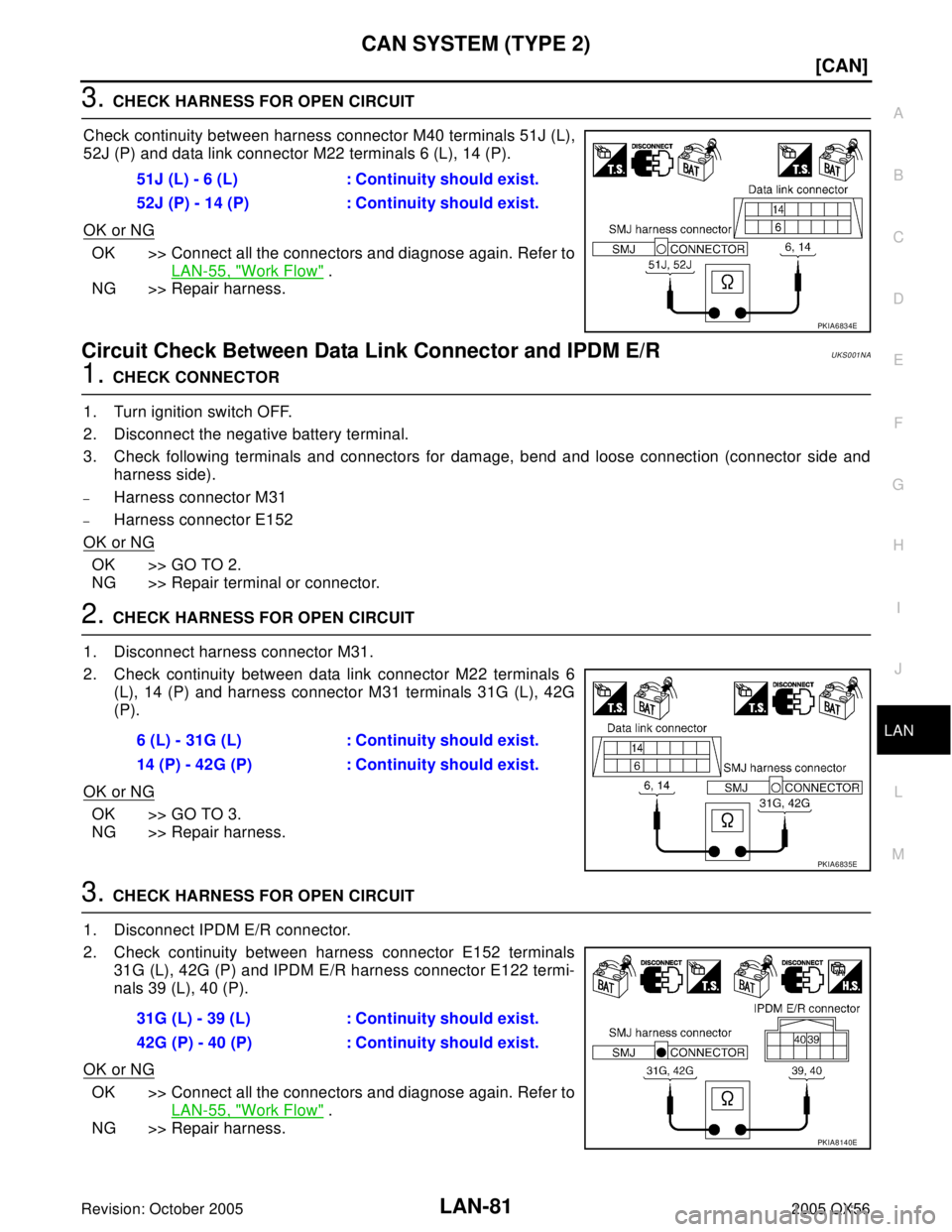

INFINITI QX4 2005 Factory Service Manual LAN-80 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Circuit Check Between ICC Unit and Driver Seat Control UnitUKS001PP 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the n

Page 2360 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-81 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector M40 terminals 51J (L), 52J (P)
