Page 2777 of 3419

INFINITI QX4 2005 Factory Service Manual PS-10 STEERING COLUMN Revision: October 20052005 QX56 STEERING COLUMNPFP:48810 Removal and InstallationEGS000UF CAUTION: Do not exert any load or impact in the axial direction immediately before or a

Page 2778 of 3419

INFINITI QX4 2005 Factory Service Manual STEERING COLUMN PS-11 C D E F H I J K L MA B PS Revision: October 20052005 QX56 4. Remove lock nut and bolt, then separate upper shaft from upper joint. 5. Remove two nuts and two bolts, then remove s

Page 2779 of 3419

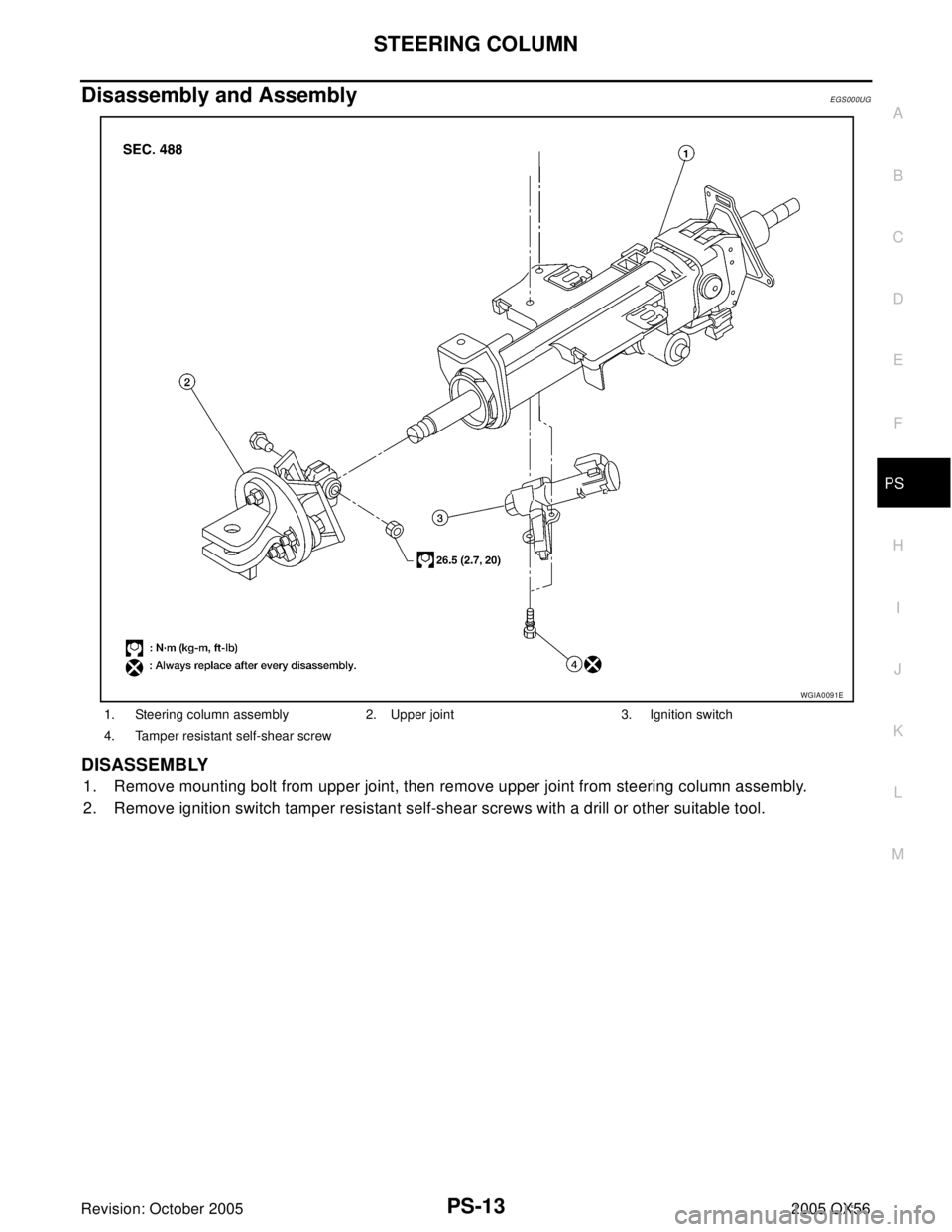

INFINITI QX4 2005 Factory Service Manual PS-12 STEERING COLUMN Revision: October 20052005 QX56 CAUTION: When installing the steering column, finger-tighten all of the lower bracket and joint retaining bolts; then tighten them to specificati

Page 2780 of 3419

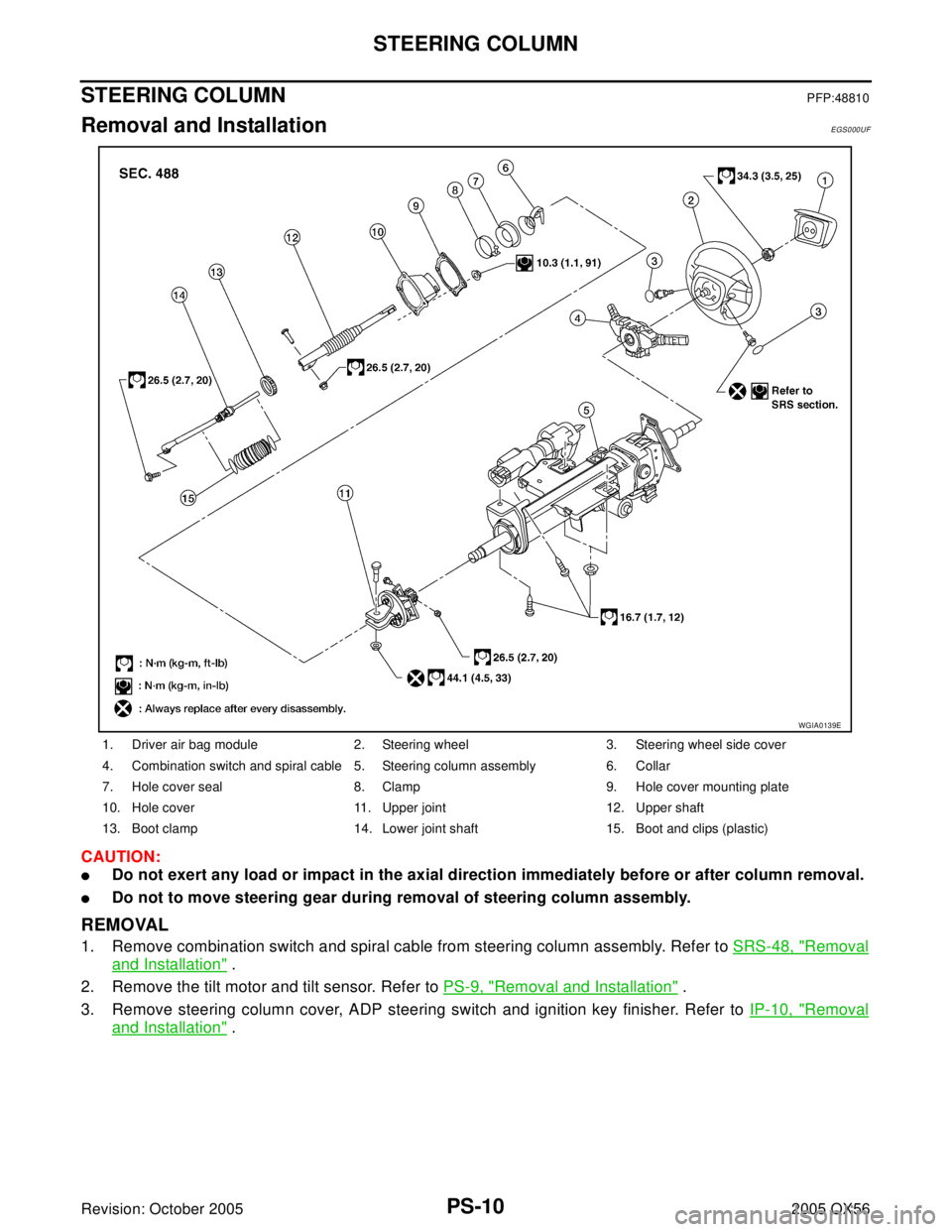

INFINITI QX4 2005 Factory Service Manual STEERING COLUMN PS-13 C D E F H I J K L MA B PS Revision: October 20052005 QX56 Disassembly and AssemblyEGS000UG DISASSEMBLY 1. Remove mounting bolt from upper joint, then remove upper joint from stee

Page 2781 of 3419

INFINITI QX4 2005 Factory Service Manual PS-14 STEERING COLUMN Revision: October 20052005 QX56 ASSEMBLY Assembly is in the reverse order of disassembly. Install new tamper resistant self-shear screws. INSPECTION AFTER ASSEMBLY When the ste

Page 2782 of 3419

INFINITI QX4 2005 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-15 C D E F H I J K L MA B PS Revision: October 20052005 QX56 POWER STEERING GEAR AND LINKAGEPFP:49001 Removal and InstallationEGS000UH CAUTION: Spiral cable may snap

Page 2783 of 3419

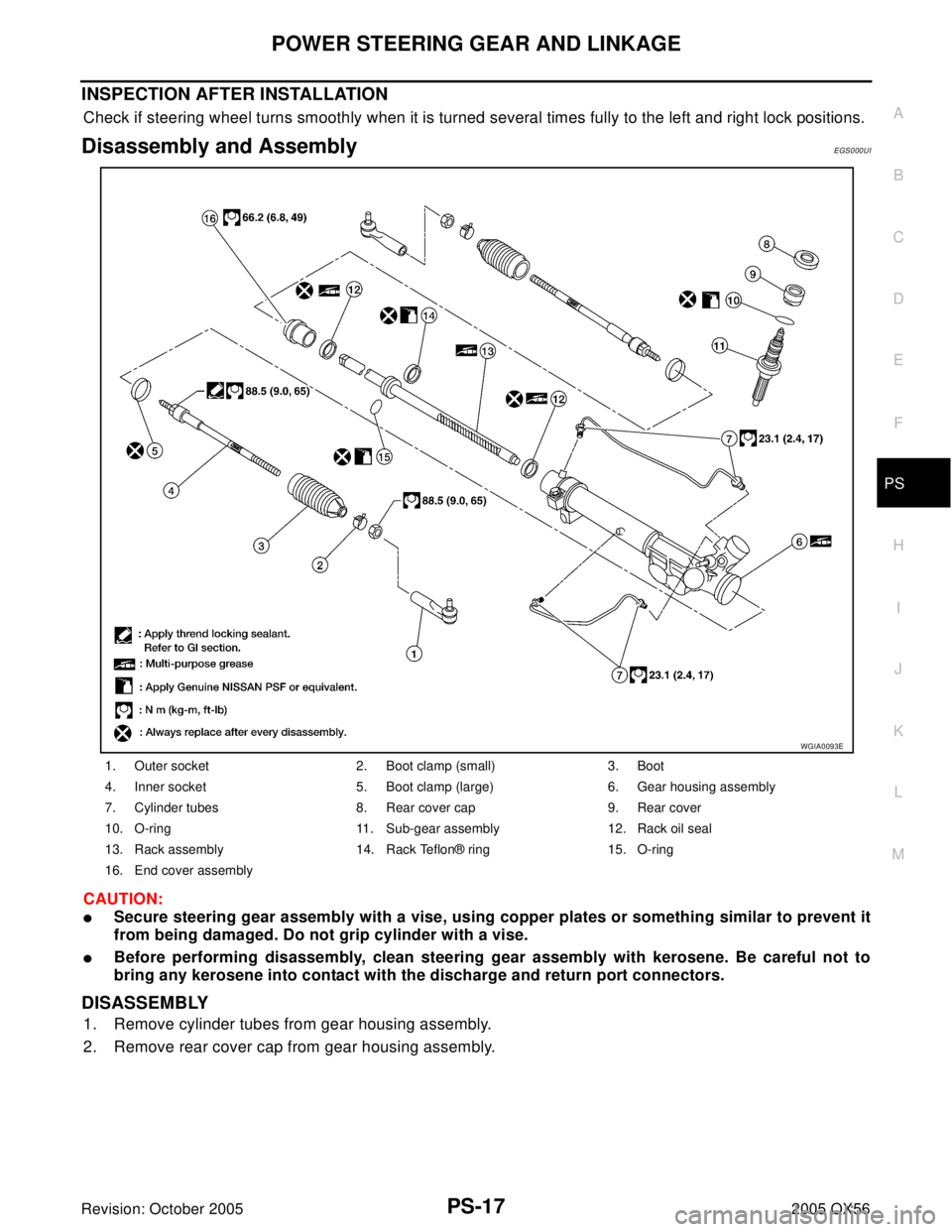

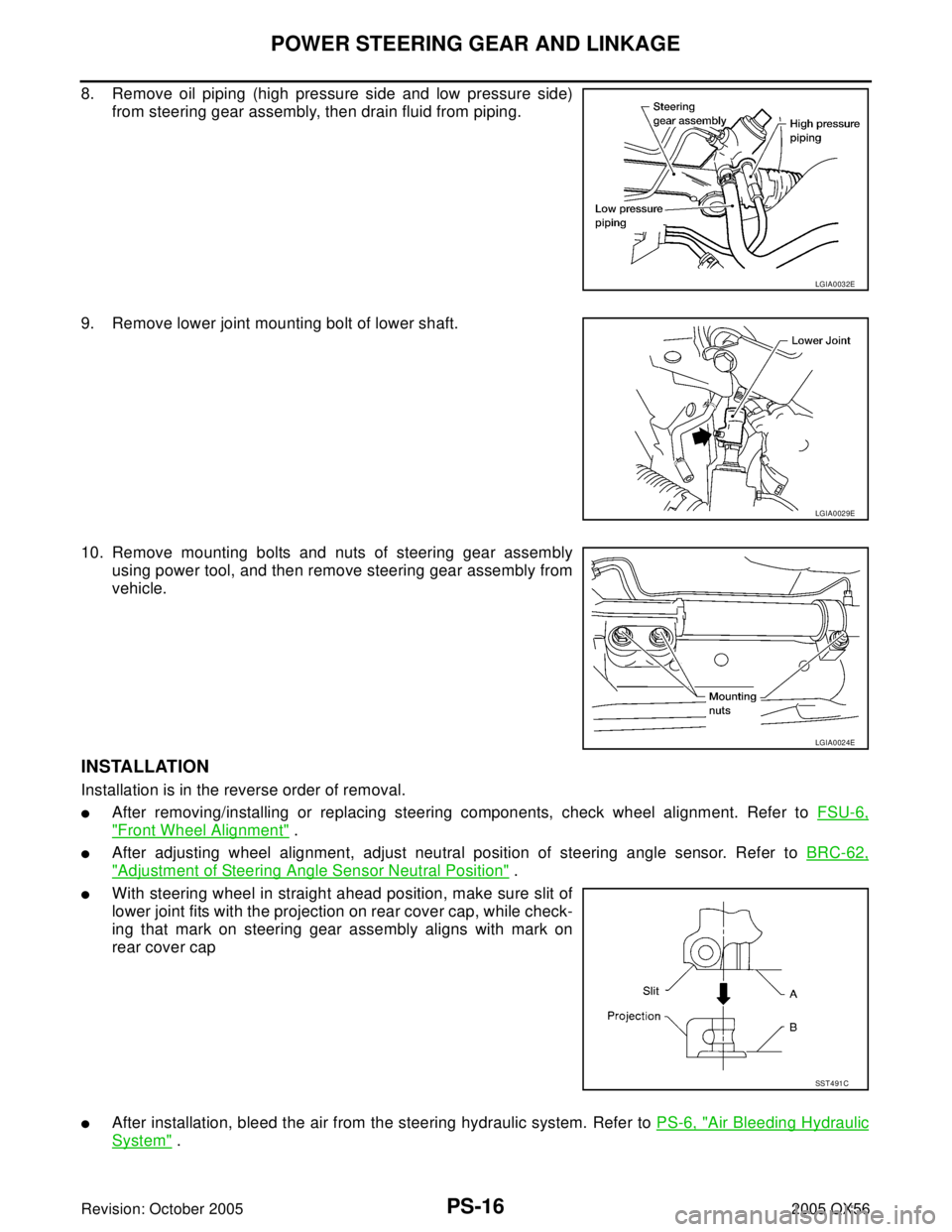

INFINITI QX4 2005 Factory Service Manual PS-16 POWER STEERING GEAR AND LINKAGE Revision: October 20052005 QX56 8. Remove oil piping (high pressure side and low pressure side) from steering gear assembly, then drain fluid from piping. 9. Remo

Page 2784 of 3419

INFINITI QX4 2005 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-17 C D E F H I J K L MA B PS Revision: October 20052005 QX56 INSPECTION AFTER INSTALLATION Check if steering wheel turns smoothly when it is turned several times ful
