Page 1089 of 3419

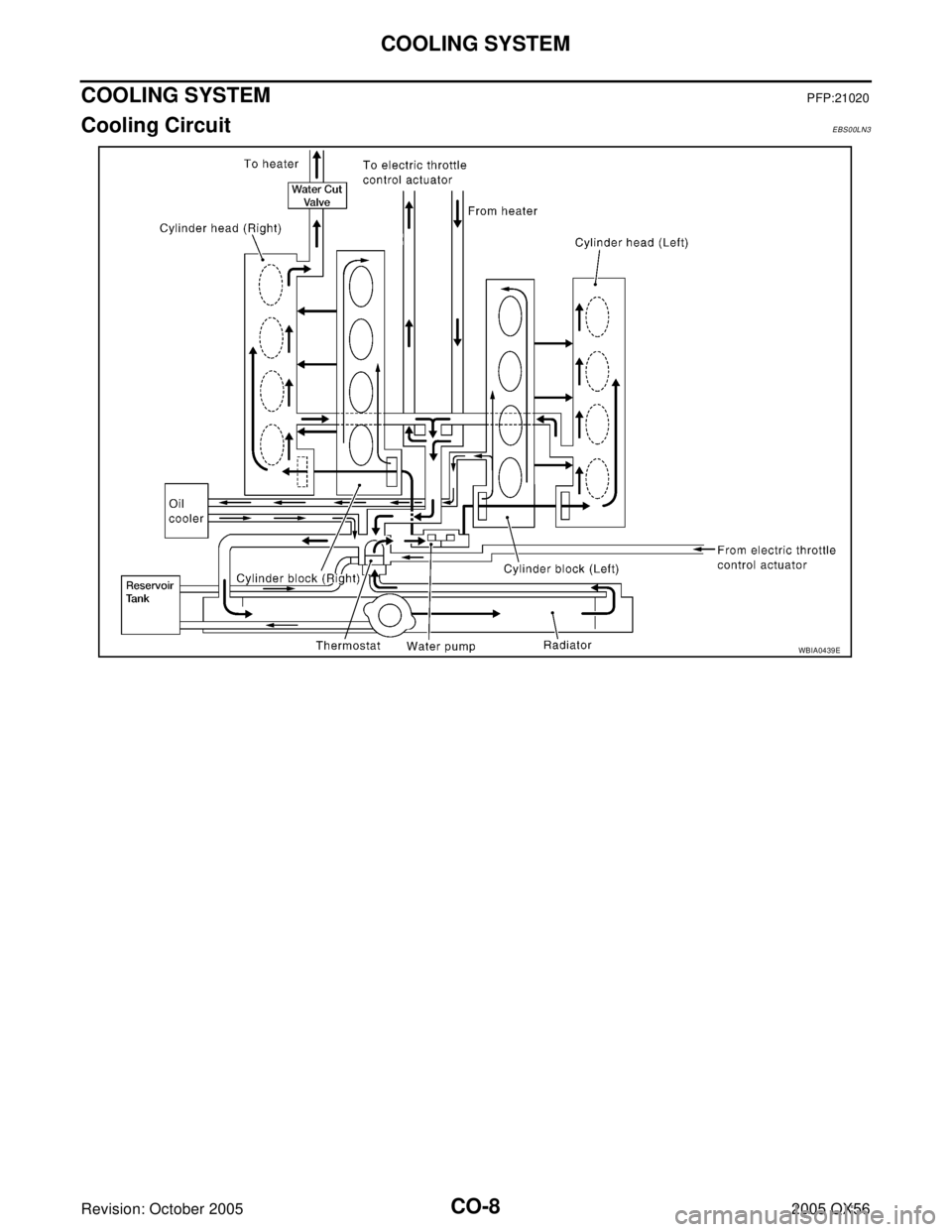

INFINITI QX4 2005 Factory Service Manual CO-8Revision: October 2005 COOLING SYSTEM 2005 QX56 COOLING SYSTEMPFP:21020 Cooling CircuitEBS00LN3 WBIA0439E

Page 1090 of 3419

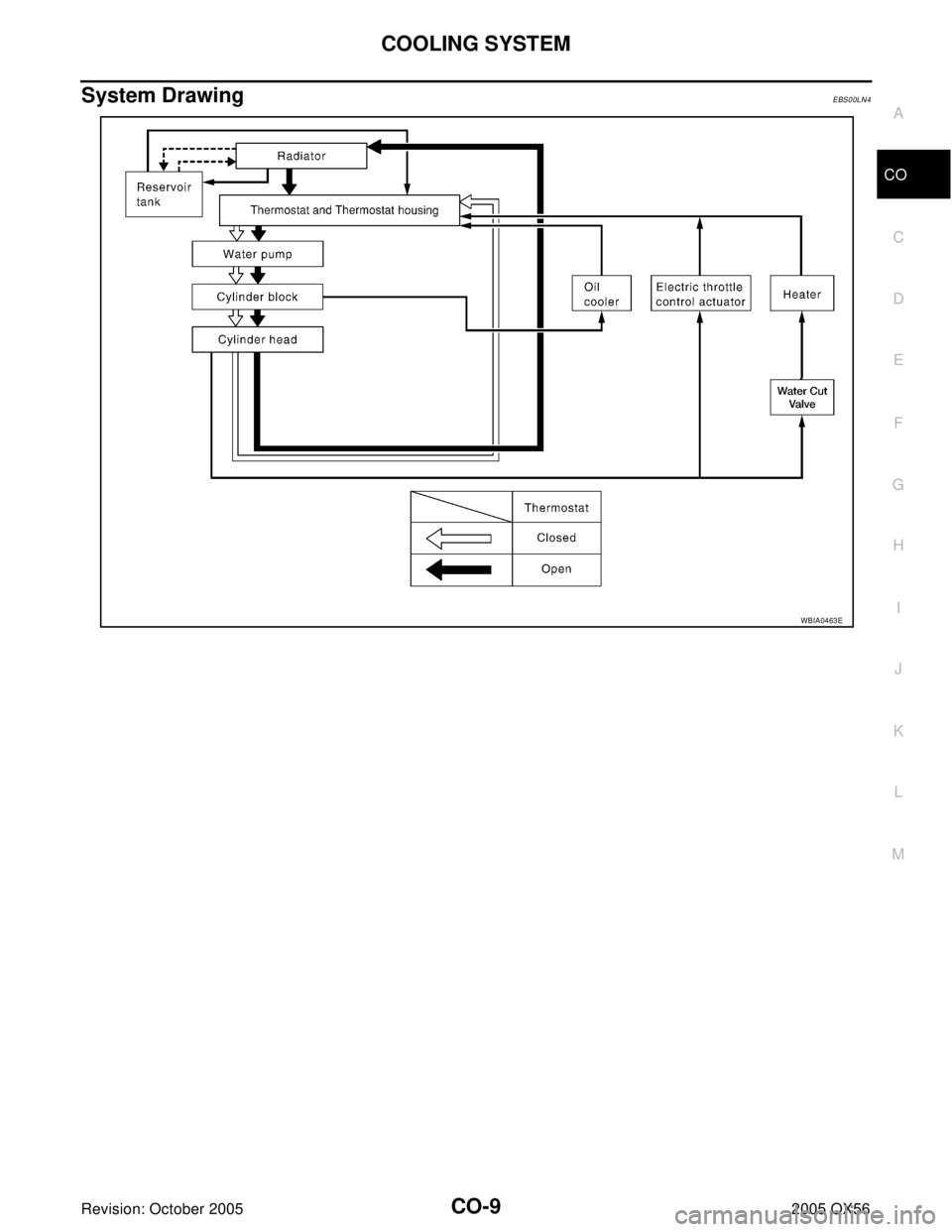

INFINITI QX4 2005 Factory Service Manual COOLING SYSTEM CO-9 C D E F G H I J K L MA CO Revision: October 20052005 QX56 System DrawingEBS00LN4 WBIA0463E

Page 1091 of 3419

INFINITI QX4 2005 Factory Service Manual CO-10Revision: October 2005 ENGINE COOLANT 2005 QX56 ENGINE COOLANTPFP:KQ100 InspectionEBS00LN5 LEVEL CHECK Check if the engine coolant reservoir tank level is within MIN to MAX level when engine is

Page 1092 of 3419

INFINITI QX4 2005 Factory Service Manual ENGINE COOLANT CO-11 C D E F G H I J K L MA CO Revision: October 20052005 QX56 REFILLING ENGINE COOLANT Refer to MA-14, "REFILLING ENGINE COOLANT" . FLUSHING COOLING SYSTEM Refer to MA-15, "FLUSHING C

Page 1093 of 3419

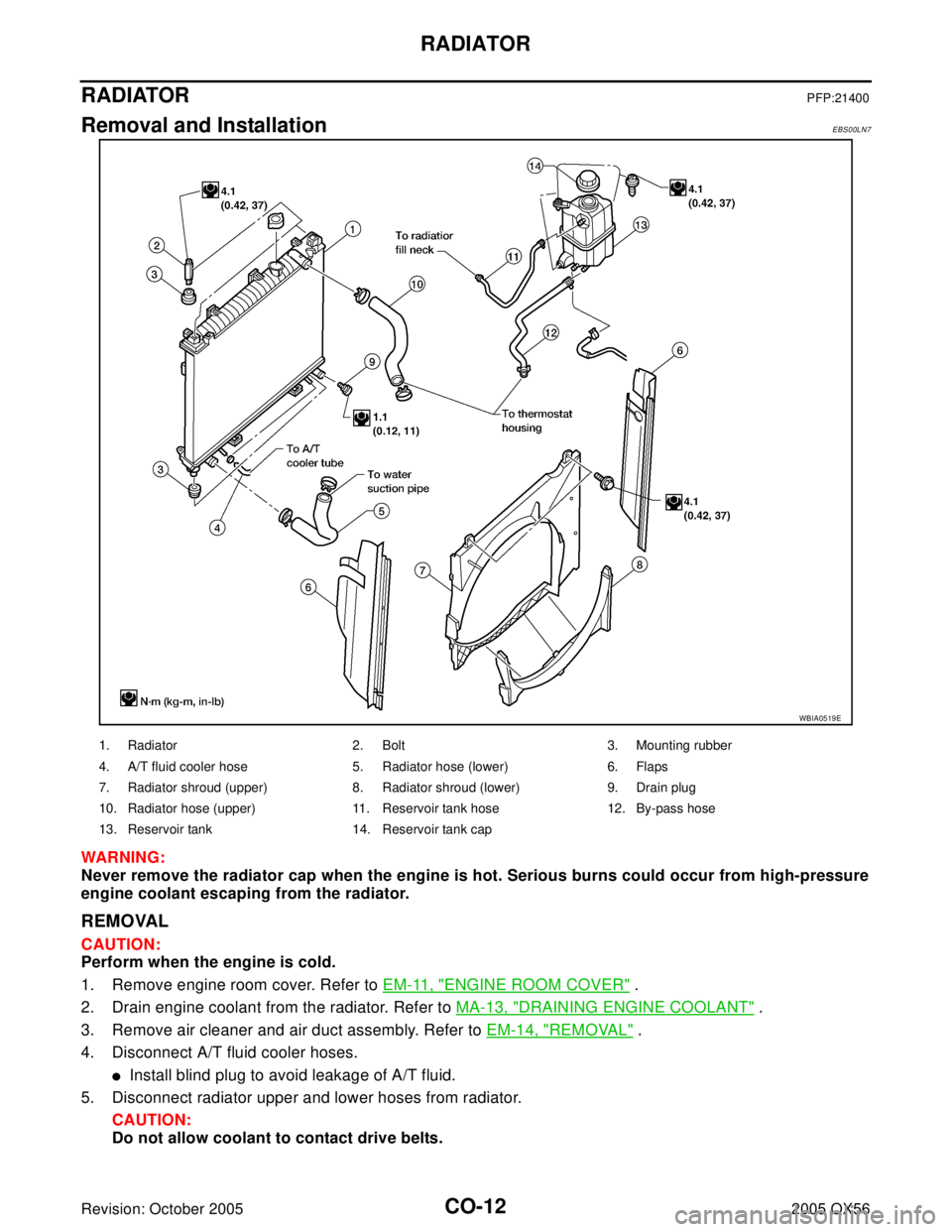

INFINITI QX4 2005 Factory Service Manual CO-12Revision: October 2005 RADIATOR 2005 QX56 RADIATORPFP:21400 Removal and InstallationEBS00LN7 WAR NIN G: Never remove the radiator cap when the engine is hot. Serious burns could occur from high-p

Page 1094 of 3419

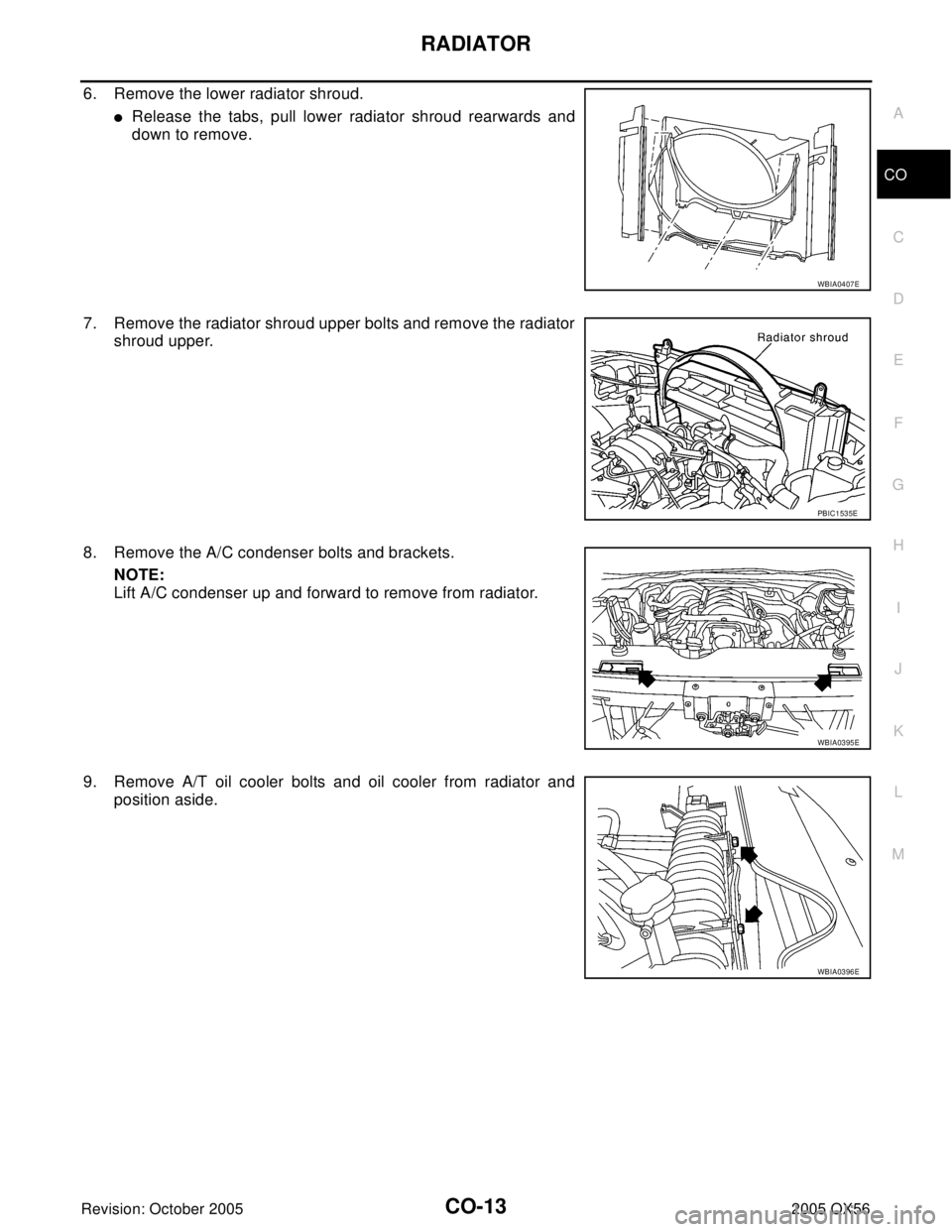

INFINITI QX4 2005 Factory Service Manual RADIATOR CO-13 C D E F G H I J K L MA CO Revision: October 20052005 QX56 6. Remove the lower radiator shroud. Release the tabs, pull lower radiator shroud rearwards and down to remove. 7. Remove the

Page 1095 of 3419

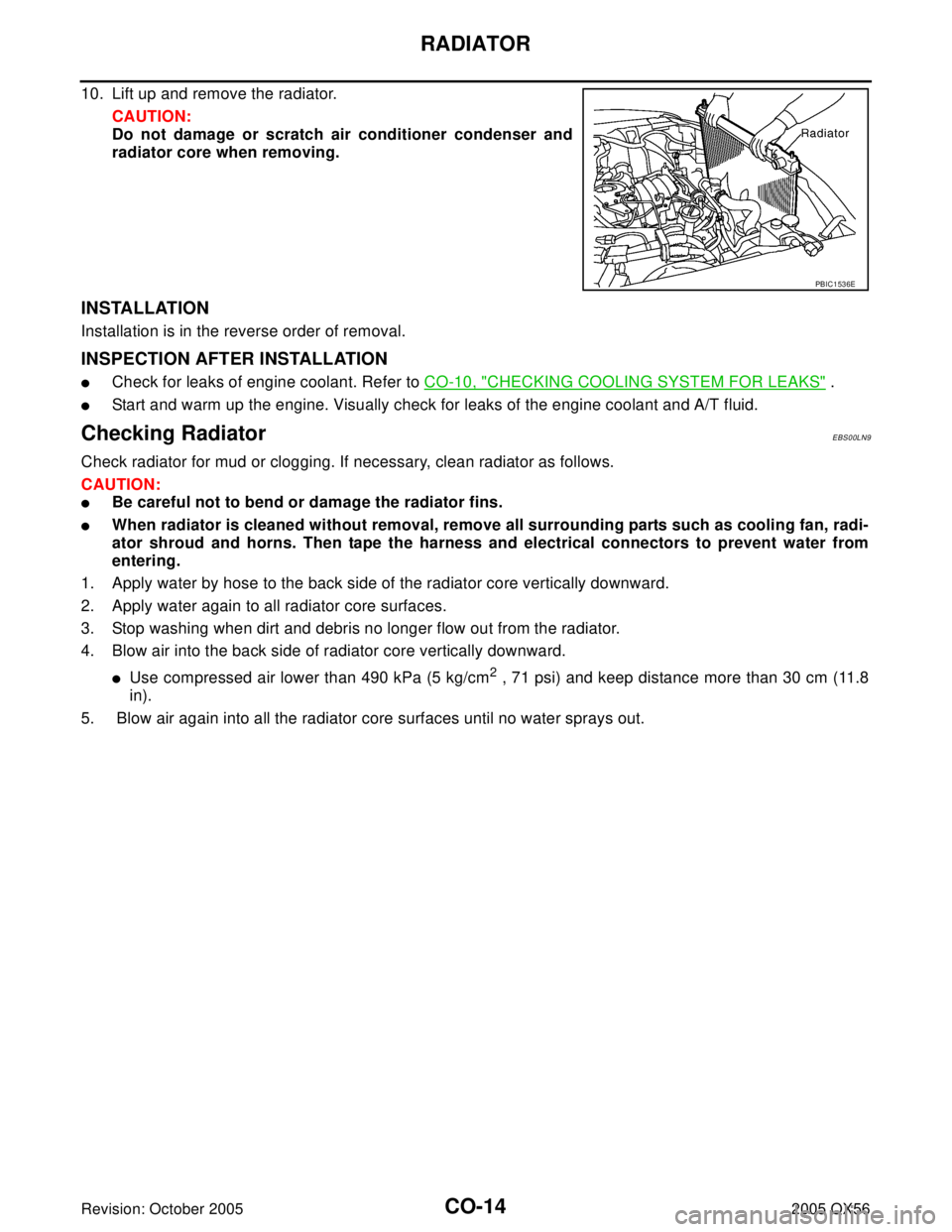

INFINITI QX4 2005 Factory Service Manual CO-14Revision: October 2005 RADIATOR 2005 QX56 10. Lift up and remove the radiator. CAUTION: Do not damage or scratch air conditioner condenser and radiator core when removing. INSTALLATION Installati

Page 1096 of 3419

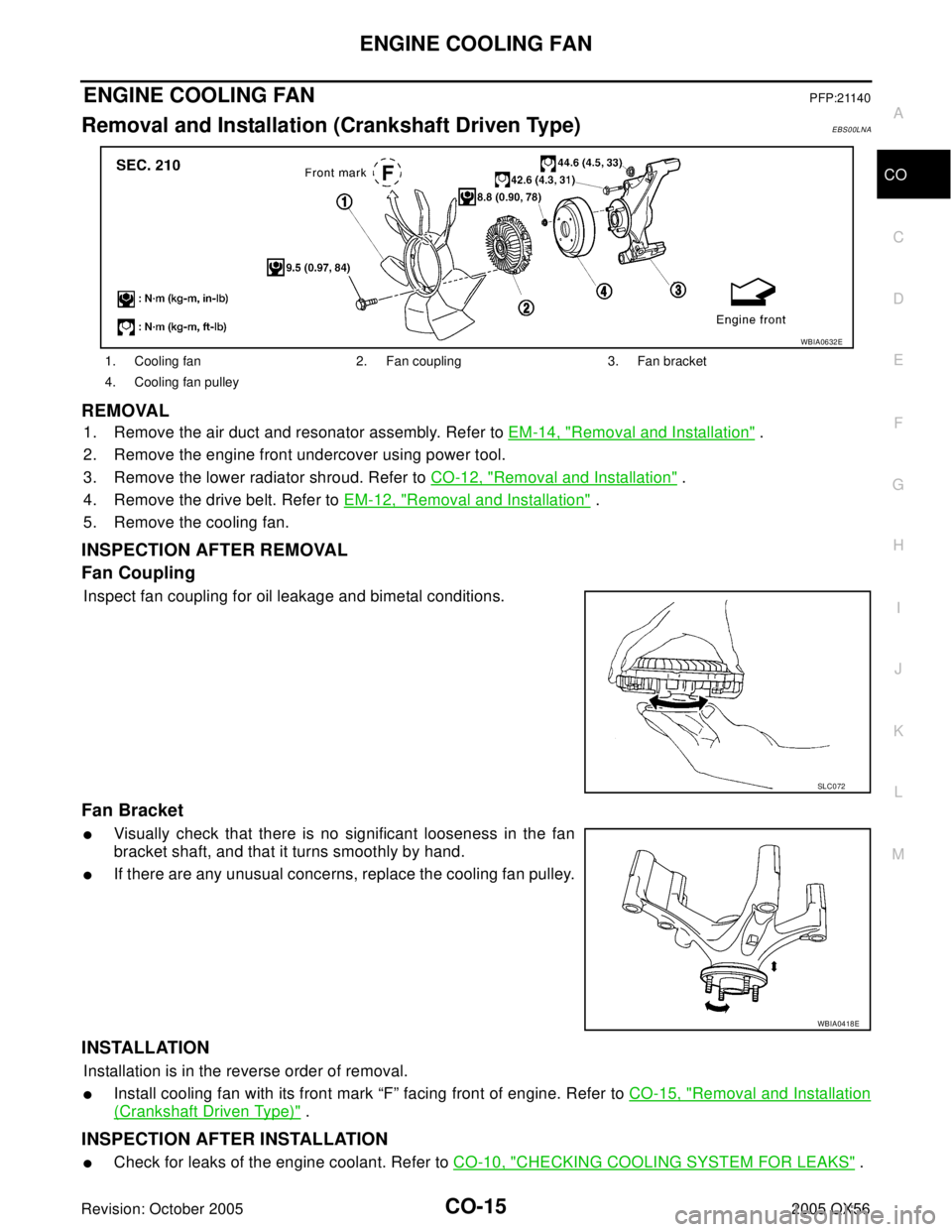

INFINITI QX4 2005 Factory Service Manual ENGINE COOLING FAN CO-15 C D E F G H I J K L MA CO Revision: October 20052005 QX56 ENGINE COOLING FANPFP:21140 Removal and Installation (Crankshaft Driven Type)EBS00LNA REMOVAL 1. Remove the air duct
