INFINITI QX4 2005 Factory Service Manual WT-20

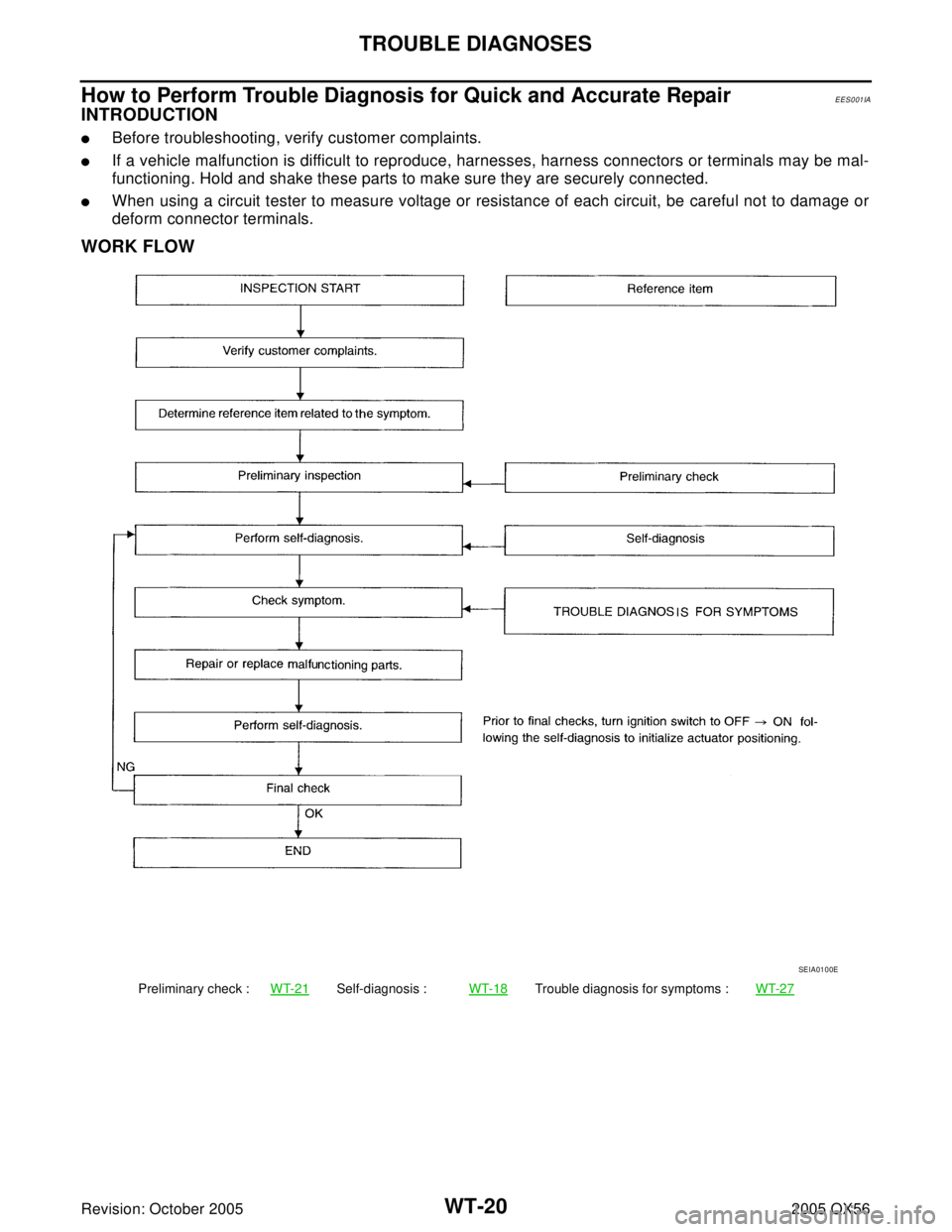

TROUBLE DIAGNOSES
Revision: October 20052005 QX56
How to Perform Trouble Diagnosis for Quick and Accurate RepairEES001IA
INTRODUCTION
Before troubleshooting, verify customer complaints.
If a v

Page 3346 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSES
WT-21
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
Preliminary CheckEES001IB
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-34, "
Tir

Page 3347 of 3419

INFINITI QX4 2005 Factory Service Manual WT-22
TROUBLE DIAGNOSES
Revision: October 20052005 QX56
Malfunction Code/Symptom ChartEES001IC
Code/Symptom Malfunction partReference
page
15
16
17
18Front-left tire pressure drops to 193 kPa (2.0 kg

WT-22
TROUBLE DIAGNOSES
Revision: October 20052005 QX56
Malfunction Code/Symptom ChartEES001IC
Code/Symptom Malfunction partReference
page
15
16
17
18Front-left tire pressure drops to 193 kPa (2.0 kg/cm
2 , 28 psi) or less
Front-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-left tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less—
21
22
23
24Transmitter no data (front - left)
Transmitter no data (front - right)
Transmitter no data (rear - right)
Transmitter no data (rear - left)WT-24,
"Inspection 1:
Tran sm itte r o r
Control Unit
(BCM)"
31
32
33
34Transmitter checksum error (front - left)
Transmitter checksum error (front - right)
Transmitter checksum error (rear - right)
Transmitter checksum error (rear - left)WT-24,
"Inspection 2:
Transmitter -
1"
35
36
37
38Transmitter pressure data error (front - left)
Transmitter pressure data error (front - right)
Transmitter pressure data error (rear - right)
Transmitter pressure data error (rear - left)WT-25,
"Inspection 3:
Transmitter -
2"
41
42
43
44Transmitter function code error (front - left)
Transmitter function code error (front - right)
Transmitter function code error (rear - right)
Transmitter function code error (rear - left)WT-24,
"Inspection 2:
Transmitter -
1"
45
46
47
48Transmitter battery voltage low (front - left)
Transmitter battery voltage low (front - right)
Transmitter battery voltage low (rear - right)
Transmitter battery voltage low (rear - left)WT-24,
"Inspection 2:
Transmitter -
1"
52 Vehicle speed signalWT-26, "Inspection 4:
Vehicle Speed
Signal"
Low tire pressure warning lamp does
not come on when ignition switch is
turned on.Fuse or combination meter
BCM connector or circuit
BCM WT-27,
"Inspection 1:
Warning
Lamp Does
Not Come On
When Ignition
Switch Is
Turned On"
Low tire pressure warning lamp stays
on when ignition switch is turned on.Combination meter
BCM connector or circuit
BCMWT-27,
"Inspection 2:
Warning
Lamp Stays
On When
Ignition
Switch Is
Turned On"
Low tire pressure warning lamp
flashes when ignition switch is turned
on.BCM harness connector or circuit
BCM
Transmitter's mode off
ID registration not yetWT-29,
"Inspection 3:
Warning
Lamp Flashes
When Ignition
Switch Is
Turned
On"WT-29

Page 3348 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSES
WT-23
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
Hazard warning lamp flashes when
ignition switch is turned on.BCM harness connector or circuit
BCMWT-29,
"Inspection

Page 3349 of 3419

INFINITI QX4 2005 Factory Service Manual WT-24
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)EES001ID
MALFUNCTI

WT-24
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)EES001ID
MALFUNCTION CODE NO. 21, 22, 23 OR 24
1. CHECK CONTROL UNIT
Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM”.
Are all tire pressures displayed as 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
Check remote keyless entry receiver connector for damage or loose connections.
OK or NG
OK >> Replace BCM, then GO TO 3. Refer to BCS-20, "Removal and Installation of BCM" .
NG >> Repair or replace remote keyless entry receiver connector.
3. ID REGISTRATION
Carry out ID registration of all transmitters.
Is there a tire that cannot register ID?
YES >> Replace transmitter of the tire, then GO TO 5. Refer to WT-32, "Transmitter (Pressure Sensor)" .
NO >> GO TO 4.
4. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.
Inspection 2: Transmitter - 1EES001IE
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2.

Page 3350 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
2. REPLACE TRANSMITTER
1. Check low tire pressure warning lamp again for flashing, replace m

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
2. REPLACE TRANSMITTER
1. Check low tire pressure warning lamp again for flashing, replace malfunctioning transmitter.
2. Carry out ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> GO TO 3.
NO >> GO TO Inspection 1. Refer to WT-24, "
Inspection 1: Transmitter or Control Unit (BCM)" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> Replace malfunctioning transmitter, and perform Step 3 again. Refer to WT-32, "
Tran sm it ter
(Pressure Sensor)" .
Inspection 3: Transmitter - 2EES001IF
MALFUNCTION CODE NO. 35, 36, 37 OR 38
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-34, "
Tire"
Are there any tires with pressure of 64 psi or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
>> Replace transmitter with new one if “DATA MONITOR ITEM” displays 64 psi or more. Refer to
WT-32, "
Transmitter (Pressure Sensor)" . Then GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.

Page 3351 of 3419

INFINITI QX4 2005 Factory Service Manual WT-26
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: October 20052005 QX56
Inspection 4: Vehicle Speed SignalEES001Q3
MALFUNCTION CODE NO. 52
1. SELF-DIAGNOSTIC RESULT CHECK
1. With the ignitio

Page 3352 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-27
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Inspection 1: Warning Lamp Does Not Come On When Ignition Switch
