Page 2401 of 3419

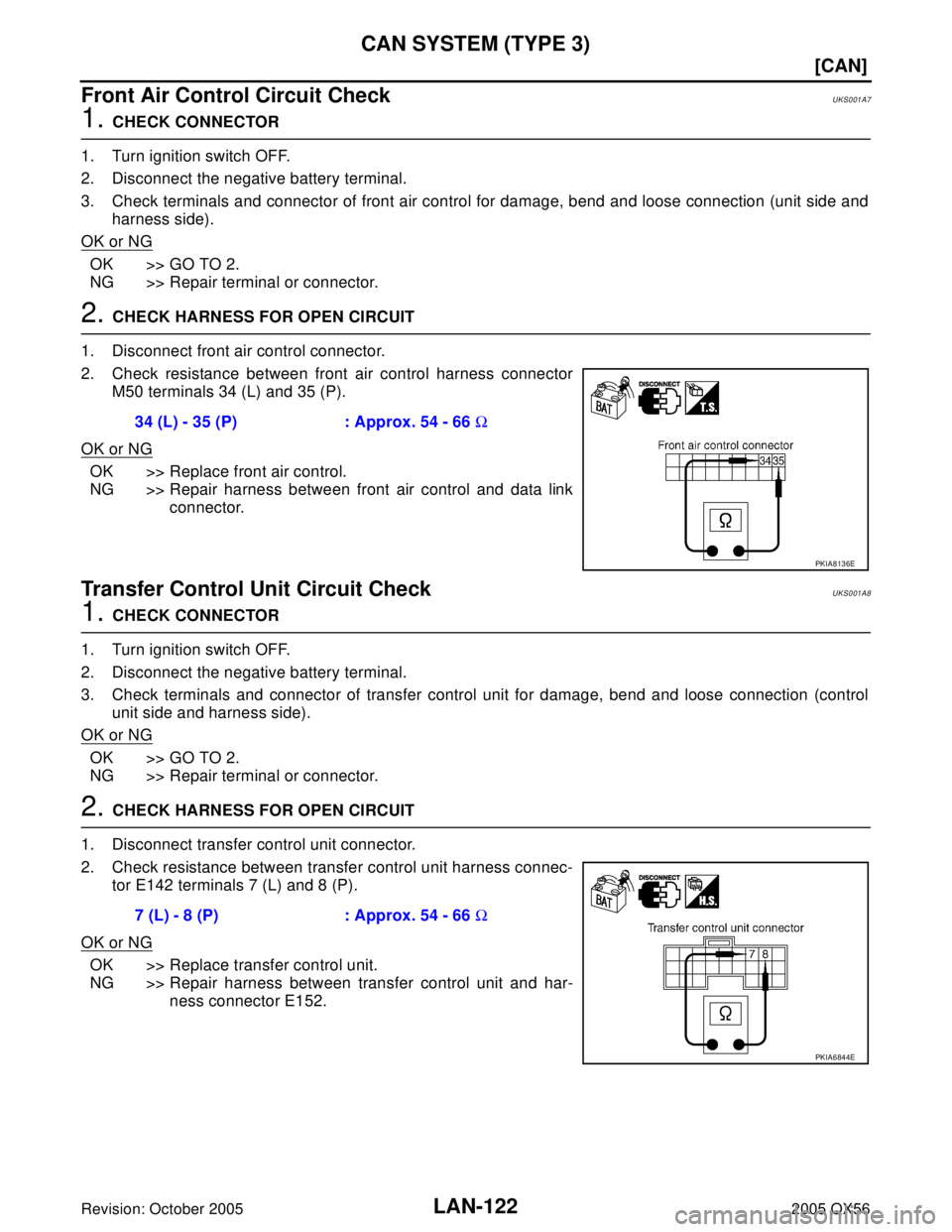

INFINITI QX4 2005 Factory Service Manual LAN-122 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Front Air Control Circuit CheckUKS001A7 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the negative battery terminal. 3

Page 2402 of 3419

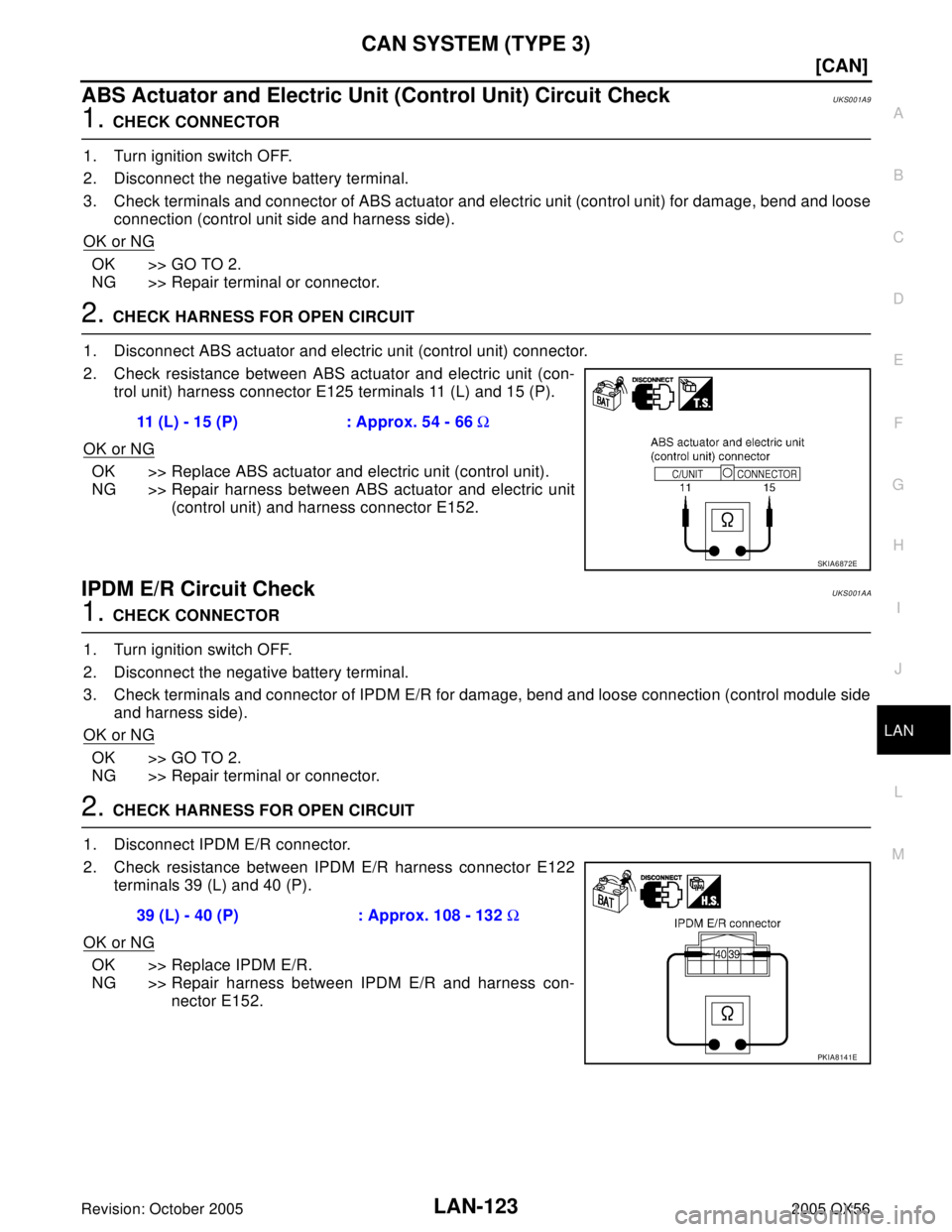

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-123 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 ABS Actuator and Electric Unit (Control Unit) Circuit CheckUKS001A9 1. CHECK CONNECTOR 1. Turn ignition swi

Page 2403 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-124 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 CAN Communication Circuit CheckUKS001AB 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the negative battery terminal. 3

Page 2404 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-125 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Component InspectionUKS001AD ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION Remove ECM and IPDM E/R from vehicle

Page 2405 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-126 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 CAN SYSTEM (TYPE 4)PFP:23710 System DescriptionUKS001NP CAN (Controller Area Network) is a serial communication line for real time app

Page 2406 of 3419

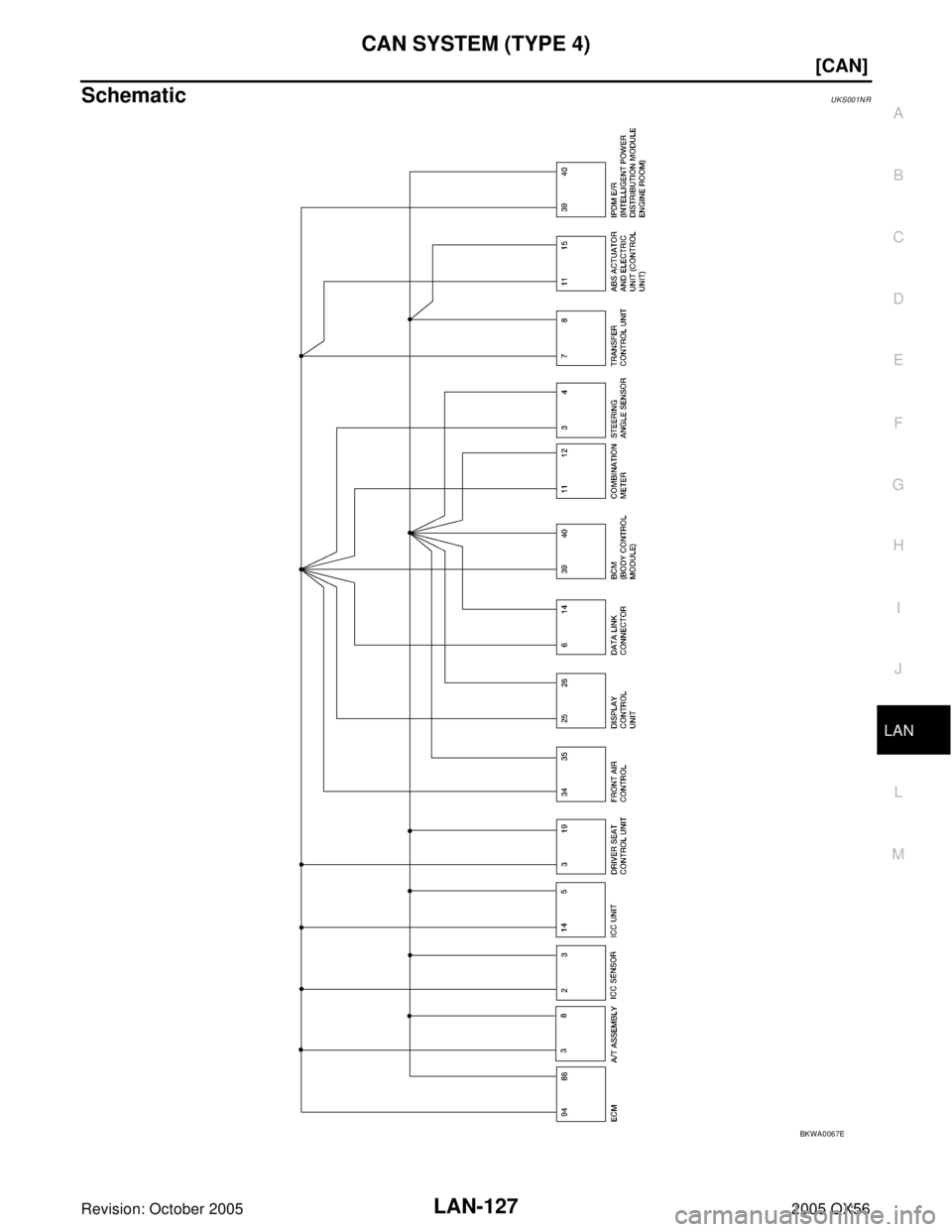

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-127 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 SchematicUKS001NR BKWA0067E

Page 2407 of 3419

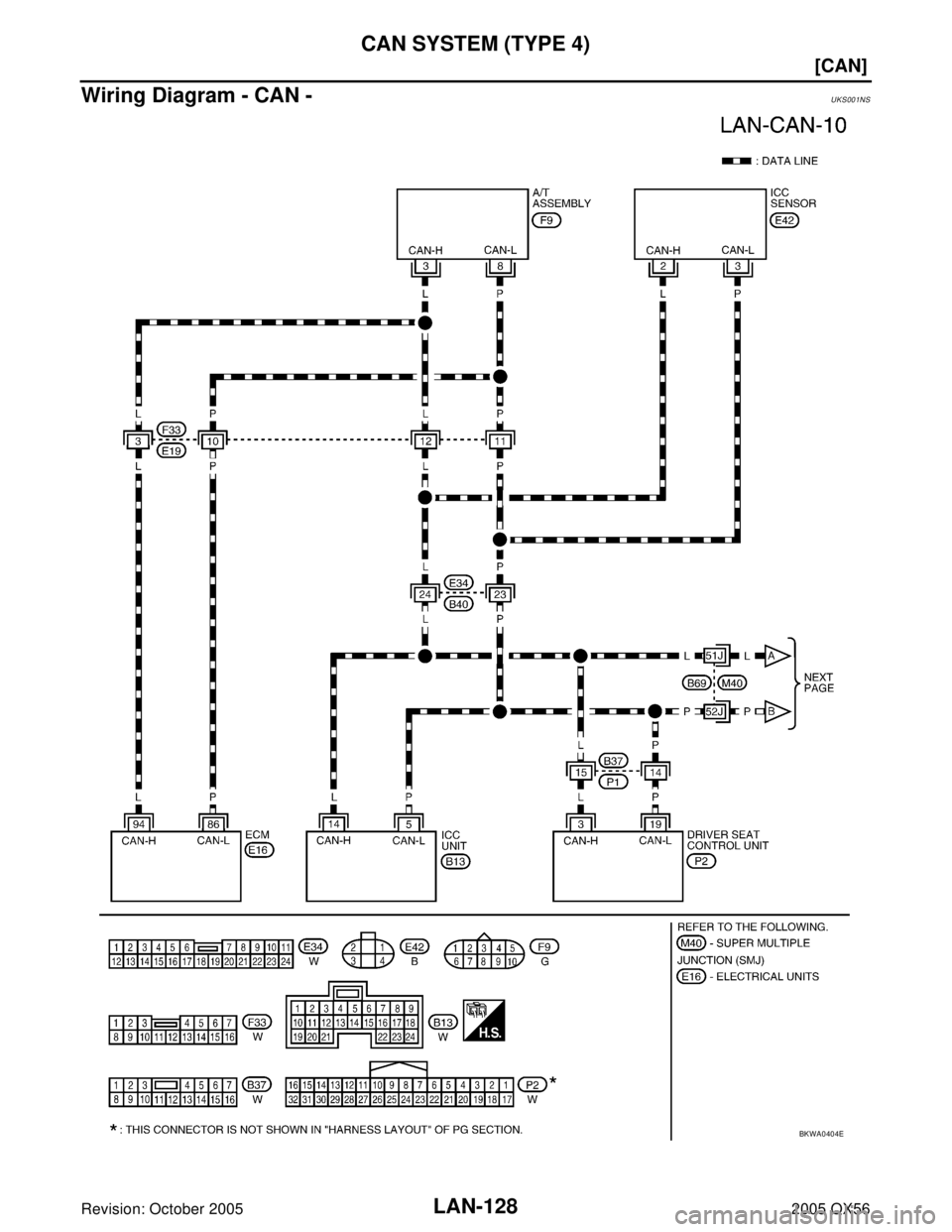

INFINITI QX4 2005 Factory Service Manual LAN-128 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 Wiring Diagram - CAN -UKS001NS BKWA0404E

Page 2408 of 3419

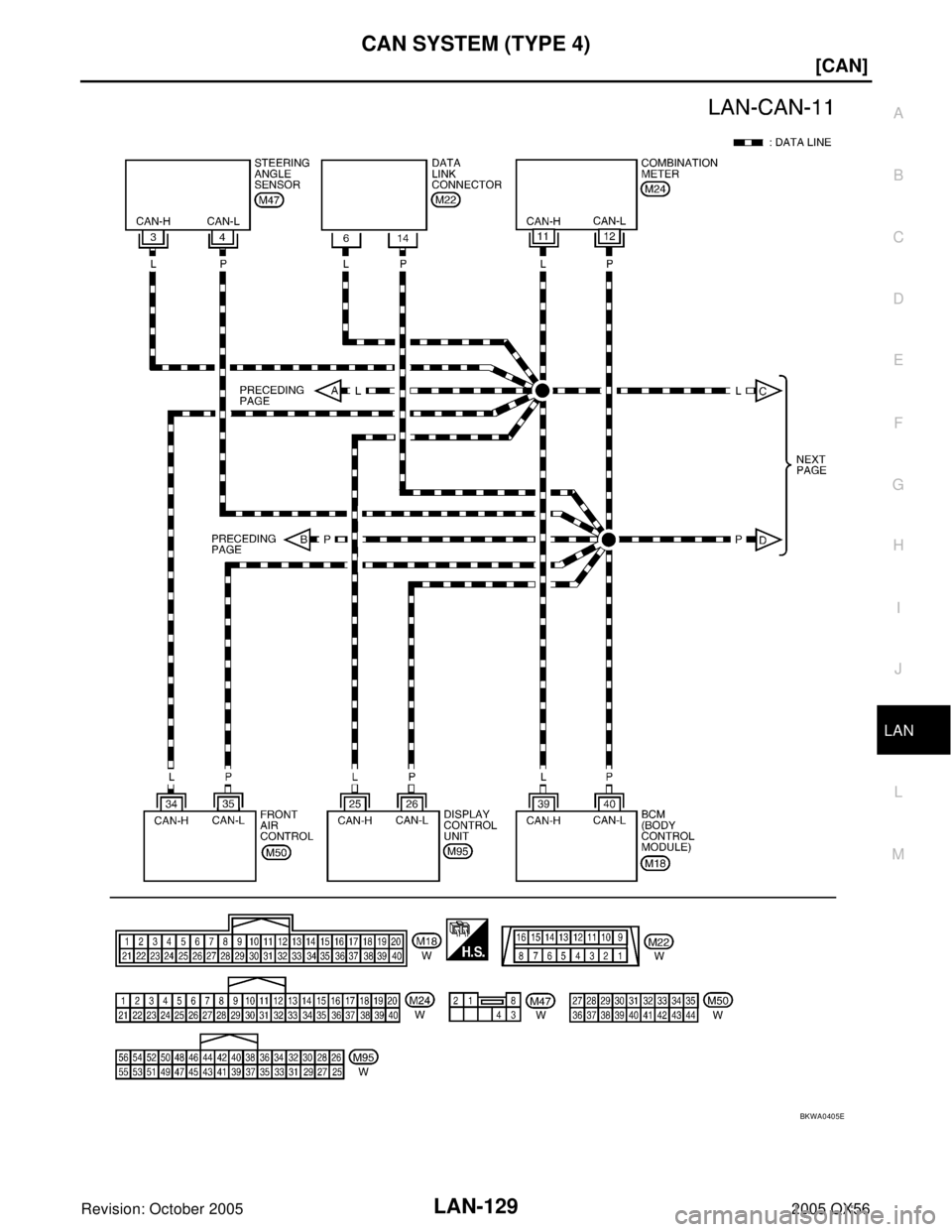

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-129 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 BKWA0405E
