INFINITI QX4 2005 Factory Service Manual EC-90Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
32. ERASE UNNECESSARY DTC
After this inspection, unnecessary DTC might be displayed.
Erase the stored memory in ECM and TCM. Refer to EC-6

EC-90Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
32. ERASE UNNECESSARY DTC
After this inspection, unnecessary DTC might be displayed.
Erase the stored memory in ECM and TCM. Refer to EC-62, "
HOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATION" and AT- 3 7 , "OBD-II Diagnostic Trouble Code (DTC)" .
>> GO TO 4.
33. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to
BL-139, "
ECM Re-communicating Function" .
>> GO TO 4.
VIN RegistrationUBS00KZX
DESCRIPTION
VIN Registration is an operation to registering VIN in ECM. It must be performed each time ECM is replaced.
NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).
OPERATION PROCEDURE
With CONSULT-II
1. Check the VIN of the vehicle and note it. Refer to GI-46, "IDENTIFICATION INFORMATION" .
2. Turn ignition switch ON and engine stopped.
3. Select “VIN REGISTRATION” in “WORK SUPPORT” mode.
4. Follow the instruction of CONSULT-II display.
Accelerator Pedal Released Position LearningUBS00KZY
DESCRIPTION
Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
Throttle Valve Closed Position LearningUBS00KZZ
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
PBIB2242E

Page 1282 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE
EC-91
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn i

Page 1283 of 3419

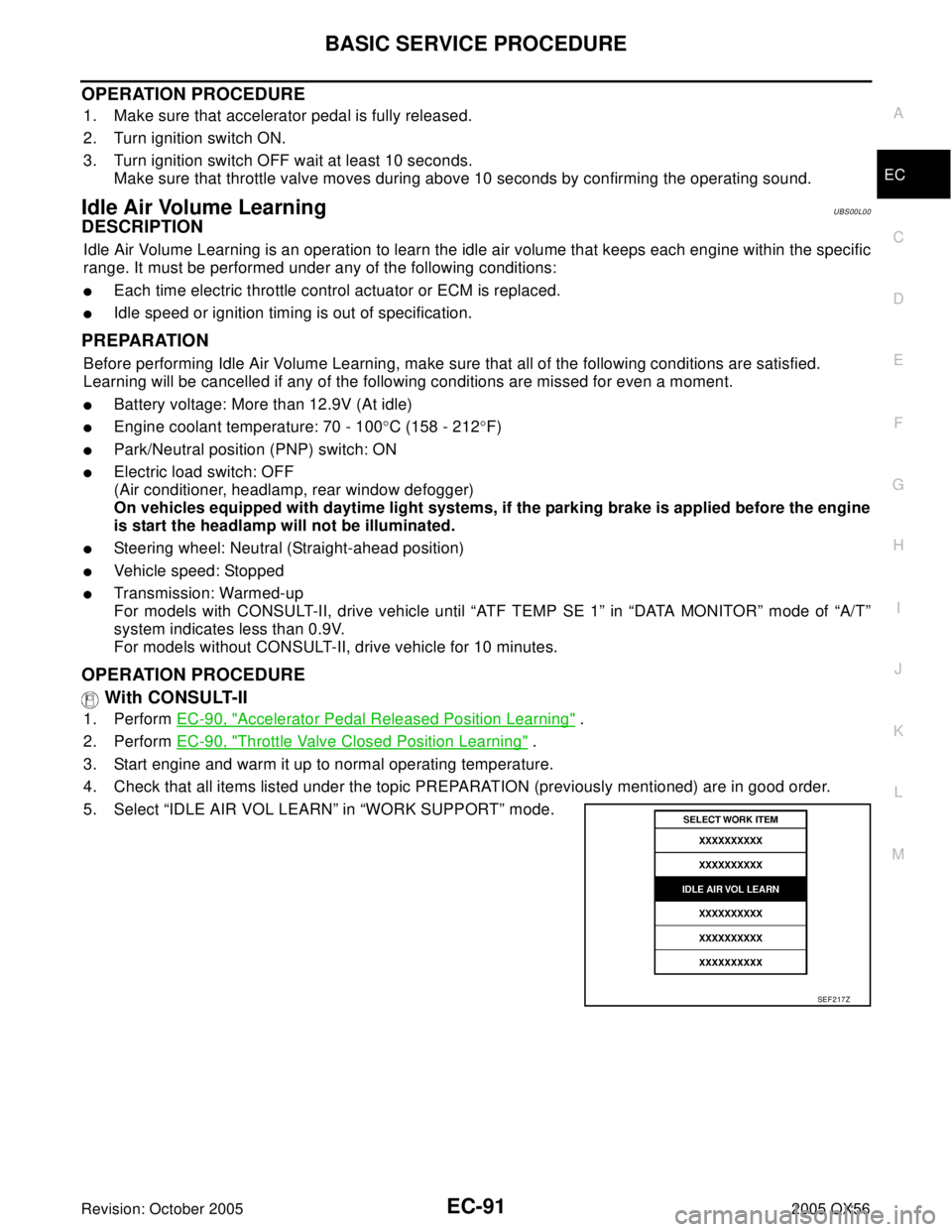

INFINITI QX4 2005 Factory Service Manual EC-92Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed

Page 1284 of 3419

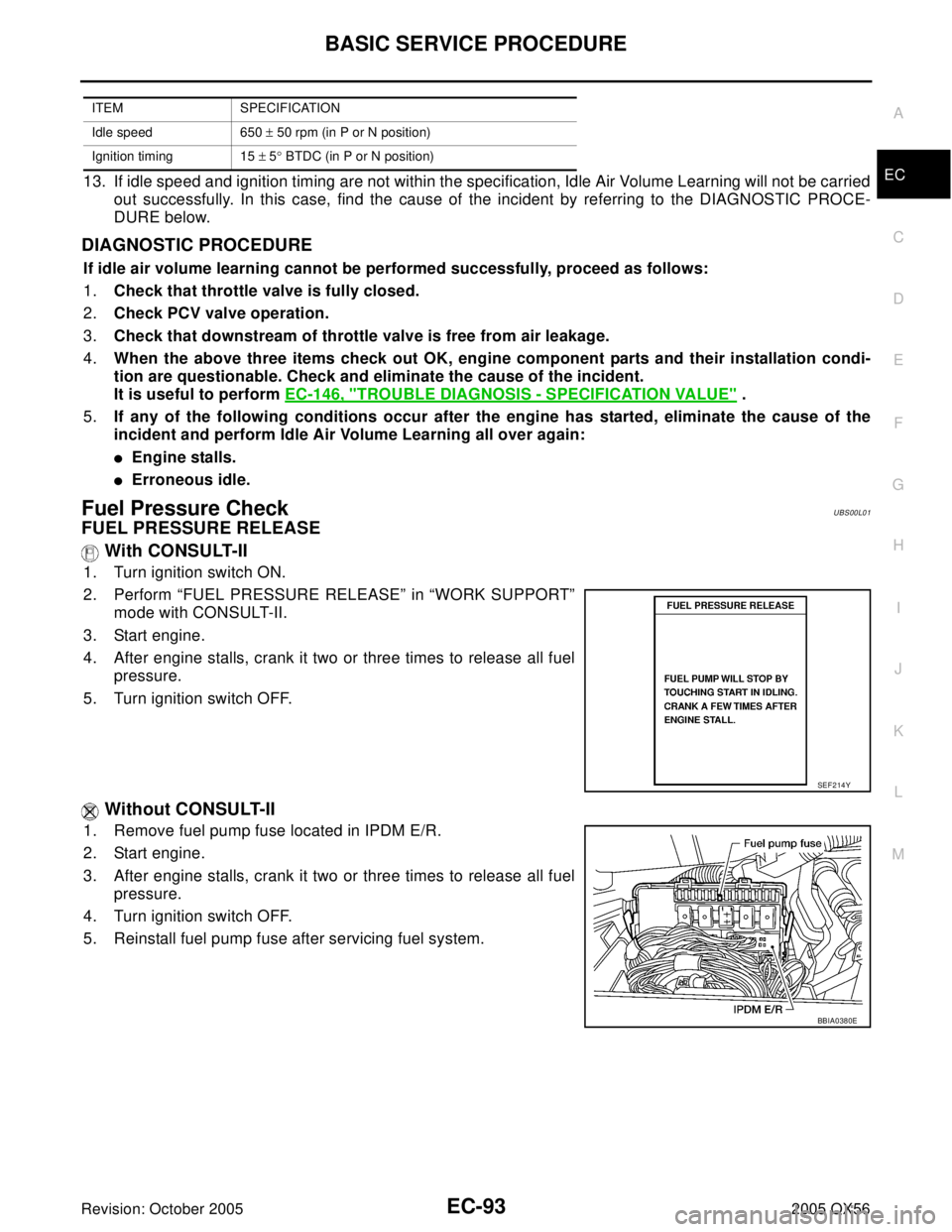

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE
EC-93
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX5613. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carr

Page 1285 of 3419

INFINITI QX4 2005 Factory Service Manual EC-94Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
FUEL PRESSURE CHECK
CAUTION:
Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
Be careful not to

EC-94Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
FUEL PRESSURE CHECK
CAUTION:
Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
Be careful not to scratch or get the fuel hose connection area dirty when servicing, so that the
quick connector o-ring maintains sealability.
Use Fuel Pressure Gauge Kit J-44321 and Fuel Pressure Adapter J-44321-6 to check fuel pressure.
Do not perform fuel pressure check with electrical system operating (i.e. lights, rear defog, A/C,
etc.). Fuel pressure gauge may indicate false readings due to varying engine loads and changes in
manifold vacuum.
NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-
sure cannot be completely released because JA60 models do not have fuel return system.
1. Release fuel pressure to zero. Refer to EC-93, "
FUEL PRESSURE RELEASE" .
2. Remove engine cover.
3. Remove fuel hose using Quick Connector Release J-45488. Refer to EM-15, "
INTAKE MANIFOLD" .
Do not twist or kink fuel hose because it is plastic hose.
Do not remove fuel hose from quick connector.
Keep fuel hose connections clean.
4. Install Fuel Pressure Adapter J-44321-6 and Fuel Pressure
Gauge (from kit J-44321) as shown in figure.
Do not distort or bend fuel rail tube when installing fuel pres-
sure gauge adapter.
When reconnecting fuel hose, check the original fuel hose for
damage and abnormality.
5. Turn ignition switch ON (reactivate fuel pump), and check for
fuel leakage.
6. Start engine and check for fuel leakage.
7. Read the indication of fuel pressure gauge.
During fuel pressure check, check for fuel leakage from fuel
connection every 3 minutes.
8. If result is unsatisfactory, go to next step.
9. Check the following.
Fuel hoses and fuel tubes for clogging
Fuel filter for clogging
Fuel pump
Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.
10. Before disconnecting Fuel Pressure Gauge and Fuel Pressure Adapter J-44321-6, release fuel pressure
to zero. Refer to EC-93, "
FUEL PRESSURE RELEASE" . At idling:
Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)
BBIA0390E

Page 1286 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-95
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionUBS00L02
INTRODUCTION
The engine has an ECM to control major

Page 1287 of 3419

INFINITI QX4 2005 Factory Service Manual EC-96Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56

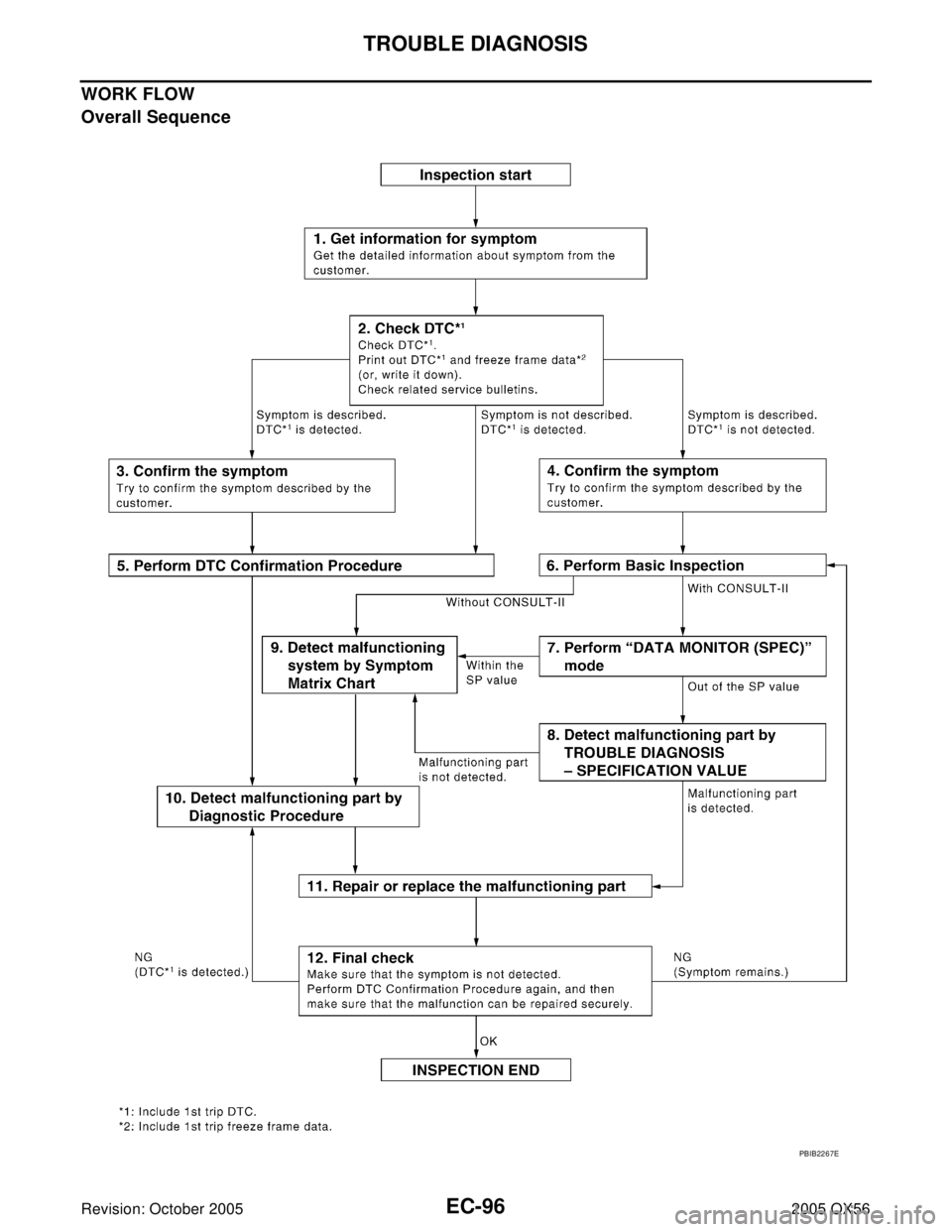

WORK FLOW
Overall Sequence
PBIB2267E

Page 1288 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-97
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Detailed Flow
1. GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the con
