Page 2953 of 4647
EC-1424
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
REFRIGERANT PRESSURE SENSORPFP:92136
Component DescriptionNBS005Q7
The refrigerant pressure sensor (1) is installed at the condenser of
the air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
PBIA9537J
PBIB2657E
Page 2954 of 4647
REFRIGERANT PRESSURE SENSOR
EC-1425
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

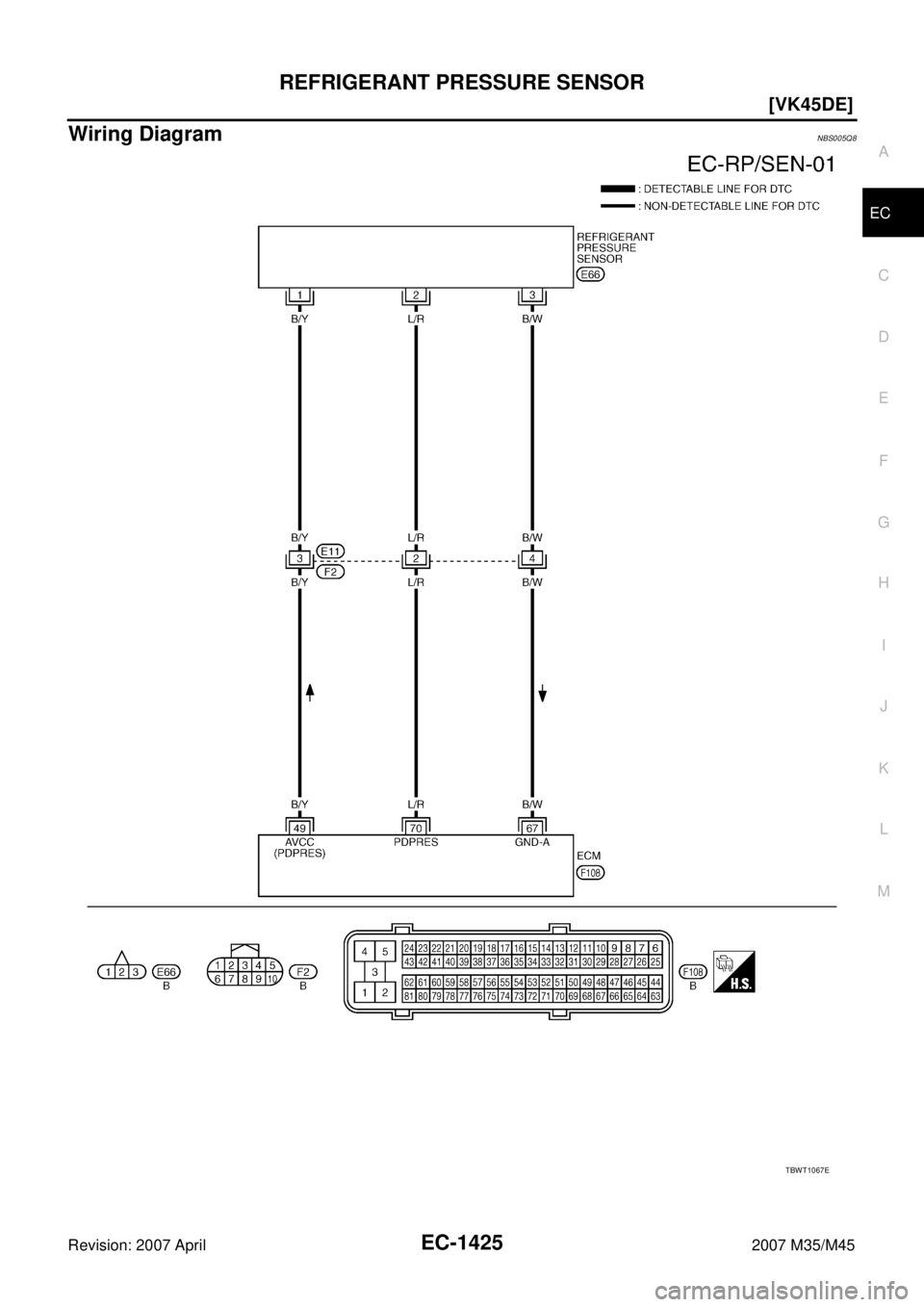

Wiring DiagramNBS005Q8
TBWT1067E
Page 2955 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1426
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground INFINITI M35 2007 Factory Service Manual EC-1426
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground](/manual-img/42/57024/w960_57024-2954.png)
EC-1426
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005Q9
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn A/C switch and blower fan switch OFF.
2. Turn ignition switch OFF.
3. Loosen and retighten ground screws on the body.
Refer to EC-864, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 B/YSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(Refrigerant pressure sen-
sor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
70 L/R Refrigerant pressure sensor[Engine is running]
Warm-up condition
Both A/C switch and blower fan motor
switch: ON (Compressor operates)1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2956 of 4647
![INFINITI M35 2007 Factory Service Manual REFRIGERANT PRESSURE SENSOR
EC-1427
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sen INFINITI M35 2007 Factory Service Manual REFRIGERANT PRESSURE SENSOR
EC-1427
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sen](/manual-img/42/57024/w960_57024-2955.png)
REFRIGERANT PRESSURE SENSOR
EC-1427
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 1
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIA9537J
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.
Page 2957 of 4647
EC-1428
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationNBS005QA
REFRIGERANT PRESSURE SENSOR
Refer to ATC-166, "Removal and Installation of Refrigerant Pressure Sensor" . Continuity should exist.
Page 2958 of 4647
![INFINITI M35 2007 Factory Service Manual VIAS
EC-1429
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
VIASPFP:14956
DescriptionNBS005PK
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of en INFINITI M35 2007 Factory Service Manual VIAS
EC-1429
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
VIASPFP:14956
DescriptionNBS005PK
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of en](/manual-img/42/57024/w960_57024-2957.png)
VIAS
EC-1429
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
VIASPFP:14956
DescriptionNBS005PK
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
The power valve is always open regardless of the engine speed when gear position is in N or P.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
VIAS control VIAS control solenoid valve Mass air flow sensor Amount of intake air
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Engine coolant temperature sensor Engine coolant temperature
PBIB1876E
Page 2959 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1430
[VK45DE]
VIAS
Revision: 2007 April2007 M35/M45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variab INFINITI M35 2007 Factory Service Manual EC-1430
[VK45DE]
VIAS
Revision: 2007 April2007 M35/M45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variab](/manual-img/42/57024/w960_57024-2958.png)
EC-1430
[VK45DE]
VIAS
Revision: 2007 April2007 M35/M45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator (1) operated by the vacuum stored in the surge tank.
The vacuum in the surge tank is controlled by the VIAS control sole-
noid valve.
: Vehicle front
VIAS Control Solenoid Valve
The VIAS control solenoid valve (1) cuts the intake manifold vacuum
signal for power valve actuator. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
: Vehicle front
CONSULT-II Reference Value in Data Monitor ModeNBS005PL
PBIB2695E
PBIB2694E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V
Selector lever: P or N
ON
Engine speed: More than 5,000 rpm
Selector lever: Except P or N
Engine speed: Less than 5,000 rpmOFF
Page 2960 of 4647
VIAS
EC-1431
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

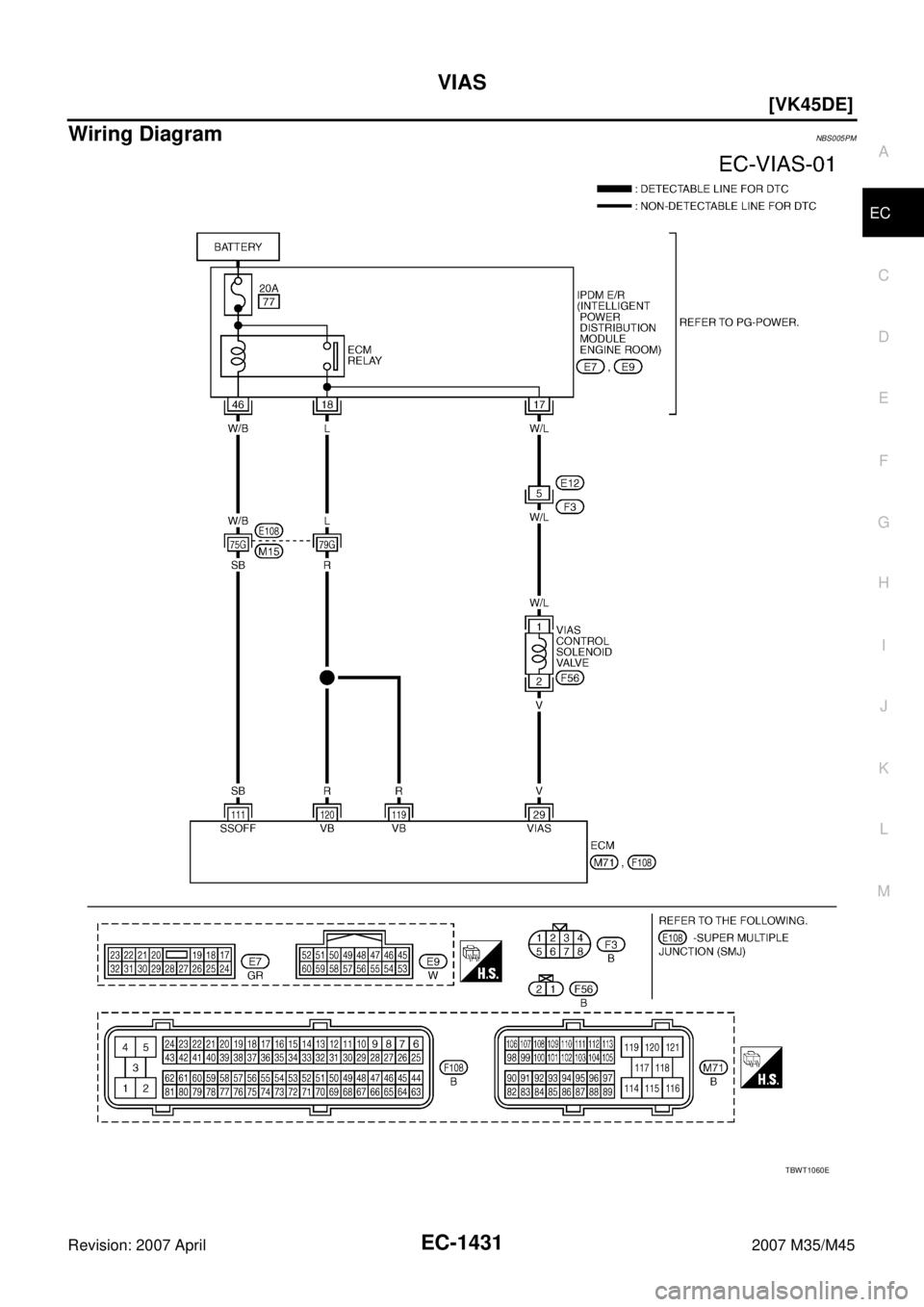

Wiring DiagramNBS005PM
TBWT1060E
