![INFINITI M35 2007 Factory Service Manual EC-872
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45

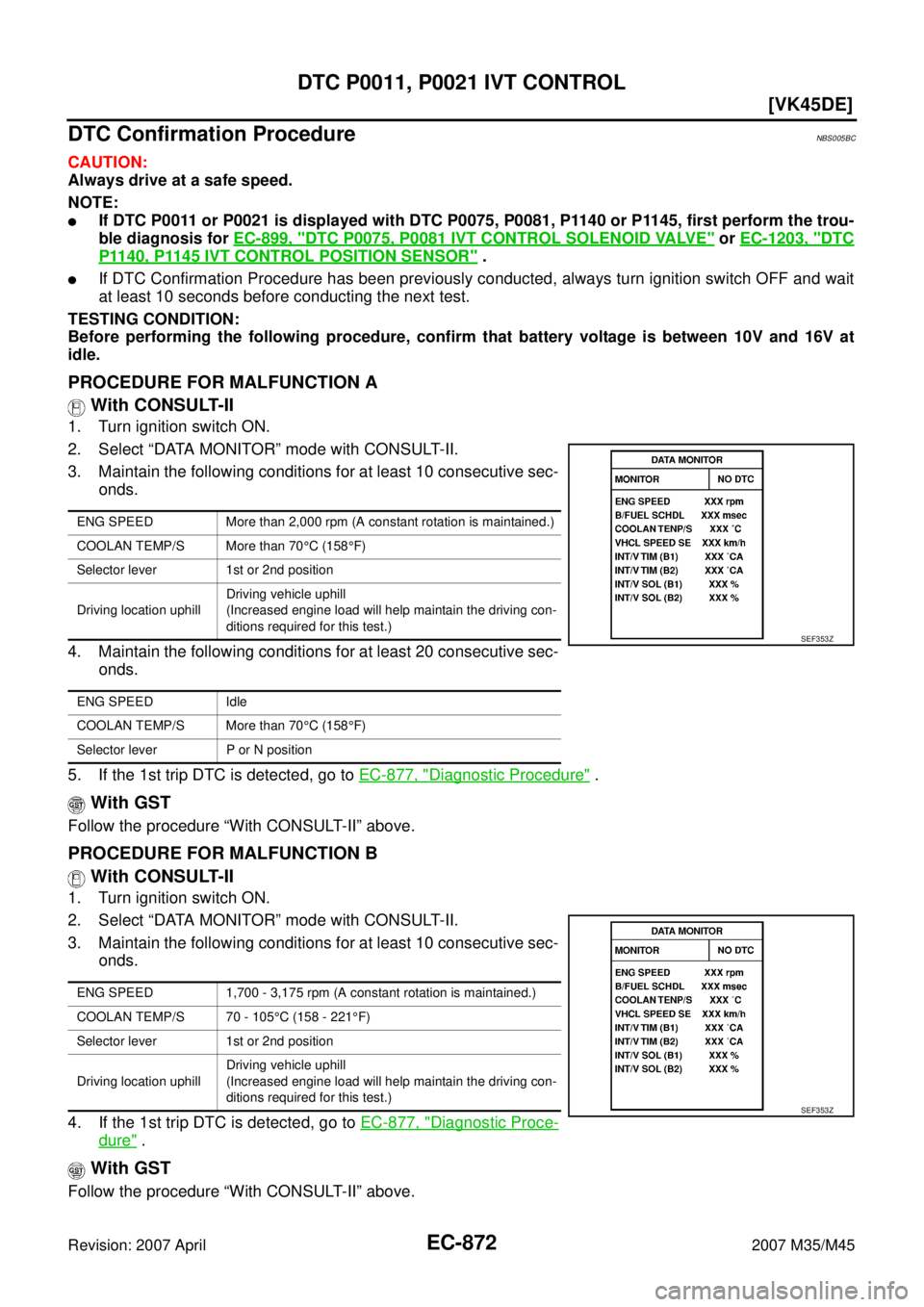

DTC Confirmation ProcedureNBS005BC
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with D INFINITI M35 2007 Factory Service Manual EC-872
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005BC
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with D](/manual-img/42/57024/w960_57024-2400.png)
EC-872
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005BC
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P0075, P0081, P1140 or P1145, first perform the trou-
ble diagnosis for EC-899, "
DTC P0075, P0081 IVT CONTROL SOLENOID VALVE" or EC-1203, "DTC
P1140, P1145 IVT CONTROL POSITION SENSOR" .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. Maintain the following conditions for at least 20 consecutive sec-
onds.
5. If the 1st trip DTC is detected, go to EC-877, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. If the 1st trip DTC is detected, go to EC-877, "
Diagnostic Proce-
dure" .
With GST
Follow the procedure “With CONSULT-II” above.
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70°C (158°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
ENG SPEED Idle
COOLAN TEMP/S More than 70°C (158°F)
Selector lever P or N position
SEF353Z
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 70 - 105°C (158 - 221°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
SEF353Z
Page 2402 of 4647
DTC P0011, P0021 IVT CONTROL
EC-873
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

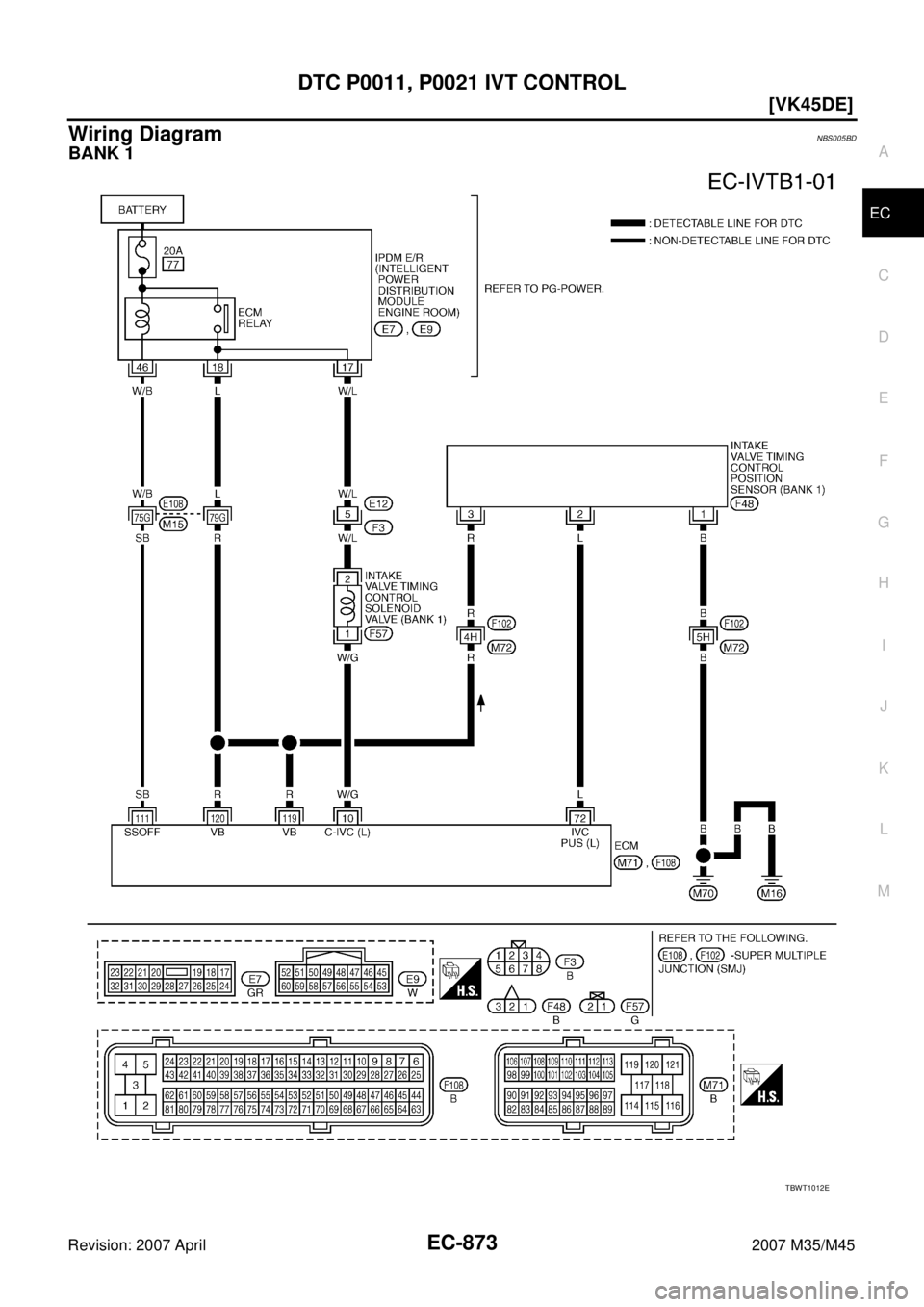

Wiring DiagramNBS005BD
BANK 1
TBWT1012E
Page 2403 of 4647
![INFINITI M35 2007 Factory Service Manual EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CON INFINITI M35 2007 Factory Service Manual EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CON](/manual-img/42/57024/w960_57024-2402.png)
EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
10 W/GIntake valve timing control
solenoid valve (bank 1)[Engine is running]
Warm-up condition
Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm7 - 12V
72 LIntake valve timing control
position sensor (bank 1)[Engine is running]
Warm-up condition
Idle speed0 - 1.0V
[Engine is running]
Engine speed: 2,000rpm0 - 1.0V
111 S BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB1790E
PBIB2734E
PBIB2735E
Page 2404 of 4647
DTC P0011, P0021 IVT CONTROL
EC-875
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

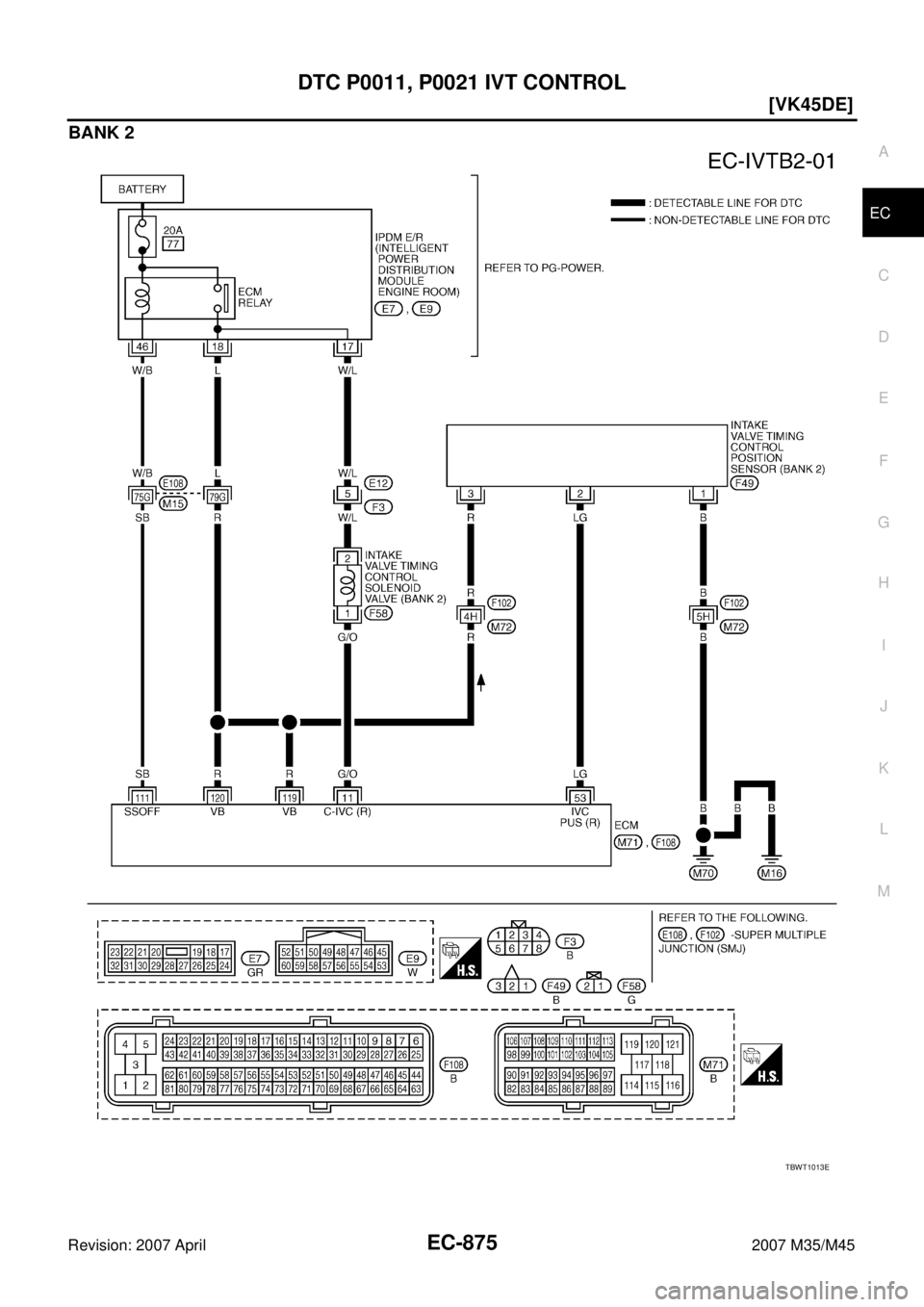

BANK 2
TBWT1013E
Page 2405 of 4647
![INFINITI M35 2007 Factory Service Manual EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CON INFINITI M35 2007 Factory Service Manual EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CON](/manual-img/42/57024/w960_57024-2404.png)
EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 G/OIntake valve timing control
solenoid valve (bank 2)[Engine is running]
Warm-up condition
Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm7 - 12V
53 LGIntake valve timing control
position sensor (bank 2)[Engine is running]
Warm-up condition
Idle speed0 - 1.0V
[Engine is running]
Engine speed: 2,000 rpm0 - 1.0V
111 S BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB1790E
PBIB2734E
PBIB2735E
Page 2406 of 4647
DTC P0011, P0021 IVT CONTROL
EC-877
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

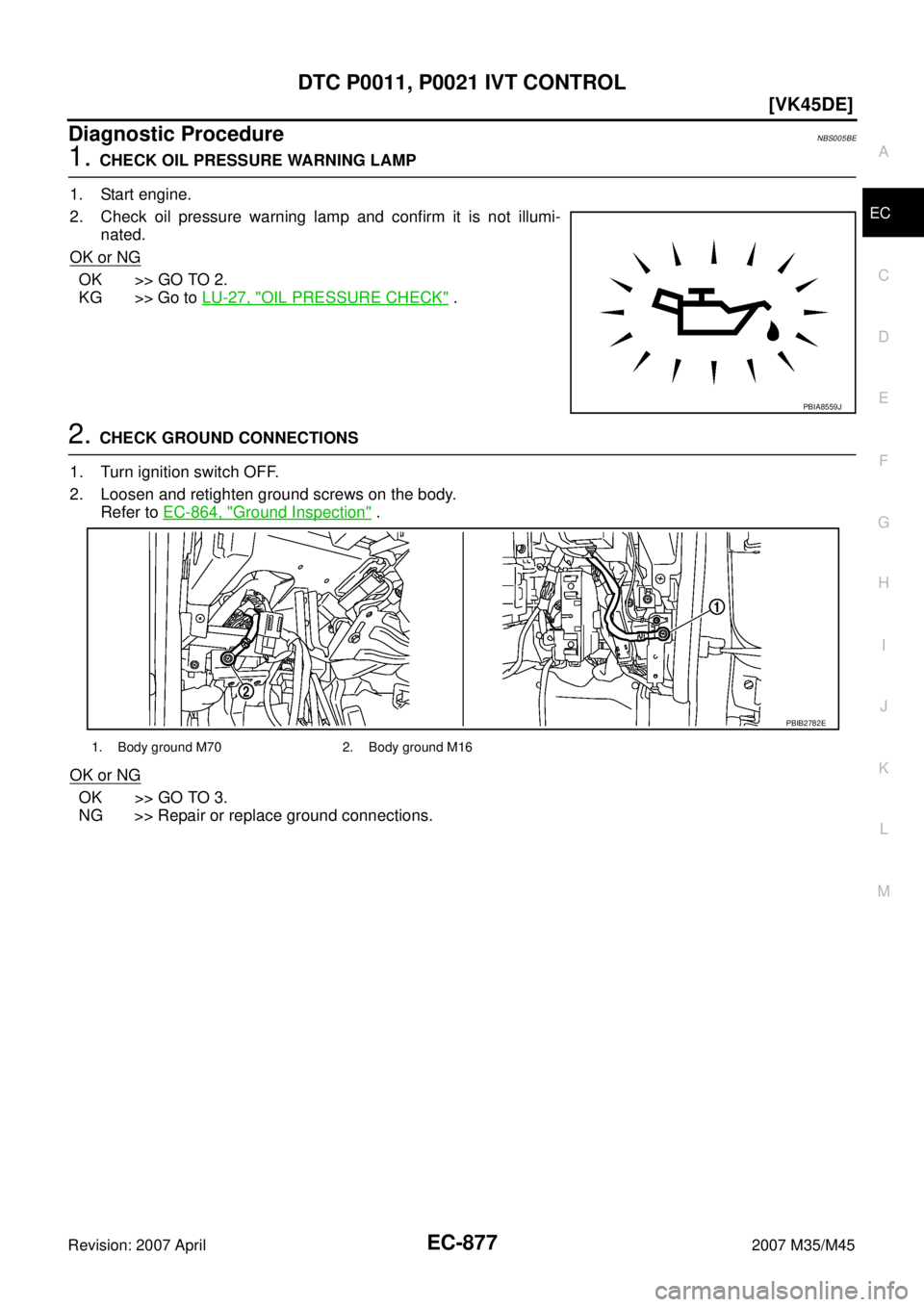

Diagnostic ProcedureNBS005BE
1. CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi-
nated.
OK or NG
OK >> GO TO 2.
KG >> Go to LU-27, "
OIL PRESSURE CHECK" .
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-864, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
PBIA8559J
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2407 of 4647
![INFINITI M35 2007 Factory Service Manual EC-878
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45

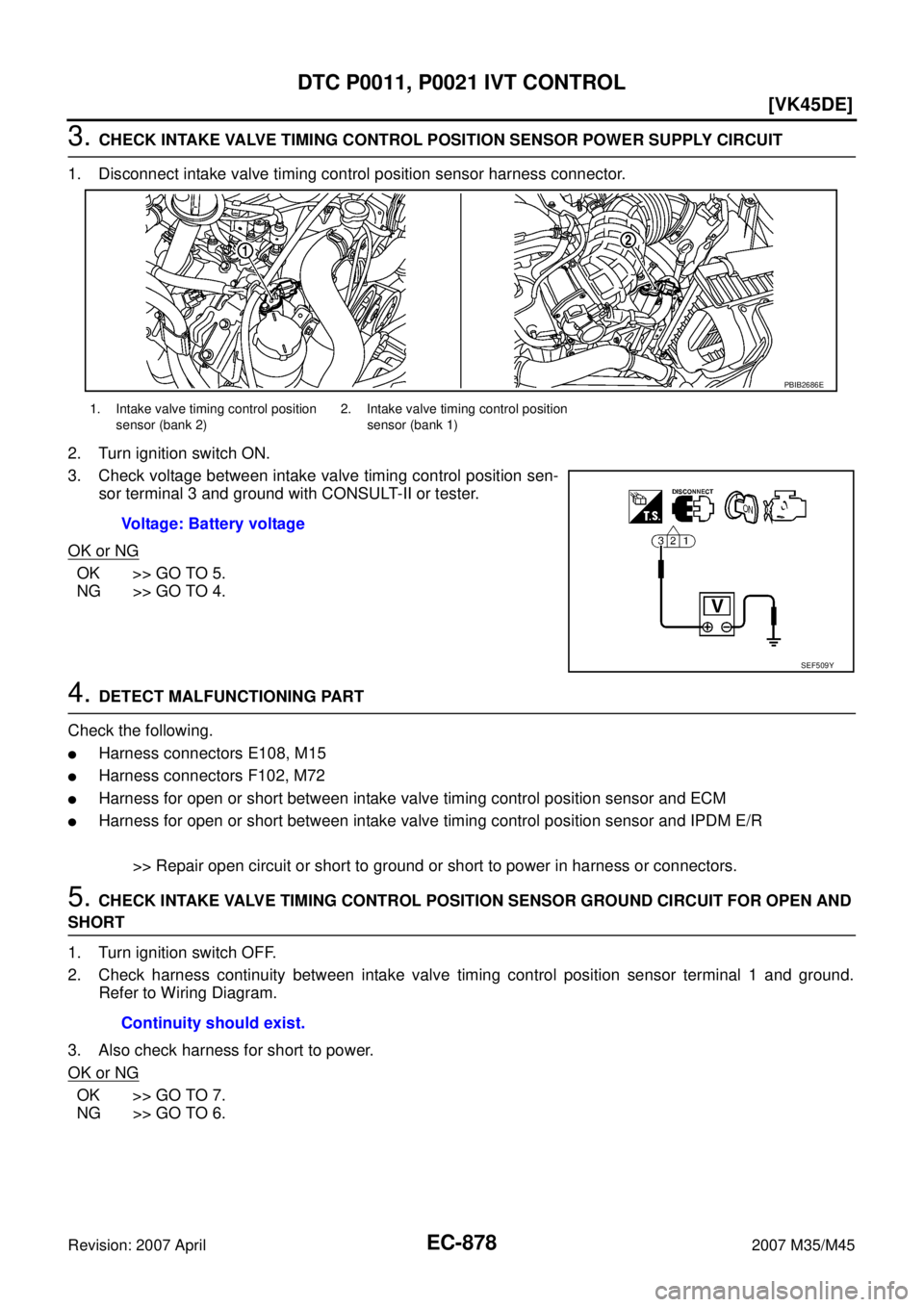

3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control positi INFINITI M35 2007 Factory Service Manual EC-878
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control positi](/manual-img/42/57024/w960_57024-2406.png)
EC-878
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2007 April2007 M35/M45
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen-
sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and ECM
Harness for open or short between intake valve timing control position sensor and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
1. Intake valve timing control position
sensor (bank 2)2. Intake valve timing control position
sensor (bank 1)
Voltage: Battery voltage
PBIB2686E
SEF509Y
Continuity should exist.
Page 2408 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-879
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for op INFINITI M35 2007 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-879
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for op](/manual-img/42/57024/w960_57024-2407.png)
DTC P0011, P0021 IVT CONTROL
EC-879
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-881, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace intake valve timing control position sensor.Continuity should exist.
