Page 177 of 4647

AT-98
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
SFT UP ST SW (ON/OFF) — —
Not mounted but displayed.
SFT DWN ST SW (ON/OFF) — —
ASCD·OD CUT (ON/OFF) — —
ASCD·CRUISE (ON/OFF) — —
ABS SIGNAL (ON/OFF) — —
ACC OD CUT (ON/OFF) — —
Intelligent cruise control (ICC) system
ACC SIGNAL (ON/OFF) — —
TCS GR/P KEEP (ON/OFF) — —
TCS SIGNAL 2 (ON/OFF) — —
TCS SIGNAL 1 (ON/OFF) — —
TCC SOLENOID (A) — X
LINE PRES SOL (A) — X
I/C SOLENOID (A) — X
FR/B SOLENOID (A) — X
D/C SOLENOID (A) — X
HLR/C SOL (A) — X
ON OFF SOL (ON/OFF) — — LC/B solenoid
TCC SOL MON (A) — —
L/P SOL MON (A) — —
I/C SL MON (A) — —
FR/B SOL MON (A) — —
D/C SOL MON (A) — —
HLR/C SOL MON (A) — —
ON OFF SOL MON (ON/OFF) — — LC/B solenoid
P POSI IND (ON/OFF) — —
R POSI IND (ON/OFF) — —
N POSI IND (ON/OFF) — —
D POSI IND (ON/OFF) — —
4TH POSI IND (ON/OFF) — —
3RD POSI IND (ON/OFF) — —
2ND POSI IND (ON/OFF) — —
1ST POSI IND (ON/OFF) — —
MANU MODE IND (ON/OFF) — —
POWER M LAMP (ON/OFF) — —
F-SAFE IND/L (ON/OFF) — —Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
Page 178 of 4647
TROUBLE DIAGNOSIS
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
ATF WARN LAMP (ON/OFF) — — Not mounted but displayed.
BACK-UP LAMP (ON/OFF) — —
STARTER RELAY (ON/OFF) — —
PNP SW3 MON (ON/OFF) — —
C/V CLB ID1 — —
C/V CLB ID2 — —
C/V CLB ID3 — —
UNIT CLB ID1 — —
UNIT CLB ID2 — —
UNIT CLB ID3 — —
TRGT GR RATIO — —
TRGT PRES TCC (kPa) — —
TRGT PRES L/P (kPa) — —
TRGT PRES I/C (kPa) — —
TRGT PRE FR/B (kPa) — —
TRGT PRES D/C (kPa) — —
TRG PRE HLR/C (kPa) — —
SHIFT PATTERN — —
DRV CST JUDGE — —
START RLY MON — —
NEXT GR POSI — —
SHIFT MODE — —
MANU GR POSI — —
VEHICLE SPEED (km/h) — X Vehicle speed recognized by the TCM.
Voltage (V) — —Displays the value measured by the voltage
probe.
Frequency (Hz) — —
The value measured by the pulse probe is dis-
played. DUTY-HI (high) (%) — —
DUTY-LOW (low) (%) — —
PLS WIDTH-HI (ms) — —
PLS WIDTH-LOW (ms) — —Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
Page 179 of 4647
AT-100
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
CAN DIAGNOSTIC SUPPORT MONITOR MODE
Operation Procedure
1. Touch “CAN DAIG SUPPORT MNTR” on “SELECT DIAG
MODE” screen. Refer to LAN-13, "
CAN Diagnostic Support
Monitor" .
DTC WORK SUPPORT MODE
Operation Procedure
1. Touch “DTC WORK SUPPORT” on “SELECT DIAG MODE”
screen.
2. Touch select item menu.
3. Touch “START”.
BCIA0031E
BCIA0031E
SCIA0512E
SCIA5159E
Page 180 of 4647
TROUBLE DIAGNOSIS
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
4. Perform driving test according to “DTC Confirmation Procedure”
in “TROUBLE DIAGNOSIS FOR DTC”.
When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.
5. Stop vehicle.
If “NG” appears on the screen, malfunction may exit. Go
to “Diagnostic Procedure”.
SCIA5160E
SCIA5161E
SCIA5164E
SCIA5162E
Page 181 of 4647
AT-102
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
6. Perform test drive to check gear shift feeling in accordance with
instructions displayed.
7. Touch “YES” or “NO”.
8. CONSULT-II procedure is ended.
If “NG” appears on the screen, a malfunction may exit.
Go to “Diagnostic Procedure”
Display Items List
*: Do not use, but displayed.
SCIA5163E
SCIA5162E
DTC work support item Description Check item
I/C SOL FUNCTN CHECK* — —
FR/B SOL FUNCTN CHECK* — —
D/C SOL FUNCTN CHECK* — —
HLR/C SOL FUNCTN CHECK* — —
LC/B SOL FUNCTN CHECK* — —
TCC SOL FUNCTN CHECKFollowing items for “TCC solenoid function (lock-up) ” can be con-
firmed.
Self-diagnosis status (whether the diagnosis is being performed
or not)
Self-diagnostic results (OK or NG)
TCC solenoid valve
Hydraulic control circuit
Page 182 of 4647

TROUBLE DIAGNOSIS
AT-103
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
Diagnostic Procedure without CONSULT-IINCS001KI
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-135, "Generic Scan Tool (GST) Function" (for VQ35DE engine), EC-838, "Generic Scan Tool
(GST) Function" (for VK45DE engine).
OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer to EC-70, "Malfunction Indicator Lamp (MIL)" (for VQ35DE engine), EC-772, "Malfunction Indicator
Lamp (MIL)" (for VK45DE engine).
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Description
As a method for locating the suspect circuit, when the self-diagnostics start signal is input, the memory for the
malfunction location is output and the A/T CHECK indicator lamp flashes to display the corresponding DTC.
Operation Procedure
1. CHECK A/T CHECK INDICATOR LAMP
1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.
2. Turn ignition switch ON and OFF at least twice, then leave it in the OFF position.
3. Wait 10 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does A/T CHECK indicator lamp come on for about 2 seconds?
YES >> GO TO 2.
NO >> GO TO AT- 1 9 0 , "
A/T CHECK Indicator Lamp Does Not Come On" .
2. JUDGEMENT PROCEDURE
1. Turn ignition switch OFF.
2. Keep pressing shift lock release button.
3. Move selector lever from “P” to “D” position.
4. Release accelerator pedal. (Set the closed throttle position signal ON.)
5. Depress brake pedal. (Stop lamp switch signal ON.)
6. Turn ignition switch ON.
7. Wait 3 seconds.
8. Move the selector lever to the manual shift gate side. (Manual mode signal ON.)
9. Release brake pedal. (Stop lamp switch signal OFF.)
10. Move the selector lever to “D” position. (Manual mode signal OFF.)
11. Depress brake pedal. (Stop lamp switch signal ON.)
12. Release brake pedal. (Stop lamp switch signal OFF.)
13. Depress accelerator pedal fully and release it.
>> GO TO 3.
3. CHECK SELF-DIAGNOSIS CODE
Check A/T CHECK indicator lamp.
Refer to AT- 1 0 4 , "
Judgement Self-diagnosis Code" .
If the system does not go into self-diagnostics. Refer to AT- 11 3 , "
DTC P0705 PARK/NEUTRAL POSITION
SWITCH" , AT- 1 8 4 , "CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIRCUIT" ,
AT- 1 6 7 , "
DTC P1815 MANUAL MODE SWITCH" , AT- 1 8 5 , "BRAKE SIGNAL CIRCUIT" .
>>DIAGNOSIS END
Page 183 of 4647

AT-104
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

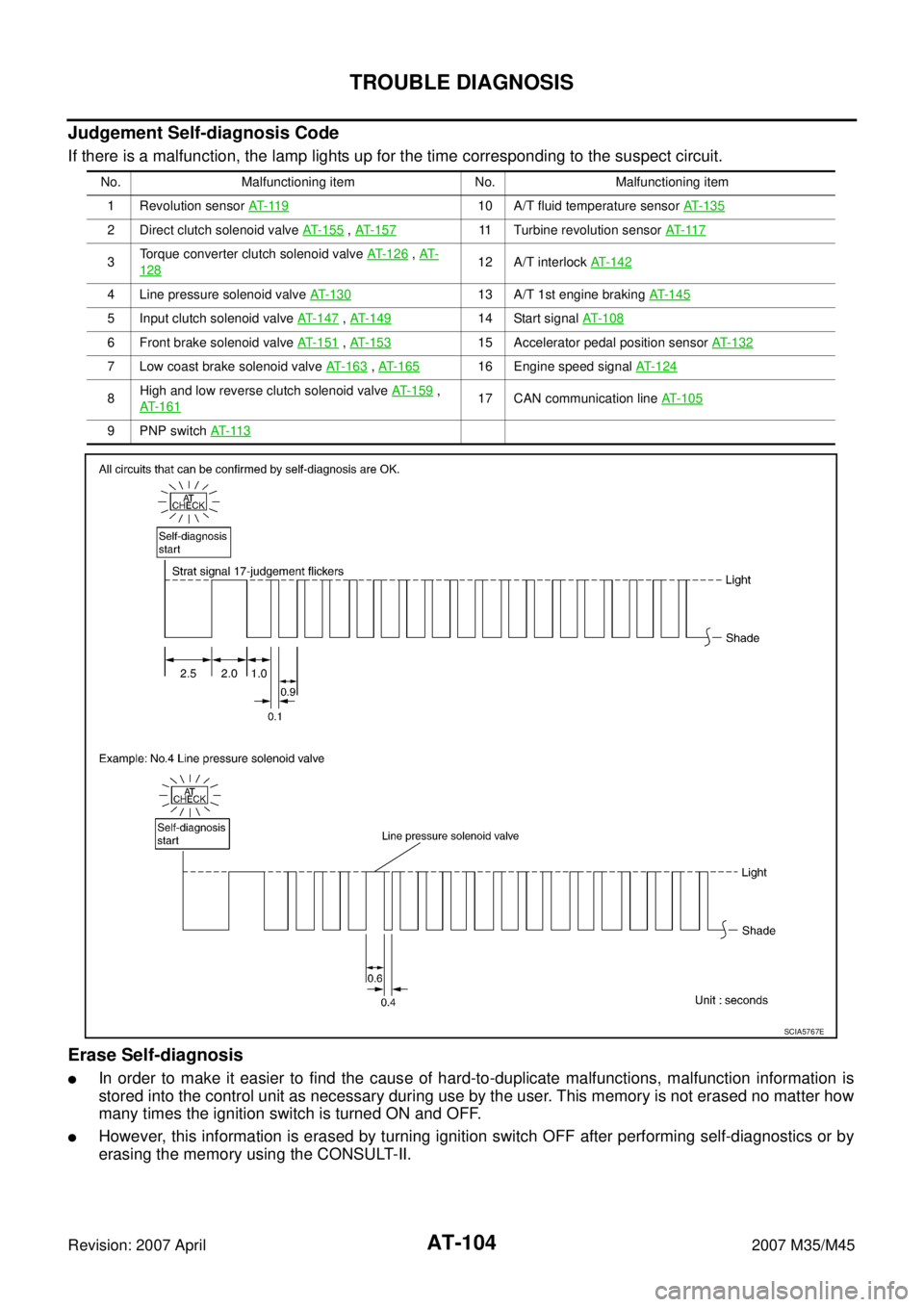

Judgement Self-diagnosis Code
If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.
Erase Self-diagnosis
In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is
stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned ON and OFF.
However, this information is erased by turning ignition switch OFF after performing self-diagnostics or by
erasing the memory using the CONSULT-II.
No. Malfunctioning item No. Malfunctioning item
1 Revolution sensor AT- 11 9
10 A/T fluid temperature sensor AT-135
2 Direct clutch solenoid valve AT- 1 5 5 , AT- 1 5 711 Turbine revolution sensor AT- 11 7
3Torque converter clutch solenoid valve AT- 1 2 6 , AT-
12812 A/T interlock AT-142
4 Line pressure solenoid valve AT- 1 3 013 A/T 1st engine braking AT- 1 4 5
5 Input clutch solenoid valve AT-147 , AT-14914 Start signal AT-108
6 Front brake solenoid valve AT-151 , AT-15315 Accelerator pedal position sensor AT-132
7 Low coast brake solenoid valve AT-163 , AT-16516 Engine speed signal AT-124
8High and low reverse clutch solenoid valve AT-159 ,
AT- 1 6 117 CAN communication line AT-105
9 PNP switch AT- 11 3
SCIA5767E
Page 184 of 4647

DTC U1000 CAN COMMUNICATION LINE
AT-105
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
DTC U1000 CAN COMMUNICATION LINEPFP:23710
DescriptionNCS001KJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicNCS001KK
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-II or 17th judgement flicker with-
out CONSULT-II is detected when TCM cannot communicate to other control units.
Possible CauseNCS001KL
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureNCS001KM
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNAL” or “MAIN SIGNAL” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to AT- 1 0 7 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
BCIA0030E
