INFINITI M35 2007 Factory Service Manual LT-310

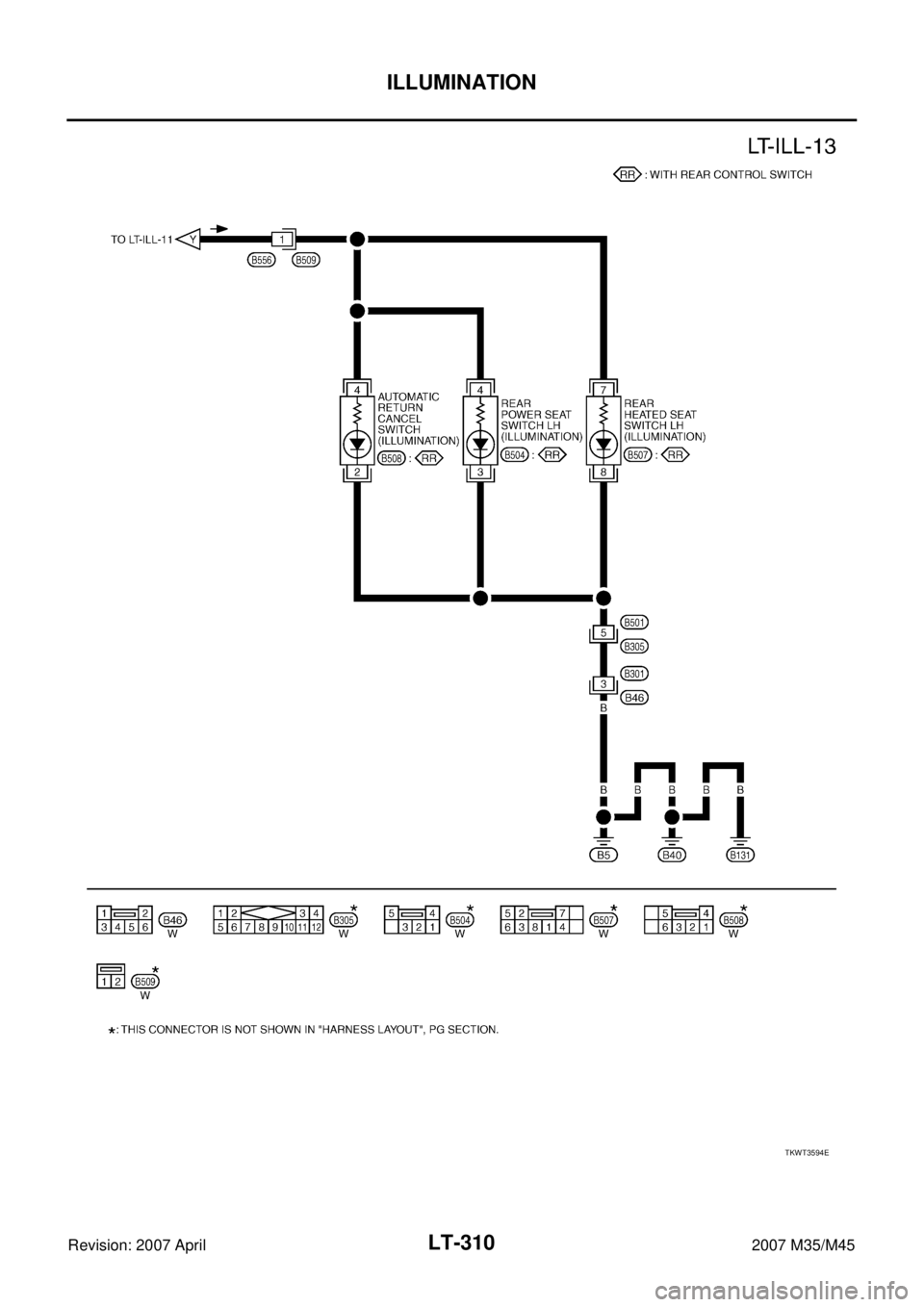

ILLUMINATION
Revision: 2007 April2007 M35/M45
TKWT3594E

Page 3762 of 4647

INFINITI M35 2007 Factory Service Manual ILLUMINATION
LT-311
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

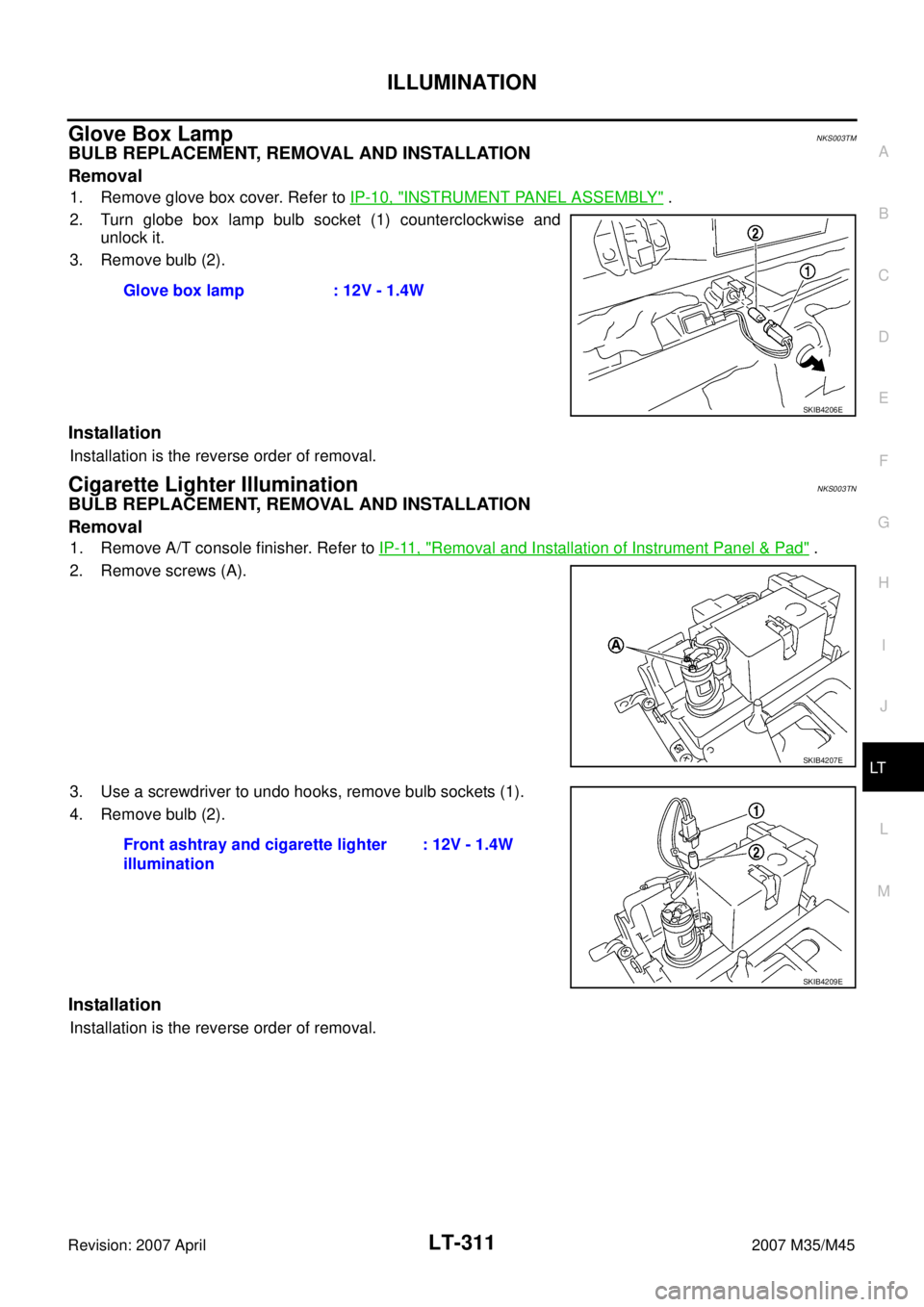

Glove Box LampNKS003TM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove glove box cover. Refer to IP-10, "INS

Page 3763 of 4647

INFINITI M35 2007 Factory Service Manual LT-312
ILLUMINATION
Revision: 2007 April2007 M35/M45
Front Ashtray IlluminationNKS003TO
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Refer to LT- 3 1 2 , "Front Ashtray Illumination" .
Rear Ashtray Ill

Page 3764 of 4647

INFINITI M35 2007 Factory Service Manual BULB SPECIFICATIONS
LT-313
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
BULB SPECIFICATIONSPFP:26297
HeadlampNKS003TQ
Exterior LampNKS003TR
Interior Lamp/IlluminationNKS003TS
NOTE:
This

Page 3765 of 4647

INFINITI M35 2007 Factory Service Manual LT-314
BULB SPECIFICATIONS
Revision: 2007 April2007 M35/M45

Page 3766 of 4647

INFINITI M35 2007 Factory Service Manual LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: 2007 April2007 M35/M45
ENGINE LUBRICATION SYSTEM
VQ35DE
PRECAUTIONS ..................................

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: 2007 April2007 M35/M45
ENGINE LUBRICATION SYSTEM
VQ35DE
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Chart ........................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 8
Changing Engine Oil ................................................ 9
OIL FILTER ................................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
INSPECTION AFTER INSTALLATION ................ 11
OIL FILTER BRACKET (AWD) ................................. 13
Components ........................................................... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 14
OIL COOLER ............................................................ 15
Components ........................................................... 15
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSPECTION AFTER REMOVAL ....................... 17
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ............... 17
OIL PUMP ................................................................. 19
Components ........................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 19INSPECTION AFTER INSTALLATION ................ 19
Disassembly and Assembly .................................... 19
DISASSEMBLY ................................................... 19
INSPECTION AFTER DISASSEMBLY ................ 20
ASSEMBLY ......................................................... 21
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 22
Standard and Limit .................................................. 22
ENGINE OIL PRESSURE ................................... 22
ENGINE OIL CAPACITY (APPROXIMATE) ........ 22
OIL PUMP ........................................................... 22
REGULATOR VALVE .......................................... 22
VK45DE
PRECAUTIONS ........................................................ 23
Precautions for Liquid Gasket ................................ 23
LIQUID GASKET APPLICATION PROCEDURE ... 23
PREPARATION ......................................................... 24
Special Service Tools ............................................. 24
Commercial Service Tools ...................................... 24
LUBRICATION SYSTEM .......................................... 25
Lubrication Circuit ................................................... 25
System Chart .......................................................... 26
ENGINE OIL .............................................................. 27
Inspection ............................................................... 27
ENGINE OIL LEVEL ............................................ 27
ENGINE OIL APPEARANCE .............................. 27
ENGINE OIL LEAKAGE ...................................... 27
OIL PRESSURE CHECK .................................... 27
Changing Engine Oil ............................................... 28
OIL FILTER ............................................................... 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30
INSPECTION AFTER INSTALLATION ................ 30
OIL PUMP ................................................................. 31
Components ........................................................... 31
Removal and Installation ........................................ 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31

Page 3767 of 4647

INFINITI M35 2007 Factory Service Manual LU-2Revision: 2007 April2007 M35/M45 INSPECTION AFTER INSTALLATION ................ 32
Disassembly and Assembly .................................... 32
DISASSEMBLY ...................................

Page 3768 of 4647

INFINITI M35 2007 Factory Service Manual PRECAUTIONS
LU-3
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS004PR
LIQUID GASKET APPLICATION PROCEDURE
1. Remove ol
