Page 3697 of 4647

INFINITI M35 2007 Factory Service Manual LT-246
BACK-UP LAMP
Revision: 2007 April2007 M35/M45
Bulb ReplacementNKS003SF
1. Remove trunk lid finisher inner. Refer to EI-33, "TRUNK LID FINISHER" .
2. Turn bulb socket (1) counterclockwise and un

Page 3698 of 4647

INFINITI M35 2007 Factory Service Manual BACK-UP LAMP
LT-247
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

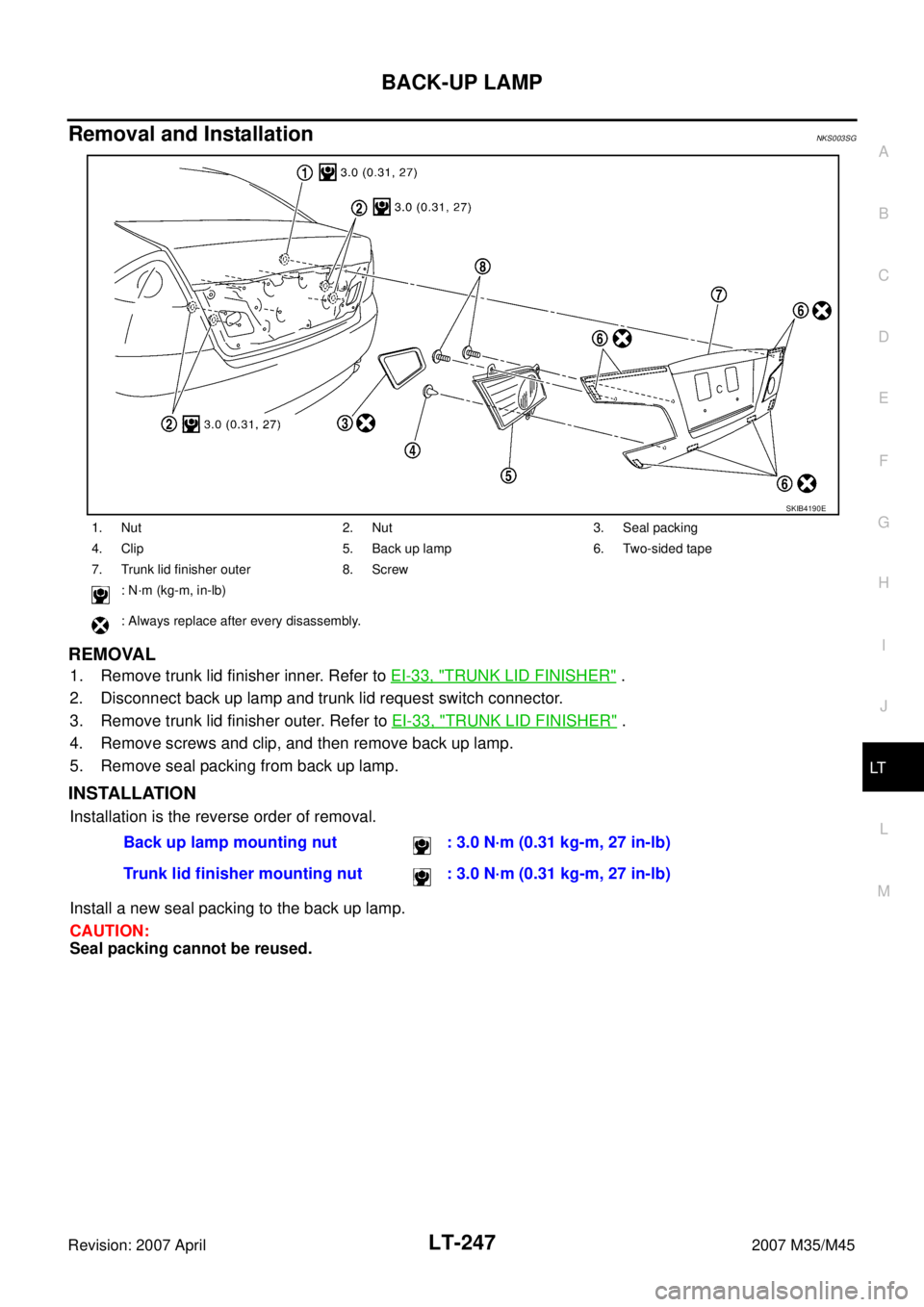

Removal and InstallationNKS003SG
REMOVAL
1. Remove trunk lid finisher inner. Refer to EI-33, "TRUNK LID FINISHER" .
2. Di

Page 3699 of 4647

INFINITI M35 2007 Factory Service Manual LT-248
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationNKS003SH
System DescriptionNK

Page 3700 of 4647

INFINITI M35 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-249
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
With the ignition switch in the ON or START position, power is supplied
to CPU located in IPDM

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-249
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
With the ignition switch in the ON or START position, power is supplied
to CPU located in IPDM E/R,
through 15A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 52
through grounds M16 and M70,
to IPDM E/R terminals 38 and 51
through grounds E22 and E43.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate and tail lamps to illuminate. This input signal is communi-
cated to the IPDM E/R across the CAN communication lines. The CPU located in the IPDM E/R controls the
tail lamp relay coil, which when energized, directs power
through IPDM E/R terminal 21
to front combination lamp LH and RH terminals 5 (parking)
to front combination lamp LH and RH terminals 7 (side marker)
to rear combination lamp LH and RH terminals 1 (tail and side marker)
to license plate lamp LH and RH terminals 1.
Ground is supplied at all times
to front combination lamp LH and RH terminals 1 (parking and side marker)
through grounds E22 and E43,
to rear combination lamp LH and RH terminals 4 (tail and side marker)
through grounds B5, B40 and B131.
to license plate lamp LH and RH terminals 2
through grounds B402 and B405.
With power and ground supplied, the parking, license plate and tail lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer toBCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST (or 2ND) position, and ignition switch is turned
from ON or ACC to OFF, battery saver control feature is activated.
Under this condition, parking, license plate, side marker and tail lamps remain illuminated for 5 minutes, then
the parking, license plate, side marker and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionNKS003SJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003SK
Refer to LAN-50, "CAN System Specification Chart" .

Page 3701 of 4647

INFINITI M35 2007 Factory Service Manual LT-250
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45

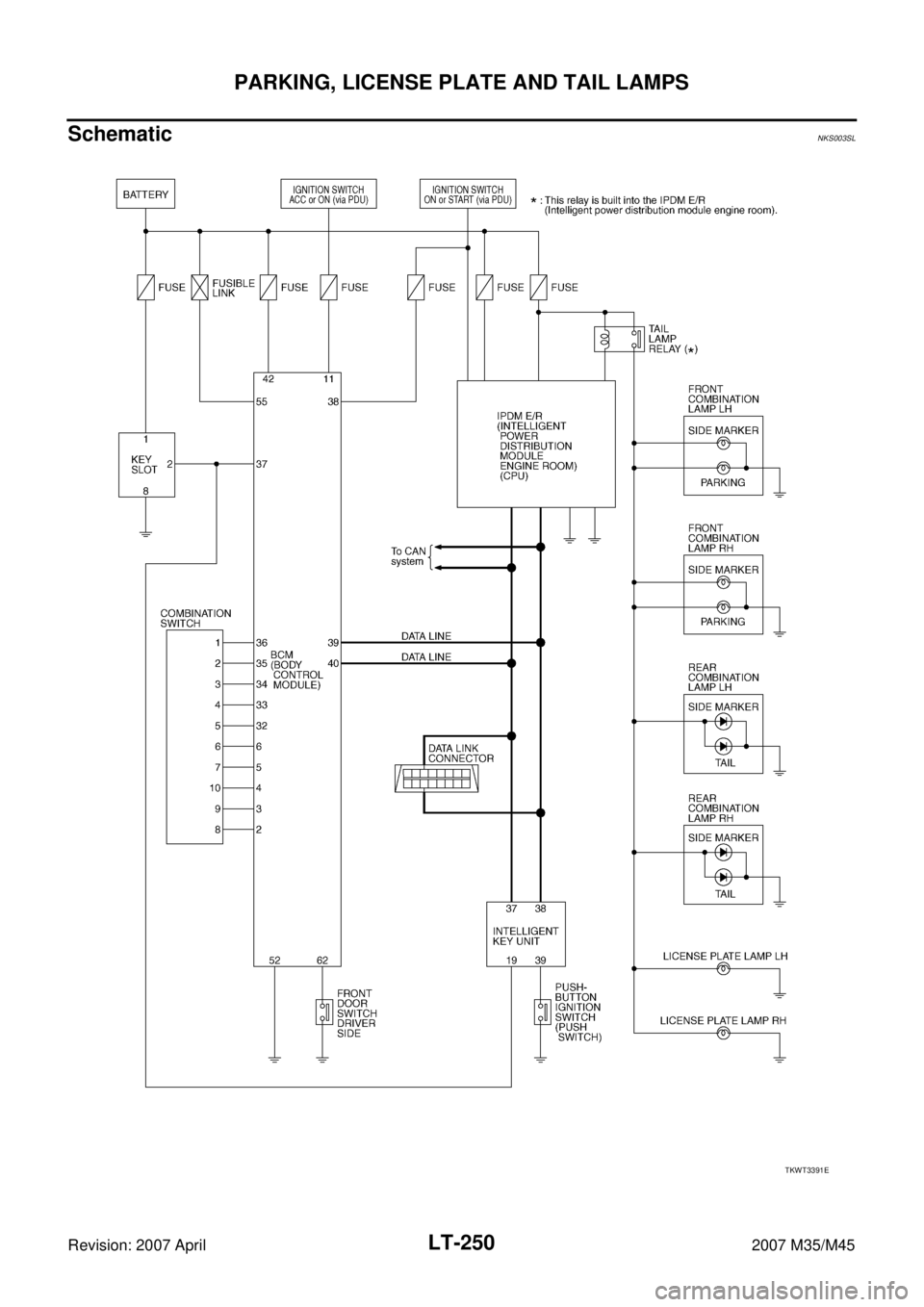

SchematicNKS003SL
TKWT3391E

Page 3702 of 4647

INFINITI M35 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-251
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

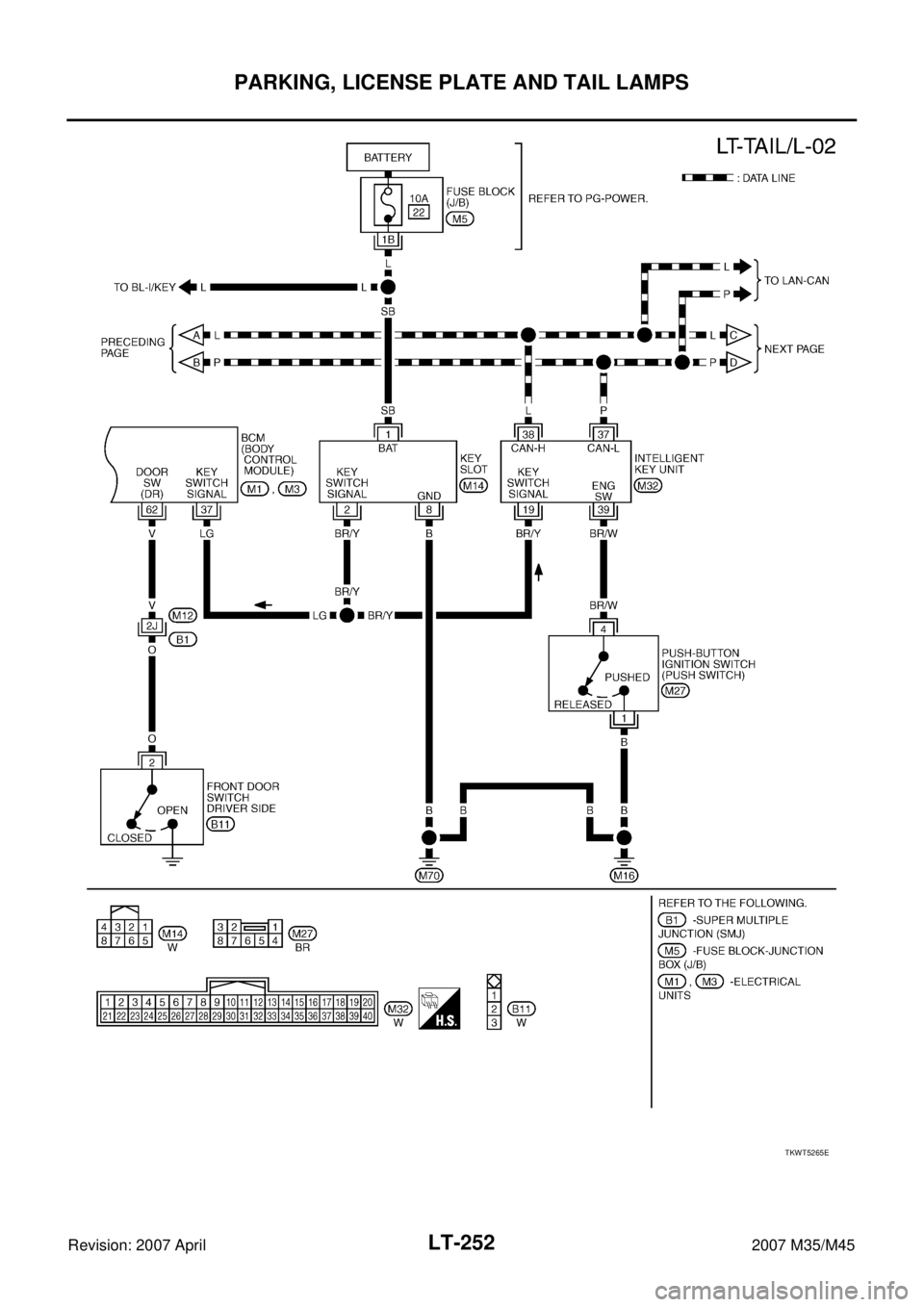

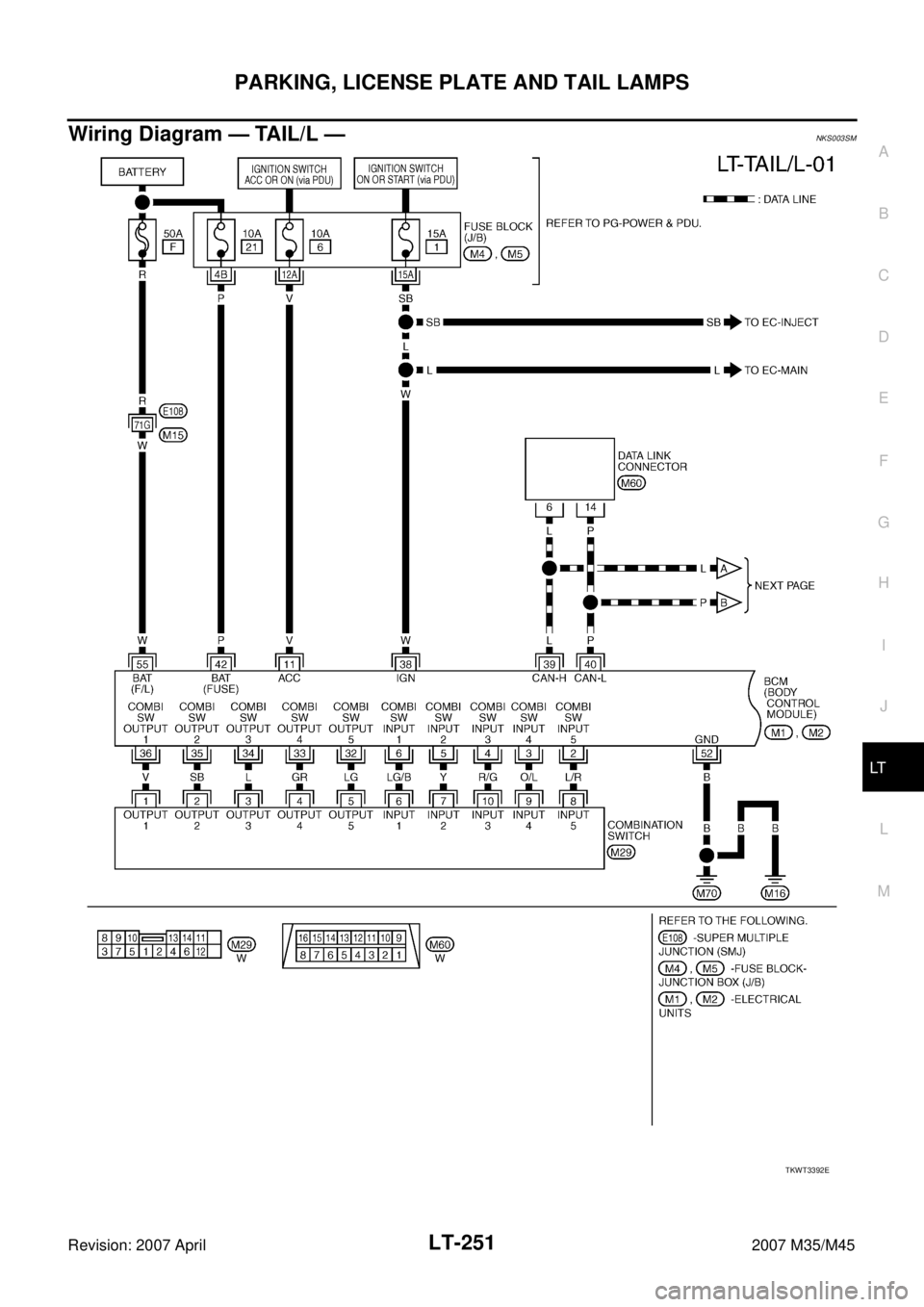

Wiring Diagram — TAIL/L —NKS003SM
TKWT3392E

Page 3703 of 4647

INFINITI M35 2007 Factory Service Manual LT-252
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45

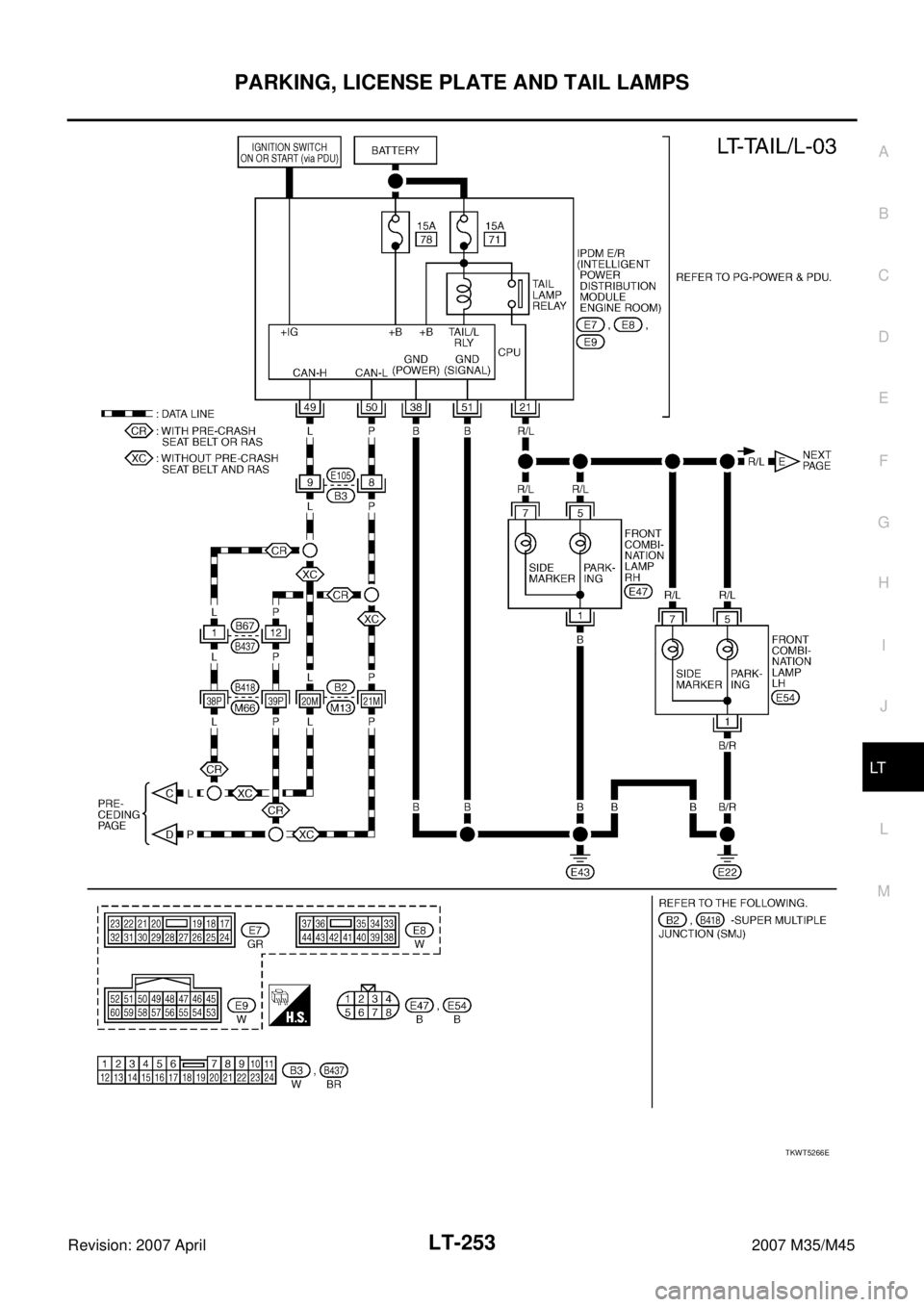

TKWT5265E

Page 3704 of 4647

INFINITI M35 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-253
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT5266E
