Page 3273 of 4647

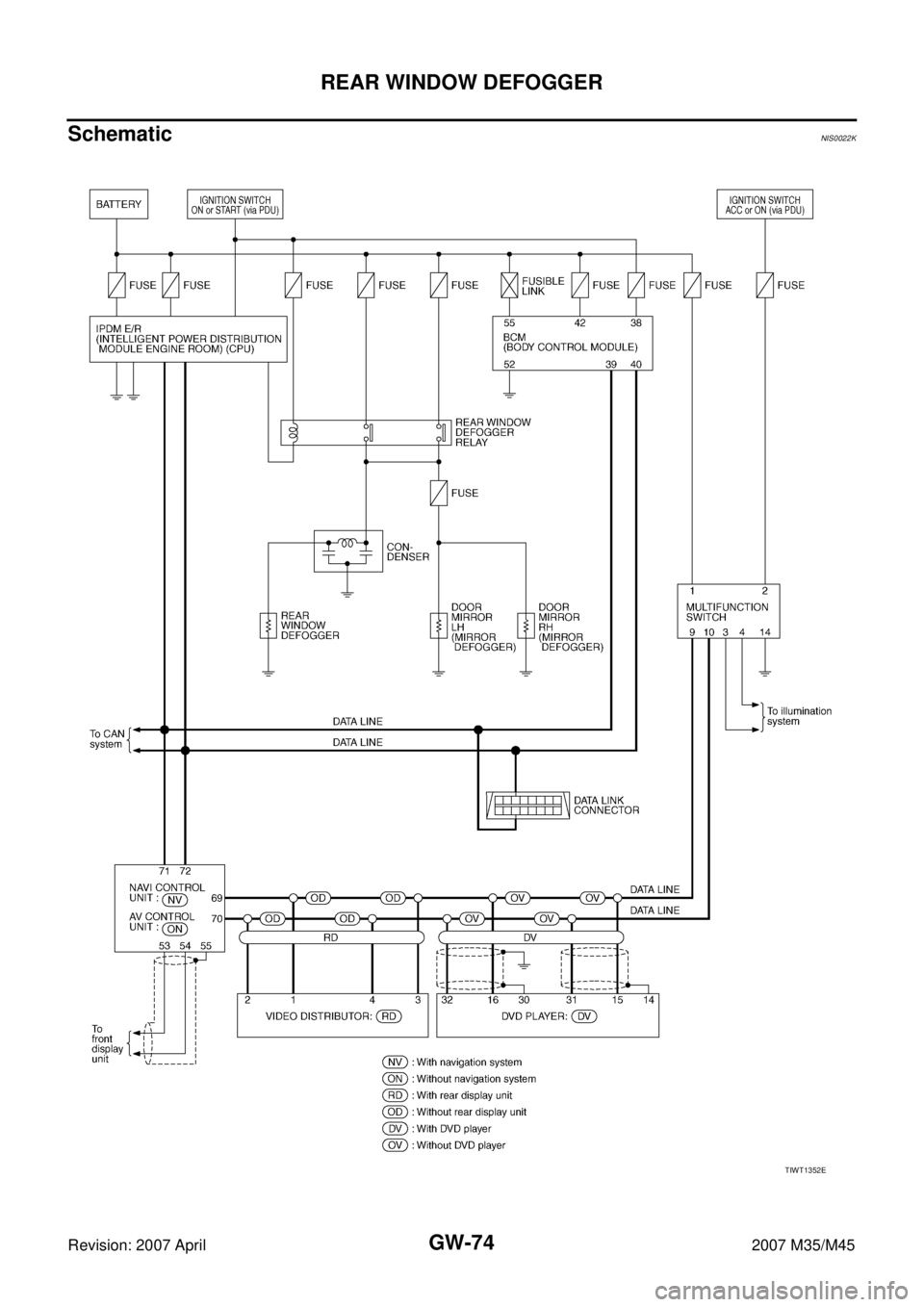

INFINITI M35 2007 Factory Service Manual GW-74 REAR WINDOW DEFOGGER Revision: 2007 April2007 M35/M45 SchematicNIS0022K TIWT1352E

Page 3274 of 4647

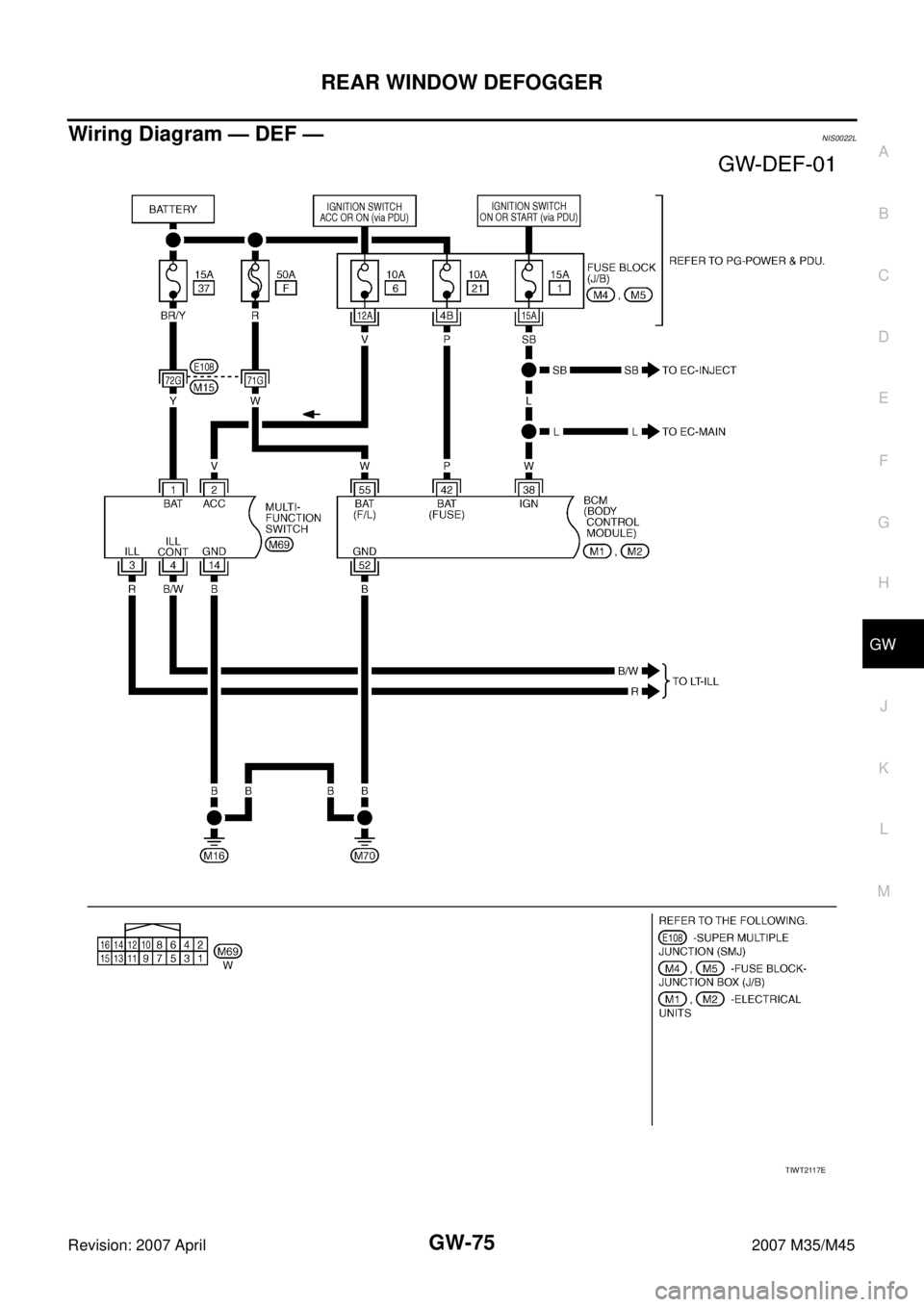

INFINITI M35 2007 Factory Service Manual REAR WINDOW DEFOGGER GW-75 C D E F G H J K L MA B GW Revision: 2007 April2007 M35/M45 Wiring Diagram — DEF — NIS0022L TIWT2117E

Page 3275 of 4647

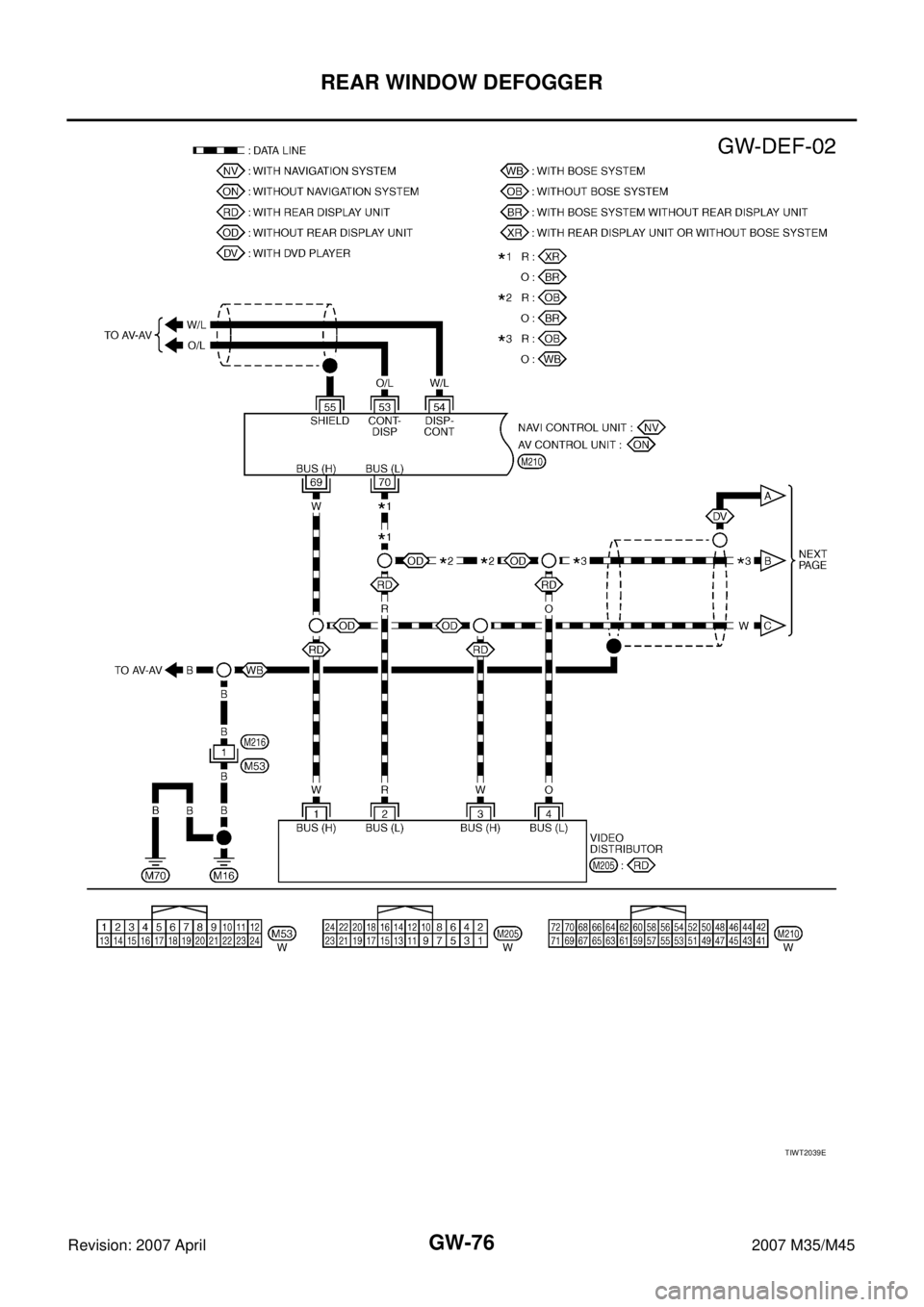

INFINITI M35 2007 Factory Service Manual GW-76 REAR WINDOW DEFOGGER Revision: 2007 April2007 M35/M45 TIWT2039E

Page 3276 of 4647

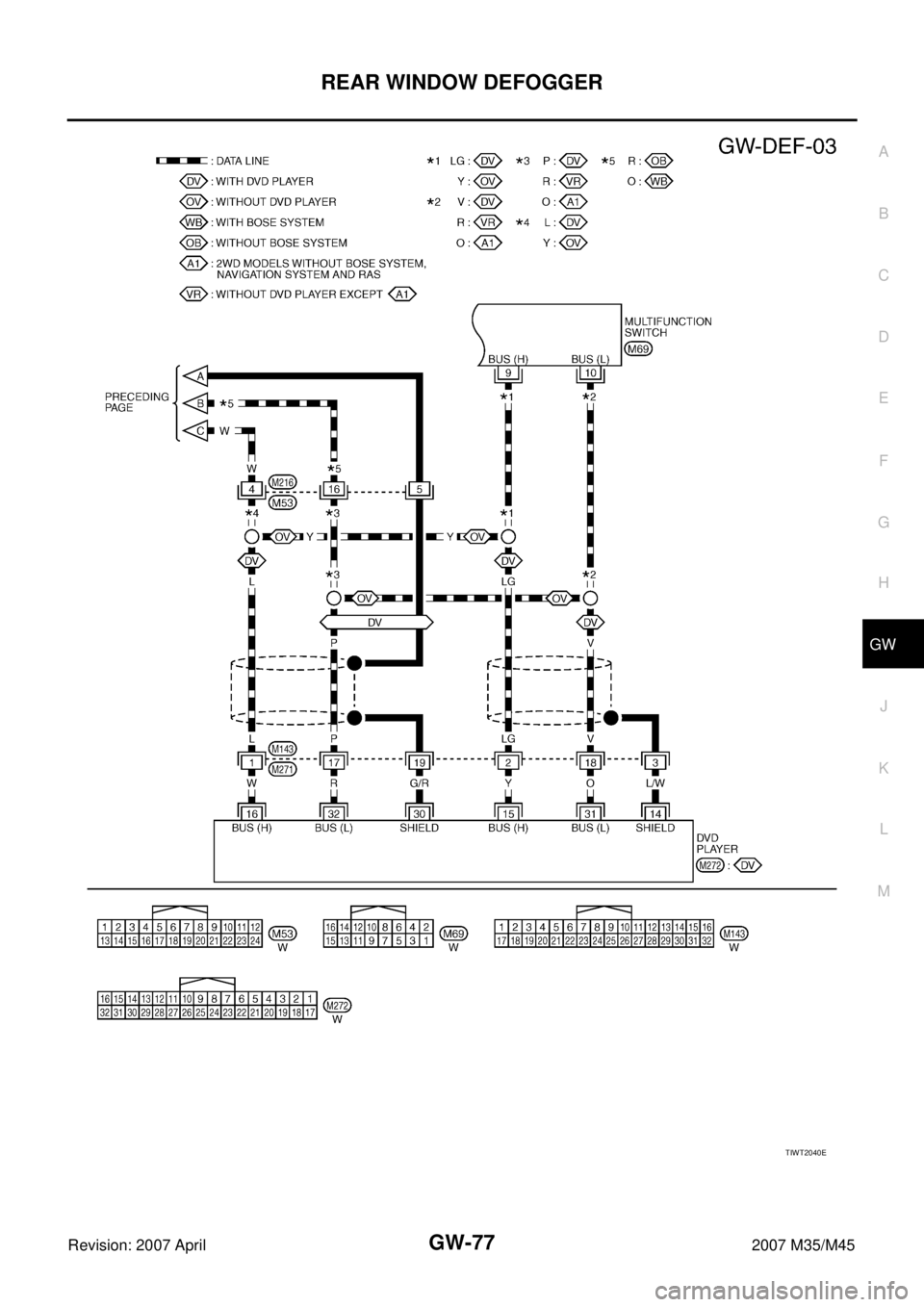

INFINITI M35 2007 Factory Service Manual REAR WINDOW DEFOGGER GW-77 C D E F G H J K L MA B GW Revision: 2007 April2007 M35/M45 TIWT2040E

Page 3277 of 4647

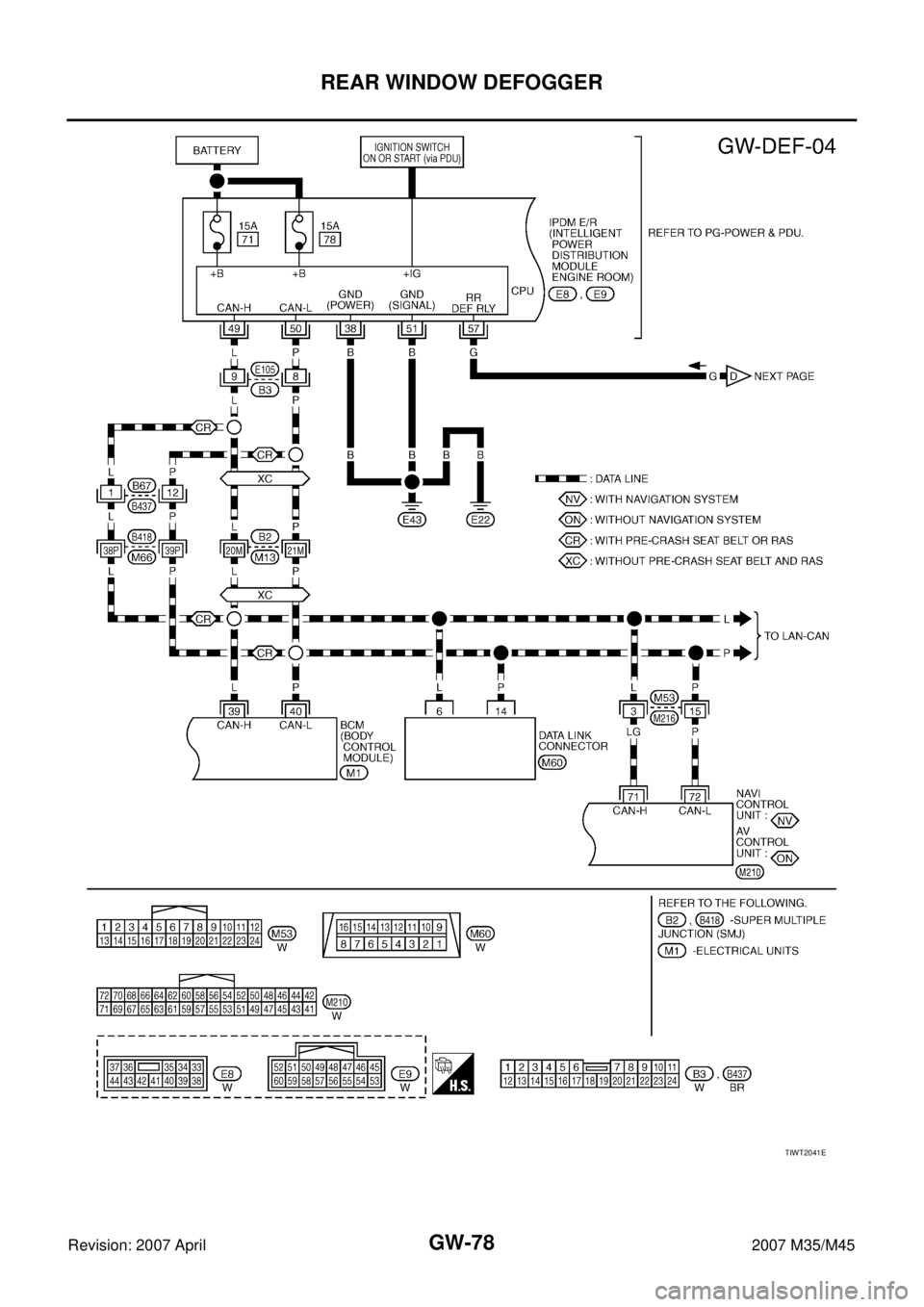

INFINITI M35 2007 Factory Service Manual GW-78 REAR WINDOW DEFOGGER Revision: 2007 April2007 M35/M45 TIWT2041E

Page 3278 of 4647

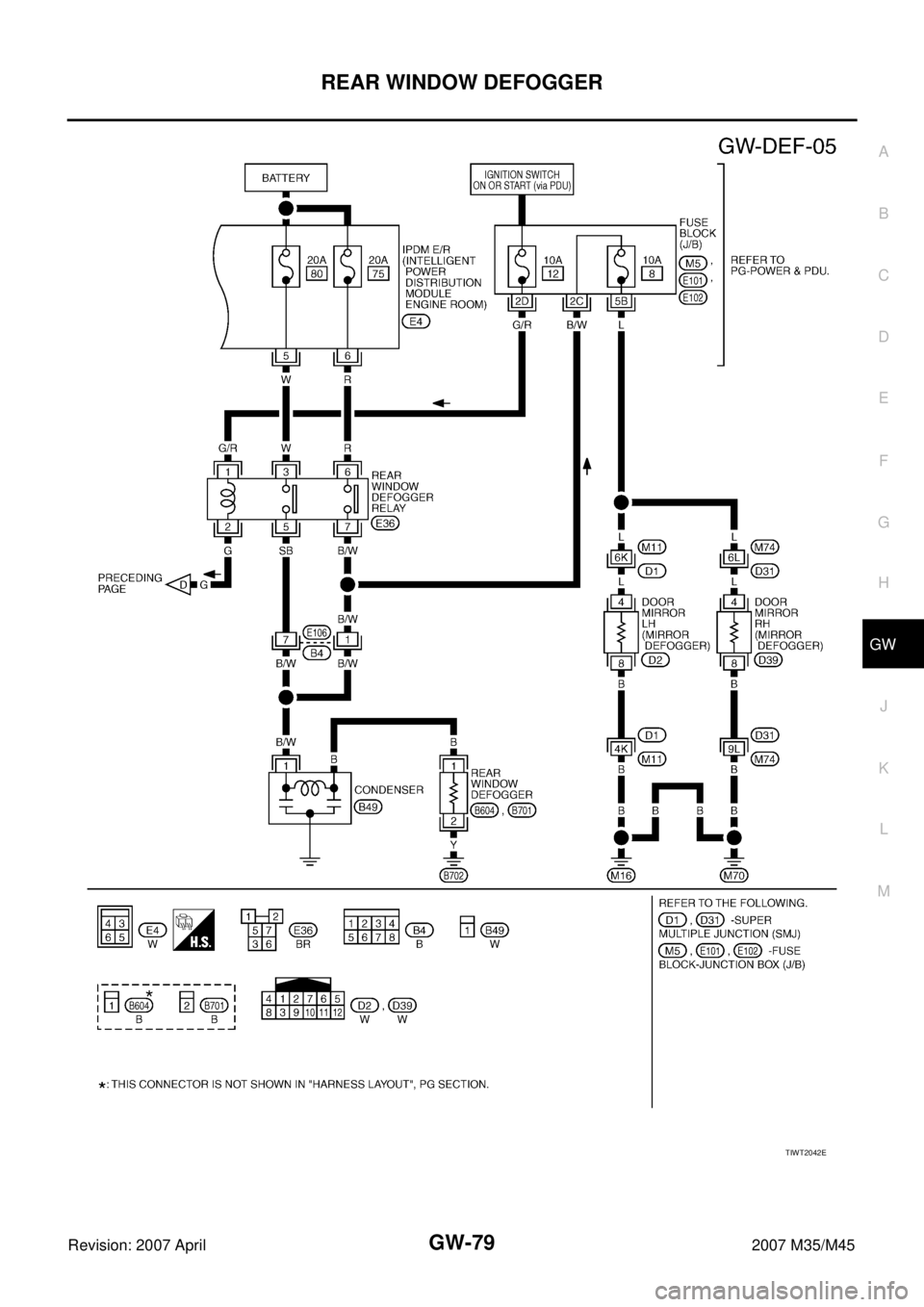

INFINITI M35 2007 Factory Service Manual REAR WINDOW DEFOGGER GW-79 C D E F G H J K L MA B GW Revision: 2007 April2007 M35/M45 TIWT2042E

Page 3279 of 4647

INFINITI M35 2007 Factory Service Manual GW-80 REAR WINDOW DEFOGGER Revision: 2007 April2007 M35/M45 Terminal and Reference Value for BCMNIS0022M Terminal and Reference Value for IPDM E/RNIS0022N Te r m i - nalWire colorItemSignal Input/ Ou

Page 3280 of 4647

INFINITI M35 2007 Factory Service Manual REAR WINDOW DEFOGGER GW-81 C D E F G H J K L MA B GW Revision: 2007 April2007 M35/M45 CONSULT-II Function (BCM)NIS0028Q CONSULT-II can display each diagnostic item using the diagnostic test modes show
