INFINITI M35 2007 Factory Service Manual AT-226 SHIFT CONTROL SYSTEM Revision: 2007 April2007 M35/M45 INSTALLATION Note the following, and install in the reverse order of removal. NOTE: Bend control device assembly (1) to vehicle, then inser

Page 306 of 4647

INFINITI M35 2007 Factory Service Manual SHIFT CONTROL SYSTEM AT-227 D E F G H I J K L MA B AT Revision: 2007 April2007 M35/M45 CONTROL ROD COMPONENTS (AWD MODELS) Refer to the figure below for control rod removal and installation procedure.

Page 307 of 4647

INFINITI M35 2007 Factory Service Manual AT-228 SHIFT CONTROL SYSTEM Revision: 2007 April2007 M35/M45 Checking of A/T PositionNCS001QO 1. Place selector lever in “P” position, and turn ignition switch ON (engine stop). 2. Make sure that

Page 308 of 4647

INFINITI M35 2007 Factory Service Manual A/T SHIFT LOCK SYSTEM AT-229 D E F G H I J K L MA B AT Revision: 2007 April2007 M35/M45 A/T SHIFT LOCK SYSTEMPFP:34950 DescriptionNCS001QP The mechanical key interlock mechanism also operates as a shi

Page 309 of 4647

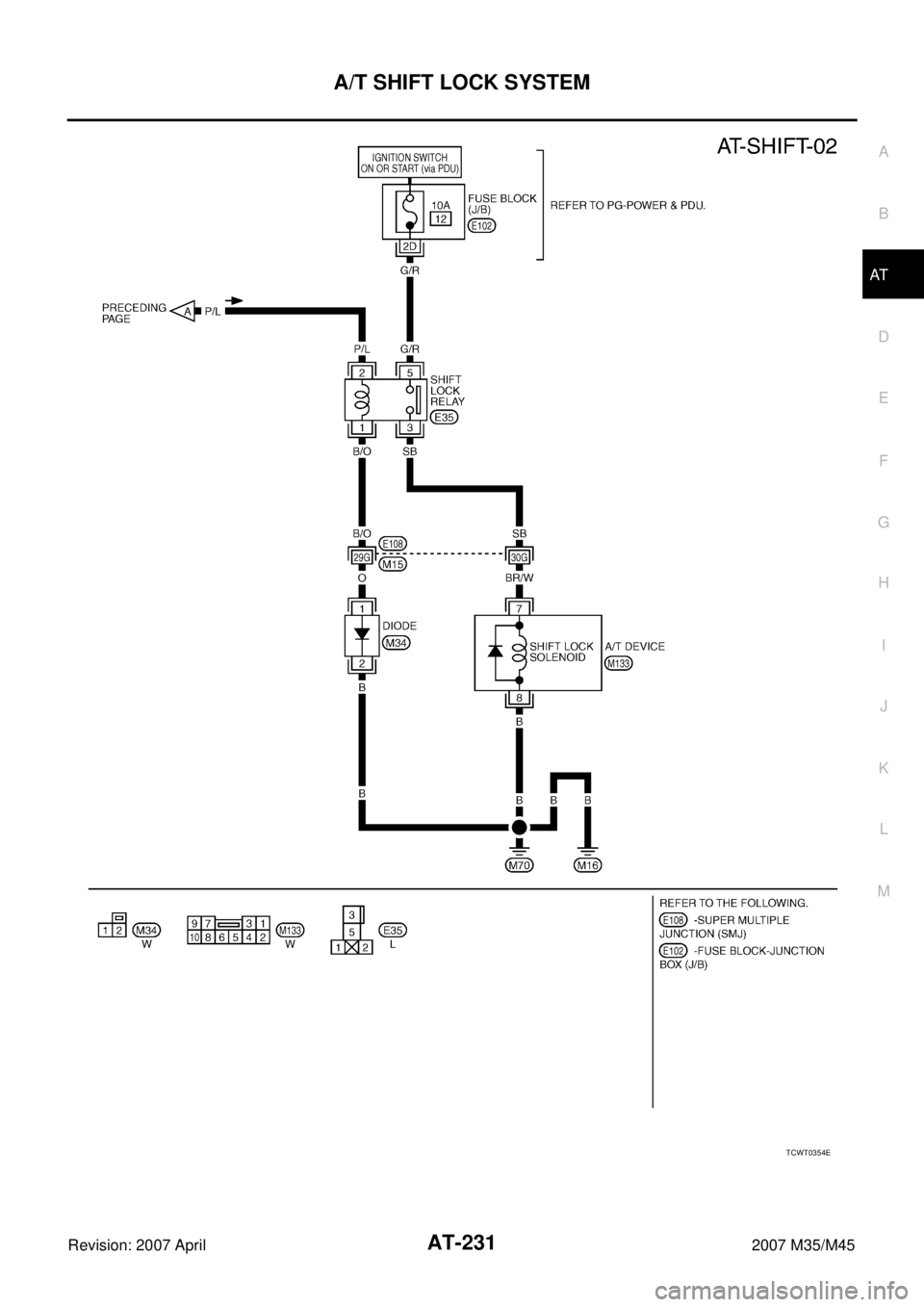

INFINITI M35 2007 Factory Service Manual AT-230 A/T SHIFT LOCK SYSTEM Revision: 2007 April2007 M35/M45 Wiring Diagram — AT — SHIFTNCS001QR TCWT0353E

Page 310 of 4647

INFINITI M35 2007 Factory Service Manual A/T SHIFT LOCK SYSTEM AT-231 D E F G H I J K L MA B AT Revision: 2007 April2007 M35/M45 TCWT0354E

Page 311 of 4647

INFINITI M35 2007 Factory Service Manual AT-232 A/T SHIFT LOCK SYSTEM Revision: 2007 April2007 M35/M45 Diagnostic ProcedureNCS001QS SYMPTOM: Selector lever cannot be moved from “P” position with key in ON position and brake pedal applie

Page 312 of 4647

INFINITI M35 2007 Factory Service Manual A/T SHIFT LOCK SYSTEM AT-233 D E F G H I J K L MA B AT Revision: 2007 April2007 M35/M45 3. DETECT MALFUNCTIONING ITEM Check the following. Harness for short or open between battery and stop lamp swit
