Page 1865 of 4647
EC-336
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2007 April2007 M35/M45
Component InspectionNBS004Y5
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.
2. Check resistance between “fuel level sensor unit and fuel pump”
terminals 4 and 5 by heating with hot water as shown in the fig-
ure.
If NG, replace fuel level sensor unit.
Removal and InstallationNBS004Y6
FUEL TANK TEMPERATURE SENSOR
Refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" .
Temperature °C (°F) Resistance kΩ
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
PBIB0931E
Page 1866 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0182, P0183 FTT SENSOR
EC-337
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0182, P0183 FTT SENSORPFP:22630
Component DescriptionNBS004Y7
The fuel tank temperature sens INFINITI M35 2007 Factory Service Manual DTC P0182, P0183 FTT SENSOR
EC-337
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0182, P0183 FTT SENSORPFP:22630
Component DescriptionNBS004Y7
The fuel tank temperature sens](/manual-img/42/57024/w960_57024-1865.png)
DTC P0182, P0183 FTT SENSOR
EC-337
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0182, P0183 FTT SENSORPFP:22630
Component DescriptionNBS004Y7
The fuel tank temperature sensor (3) is used to detect the fuel tem-
perature inside the fuel tank. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the fuel
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.
Fuel level sensor unit and fuel pump (1)
Fuel pressure regulator (2)
*: This data is reference value and is measured between ECM terminal 107 (Fuel
tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS004Y8
DTC Confirmation ProcedureNBS004Y9
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-339, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB2707E
Fluid temperature
°C (°F)Voltage*
VResistance
kΩ
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0182
0182Fuel tank temperature
sensor circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Fuel tank temperature sensor P0183
0183Fuel tank temperature
sensor circuit high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF174Y
Page 1867 of 4647
EC-338
[VQ35DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2007 April2007 M35/M45

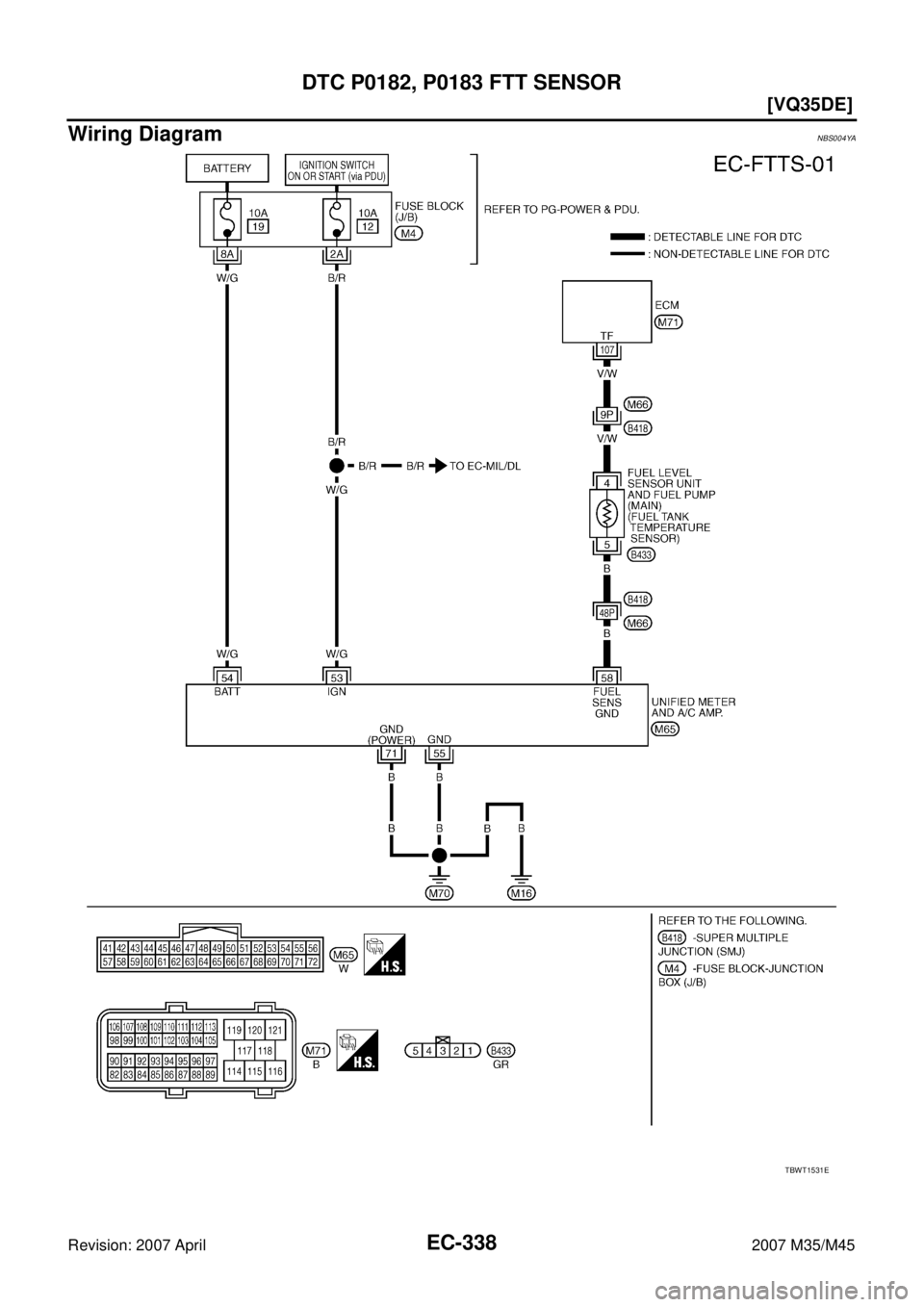

Wiring DiagramNBS004YA
TBWT1531E
Page 1868 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0182, P0183 FTT SENSOR
EC-339
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

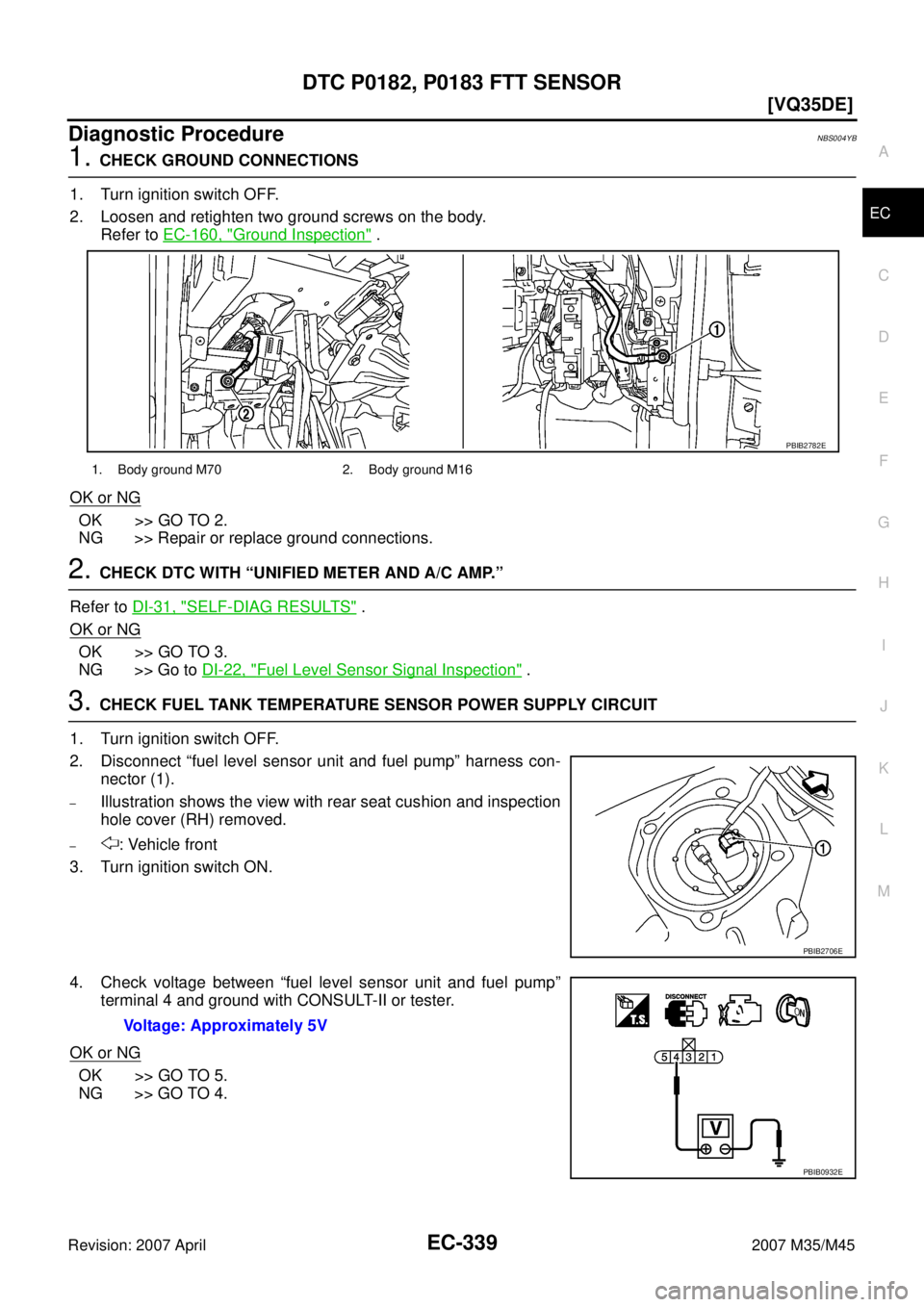

Diagnostic ProcedureNBS004YB
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen a INFINITI M35 2007 Factory Service Manual DTC P0182, P0183 FTT SENSOR
EC-339
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS004YB
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen a](/manual-img/42/57024/w960_57024-1867.png)
DTC P0182, P0183 FTT SENSOR
EC-339
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS004YB
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-31, "
SELF-DIAG RESULTS" .
OK or NG
OK >> GO TO 3.
NG >> Go to DI-22, "
Fuel Level Sensor Signal Inspection" .
3. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector (1).
–Illustration shows the view with rear seat cushion and inspection
hole cover (RH) removed.
–: Vehicle front
3. Turn ignition switch ON.
4. Check voltage between “fuel level sensor unit and fuel pump”
terminal 4 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
1. Body ground M70 2. Body ground M16
PBIB2782E
PBIB2706E
Voltage: Approximately 5V
PBIB0932E
Page 1869 of 4647
![INFINITI M35 2007 Factory Service Manual EC-340
[VQ35DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M66, B418
Harness for open or short between ECM and INFINITI M35 2007 Factory Service Manual EC-340
[VQ35DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M66, B418
Harness for open or short between ECM and](/manual-img/42/57024/w960_57024-1868.png)
EC-340
[VQ35DE]
DTC P0182, P0183 FTT SENSOR
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M66, B418
Harness for open or short between ECM and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connector.
5. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector.
3. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 5 and “unified meter and
A/C amp.” terminal 58. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M66, B418
Harness for open or short between “fuel level sensor unit and fuel pump” and “unified meter and A/C
amp.”
>> Repair open circuit or short to ground or short to power in harness or connector.
7. CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-341, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace “fuel level sensor unit and fuel pump”.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1870 of 4647
DTC P0182, P0183 FTT SENSOR
EC-341
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Component InspectionNBS004YC
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.
2. Check resistance between “fuel level sensor unit and fuel pump”
terminals 4 and 5 by heating with hot water as shown in the fig-
ure.
If NG, replace fuel level sensor unit.
Removal and InstallationNBS004YD
FUEL TANK TEMPERATURE SENSOR
Refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" .
Temperature °C (°F) Resistance kΩ
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
PBIB0931E
Page 1871 of 4647
![INFINITI M35 2007 Factory Service Manual EC-342
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2007 April2007 M35/M45
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionNBS004YE
Electric throttle control actuator consists of throttle co INFINITI M35 2007 Factory Service Manual EC-342
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2007 April2007 M35/M45
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionNBS004YE
Electric throttle control actuator consists of throttle co](/manual-img/42/57024/w960_57024-1870.png)
EC-342
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2007 April2007 M35/M45
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionNBS004YE
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeNBS004YF
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicNBS004YG
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222Throttle position sensor
1 circuit low inputAn excessively low voltage from the TP sensor
1 is sent to ECM.
Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1)
Accelerator pedal position sensor
(APP sensor 2) P0223
0223Throttle position sensor
1 circuit high inputAn excessively high voltage from the TP sen-
sor 1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 1872 of 4647
DTC P0222, P0223 TP SENSOR
EC-343
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS004YH
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-345, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
