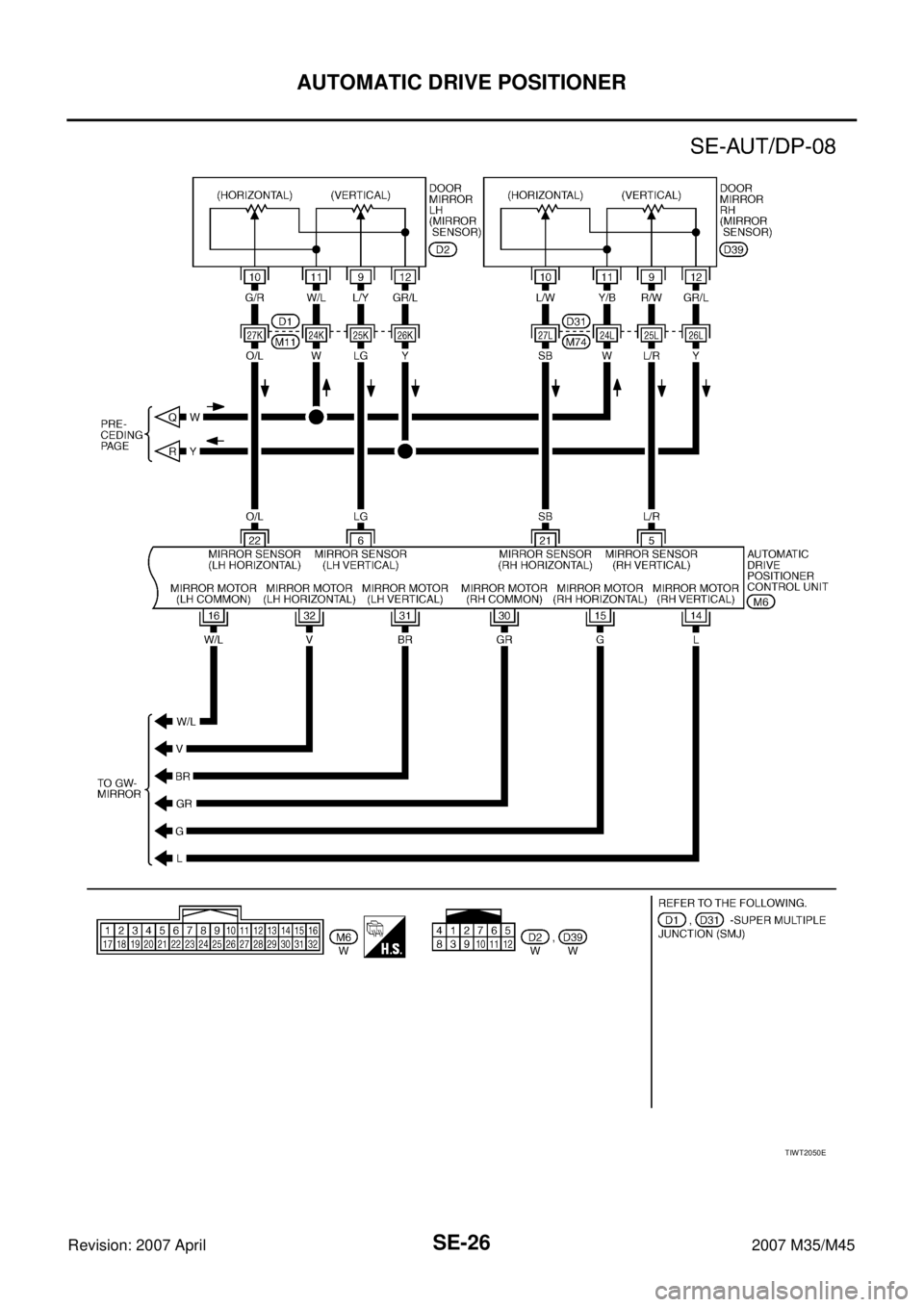

Page 4225 of 4647
SE-26
AUTOMATIC DRIVE POSITIONER
Revision: 2007 April2007 M35/M45
TIWT2050E

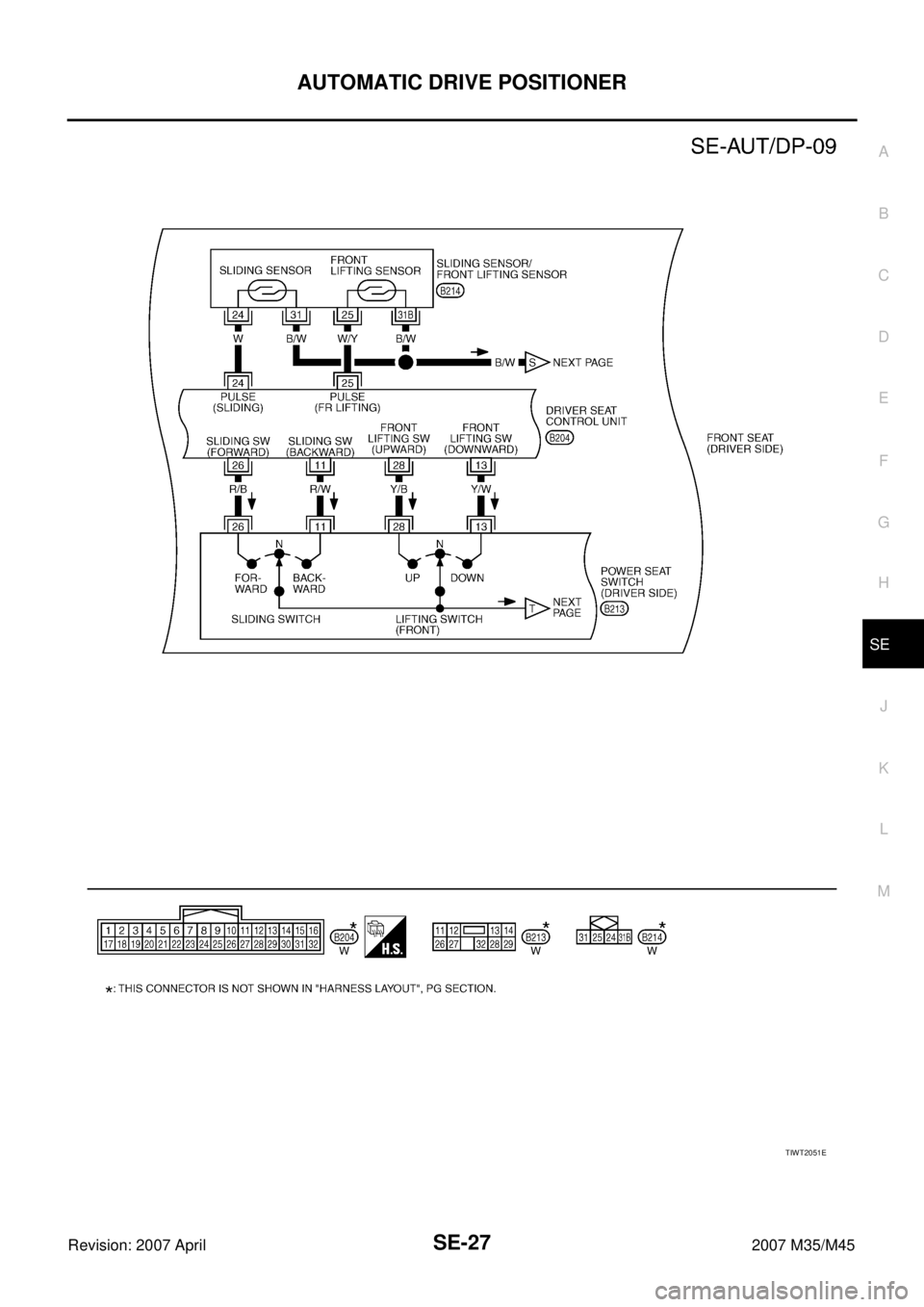

Page 4226 of 4647
AUTOMATIC DRIVE POSITIONER
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
TIWT2051E
Page 4227 of 4647
SE-28
AUTOMATIC DRIVE POSITIONER
Revision: 2007 April2007 M35/M45
TIWT2052E
Page 4228 of 4647

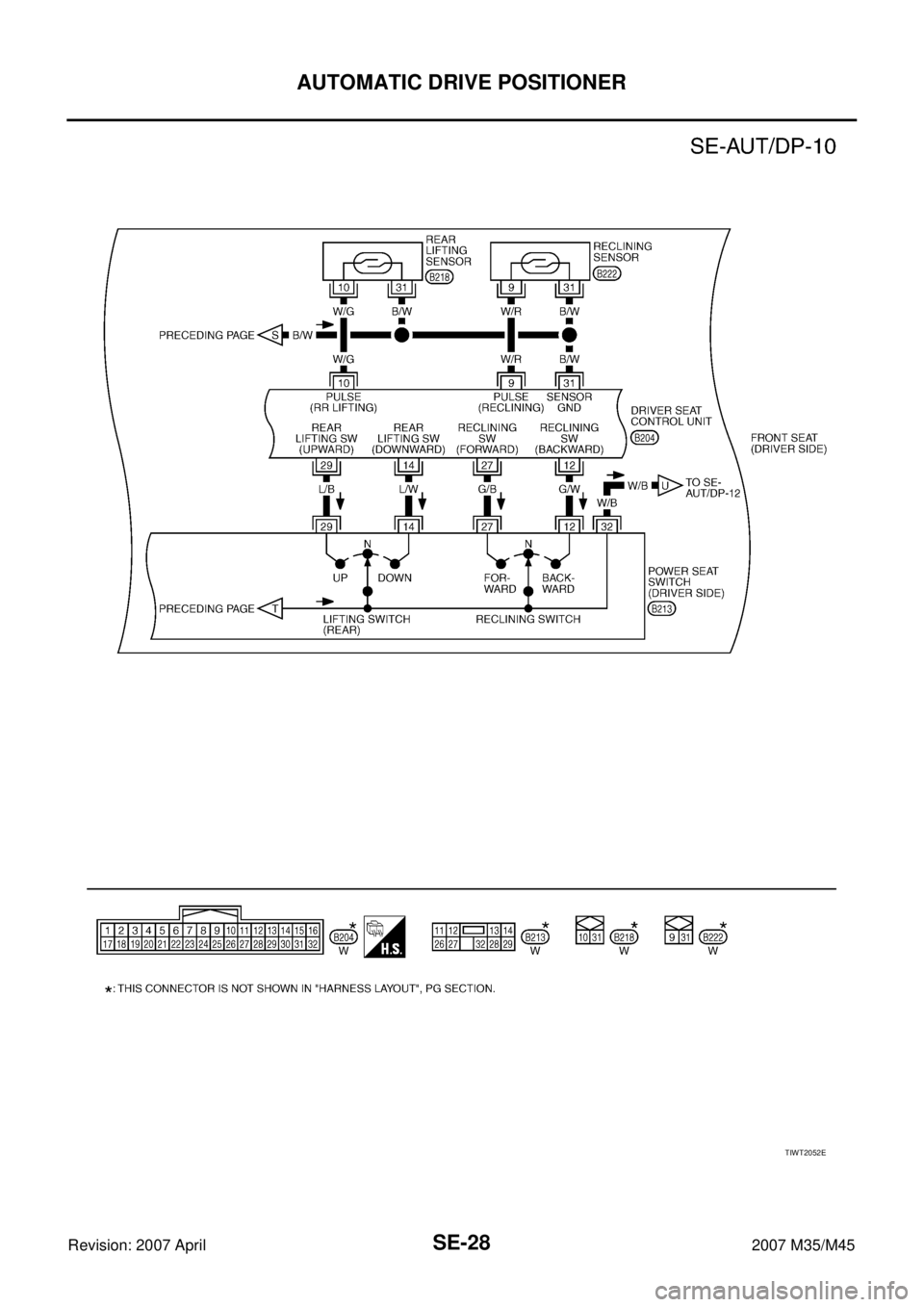

AUTOMATIC DRIVE POSITIONER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
TIWT2053E

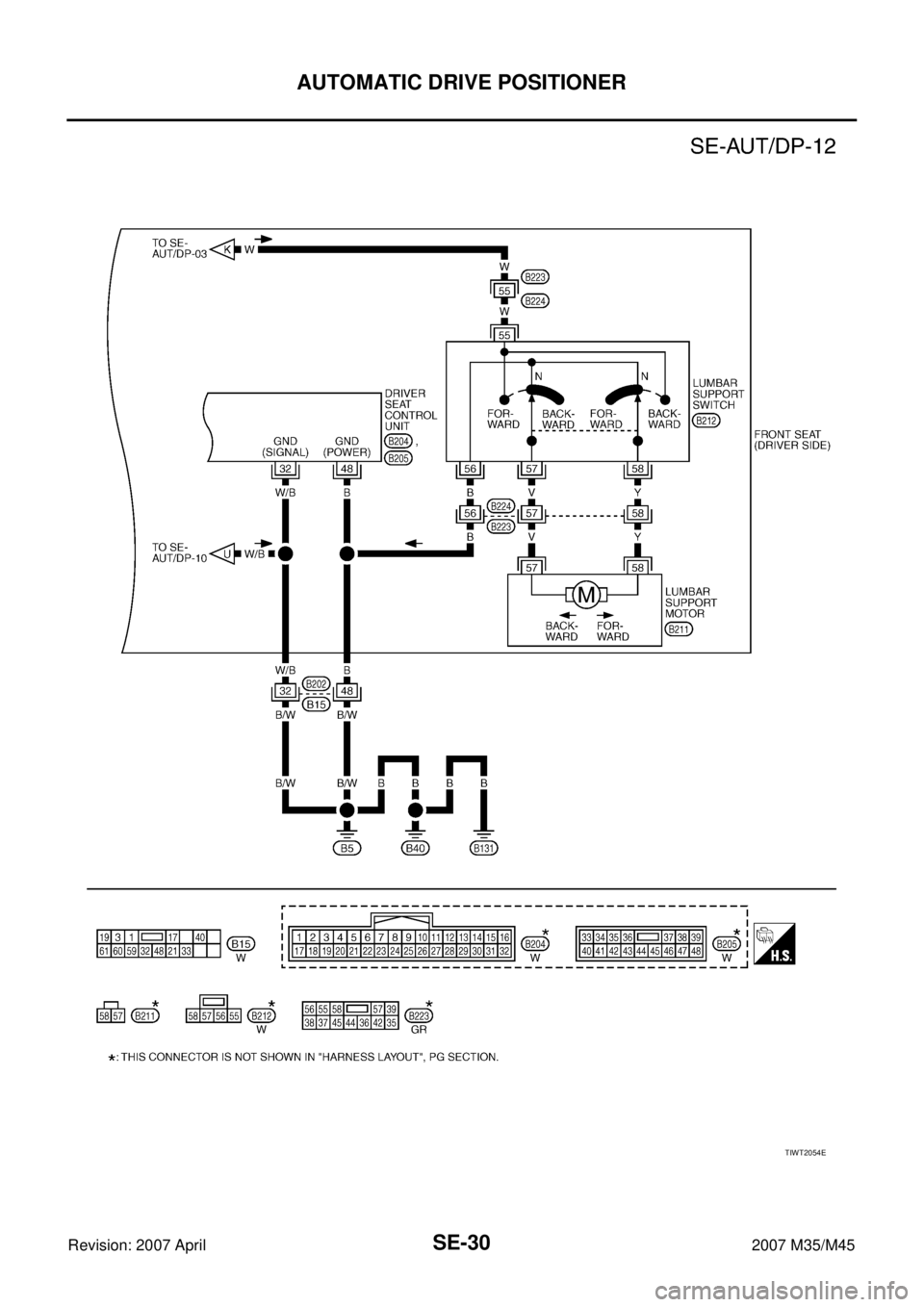

Page 4229 of 4647
SE-30
AUTOMATIC DRIVE POSITIONER
Revision: 2007 April2007 M35/M45
TIWT2054E
Page 4230 of 4647

AUTOMATIC DRIVE POSITIONER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for BCMNIS0025W
Terminals and Reference Value for Intelligent Key UnitNIS0025X
Te r m i -
nal Wire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx)
11 V Power source (ACC) InputIgnition switch
(ACC or ON position)Battery voltage
37 LG Key switch signal InputKey switch ON
(Key is inserted in key slot)Battery voltage
Key switch OFF
(Key is remove from key slot)0
38 W Power source (IGN) InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 P Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 W Power source (Fusible link) Input — Battery voltage
62 V Drive side door switch Input ON (Open) → OFF (Closed) 0 → Battery voltage
Termi-
nalWire
ColorItemSignal
Input/OutputCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
1 SB Power source (Fuse) Input — — Battery voltage
19 BR/Y Key switch signal Input LOCKInsert Intelligent Key into key slot. Battery voltage
Remove Intelligent Key from key slot. 0
20 B Ground — ON — 0
27 V P range switch Input —Selector lever is in “P” position. 0
Other than above Battery voltage
37 P CAN-L Input/Output — — —
38 L CAN-H Input/Output — — —
40 B Ground — ON — 0
41 Y Power source (Fuse) Input — — Battery voltage
56 B Ground — — — 0
57 L Power source (Fuse) Input — — Battery voltage
58 OA/T device power
supply Output —Wake up state Battery voltage
Sleep state 0
72 B Ground — ON 0
Page 4231 of 4647

SE-32
AUTOMATIC DRIVE POSITIONER
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Driver Seat Control UnitNIS0025Y
Te r m i -
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx)
1 P/L UART LINE (RX) Input Tilt switch operated
3 BR/W CAN-H Input/Output — —
9W/RReclining
sensor signalInputON (seat reclining motor operation)
Other than above 0 or 5
10 W/GRear lifting
sensor signalInputON (rear lifting motor operation)
Other than above 0 or 5
11 R / WSliding switch
backward signalInputON (seat sliding switch backward
operation)0
Other than above Battery voltage
12 G/WReclining switch
backward signalInputON (seat reclining switch backward
operation)0
Other than above Battery voltage
13 Y/WFront lifting switch
DOWN signalInputON
(front lifting switch DOWN operation)0
Other than above Battery voltage
14 L/WRear lifting switch
DOWN signalInputON
(rear lifting switch DOWN operation)0
Other than above Battery voltage
17 P/B UART LINE (TX) Output Tilt switch operated
19 G/O CAN-L Input/Output — —
21 G/RDetention
switch signalInputA/T selector lever is in P position. 0
A/T selector lever is in other than
P position.Battery voltage
SKIA0175E
PIIB2807E
PIIB2809E
SKIA0175E
Page 4232 of 4647

AUTOMATIC DRIVE POSITIONER
SE-33
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
24 WSeat sliding
sensor signalInputON (seat sliding motor operation)
Other than above 0 or 5
25 W/YFront lifting
sensor signalInputON (front lifting motor operation)
Other than above 0 or 5
26 R/BSeat sliding switch
forward signalInputON
(seat sliding switch forward operation)0
Other than above Battery voltage
27 G/BSeat reclining switch
forward signalInputON (seat reclining switch forward
operation)0
Other than above Battery voltage
28 Y/BFront lifting switch
UP signalInputON (front lifting switch UP operation) 0
Other than above Battery voltage
29 L/BRear lifting switch
UP signalInputON (rear lifting switch UP operation) 0
Other than above Battery voltage
31 B/W Sensor ground — — 0
32 W/B Ground (signal) — — 0
33 W Power source (C/B) Input — Battery voltage
35 R/WSliding motor
forward signalOutputSliding switch forward operation
(Motor operated)Battery voltage
Other than above 0
36 G/WReclining motor
forward signalOutputReclining switch forward operation
(Motor operated)Battery voltage
Other than above 0
37 Y/WFront lifting motor
DOWN signalOutputFront lifting switch down operation
(Motor operated)Battery voltage
Other than above 0
38 L/BRear lifting motor
UP signalOutputRear lifting switch up operation
(Motor operated)Battery voltage
Other than above 0
39 L/WRear lifting motor
DOWN signalOutputRear lifting switch down operation
(Motor operated)Battery voltage
Other than above 0
40 R/B Power source (Fuse) Input — Battery voltage
42 R/BSliding motor
backward signalOutputSliding switch backward operation
(Motor operated)Battery voltage
Other than above 0 Te r m i -
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx)
SIIA0690J
SIIA0691J
