Page 2209 of 4647

INFINITI M35 2007 Factory Service Manual EC-680 [VQ35DE] FUEL PUMP Revision: 2007 April2007 M35/M45 11 . CHECK CONDENSER Refer to EC-681, " Component Inspection" . OK or NG OK >> GO TO 12. NG >> Replace condenser. 12. CHECK FUEL PUMP POWER

Page 2210 of 4647

INFINITI M35 2007 Factory Service Manual FUEL PUMP EC-681 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 15. CHECK FUEL PUMP Refer to EC-681, " Component Inspection" . OK or NG OK >> GO TO 16. NG >> Replace fuel pump. 16

Page 2211 of 4647

INFINITI M35 2007 Factory Service Manual EC-682 [VQ35DE] FUEL PUMP Revision: 2007 April2007 M35/M45 3. Check resistance between condenser terminals 1 and 2. Removal and InstallationNBS00584 FUEL PUMP Refer to FL-4, "FUEL LEVEL SENSOR UNIT, F

Page 2212 of 4647

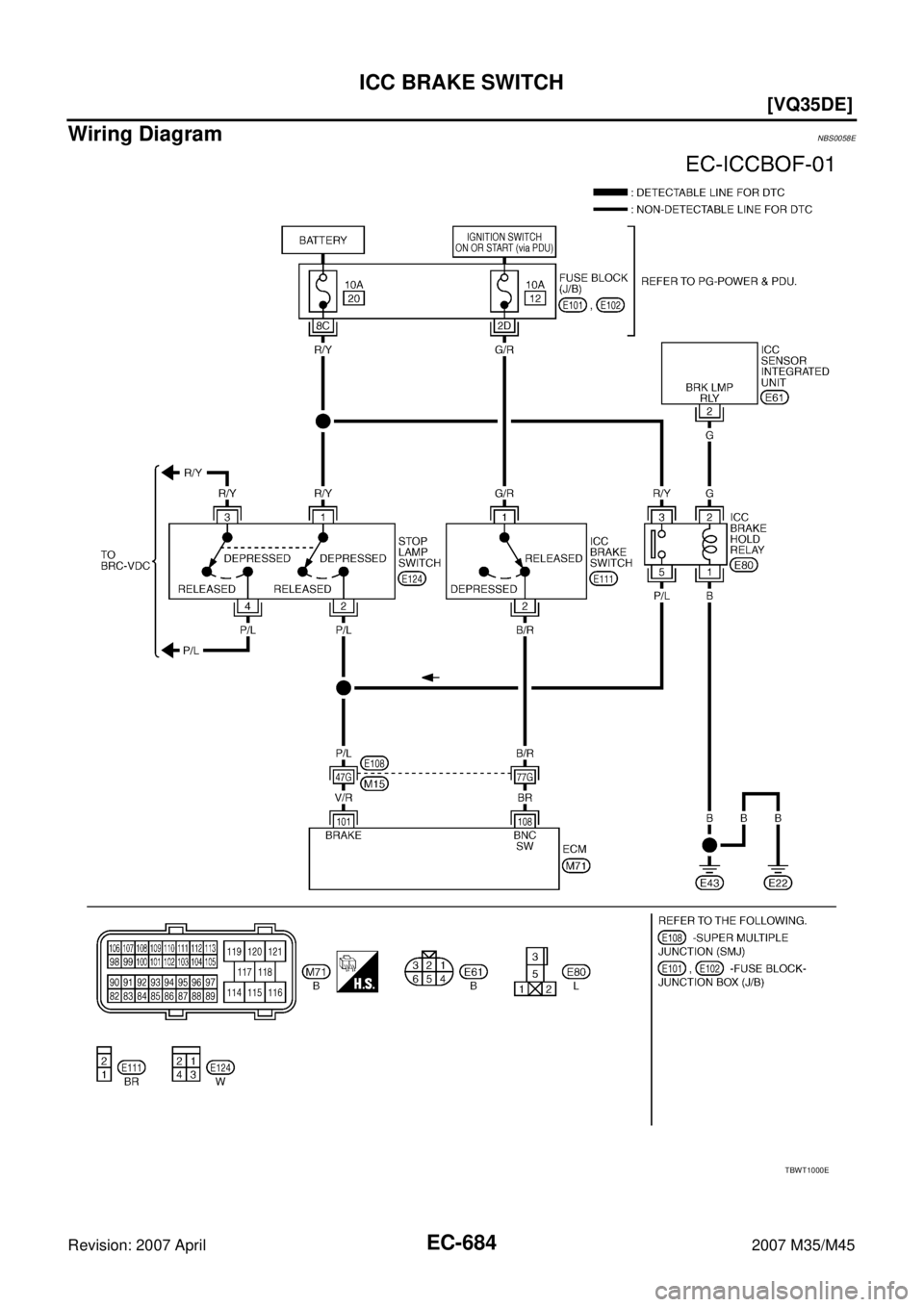

INFINITI M35 2007 Factory Service Manual ICC BRAKE SWITCH EC-683 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 ICC BRAKE SWITCHPFP:25320 Component DescriptionNBS0058C When the brake pedal is depressed, ICC brake switch

Page 2213 of 4647

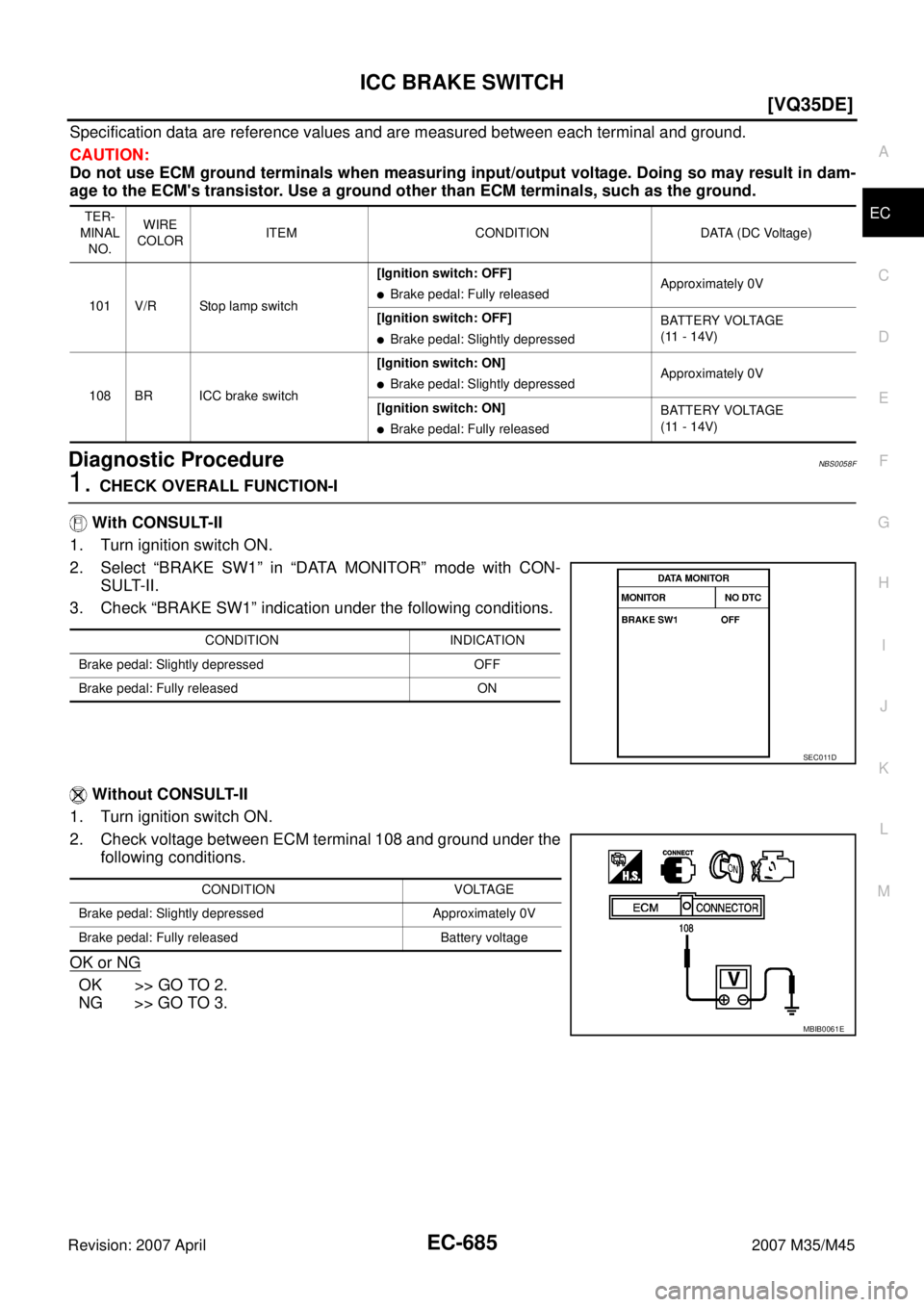

INFINITI M35 2007 Factory Service Manual EC-684 [VQ35DE] ICC BRAKE SWITCH Revision: 2007 April2007 M35/M45 Wiring DiagramNBS0058E TBWT1000E

Page 2214 of 4647

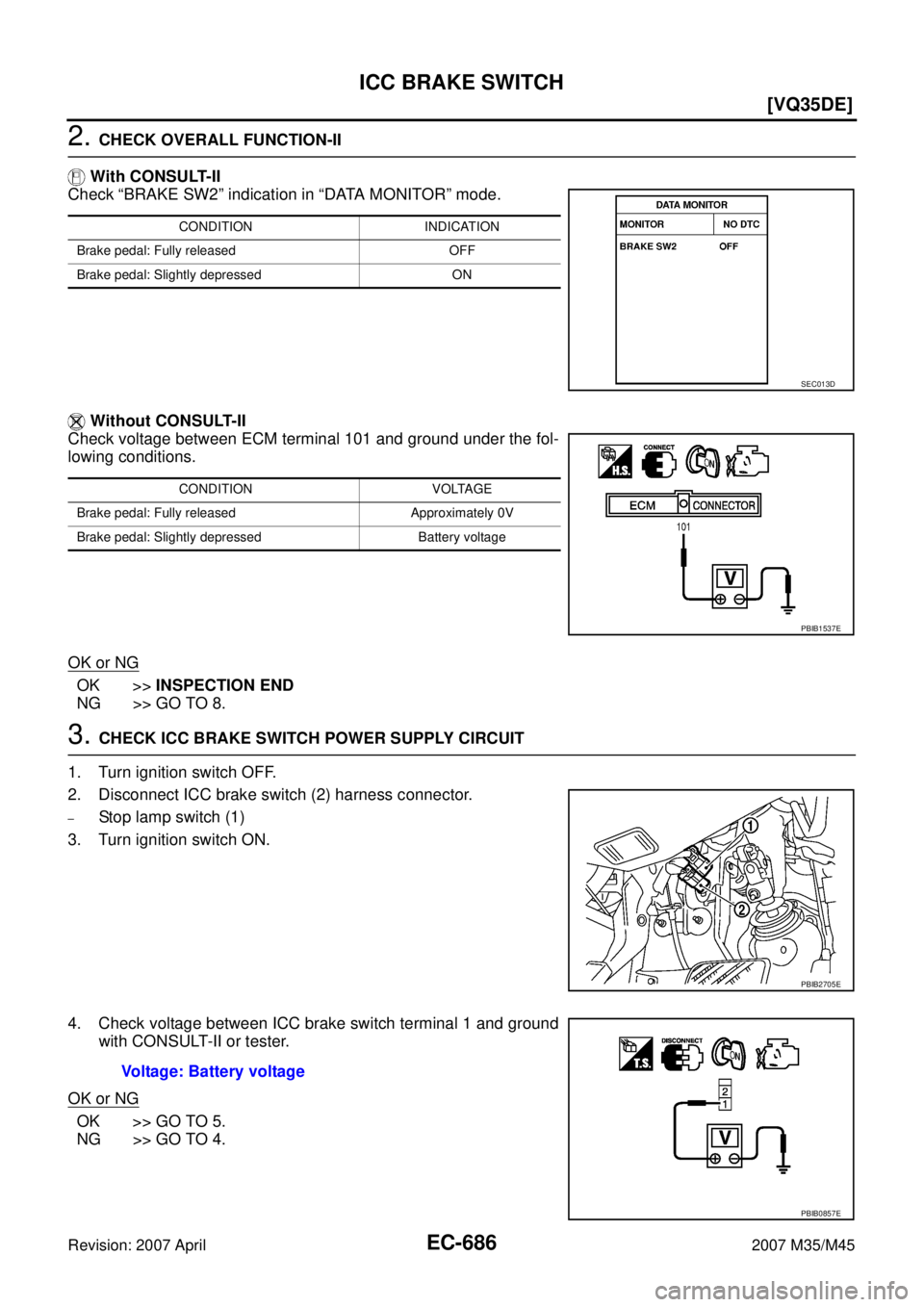

INFINITI M35 2007 Factory Service Manual ICC BRAKE SWITCH EC-685 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not u

Page 2215 of 4647

INFINITI M35 2007 Factory Service Manual EC-686 [VQ35DE] ICC BRAKE SWITCH Revision: 2007 April2007 M35/M45 2. CHECK OVERALL FUNCTION-II With CONSULT-II Check “BRAKE SW2” indication in “DATA MONITOR” mode. Without CONSULT-II Check

Page 2216 of 4647

INFINITI M35 2007 Factory Service Manual ICC BRAKE SWITCH EC-687 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 4. DETECT MALFUNCTIONING PART Check the following. Fuse block (J/B) connector E102 10A fuse Harness for o
