Page 3769 of 4647

INFINITI M35 2007 Factory Service Manual LU-4
[VQ35DE]
PREPARATION
Revision: 2007 April2007 M35/M45
PREPARATIONPFP:00002
Special Service ToolsNBS004PS
The actual shapes of Kent-Moore tools may differ from those of special service tools illus

Page 3770 of 4647

INFINITI M35 2007 Factory Service Manual LUBRICATION SYSTEM
LU-5
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
LUBRICATION SYSTEMPFP:15010

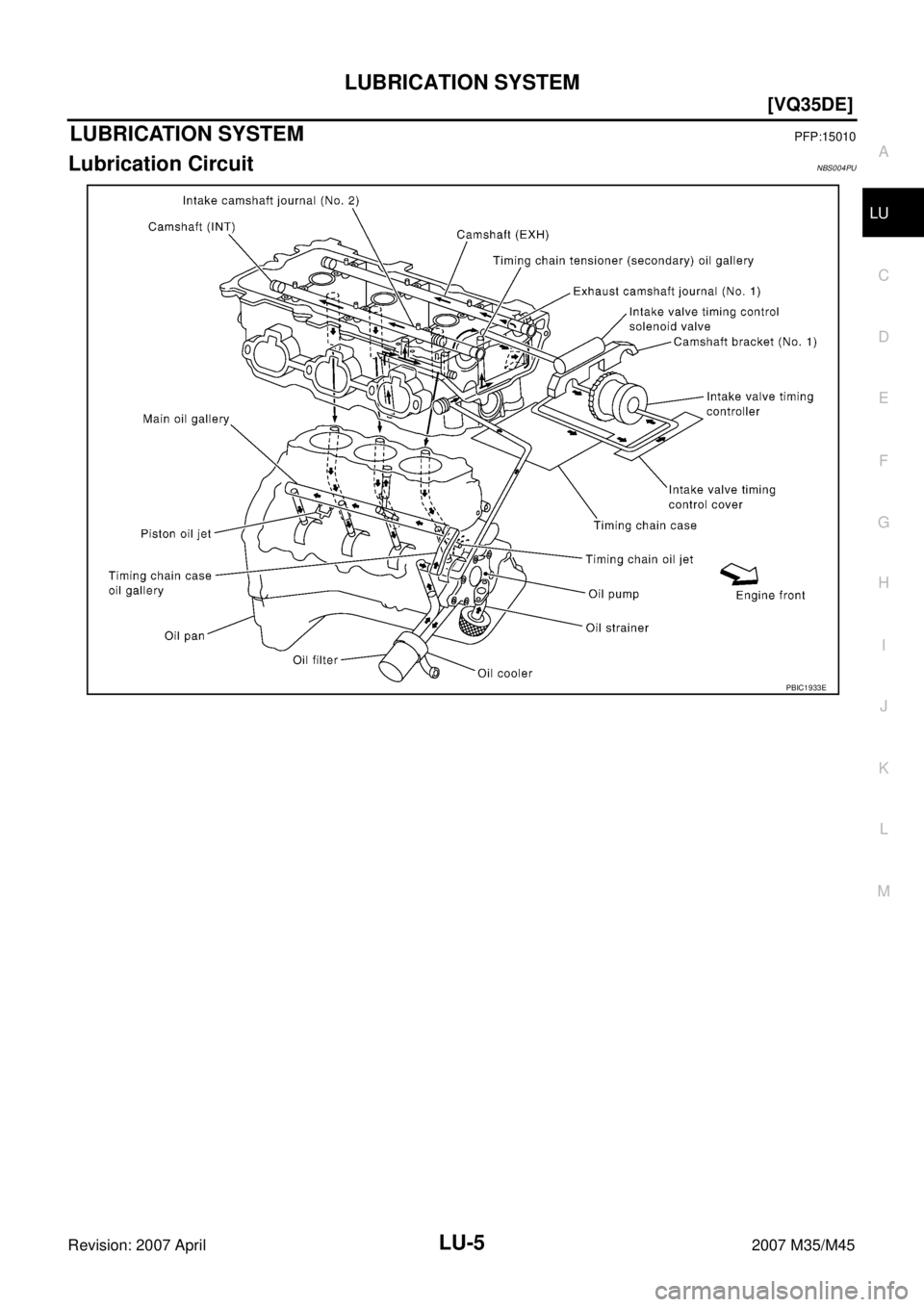

Lubrication CircuitNBS004PU
PBIC1933E

Page 3771 of 4647

INFINITI M35 2007 Factory Service Manual LU-6
[VQ35DE]
LUBRICATION SYSTEM
Revision: 2007 April2007 M35/M45

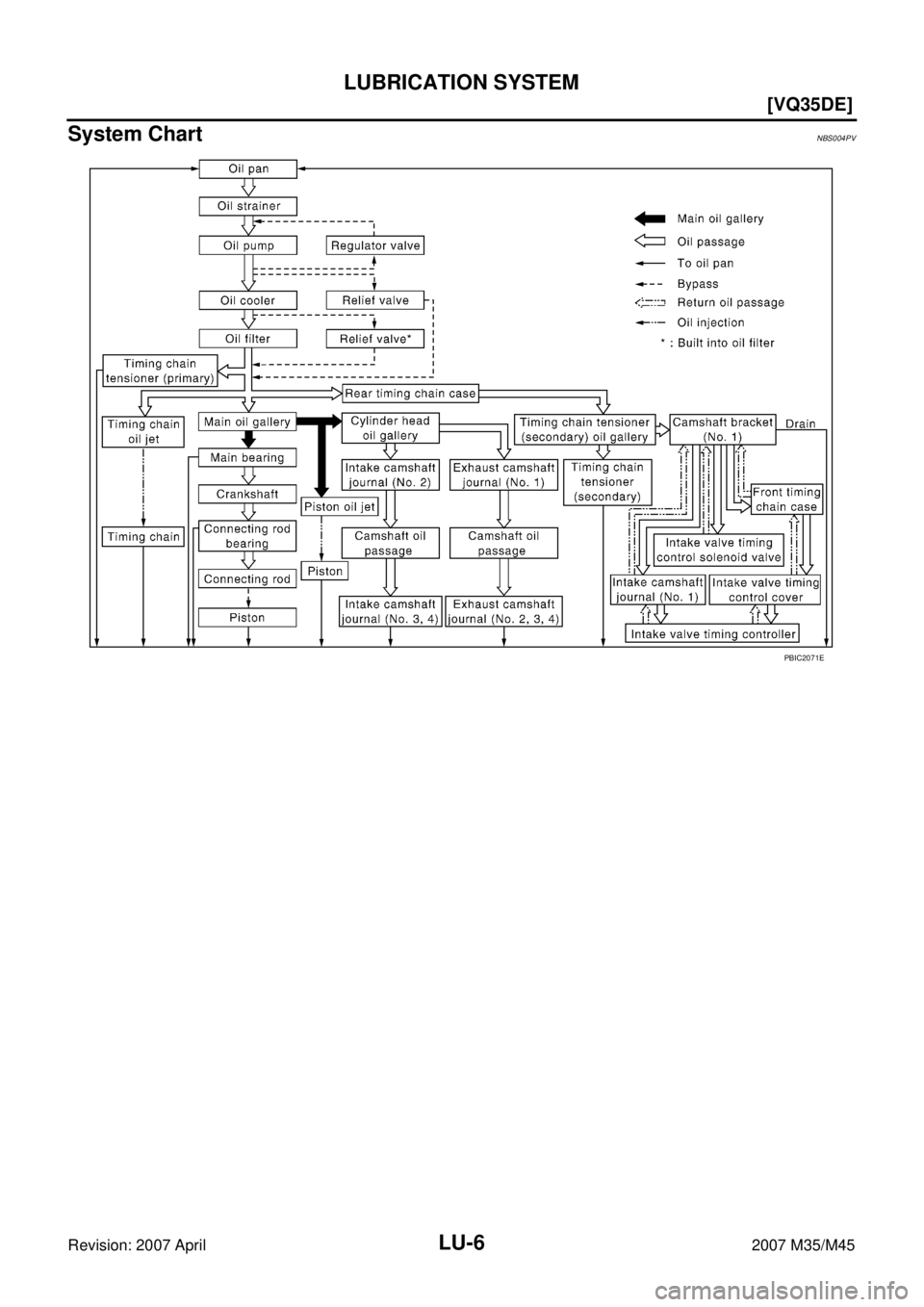

System ChartNBS004PV
PBIC2071E

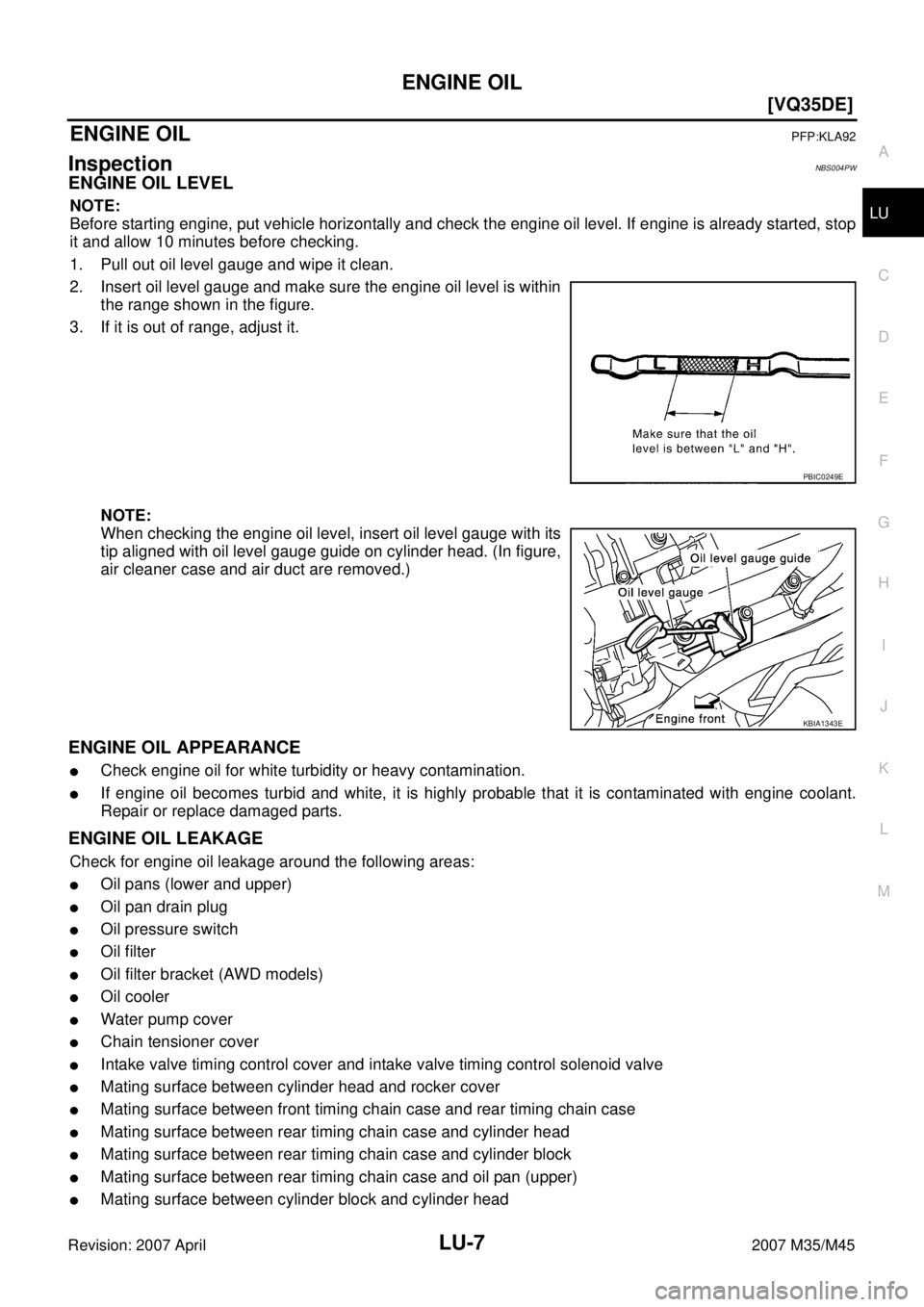

Page 3772 of 4647

INFINITI M35 2007 Factory Service Manual ENGINE OIL
LU-7
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
ENGINE OILPFP:KLA92
InspectionNBS004PW
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and c

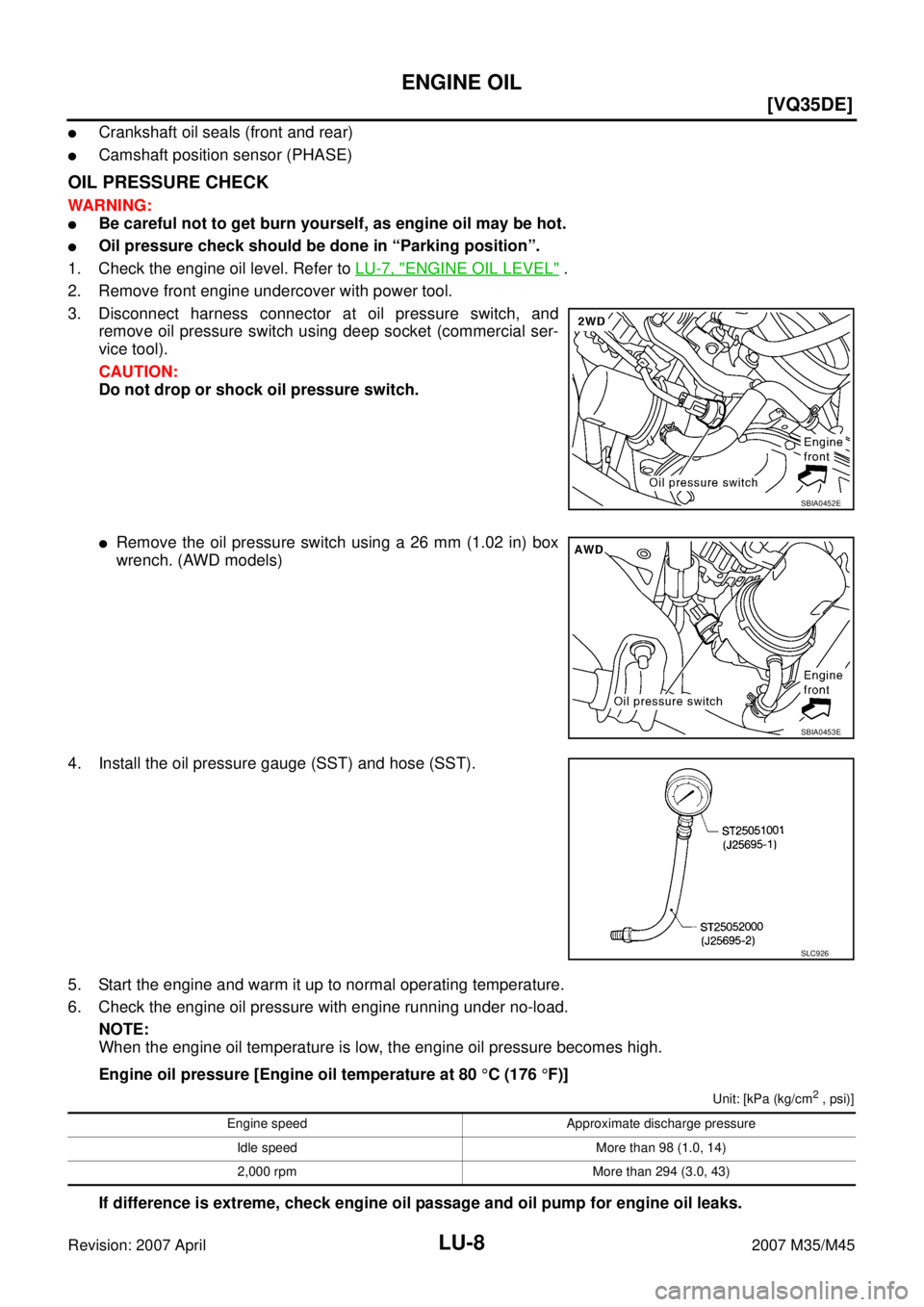

Page 3773 of 4647

INFINITI M35 2007 Factory Service Manual LU-8
[VQ35DE]
ENGINE OIL
Revision: 2007 April2007 M35/M45
Crankshaft oil seals (front and rear)
Camshaft position sensor (PHASE)
OIL PRESSURE CHECK
WARNING:
Be careful not to get burn yourself, as

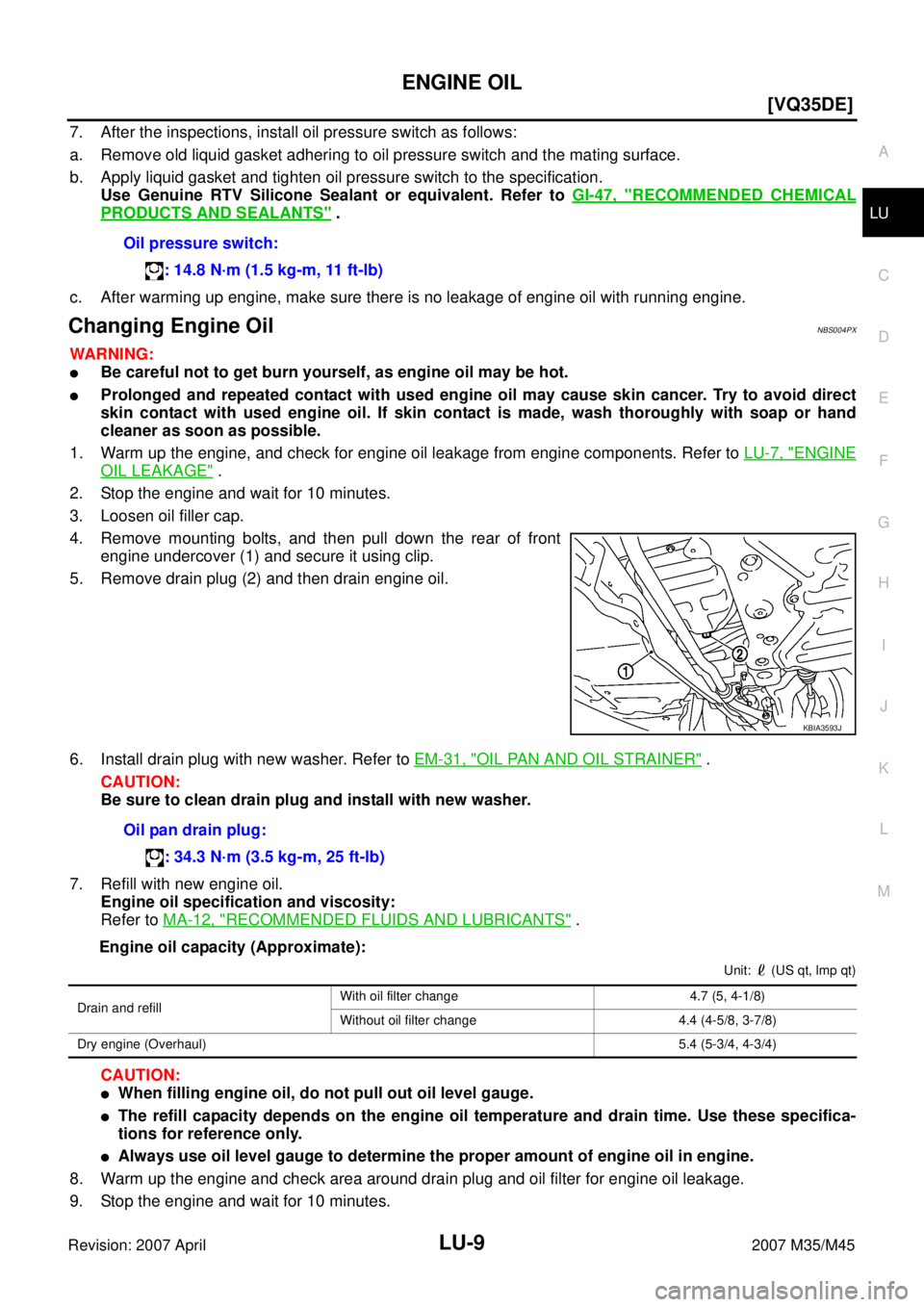

Page 3774 of 4647

INFINITI M35 2007 Factory Service Manual ENGINE OIL
LU-9
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressu

ENGINE OIL
LU-9
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-47, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS004PX
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up the engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE
OIL LEAKAGE" .
2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove mounting bolts, and then pull down the rear of front
engine undercover (1) and secure it using clip.
5. Remove drain plug (2) and then drain engine oil.
6. Install drain plug with new washer. Refer to EM-31, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:
When filling engine oil, do not pull out oil level gauge.
The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop the engine and wait for 10 minutes.Oil pressure switch:
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
KBIA3593J
Oil pan drain plug:
: 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)

Page 3775 of 4647

INFINITI M35 2007 Factory Service Manual LU-10
[VQ35DE]
ENGINE OIL
Revision: 2007 April2007 M35/M45
10. Check the engine oil level. Refer to LU-7, "ENGINE OIL LEVEL" .

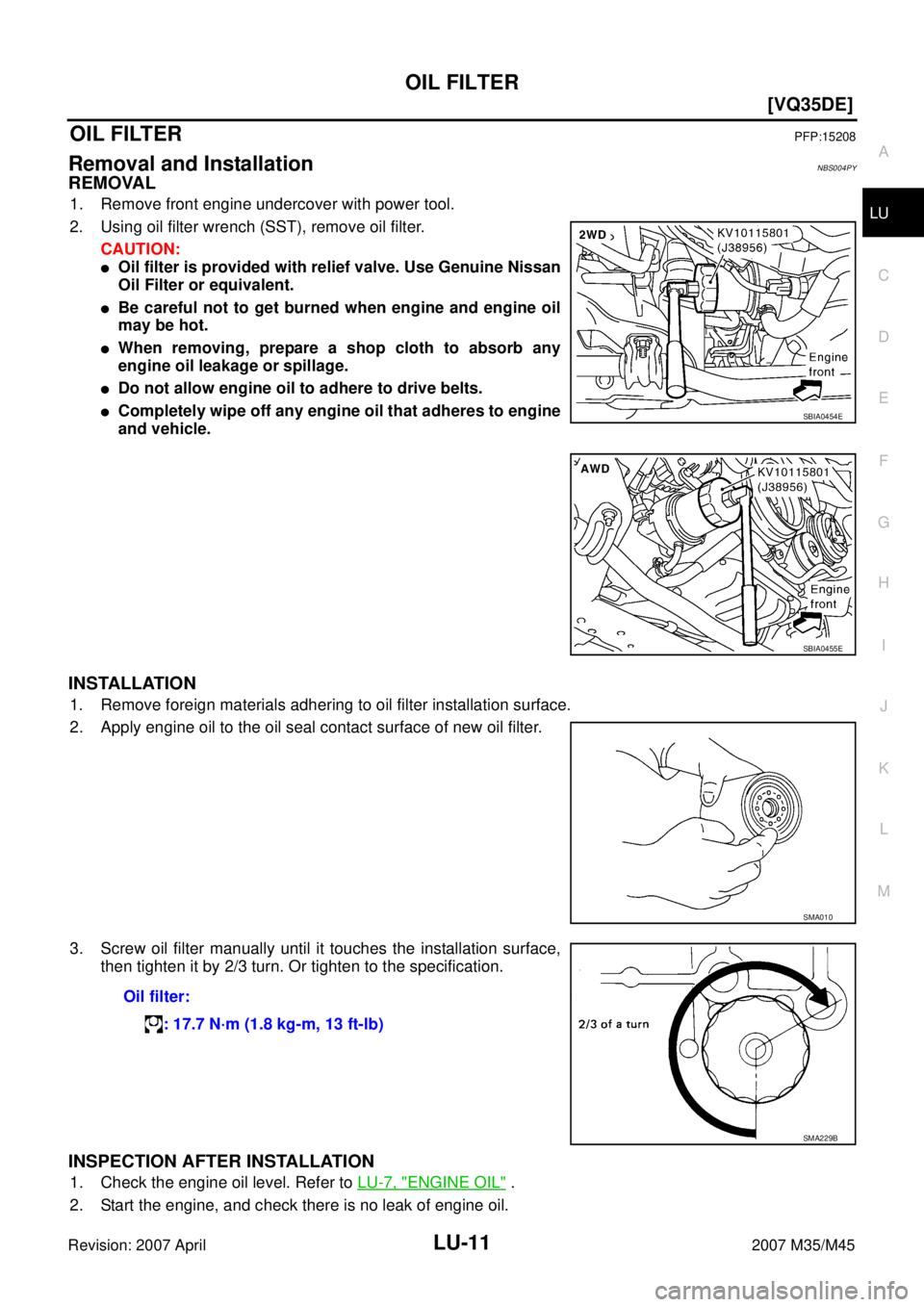

Page 3776 of 4647

INFINITI M35 2007 Factory Service Manual OIL FILTER
LU-11
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
OIL FILTERPFP:15208
Removal and InstallationNBS004PY
REMOVAL
1. Remove front engine undercover with power tool.
2.
