INFINITI M35 2007 Factory Service Manual EC-1392 [VK45DE] FUEL INJECTOR Revision: 2007 April2007 M35/M45 2. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II. 3.

Page 2922 of 4647

INFINITI M35 2007 Factory Service Manual FUEL INJECTOR EC-1393 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 3. CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect fuel injector harness c

Page 2923 of 4647

INFINITI M35 2007 Factory Service Manual EC-1394 [VK45DE] FUEL INJECTOR Revision: 2007 April2007 M35/M45 6. CHECK FUEL INJECTOR Refer to EC-1394, " Component Inspection" . OK or NG OK >> GO TO 7. NG >> Replace fuel injector. 7. CHECK INTERMI

Page 2924 of 4647

INFINITI M35 2007 Factory Service Manual FUEL PUMP EC-1395 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 FUEL PUMPPFP:17042 DescriptionNBS005Q1 SYSTEM DESCRIPTION *: ECM determines the start signal status by the signals

Page 2925 of 4647

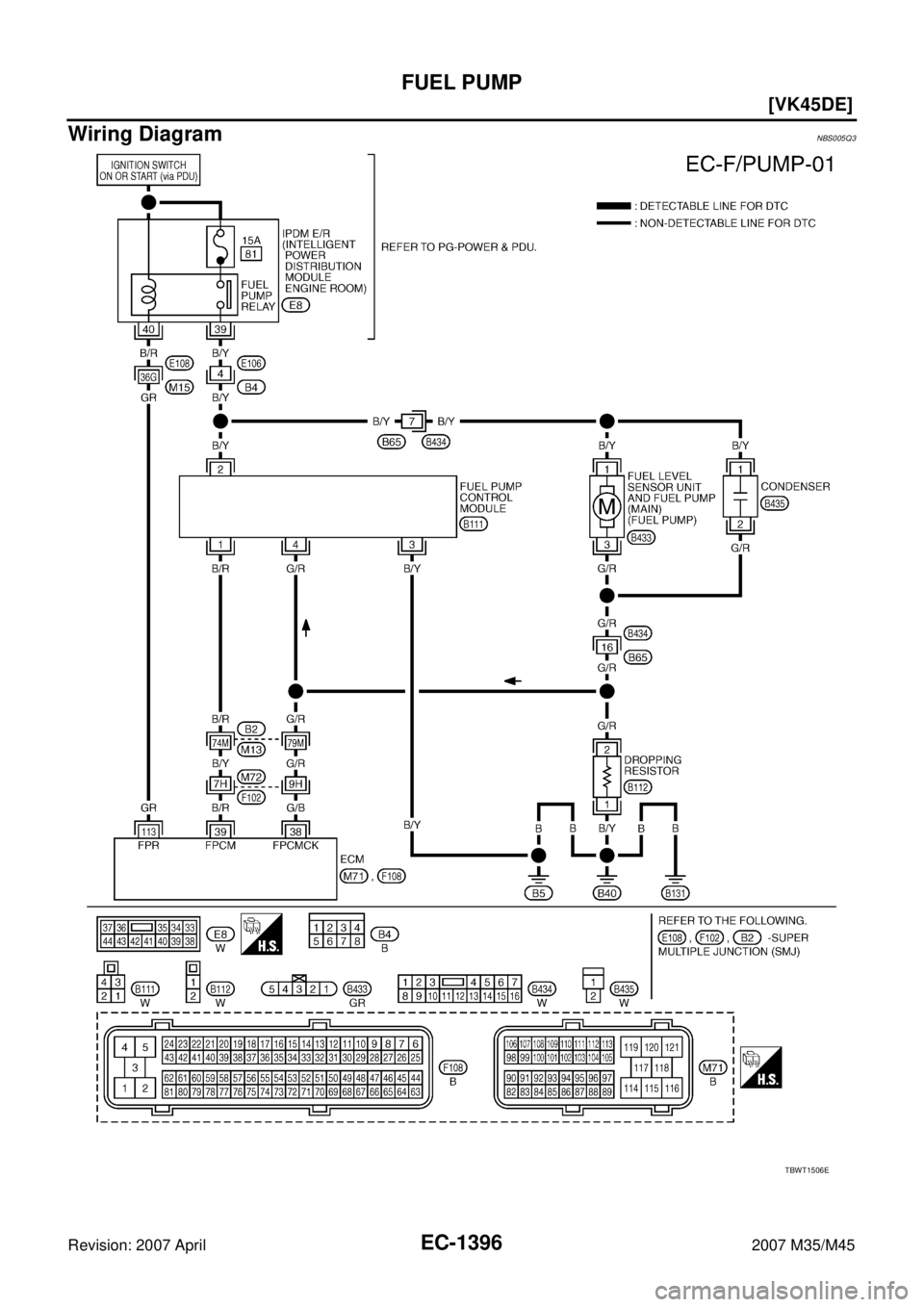

INFINITI M35 2007 Factory Service Manual EC-1396 [VK45DE] FUEL PUMP Revision: 2007 April2007 M35/M45 Wiring DiagramNBS005Q3 TBWT1506E

Page 2926 of 4647

INFINITI M35 2007 Factory Service Manual FUEL PUMP EC-1397 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM

Page 2927 of 4647

INFINITI M35 2007 Factory Service Manual EC-1398 [VK45DE] FUEL PUMP Revision: 2007 April2007 M35/M45 3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II Check voltage between IPDM E/R terminal 40 and ground with CONSULT-II or tester. OK or NG OK >> G

Page 2928 of 4647

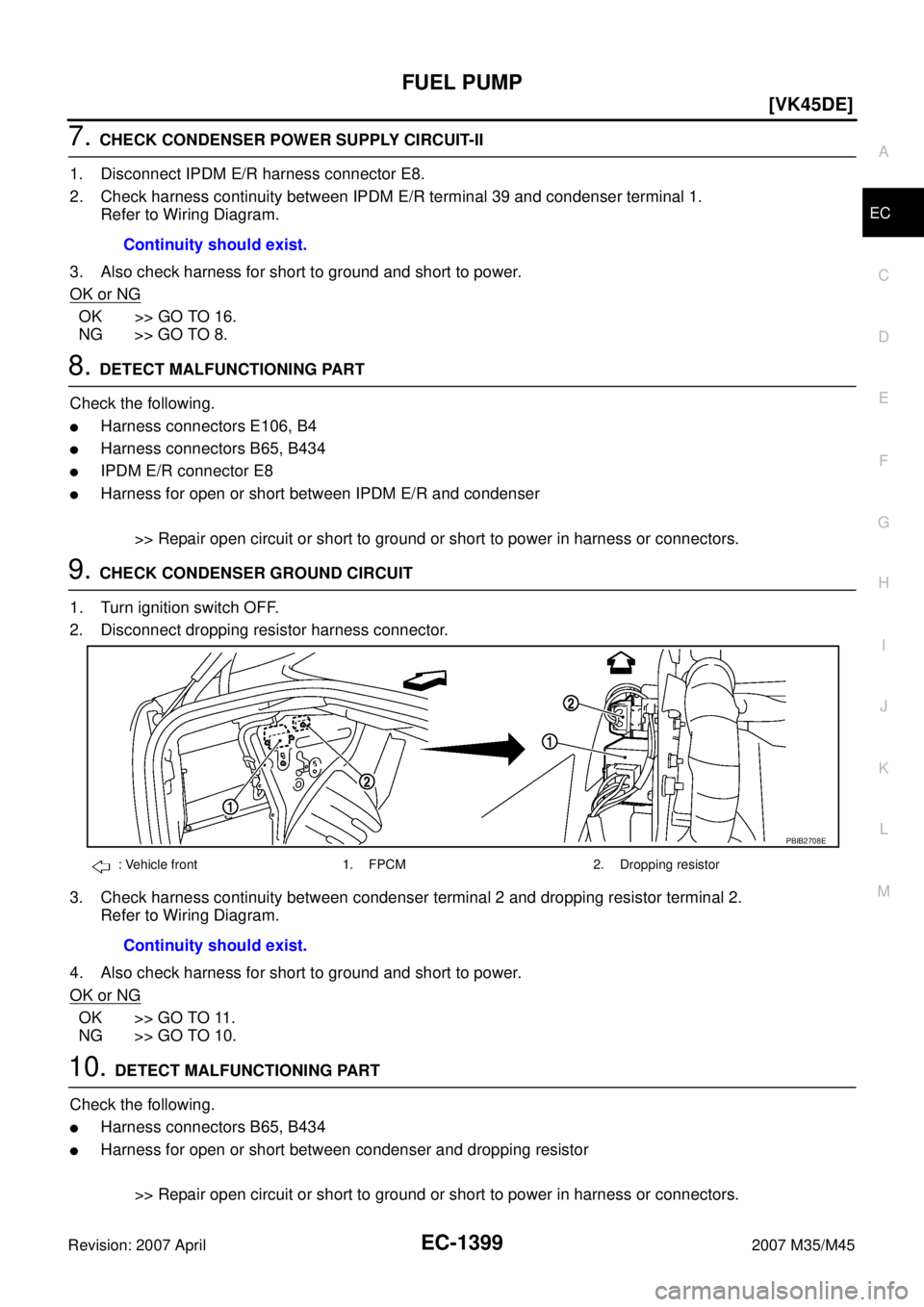

INFINITI M35 2007 Factory Service Manual FUEL PUMP EC-1399 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II 1. Disconnect IPDM E/R harness connector E8. 2. Check harness continuit
