PARKING BRAKE SHOE
Revision: 2007 April2007 M35/M45
–Anti-rattle pin for excessive wear and corrosion.
–Return spring for sagging.
Make sure that adjuster moves smoothly.
Visually check the

Page 3850 of 4647

INFINITI M35 2007 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PB-9
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: 2007 April2007 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake NFS000SX
Parking Brake ControlNF

Page 3851 of 4647

INFINITI M35 2007 Factory Service Manual PB-10
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2007 April2007 M35/M45

Page 3852 of 4647

INFINITI M35 2007 Factory Service Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2007 April2007 M35/M45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2007 April2007 M35/M45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ................................................................ 3
Wiring Diagram — POWER — ................................. 5
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 5
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ........................................ 11
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” .................................. 12
Fuse ....................................................................... 17
Fusible Link ............................................................ 17
Circuit Breaker ....................................................... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 18
System Description ................................................ 18
SYSTEMS CONTROLLED BY IPDM E/R ........... 18
CAN COMMUNICATION LINE CONTROL ......... 18
IPDM E/R STATUS CONTROL ........................... 19
CAN Communication System Description .............. 19
CAN Communication Unit ...................................... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II Function (IPDM E/R) ......................... 20
CONSULT-II BASIC OPERATION ....................... 20
SELF-DIAG RESULTS ........................................ 20
DATA MONITOR ................................................. 21
CAN DIAG SUPPORT MNTR ............................. 22
ACTIVE TEST ..................................................... 22
Auto Active Test ..................................................... 23
DESCRIPTION .................................................... 23
OPERATION PROCEDURE ............................... 23
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic .............................................................. 27
IPDM E/R Terminal Arrangement ........................... 28
Check IPDM E/R Power Supply and Ground Circuit ... 29
Inspection with CONSULT-II (Self-Diagnosis) ........ 30
Removal and Installation of IPDM E/R ................... 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31
PDU (POWER DISTRIBUTION UNIT) ...................... 32
Component Parts and Harness Connector Location ... 32System Description ................................................. 32
PUSH-BUTTON IGNITION SWITCH OPERAT-
ING PROCEDURE .............................................. 32
Wiring Diagram — PDU — ..................................... 34
Terminals and Reference Value for Intelligent Key
Unit ......................................................................... 36
Terminals and Reference Value for PDU ................ 37
Work Flow ............................................................... 37
Trouble Diagnosis Symptom Chart ......................... 38
Check CAN Communication System ...................... 38
Check PDU Power Supply and Ground Circuit ...... 39
Check Push-Button Ignition Switch (Ignition Switch)
System .................................................................... 39
Check Push-Button Ignition Switch (Indicator Cir-
cuit) System ............................................................ 41
PDU Communication Circuit System 1 ................... 42
PDU Communication Circuit System 2 ................... 43
Removal and Installation of PDU ............................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
GROUND ................................................................... 45
Ground Distribution ................................................. 45
MAIN HARNESS ................................................. 45
ENGINE ROOM HARNESS ................................ 50
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 54
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 55
BODY HARNESS ................................................ 56
BODY NO. 2 HARNESS ..................................... 60
HARNESS ................................................................. 62
Harness Layout ...................................................... 62
HOW TO READ HARNESS LAYOUT ................. 62
OUTLINE ............................................................. 63
MAIN HARNESS ................................................. 64
NAVIGATION SUB-HARNESS & A/C HARNESS ... 69
ENGINE ROOM HARNESS ................................ 70
ENGINE CONTROL HARNESS (VQ ENGINE) ... 77
ENGINE CONTROL HARNESS (VK ENGINE) ... 80
BODY HARNESS ................................................ 83

Page 3853 of 4647

INFINITI M35 2007 Factory Service Manual PG-2Revision: 2007 April2007 M35/M45 BODY NO. 2 HARNESS ...................................... 87
TAIL HARNESS ................................................... 91
ROOM LAMP HARNESS ..............

Page 3854 of 4647

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2007 April2007 M35/M45
POWER SUPPLY ROUTING CIRCUITPFP:24110

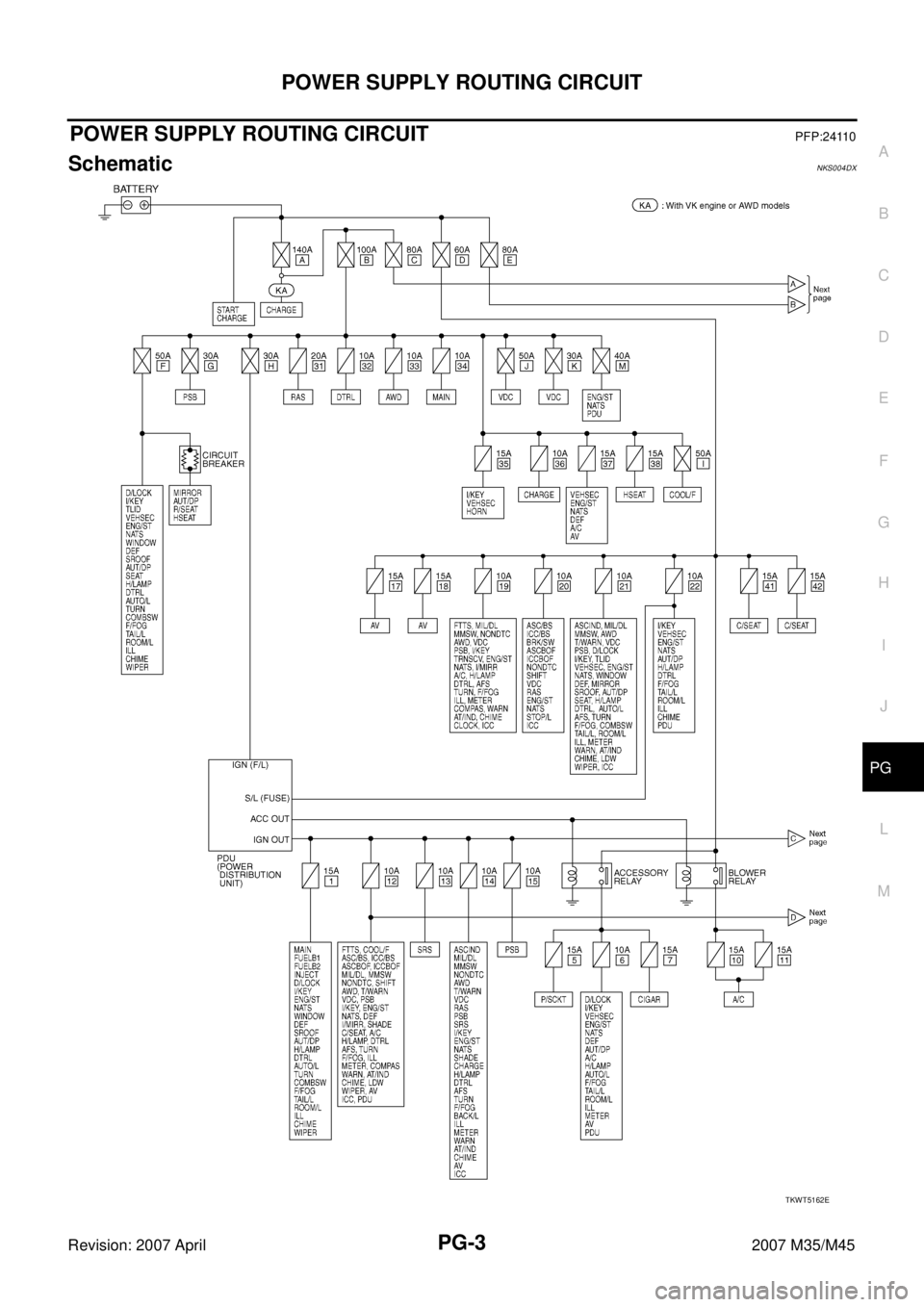

SchematicNKS004DX
TKWT5162E

Page 3855 of 4647

INFINITI M35 2007 Factory Service Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2007 April2007 M35/M45

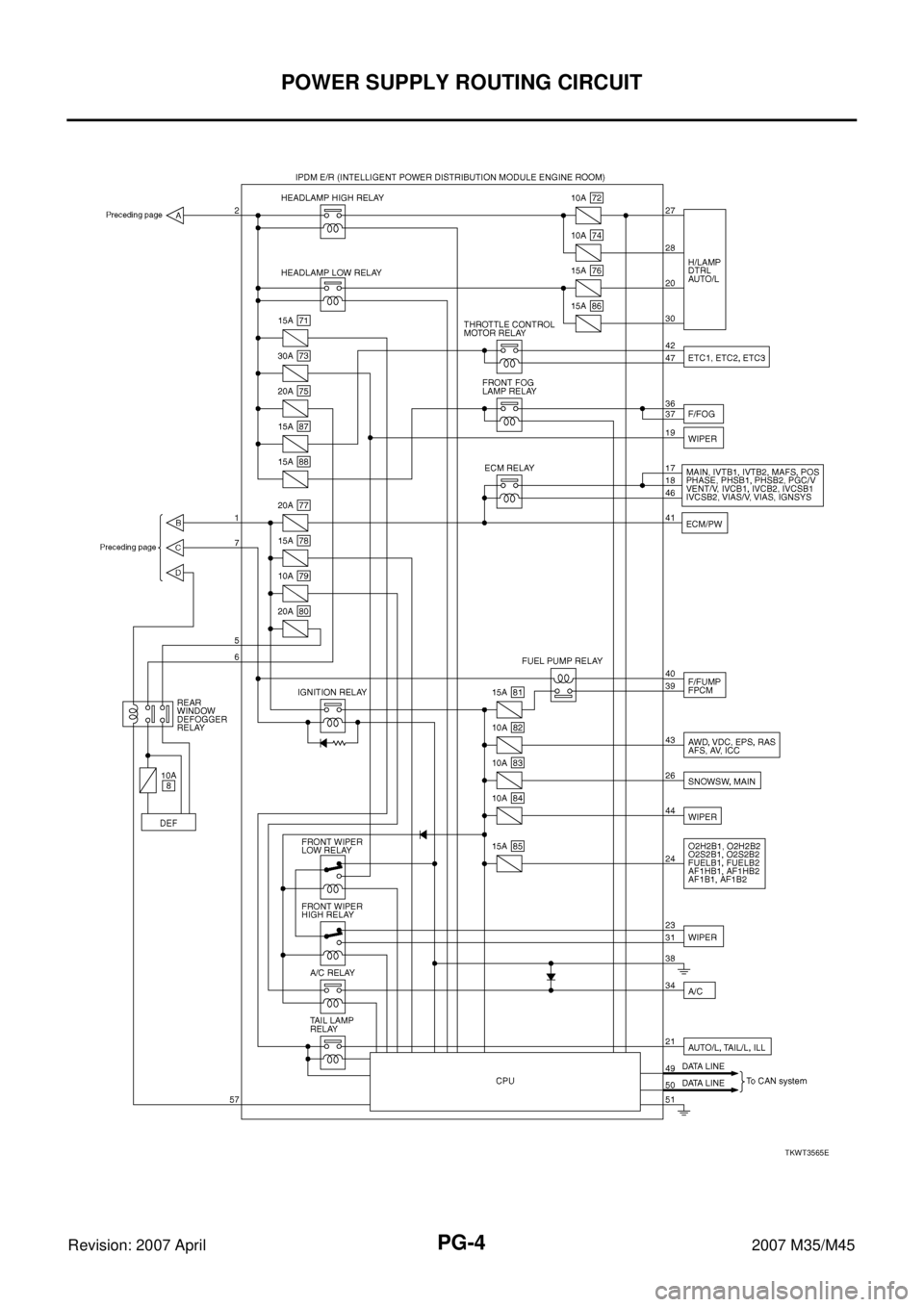

TKWT3565E

Page 3856 of 4647

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2007 April2007 M35/M45

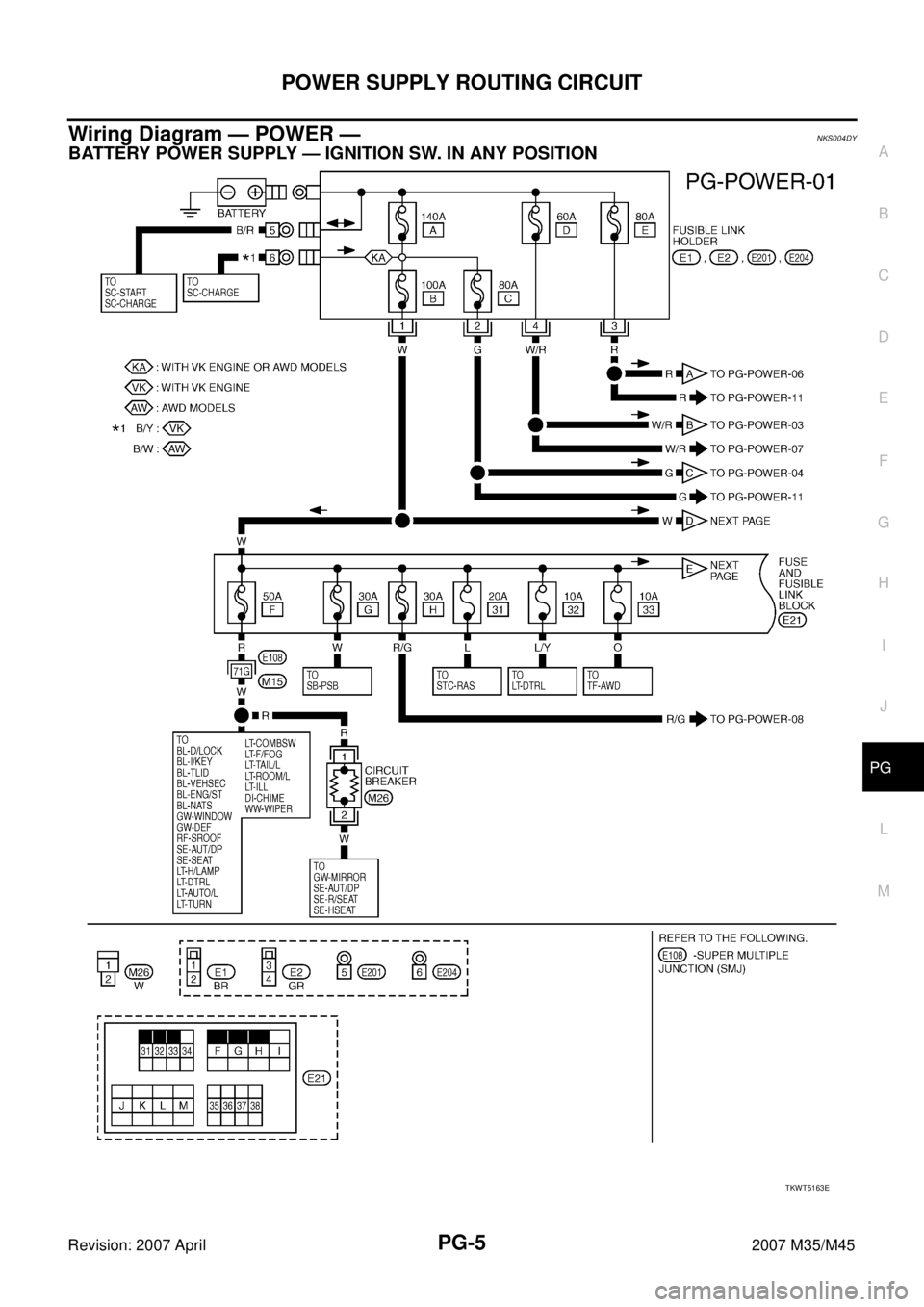

Wiring Diagram — POWER —NKS004DY
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWT5163E
