SE-178
REAR SEAT
Revision: 2007 April2007 M35/M45
Remove the headrest.
Remove the seatback side from the vehicle.
4. Remove seatback center.
Disconnect the harness connector.
Remove the seatback center mounting bolts and nuts.
Remove the seatback center from the vehicle.
5. Remove the rear seat frame.
Disconnect the harness connector.
Remove the bolts and nuts, and then remove the rear seat frame.
Installation
Install in the reverse order of removal.
Disassembly and AssemblyNIS0028L
BENCH SEAT
Disassembly of Seat Cushion
Remove the hog rings to separate the trim and pad.
Assembly of Seat Cushion
Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.
Disassembly of Seatback
1. Remove the headrest holder.
2. Remove the seat belt guide.
3. Remove the hog rings to separate the trim and pad.
Assembly of Seatback
Assemble in the reverse order of disassembly. Be careful of the following one point.
PIIB3356J
PIIB4084J
Page 4378 of 4647
REAR SEAT
SE-179
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.

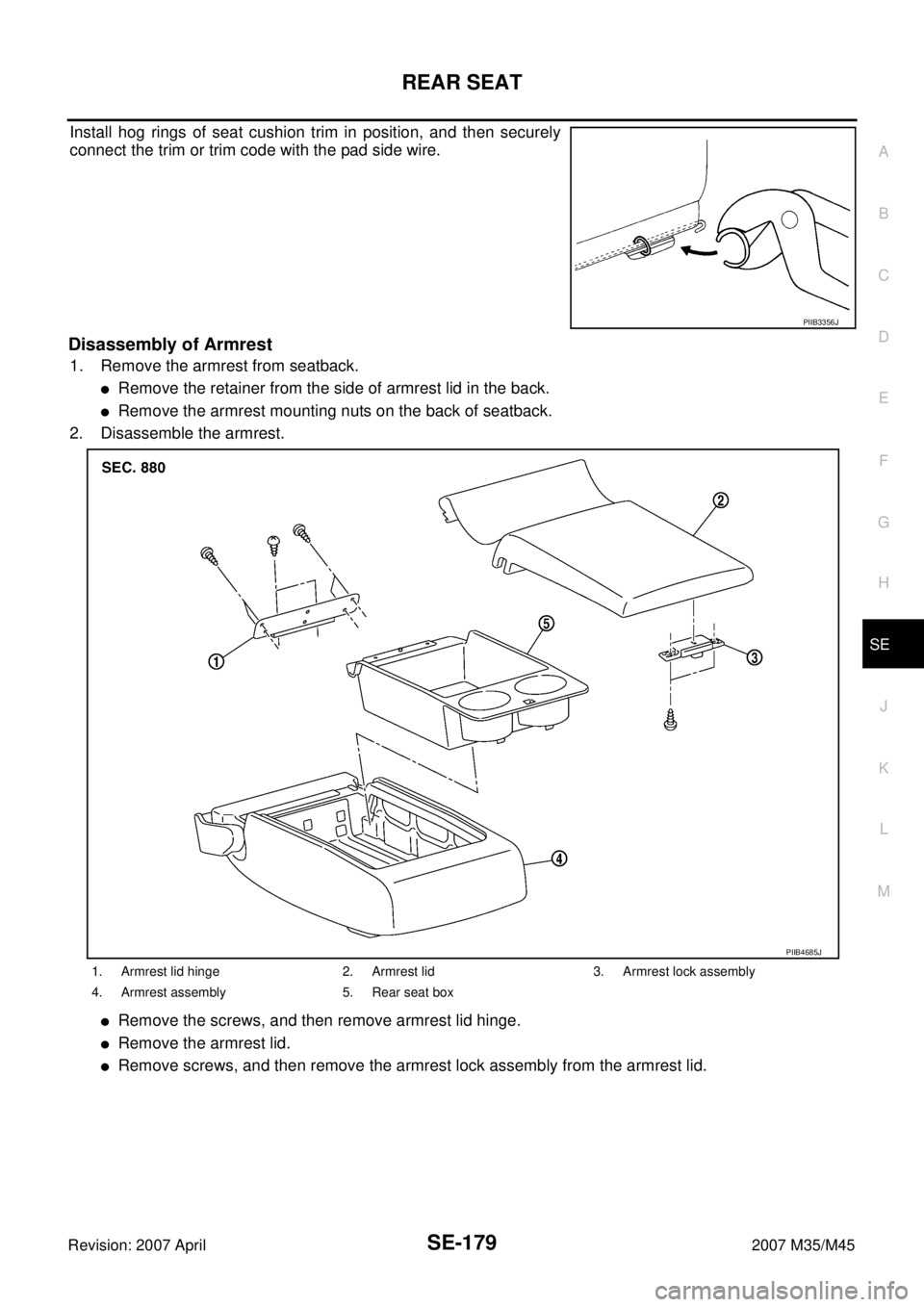

Disassembly of Armrest
1. Remove the armrest from seatback.
Remove the retainer from the side of armrest lid in the back.
Remove the armrest mounting nuts on the back of seatback.
2. Disassemble the armrest.
Remove the screws, and then remove armrest lid hinge.
Remove the armrest lid.
Remove screws, and then remove the armrest lock assembly from the armrest lid.
PIIB3356J
1. Armrest lid hinge 2. Armrest lid 3. Armrest lock assembly
4. Armrest assembly 5. Rear seat box
PIIB4685J
Page 4379 of 4647

SE-180
REAR SEAT
Revision: 2007 April2007 M35/M45
Pull the rear seat box rearward and lift up, and then remove
rear seat box from the armrest assembly.
CAUTION:
When removing, check that front tab is not damaged.
If the tab is damaged when removing the rear seat box,
replace rear seat box with a new one.
Assembly of Armrest
Assemble in the reverse order of disassembly.
POWER SEAT
Disassembly of Seat Cushion
Remove the hog rings to separate the trim and pad.
Assembly of Seat Cushion
Assemble in the reverse order of disassembly.
Disassembly of Seatback
1. Remove the headrest holder.
2. Remove the seat belt guide.
3. Remove the hog rings to separate the trim and pad.
Assembly of Seatback
Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.
Disassembly of Seat Frame
1. Disconnect the harness connectors, remove the screws,and then remove the rear seat control unit.
2. Remove the seatback hook and seat cushion hook.
Assembly of Seat Frame
Assemble in the reverse order of removal.
Disassembly of Armrest
1. Remove the armrest from seatback center.
Remove the retainer from the side of armrest lid in the back.
Remove the armrest mounting nuts on the back of seatback.
PIIB4686J
PIIB4084J
PIIB3356J
Page 4380 of 4647

REAR SEAT
SE-181
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
2. Disassemble the armrest.
Remove the screws, and then remove the armrest hinge cover.
Remove the screws, and then remove the armrest lid hinge.
Remove the armrest lid.
Remove the screws, and then remove the armrest lid lock assembly from the armrest lid.
Remove the rear seat box.
Remove all switches from the rear seat box.
Remove the screws, and then remove the A/C box assembly.
Remove the screws, and then remove the cup holder.
Remove the hog rings, and then remove the seat back center side trim.
Remove the headrest holder, and then remove the seatback center trim.
Assembly of Armrest
Assemble in the reverse order of removal.

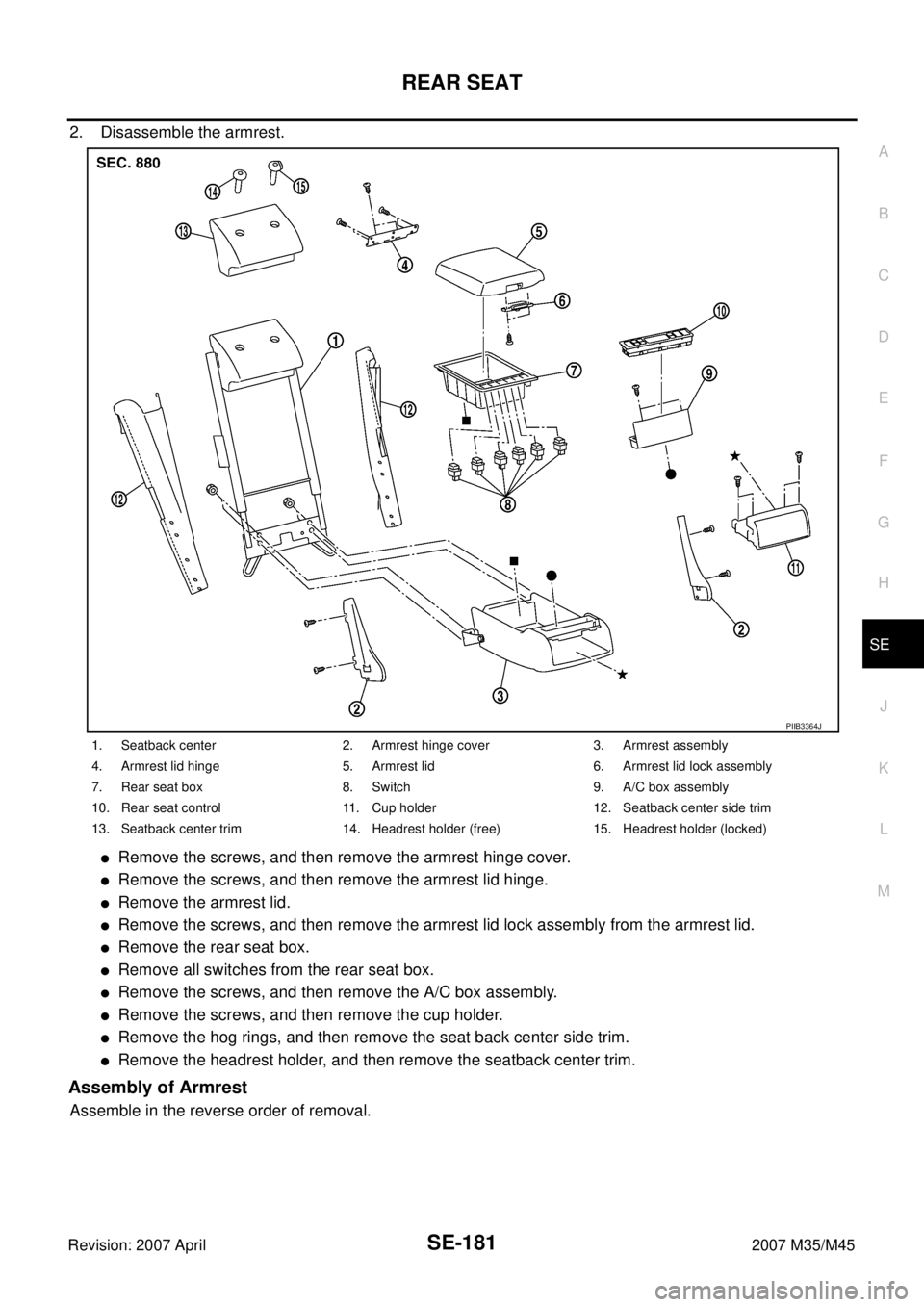

1. Seatback center 2. Armrest hinge cover 3. Armrest assembly
4. Armrest lid hinge 5. Armrest lid 6. Armrest lid lock assembly
7. Rear seat box 8. Switch 9. A/C box assembly
10. Rear seat control 11. Cup holder 12. Seatback center side trim

13. Seatback center trim 14. Headrest holder (free) 15. Headrest holder (locked)
PIIB3364J
Page 4381 of 4647
SE-182
REAR SEAT
Revision: 2007 April2007 M35/M45
Page 4382 of 4647

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SRS
A
B
SRS
Revision: 2007 April2007 M35/M45
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
Occupant Classification System Precaution ............ 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-Tensioner with Load Limiter ...... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag ................................................. 6
Occupant Classification System (OCS) ................... 7
Passenger Air Bag Status Condition ........................ 7
Component Parts of Occupant Classification Sys-
tem ........................................................................... 7
Passenger Seatbelt Warning System ....................... 8
SYSTEM DESCRIPTION ...................................... 8
TROUBLE DIAGNOSIS .............................................. 9
Trouble Diagnosis Introduction ................................. 9
DIAGNOSIS FUNCTION ....................................... 9
HOW TO PERFORM TROUBLE DIAGNOSIS
FOR QUICK AND ACCURATE REPAIR ............... 9
WORK FLOW ...................................................... 10
Component Parts Location ...................................... 11
Schematic .............................................................. 12
Wiring Diagram — SRS — ..................................... 13
CONSULT-II Function ............................................ 18
DIAGNOSIS MODE FOR CONSULT-II ............... 18
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 18
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 19
Self-Diagnosis Function (Without CONSULT-II) ..... 19
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II ...................................... 19
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 19SRS Operation Check ............................................ 20
DIAGNOSTIC PROCEDURE 1 ........................... 20
Trouble Diagnosis with CONSULT-II ...................... 22
DIAGNOSTIC PROCEDURE 2 ........................... 22
DIAGNOSTIC PROCEDURE 3 ........................... 27
DIAGNOSTIC PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 2) .............. 29
DIAGNOSTIC PROCEDURE 5 ........................... 29
Trouble Diagnosis without CONSULT-II ................. 35
DIAGNOSTIC PROCEDURE 6 ........................... 35
WARNING LAMP FLASH CODE CHART ........... 35
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ......................................................... 39
DIAGNOSTIC PROCEDURE 7 ........................... 39
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................... 40
DIAGNOSTIC PROCEDURE 8 ........................... 40
Trouble Diagnosis: Passenger Seatbelt Warning
System .................................................................... 41
DRIVER AIR BAG MODULE .................................... 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 43
SPIRAL CABLE ........................................................ 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
FRONT PASSENGER AIR BAG MODULE .............. 46
Removal and Installation ........................................ 46
REMOVAL ........................................................... 46
INSTALLATION ................................................... 46
SIDE CURTAIN AIR BAG MODULE ........................ 47
Removal and Installation ........................................ 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 48
CRASH ZONE SENSOR ........................................... 49
Removal and Installation ........................................ 49
REMOVAL ........................................................... 49
INSTALLATION ................................................... 49
Page 4383 of 4647

SRS-2Revision: 2007 April2007 M35/M45 SIDE AIR BAG (SATELLITE) SENSOR ................... 50
Removal and Installation ........................................ 50
REMOVAL ........................................................... 50
INSTALLATION .................................................... 50
FRONT SEAT BELT PRE-TENSIONER ................... 51
Removal and Installation ........................................ 51
DIAGNOSIS SENSOR UNIT ..................................... 52
Removal and Installation ........................................ 52
REMOVAL ........................................................... 52
INSTALLATION .................................................... 52
ECU DISCRIMINATED NO. ................................. 52
OCCUPANT CLASSIFICATION SYSTEM CON-TROL UNIT ................................................................ 53
Removal and Installation ......................................... 53
COLLISION DIAGNOSIS .......................................... 54
For Frontal Collision ................................................ 54
SRS INSPECTION (FOR FRONTAL COLLI-
SION) ................................................................... 54
For Side Collision .................................................... 56
WHEN THE SIDE AIR BAG IS ACTIVATED IN
THE SIDE COLLISION: ....................................... 56
WHEN SRS IS NOT ACTIVATED IN THE SIDE
COLLISION: ......................................................... 56
SRS INSPECTION (FOR SIDE COLLISION) ...... 56
Page 4384 of 4647

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NHS0008O
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceNHS0008P
Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.
The spiral cable must be aligned with the neutral position since its rotations are limited. Do not turn steer-
ing wheel and column after removal of steering gear.
Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and seat mounted front side air bag module standing with the stud bolt side facing
down.
Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Always replace instrument panel pad following front passenger air bag deployment.
Occupant Classification System PrecautionNHS0008Q
Replace occupant classification system control unit and passenger front seat cushion as an assembly.
Refer to SE-166, "
Passenger's Seat Components" .
