Check Mirror Sensor Circuit NIS0023E
1. CHECK MIRROR SENSOR INSPECTION
With CONSULT-II
Check the voltage on (MIR/SE LH R–L, MIR/SE LH U–D, MIR/SE RH R–L, MIR/SE RH U–D) in the DATA
MONITOR.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Mirror sensor LH circuit is OK.
NG >> GO TO 3.
2. CHECK MIRROR SENSOR POWER SUPPLY 1
Check voltage between door mirror connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
Monitor item
[OPERATION or UNIT]Contents
MIR/SE LH R–L “V”Voltage output from door mirror LH horizontal sensor
(LH/RH) is displayed.
MIR/SE LH U–D “V”Voltage output from door mirror LH vertical sensor
(UP/DOWN) is displayed.
MIR/SE RH R–L “V”Voltage output from door mirror RH horizontal sensor
(LH/RH) is displayed.
MIR/SE RH U–D “V”Voltage output from door mirror RH vertical sensor
(UP/DOWN) is displayed.
PIIA0197E
Terminals
Mirror face positionVoltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M6Door
mirror
RH side5
GroundClose to perk 4.2
Close to valley 0.5
21Close to left edge 3.5
Close to right edge 0.5
Door
mirror
LH side6Close to perk 4.2
Close to valley 0.5
22Close to left edge 0.5
Close to right edge 3.5
PIIB6027E
Terminals
Voltage (V)
(Approx.) (+)
(-)
Door mirror
connectorTe r m i n a l
D2 (LH)
D39 (RH)11 Ground Battery voltage
PIIB6032E
Page 3314 of 4647

REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-115
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
3. CHECK MIRROR SENSOR POWER SUPPLY 2
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Turn ignition switch ON.
4. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace automatic drive positioner control unit.
4. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector.
3. Check continuity between automatic drive positioner control unit connector and door mirror connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Repair or replace harness.
Terminals
Voltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M7 33 Ground Battery voltage
PIIB6028E
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
connectorTerminal
M7 33D2 (LH)
D39 (RH)11 Ye s
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M7 33 No
PIIB6033E
Page 3315 of 4647

GW-116
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2007 April2007 M35/M45
5. CHECK MIRROR SENSOR GROUND 1
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Check continuity between door mirror connector and ground.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK MIRROR SENSOR GROUND 2
Check continuity between automatic drive positioner control unit connector and ground.
OK or NG
OK >> GO TO 7.
NG >> Replace auto drive positioner control unit.
7. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit connector.
2. Check continuity between automatic drive positioner control unit connector and door mirror connector.
3. Check continuity between automatic drive positioner control unit
connector and door mirror connector.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror.
Door mirror connector Terminal
GroundContinuity
D2 (LH)
D39 (RH)12 Yes
PIIB6034E
Automatic drive posi-
tioner control unit con-
nectorTerminal
GroundContinuity
M7 41 Yes
PIIB6029E
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
connectorTerminal
M7 41D2 (LH)
D39 (RH)12 Yes
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M7 41 Yes
PIIB6035E
Page 3316 of 4647

REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-117
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
8. CHECK HARNESS CONTINUITY 3
1. Disconnect automatic drive positioner control unit connector and door mirror connector.
2. [Door mirror LH]
–Check continuity between automatic drive positioner control unit connector and door mirror LH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
3. [Door mirror RH]
–Check continuity between automatic drive positioner control unit connector and door mirror RH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror con-
nector.
Check A/T Control Device R Position CircuitNIS0023F
1. CHECK R POSITION SIGNAL
Refer to AT- 1 8 6 , "
A/T INDICATOR CIRCUIT"
OK or NG
OK >> Refer to SE-37, "SELF-DIAGNOSIS RESULTS"
NG >> Refer to AT- 1 8 6 , "A/T INDICATOR CIRCUIT"
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
LH connectorTerminal
M66
D29
Ye s
22 10
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M66
No
22
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
RH connectorTerminal
M65
D399
Ye s
21 10
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M65
No
21
PIIB6036E
PIIB6030E
Page 3317 of 4647
GW-118
DOOR MIRROR
Revision: 2007 April2007 M35/M45
DOOR MIRRORPFP:96301
Automatic Drive Positioner Interlocking Door Mirror NIS0023G
Automatic drive positioner interlocking door mirror. Refer to SE-11, "AUTOMATIC DRIVE POSITIONER" .
Removal and InstallationNIS0023H
CAUTION:
Be careful not to damage the mirror bodies.
REMOVAL
1. Remove the front door finisher. Refer to EI-34, "DOOR FINISHER" .
2. Remove the front door sash cover inner. Refer to EI-36, "
FRONT DOOR SASH COVER INNER" .
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
1. Door mirror assembly
PIIB3300J
Page 3318 of 4647

DOOR MIRROR
GW-119
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
Disassembly and AssemblyNIS0023I
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put a strip of protective tape B on mirror body.
3. As shown in the figure, insert a small slotted screwdriver A into
the recess between mirror base (mirror holder)(1) and mirror
holder bracket (2) and push up two pawls (3) to remove mirror
holder lower half side.
NOTE:
When pushing up pawls do not attempt to use one recess only,
be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.
4. Remove two terminals of mirror heater attachment.
5. Lightly lift up lower side of mirror surface from mirror surface, and detach two pawls of upper side as if
pulling it out. Remove mirror surface from mirror body.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side
of mirror surface (mirror holder).

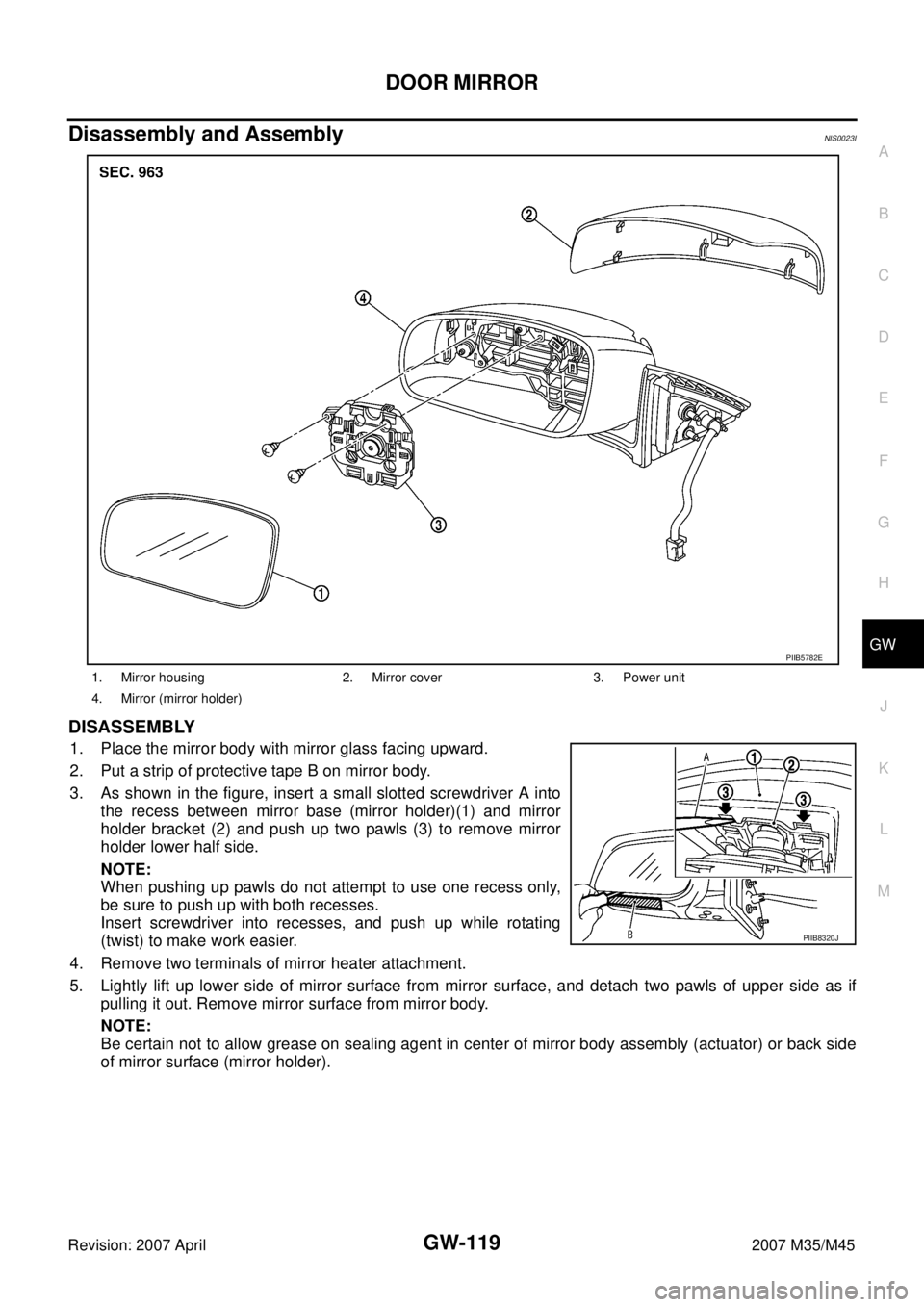

1. Mirror housing 2. Mirror cover 3. Power unit
4. Mirror (mirror holder)
PIIB5782E
PIIB8320J
Page 3319 of 4647
GW-120
DOOR MIRROR
Revision: 2007 April2007 M35/M45
6. Remove the clips and mirror cover from the housing.
7. Remove the screws and power unit from the housing.
ASSEMBLY
1. Install the power unit.
2. Install the mirror cover.
3. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
4. Connect two terminals of heater installed mirror.
5. Fit the upper two pawls on the mirror face (1) onto the mirror
holder bracket (2) first, then press the lower side of mirror face
until a click sound is heard to engage the lower pawls.
NOTE:
After installation, visually make sure lower two pawls are
securely engaged from the bottom of mirror face.
PIIB3302J
PIIB3303J
PIIB3306J
