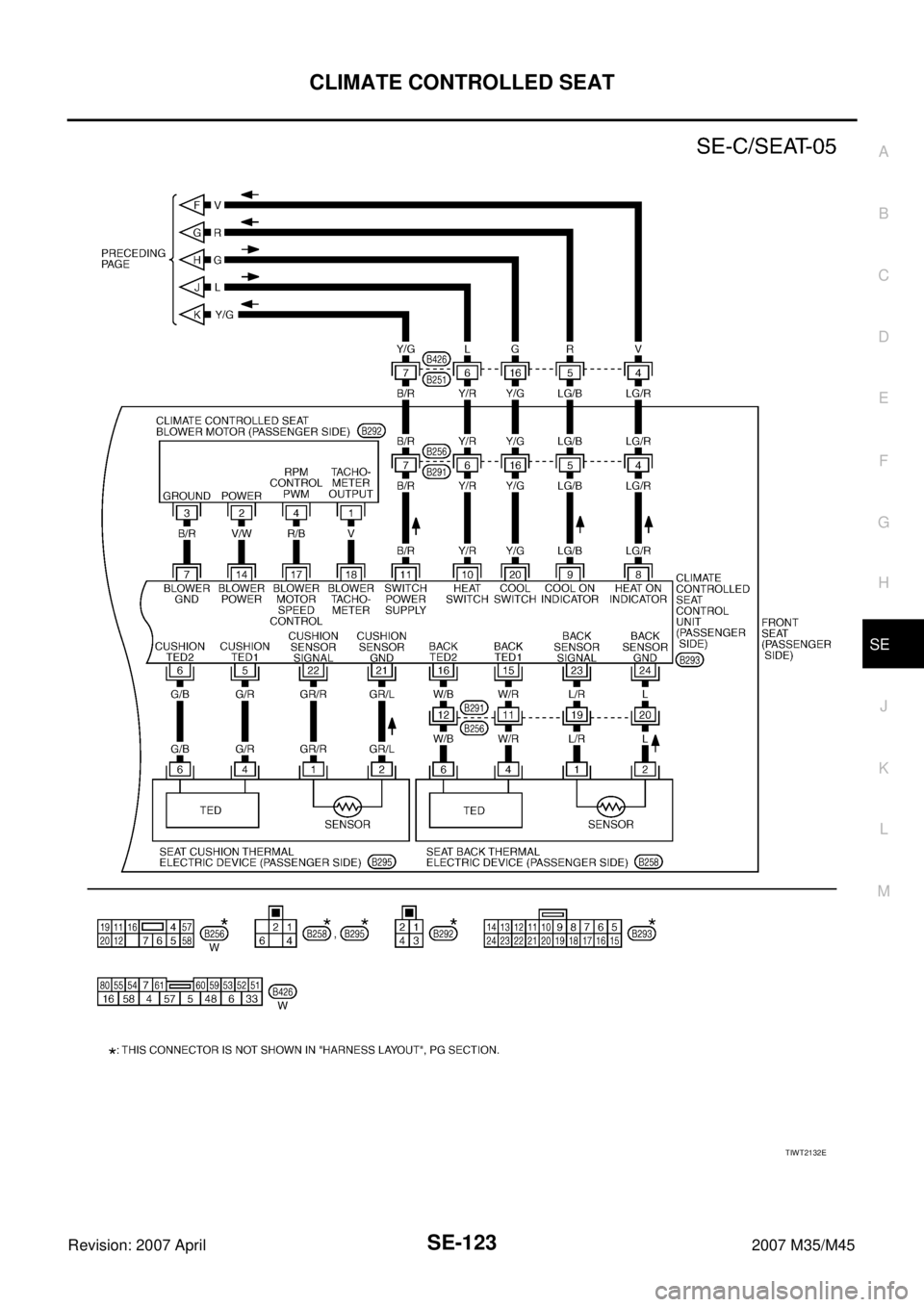

CLIMATE CONTROLLED SEAT
Revision: 2007 April2007 M35/M45
TIWT2131E
Page 4322 of 4647
CLIMATE CONTROLLED SEAT
SE-123
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
TIWT2132E
Page 4323 of 4647

SE-124
CLIMATE CONTROLLED SEAT
Revision: 2007 April2007 M35/M45
Terminal and Reference Value for Climate Controlled Seat Control UnitNIS0027L
Te r -
minalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
2 R/Y Ignition switch power supply Input Ignition switch ON or START Battery voltage
3 B Ground — — 0
4 R/Y Ignition switch power supply Input Ignition switch ON or START Battery voltage
5G/RSeat cushion thermal electric
device power supply (HEAT)InputIgnition switch
ON or STARTClimate controlled
seat switch selectHEAT or
COOL0 – Battery
voltage
OFF 0
6G/BSeat cushion thermal electric
device power supply (COOL)InputIgnition switch
ON or STARTClimate controlled
seat switch select COOL or
HEAT 0 – Battery
voltage
OFF 0
7 B/R Blower motor ground — — 0
8 LG/R HEAT switch indicator signal OutputIgnition switch
ON or STARTClimate controlled
seat switch select HEAT Battery voltage
OFF 0
9 LG/B COOL switch indicator signal OutputIgnition switch
ON or STARTClimate controlled
seat switch select COOL Battery voltage
OFF 0
10 Y/R HEAT switch signal InputIgnition switch
ON or STARTClimate controlled
seat switch select HI HEAT 2.6 – 3.5
MID HEAT 1.6 – 2.5
LO HEAT 0.5 – 1.5
OFF 0
11 B / RClimate controlled seat switch
power supplyInput Ignition switch ON or START Battery voltage
14 V/W Blower motor power supply Input Ignition switch ON or START Battery voltage
15 W/RSeatback thermal electric device
power supply (HEAT) InputIgnition switch
ON or STARTClimate controlled
seat switch select HEAT or
COOL0 – Battery
voltage
OFF 0
16 W/BSeatback thermal electric device
power supply (COOL) InputIgnition switch
ON or STARTClimate controlled
seat switch select COOL or
HEAT 0 – Battery
voltage
OFF 0
17 R/B Blower motor speed control signal InputIgnition switch
ON or STARTClimate controlled
seat switch select HEAT or
COOL4.5 – 8.0
OFF 0
18 V Blower motor tachometer signal OutputIgnition switch
ON or STARTClimate controlled
seat switch select HEAT or
COOL4.5 – 8.0
OFF Battery voltage
20 Y/G COOL switch signal InputIgnition switch
ON or STARTClimate controlled
seat switch select HI COOL 2.6 – 3.5
MID COOL 1.6 – 2.5
LO COOL 0.5 – 1.5
OFF 0
21 GR/LSeat cushion thermal electric
device sensor ground— Ignition switch ON 0
22 GR/RSeat cushion thermal electric
device sensor signalInputBlower motor operated 0.5 – 4
Ignition switch OFF 0
Page 4324 of 4647
CLIMATE CONTROLLED SEAT
SE-125
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Work FlowNIS0027M
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-114, "
System Description" .
3. Perform the preliminary check. Refer toSE-126, "
Preliminary Check" .
4. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-126,
"Trouble Diagnoses Symptom Chart" .
5. Does climate controlled seat operate normally? YES: GO TO 6, NO: GO TO 4.
6. INSPECTION END.
23 L/RSeatback thermal electric device
sensor signalInputBlower motor operated 0.5 – 4
Ignition switch OFF 0
24 LSeatback thermal electric device
sensor ground— Ignition switch ON 0 Te r -
minalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
Page 4325 of 4647

SE-126
CLIMATE CONTROLLED SEAT
Revision: 2007 April2007 M35/M45
Trouble Diagnoses Symptom ChartNIS0027O
NOTE:
Make sure other systems using the signal of the following systems operate normally.
NOTE:
The climate controlled seat blower keep low speed for approximately 60 seconds turning the switch.
The climate controlled seat system is downed when the temperature sensor set as the seat cushion and
the seatback's thermal electric device machine detects 20 °C (68°F) or more of mutual differences of tem-
perature.
Preliminary CheckNIS0027N
1. CHECK DUCT AND FILTER
Check the following.
Is that there no foreign body in the blower motor filter.
Is that there no foreign body in the duct.
OK or NG
OK >> Preliminary check is OK.
NG >> The foreign body is removed.
Symptom Diagnoses / service procedureRefer to
page
Climate controlled seat do not operate
(Neither the driver's side nor passenger's side operate).1. Check climate controlled seat control unit power supply
circuit SE-127
All the driver side or passenger side climate controlled seat
do not operate.1. Check climate controlled seat control unit power supply
and ground circuit SE-1282. Check climate controlled seat switch power supply circuit SE-131
3. Check climate controlled seat blower motor circuit SE-141
4. Replace climate controlled seat control unitSE-114
Climate controlled seat blower motor speed cannot adjust.1. Check climate controlled seat switch power supply circuit SE-1312. Check climate controlled seat switch circuit SE-132
3. Check climate controlled seat control unit SE-143
4. Replace climate controlled seat blower motorSE-114
The climate controlled seat dose not operates when the
switch is done in HEAT or COOL.Check climate controlled seat switch circuit SE-132
When the climate controlled seat switch is turned on,
operation stops at nose (When the climate controlled seat
switch is in HEAT or COOL mode after ignition switch is
turned ON again, the motor operates).1. Check seat cushion thermal electric device sensor circuit SE-1382. Check seat cushion thermal electric device circuit SE-136
3. Check seatback thermal electric device sensor circuitSE-140
4. Check seatback thermal electric device circuit SE-137
5. Check climate controlled seat blower motor circuitSE-141
6. Replace Climate controlled seat control unitSE-114
The climate controlled seat switch indicator do not operated
with HEAT or COOL positionCheck climate controlled seat switch indicator circuit SE-134
Page 4326 of 4647

CLIMATE CONTROLLED SEAT
SE-127
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Check Climate Controlled Seat Control Unit Power Supply Circuit NIS0027P
1. CHECK FUSE
Check 10A fuse [No. 12, located in fuse block (J/B)]
NOTE:
Refer to SE-114, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY CIRCUIT
1. Disconnect climate controlled seat relay connector.
2. Turn ignition switch ON.
3. Check voltage between climate controlled seat relay harness
connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse block (J/B) and
climate controlled seat relay.
3. CHECK CLIMATE CONTROLLED SEAT RELAY
Check continuity climate controlled seat relay.
OK or NG
OK >> GO TO 4.
NG >> Replace climate controlled seat relay.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Climate controlled
seat relay connectorTerminal
E16 2 Ground Battery voltage
PIIB6067E
Climate controlled
seat relay connectorTerminal Condition Continuity
E163512V direct current
supply between
terminals 1and 2Ye s
No current supply No
6712V direct current
supply between
terminals 1and 2Ye s
No current supply No
SEC202B
Page 4327 of 4647

SE-128
CLIMATE CONTROLLED SEAT
Revision: 2007 April2007 M35/M45
4. CHECK CLIMATE CONTROLLED SEAT RELAY GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between climate controlled seat relay connec-
tor and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between climate controlled
seat relay and ground.
Check Climate Controlled Seat Control Unit Power Supply and Ground Circuit NIS0027Q
1. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT POWER SUPPLY CIRCUIT
1. Disconnect climate controlled seat control unit connector.
2. Turn ignition switch ON.
3. Check voltage between climate controlled seat control unit con-
nector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK FUSE
Check 15A fuse [No. 42, located in fuse, fusible link and relay unit] (Driver side)
Check 15A fuse [No. 41, located in fuse, fusible link and relay unit] (Passenger side)
NOTE:
Refer to SE-114, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 3.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Te r m i n a l
Continuity
Climate controlled
seat relay connectorTerminal
Ground
E16 1 Yes
PIIB6068E
Te r m i n a l
Voltage (V)
(Approx.) (+)
(–)
Climate controlled seat
control unit connectorTerminal
B284
(driver side)
B294
(passenger side)2
Ground Battery voltage
4
PIIB6069E
Page 4328 of 4647
CLIMATE CONTROLLED SEAT
SE-129
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
3. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat relay.
3. Check voltage between climate controlled seat relay connector
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between climate controlled seat relay and ground.
4. CHECK CLIMATE CONTROLLED SEAT RELAY
Check continuity climate controlled seat relay.
OK or NG
OK >> GO TO 5.
NG >> Replace climate controlled seat relay.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Climate controlled
seat relay connectorTerminal
E165
Ground Battery voltage
7
PIIB6070E
Climate controlled
seat relay connectorTerminal Condition Continuity
E163512V direct current
supply between
terminals 1and 2Ye s
No current supply No
6712V direct current
supply between
terminals 1and 2Ye s
No current supply No
SEC202B
