Page 3857 of 4647

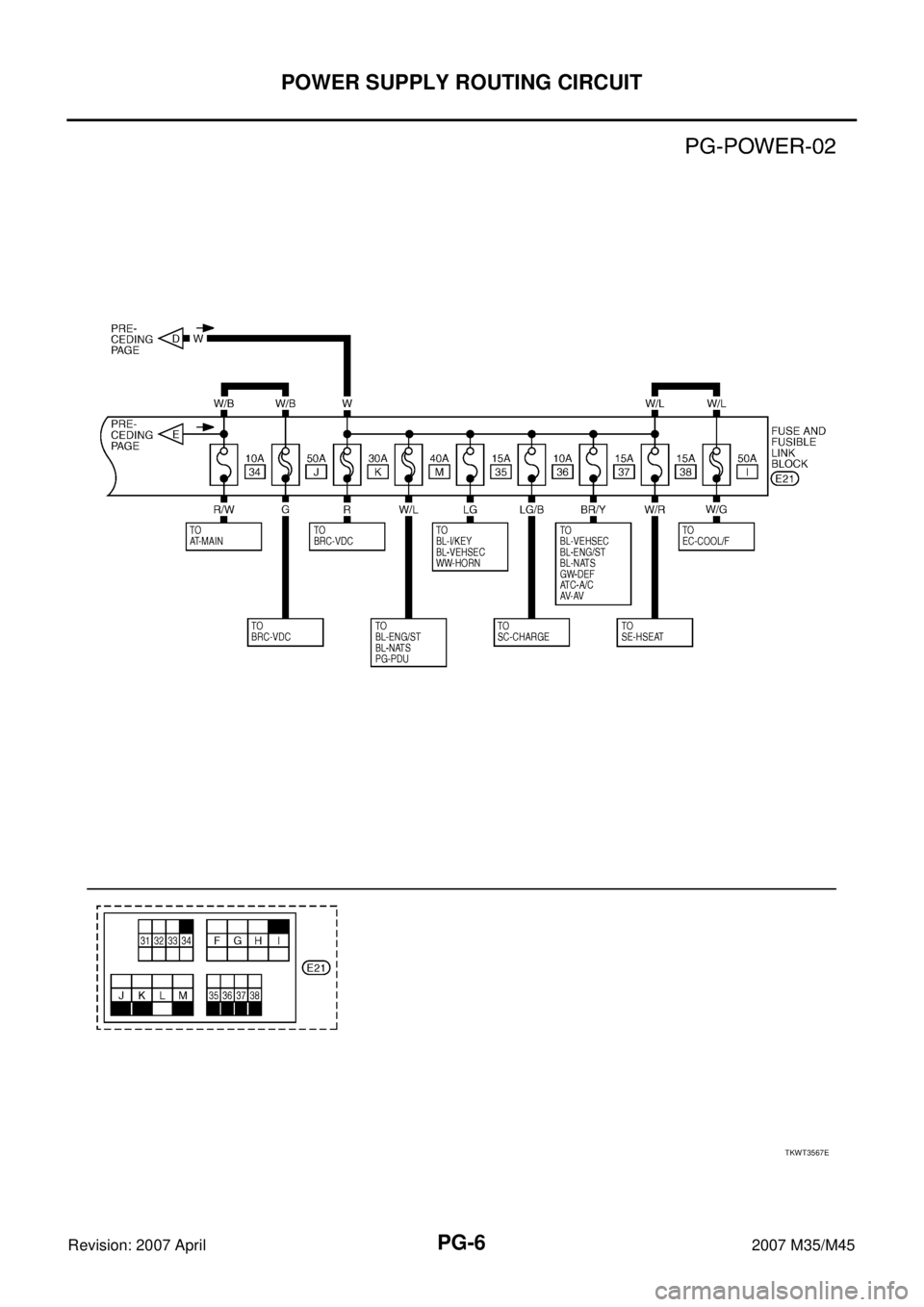

INFINITI M35 2007 Factory Service Manual PG-6 POWER SUPPLY ROUTING CIRCUIT Revision: 2007 April2007 M35/M45 TKWT3567E

Page 3858 of 4647

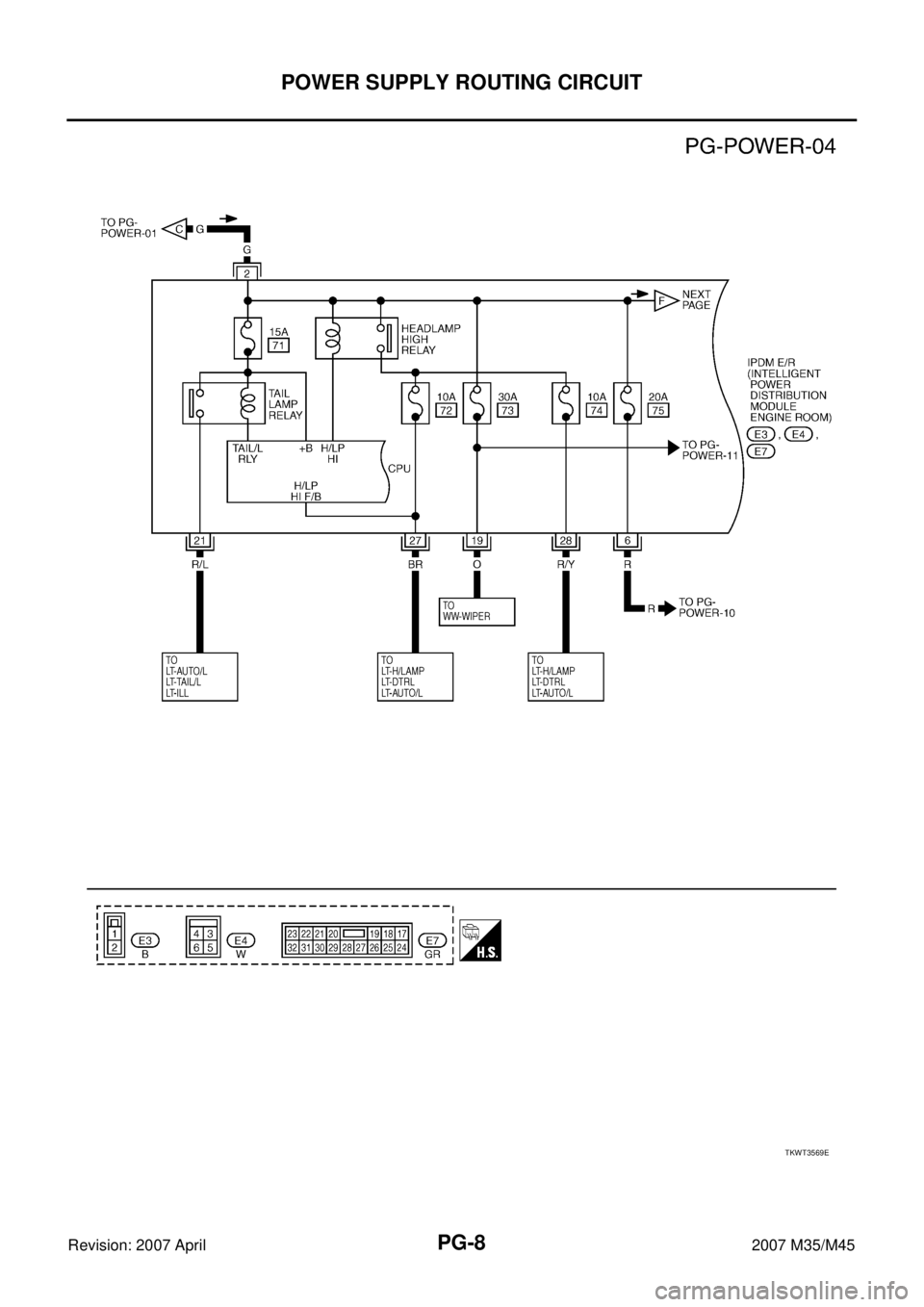

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 TKWT5164E

Page 3859 of 4647

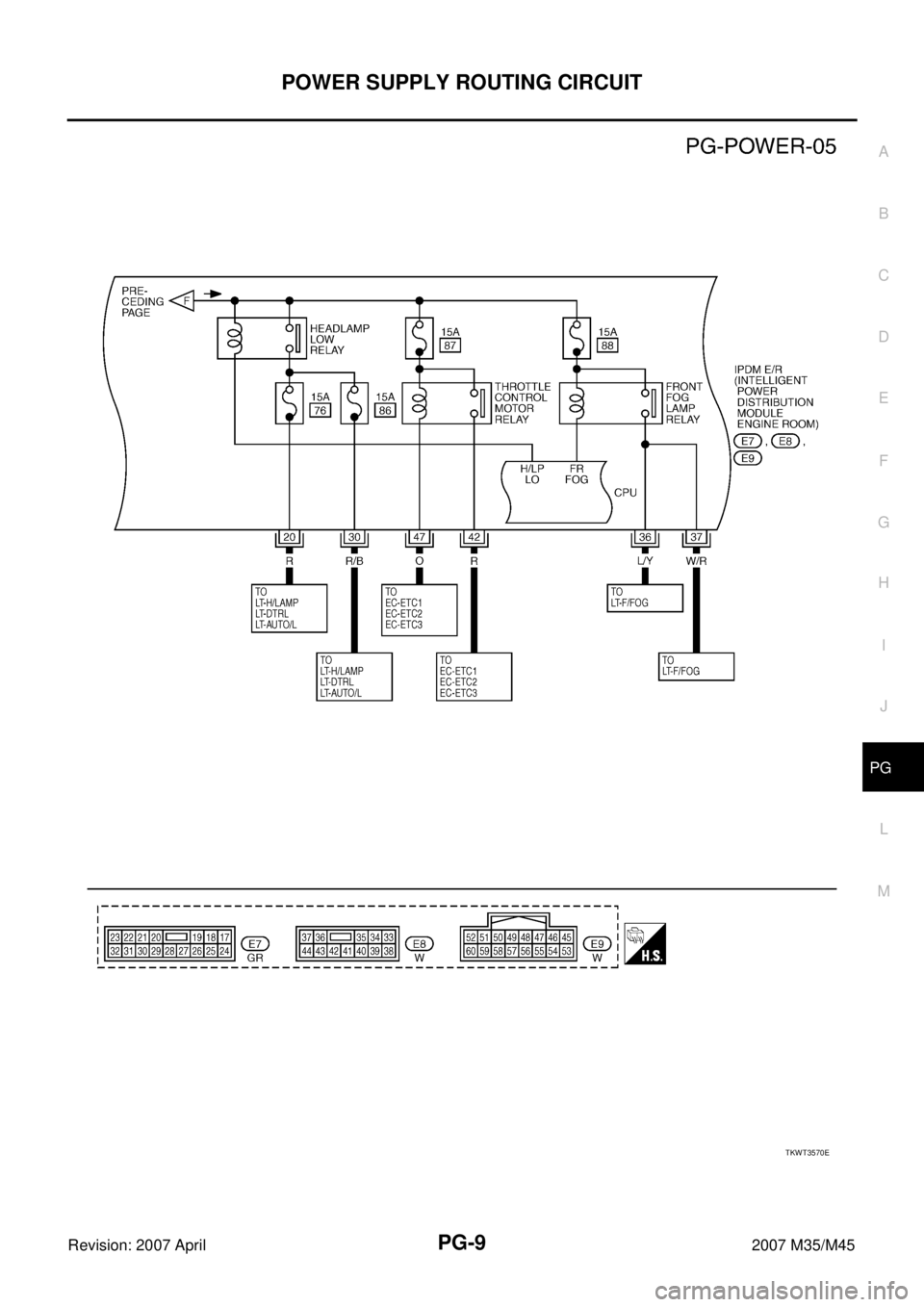

INFINITI M35 2007 Factory Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: 2007 April2007 M35/M45 TKWT3569E

Page 3860 of 4647

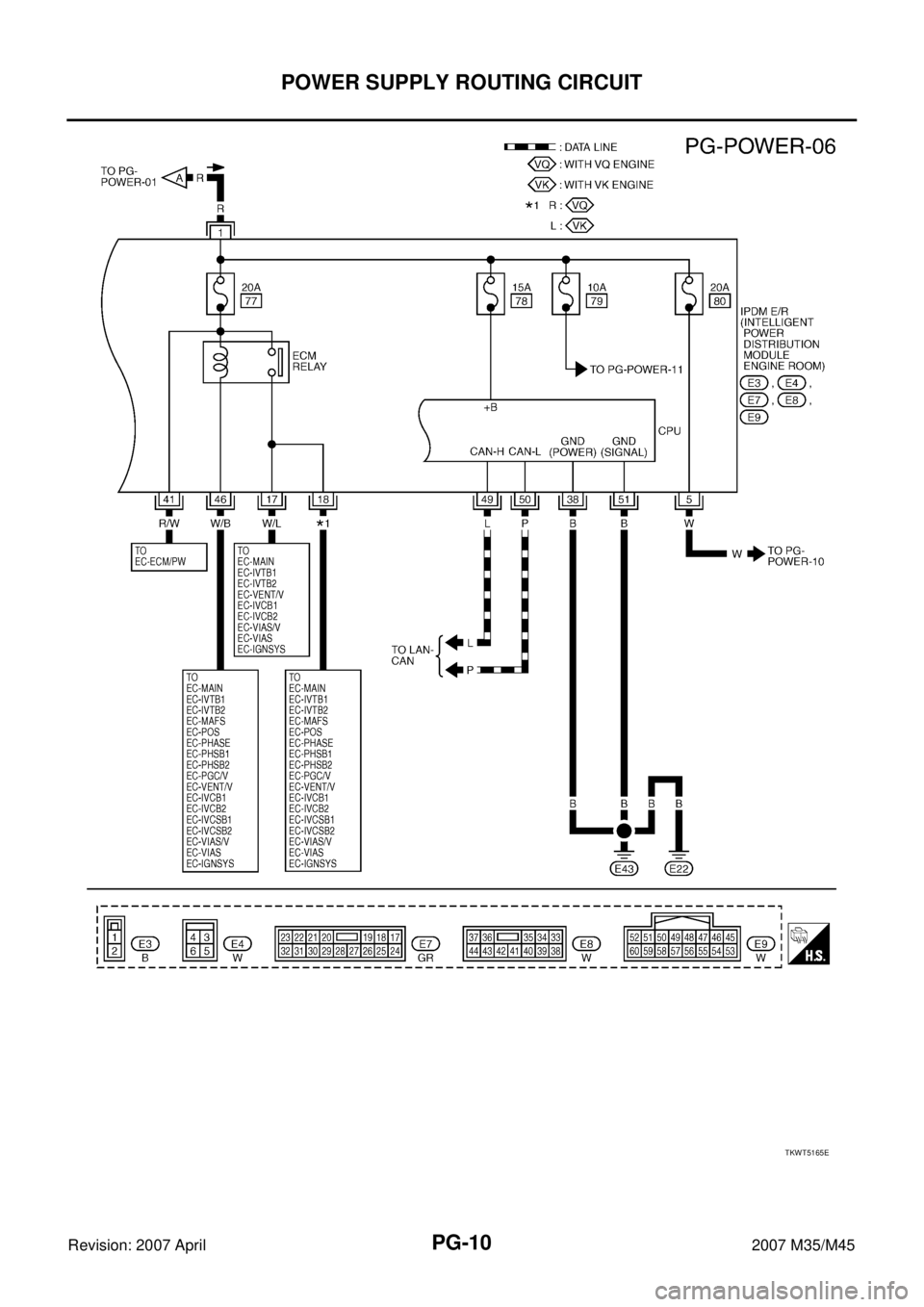

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 TKWT3570E

Page 3861 of 4647

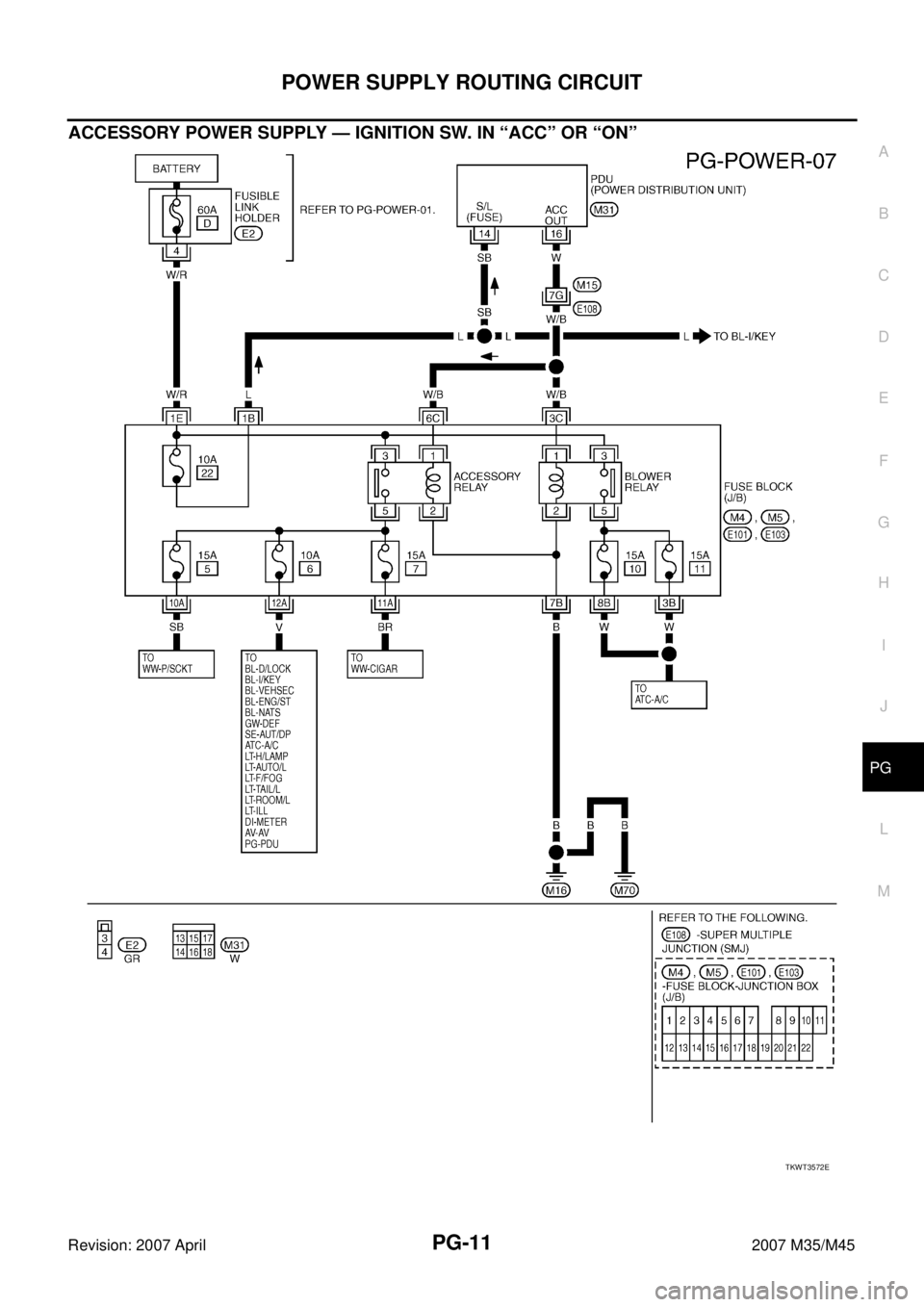

INFINITI M35 2007 Factory Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: 2007 April2007 M35/M45 TKWT5165E

Page 3862 of 4647

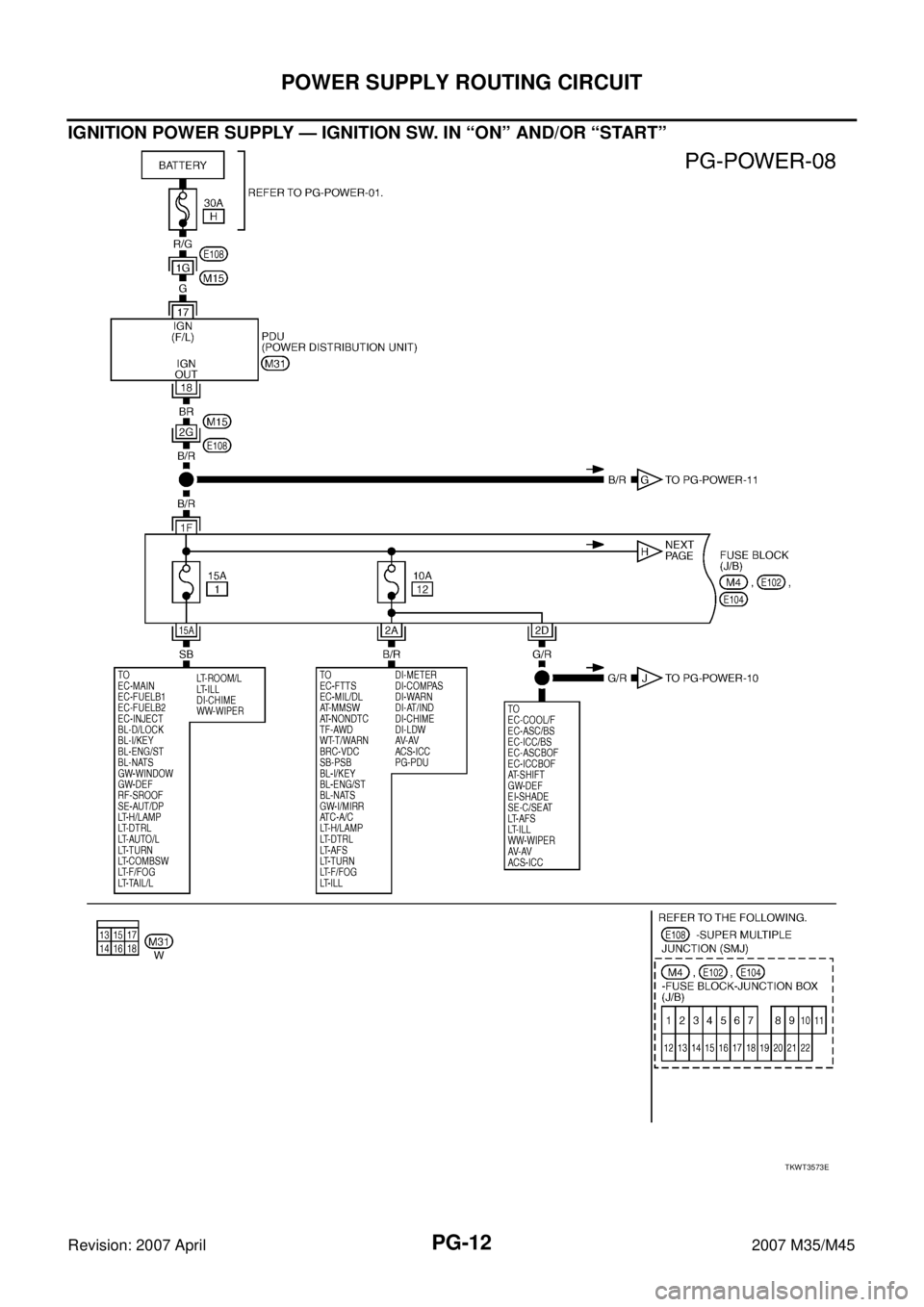

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON” TKWT3572E

Page 3863 of 4647

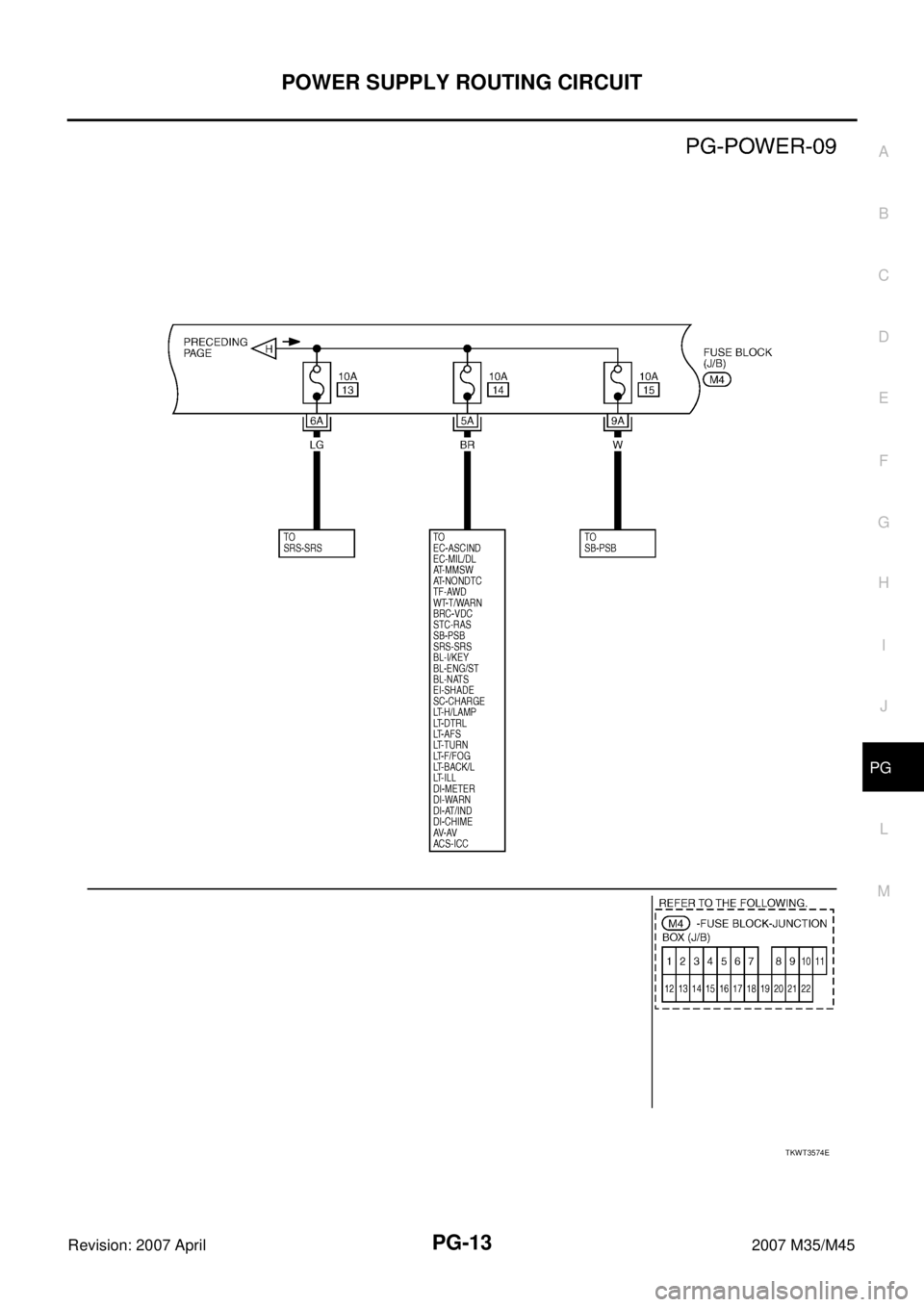

INFINITI M35 2007 Factory Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: 2007 April2007 M35/M45 IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START” TKWT3573E

Page 3864 of 4647

INFINITI M35 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-13 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 TKWT3574E
