Page 1217 of 4647

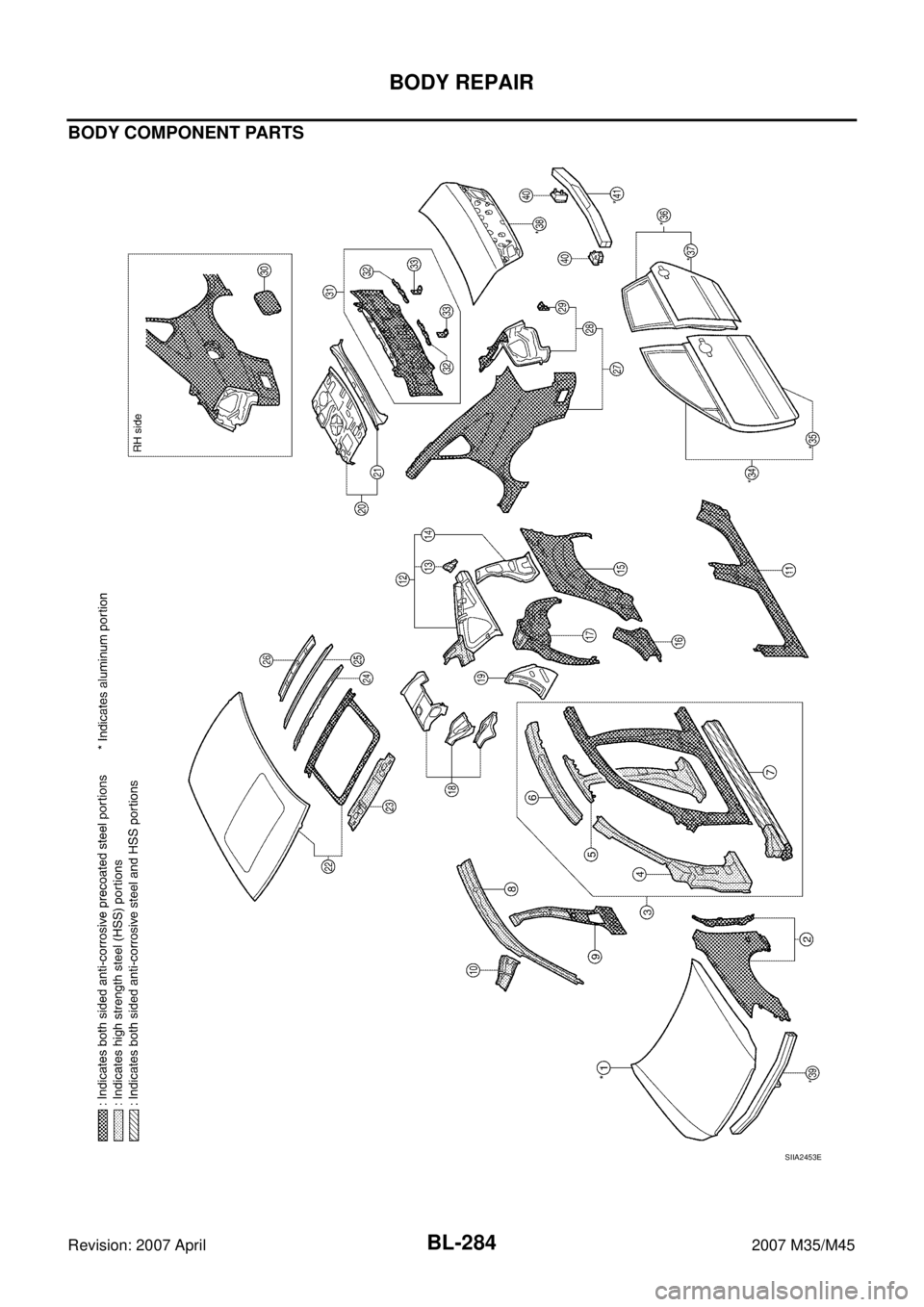

INFINITI M35 2007 Factory Service Manual BL-284 BODY REPAIR Revision: 2007 April2007 M35/M45 BODY COMPONENT PARTS SIIA2453E

Page 1218 of 4647

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-285 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 1. Hood 2. Front fender (RH&LH) 3. Side body assembly (RH&LH) 4. Outer front pillar reinforcement (RH&LH) 5. Center pillar

Page 1219 of 4647

INFINITI M35 2007 Factory Service Manual BL-286 BODY REPAIR Revision: 2007 April2007 M35/M45 Corrosion ProtectionNIS0020Z DESCRIPTION To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in NI

Page 1220 of 4647

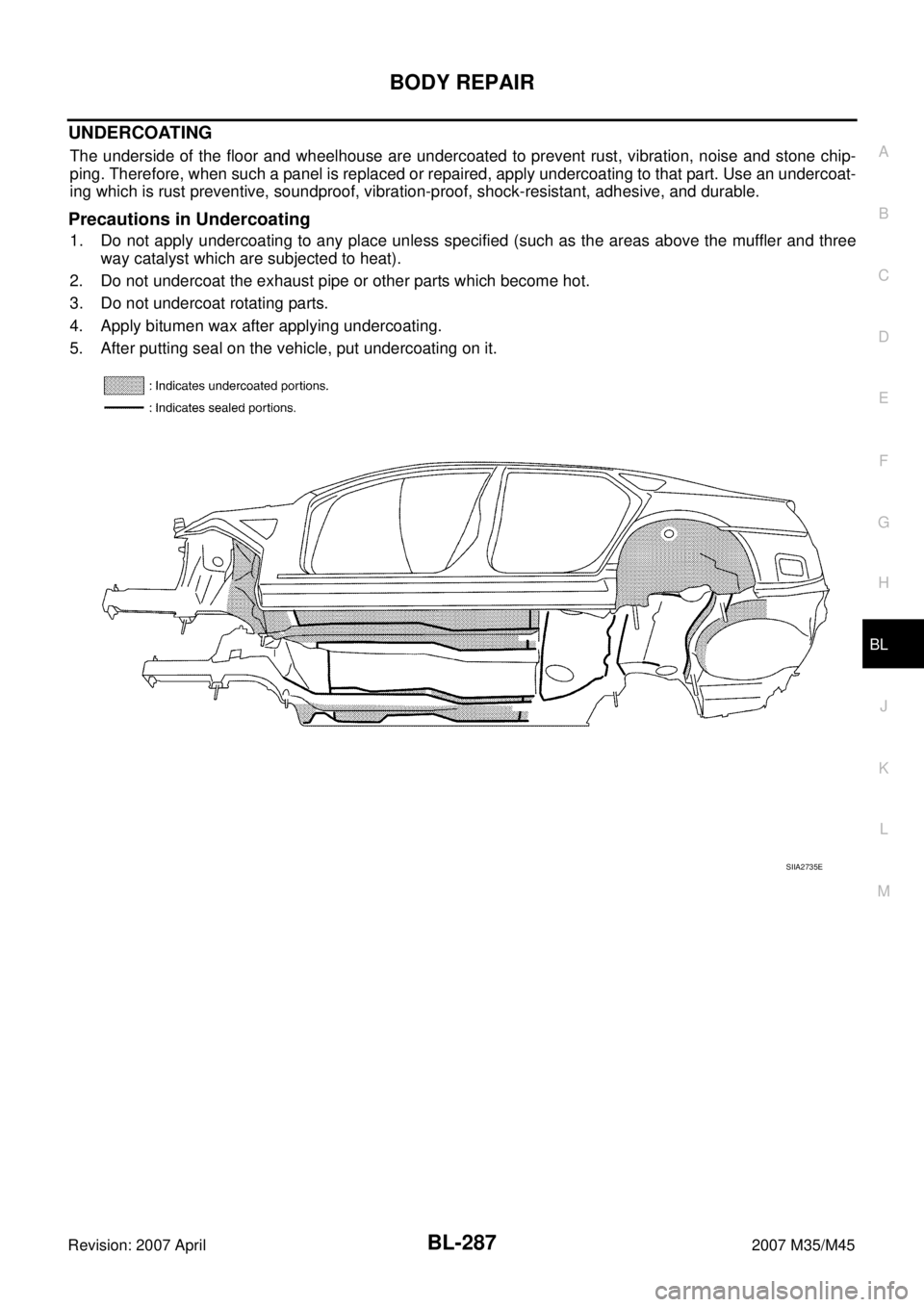

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-287 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 UNDERCOATING The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip- p

Page 1221 of 4647

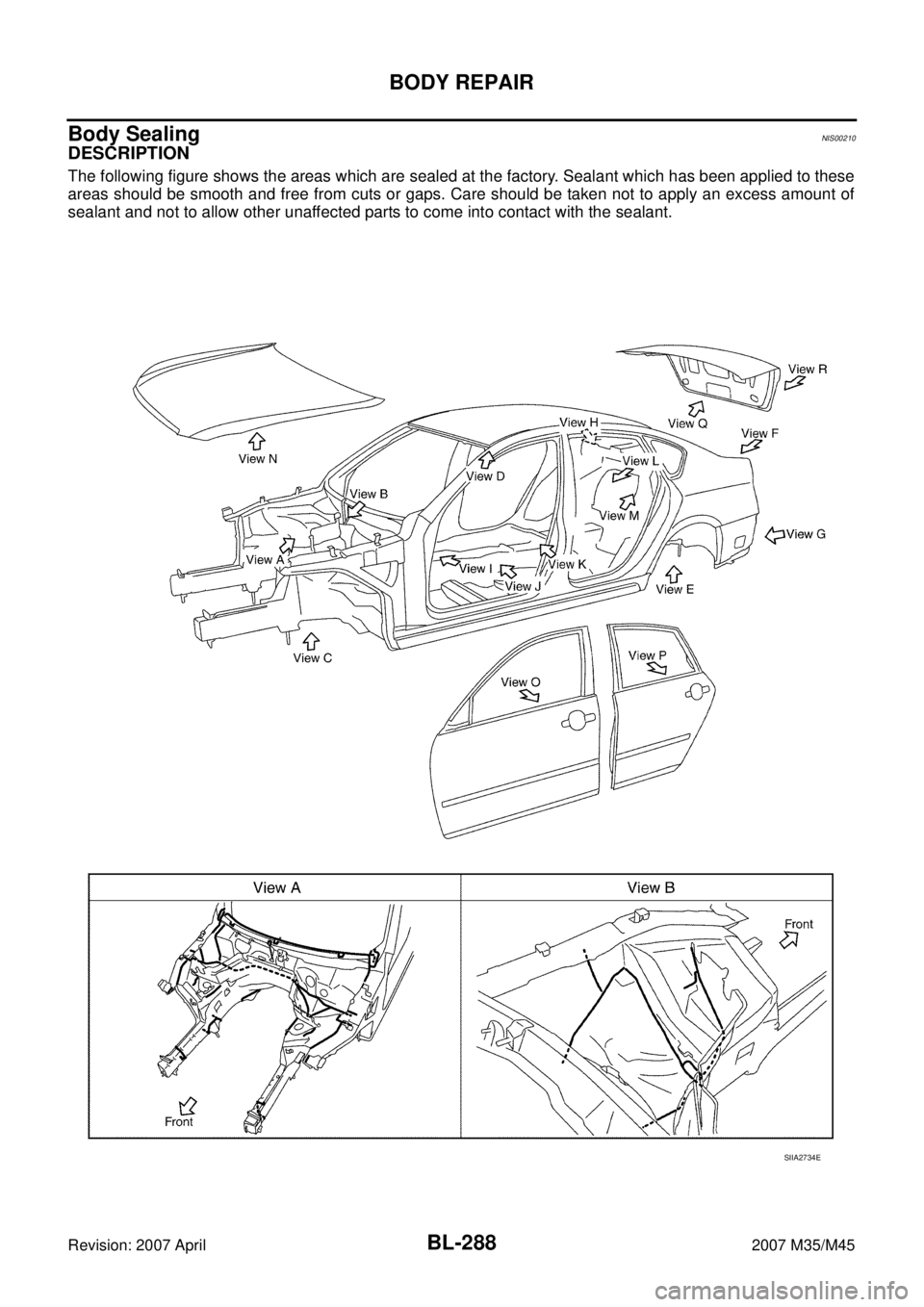

INFINITI M35 2007 Factory Service Manual BL-288 BODY REPAIR Revision: 2007 April2007 M35/M45 Body SealingNIS00210 DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these areas

Page 1222 of 4647

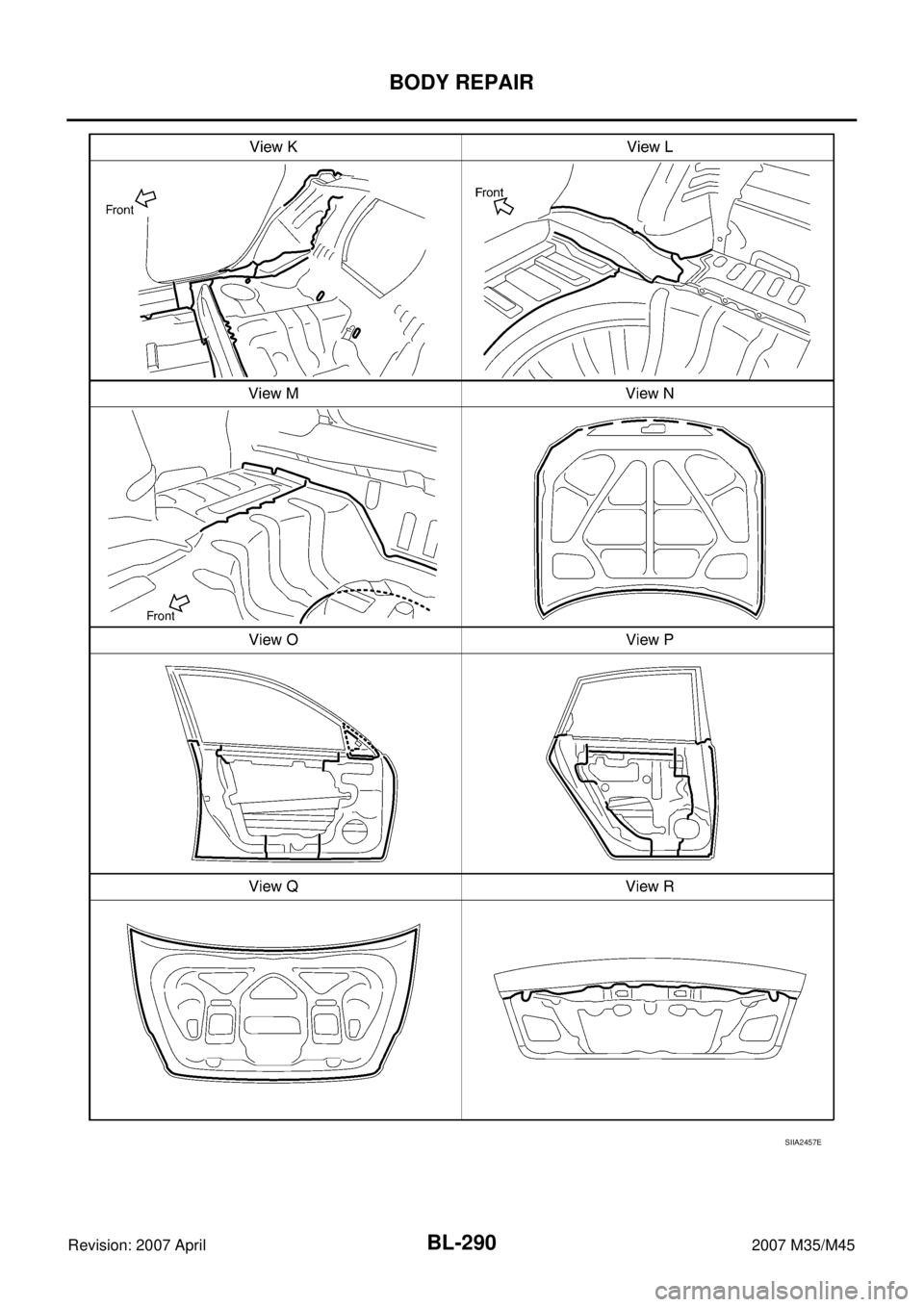

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-289 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 SIIA2456E

Page 1223 of 4647

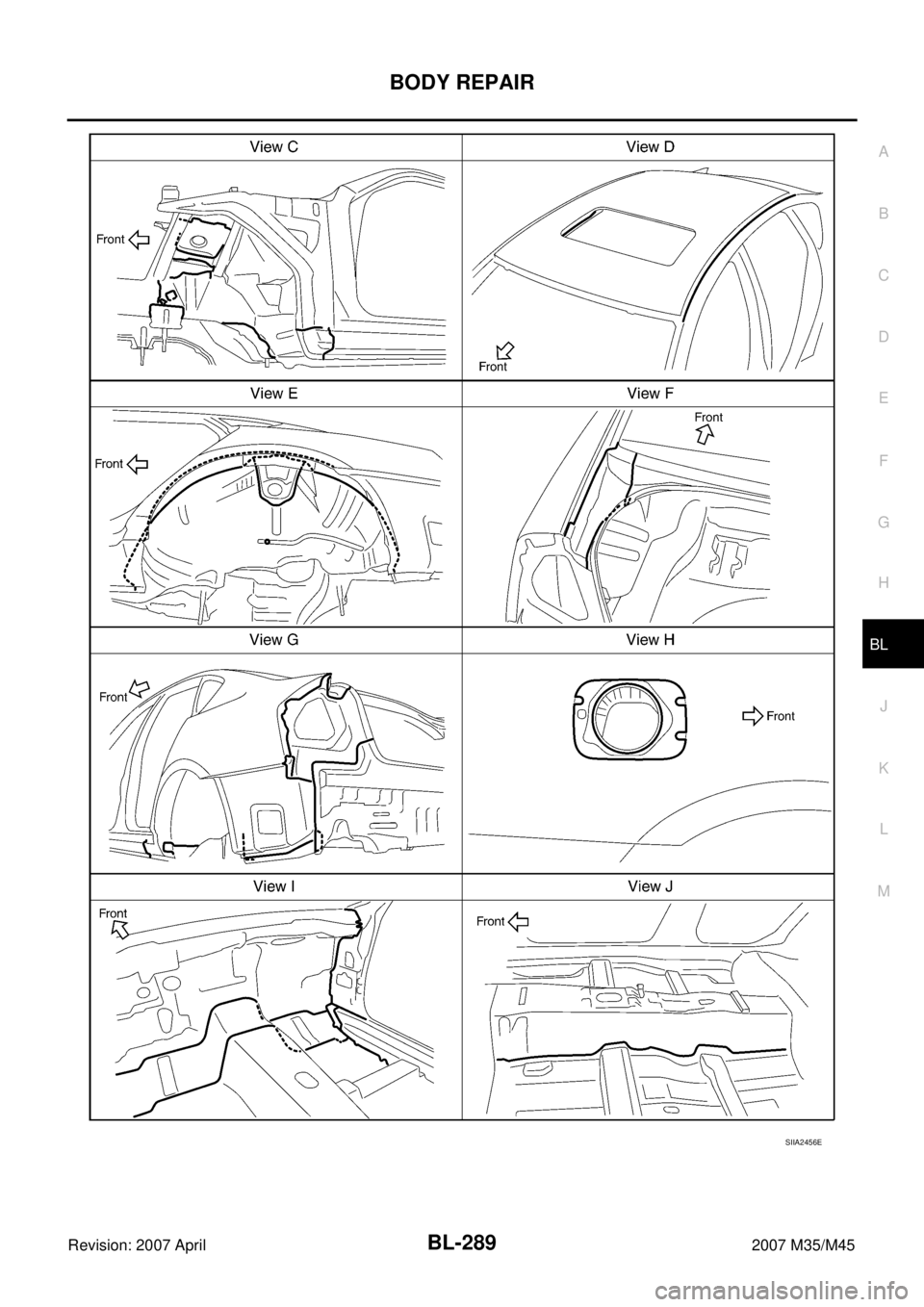

INFINITI M35 2007 Factory Service Manual BL-290 BODY REPAIR Revision: 2007 April2007 M35/M45 SIIA2457E

Page 1224 of 4647

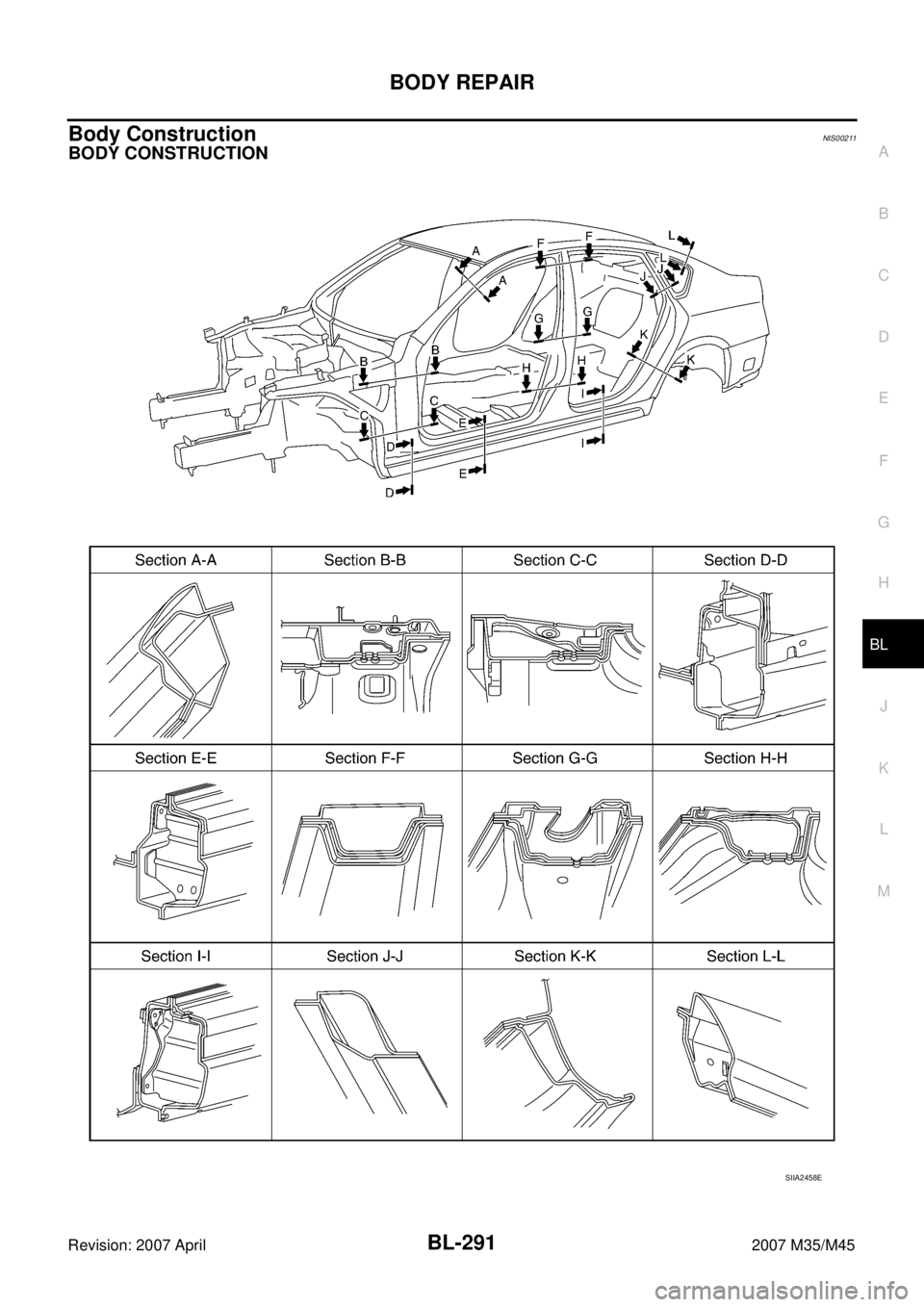

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-291 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 Body ConstructionNIS00211 BODY CONSTRUCTION SIIA2458E
