How to Perform Trouble DiagnosesNES000JU
BASIC CONCEPT
The most important point to perform trouble diagnosis is to understand systems (control and mechanism)
in vehicle thoroughly.
It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptom, and understand it fully.
Ask customer about his/her complaints carefully. In some cases,
they will be necessary to check symptom by driving vehicle with
customer.
CAUTION:
Customers are not professionals. Do not assume “maybe
customer means...” or “maybe the customer mentioned this
symptom”.
It is essential to check symptoms right from beginning in order to
repair a malfunction completely.
For an intermittent malfunction, it is important to reproduce
symptom based on interview with customer and past examples.
Do not perform inspection on ad hoc basis. Most intermittent
malfunctions are caused by poor contacts. In this case, it will be
effective to shake suspected harness or connector by hand.
When repairs are performed without any symptom check, no
one can judge if malfunction has actually been eliminated.
Always diagnosis, make sure to perform “ERASE MEMORY”.
Always read “GI General information” to confirm general precau-
tions. Refer to GI-4, "
General Precautions" .
EFJ0028D
SEF233G
Page 4562 of 4647
TROUBLE DIAGNOSES
WT-13
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45

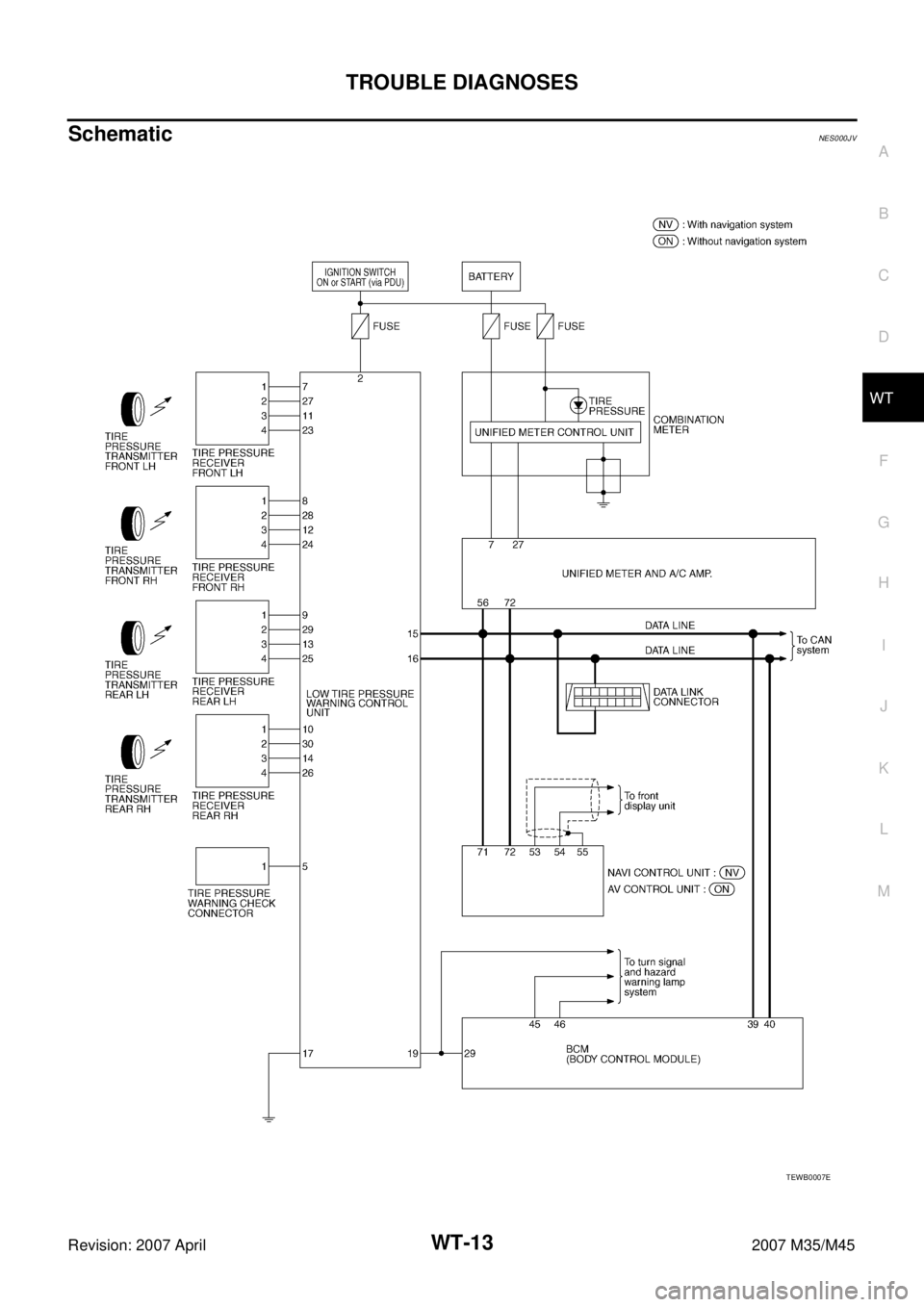

SchematicNES000JV
TEWB0007E
Page 4563 of 4647
WT-14
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45

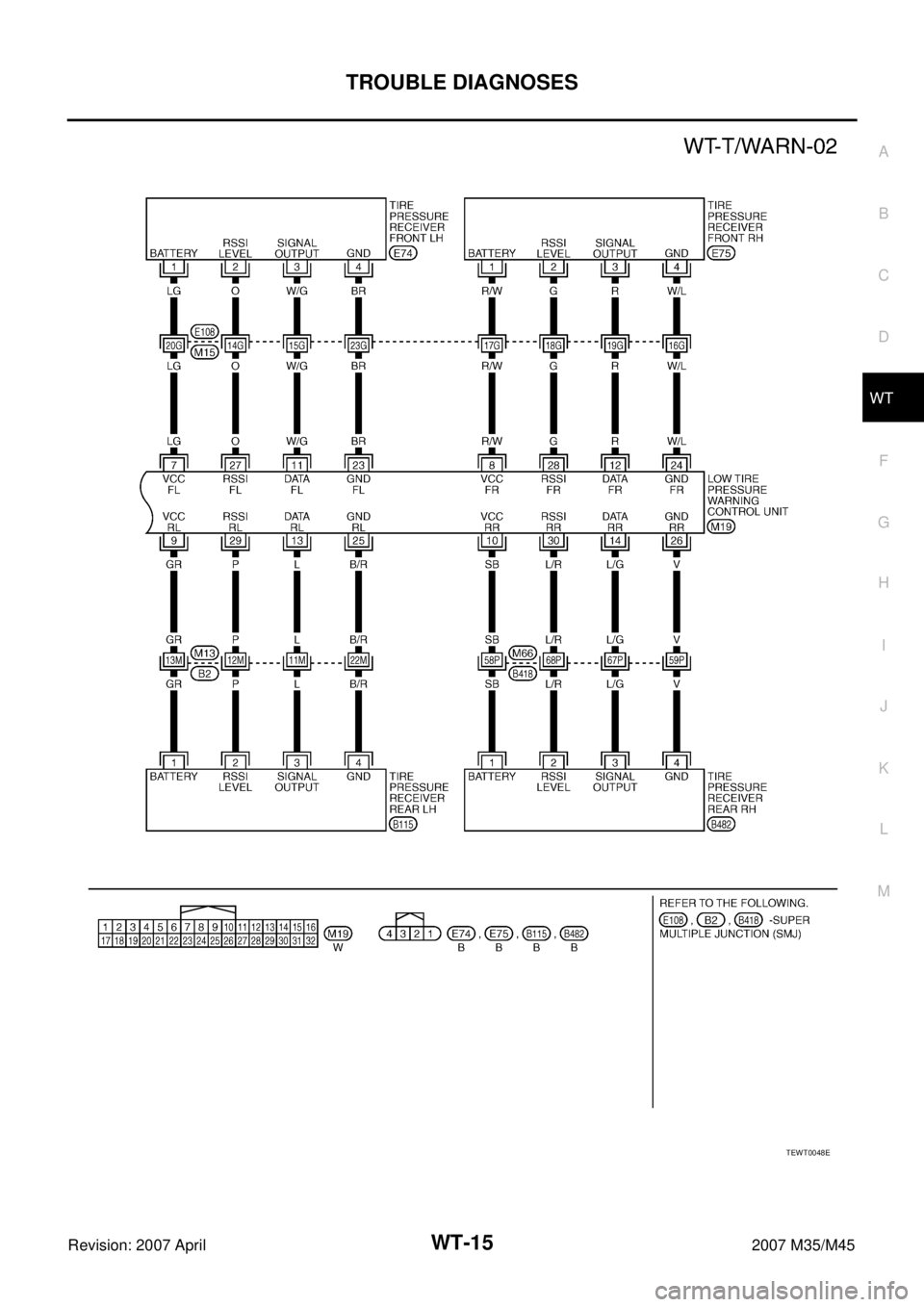

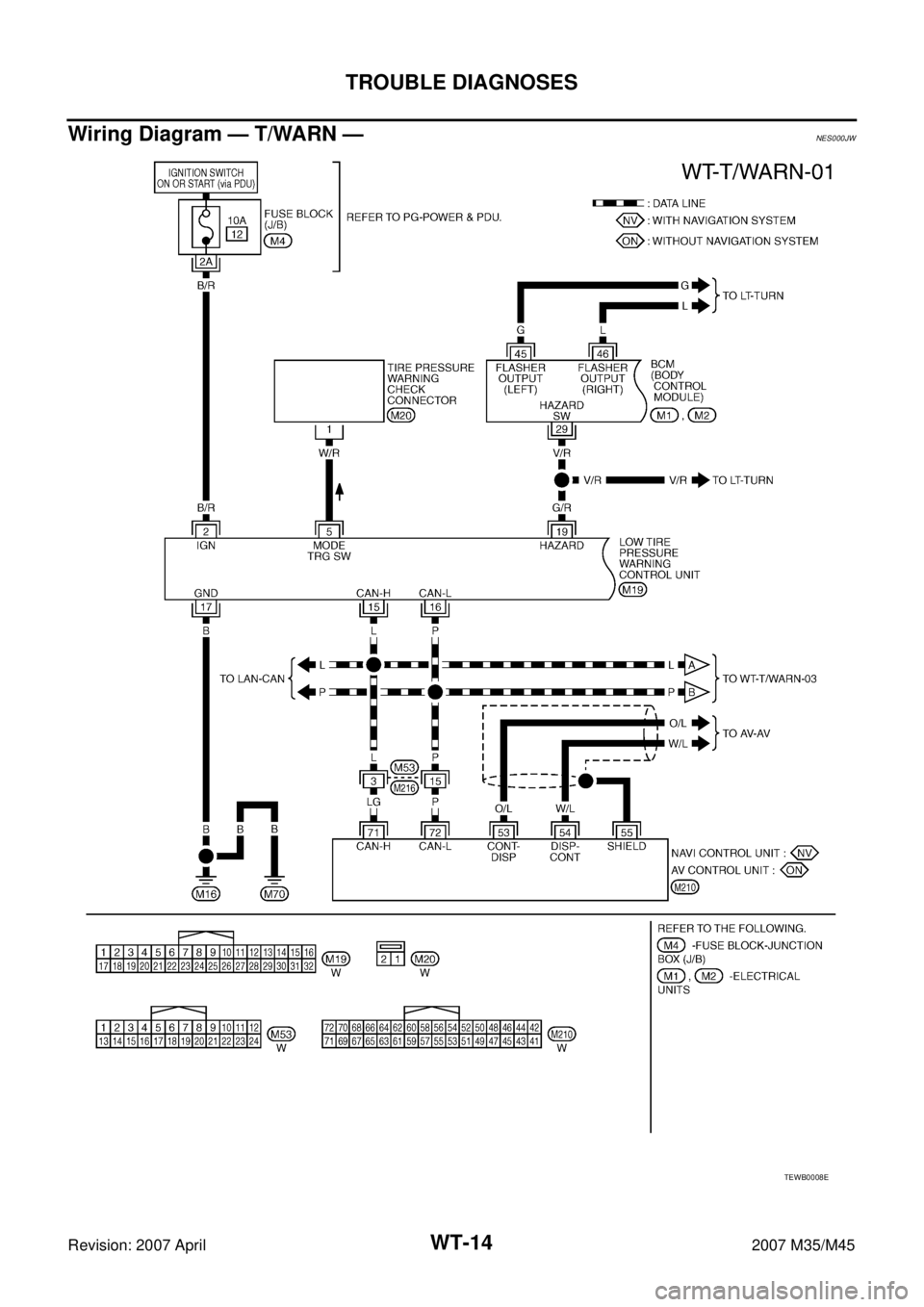

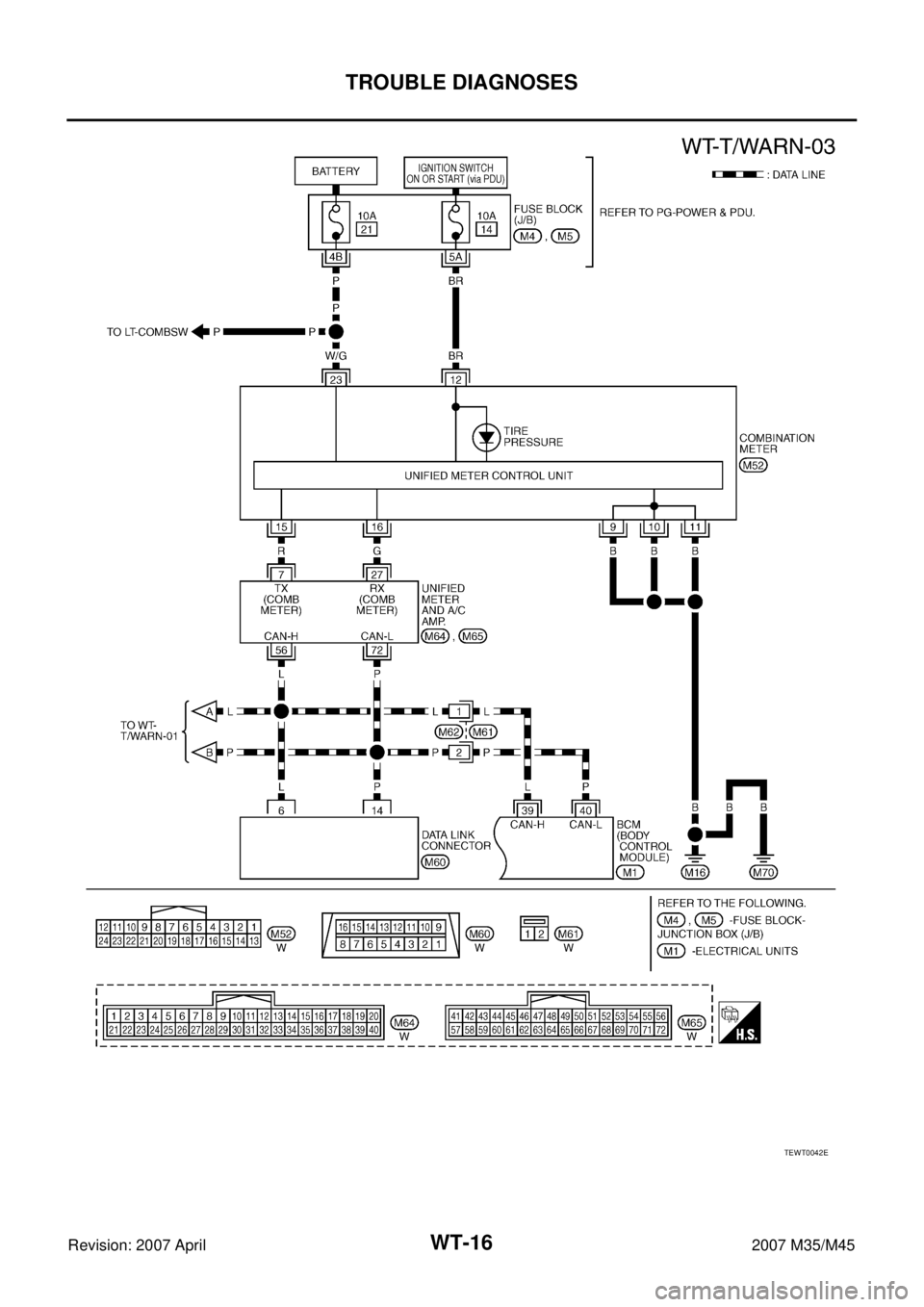

Wiring Diagram — T/WARN —NES000JW
TEWB0008E
Page 4564 of 4647
TROUBLE DIAGNOSES
WT-15
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
TEWT0048E
Page 4565 of 4647
WT-16
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
TEWT0042E
Page 4566 of 4647
TROUBLE DIAGNOSES
WT-17
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
Low Tire Pressure Warning Control Unit Input/Output Signal StandardNES000JX
CAUTION:
When checked using a circuit tester for voltage measurement, connector terminals should not be
forcefully extended.
Terminal
Measuring point Measuring condition Standard
+
(wire color)–
2 (B/R)
GroundIgnition switch Ignition switch ON Battery voltage (12 V)
5 (W/R)Tire pressure warning check
connectorAlways Approx. 5 V
7 (LG)
Battery power supply
Ignition switch ONBattery voltage (12 V) 8 (R/W)
9 (GR)
10 (SB)
11 (W/G)
Signal Input Approx. 4.5 V 12 (R)
13 (L)
14 (L/G)
15 (L) CAN-H — —
16 (P) CAN-L — —
17 (B) Ground — 0 V
19 (G/R) HazardHazard lamp switch OFF Battery voltage (Approx. 12 V)
Hazard lamp switch ON 0 V
23 (BR)
Ground—0 V
24 (W/L) — 0 V
25 (B/R) — 0 V
26 (V) — 0 V
27 (O)
Analog signal Ignition switch ON Approx. 0.7 V 28 (G)
29 (P)
30 (L/R)
Page 4567 of 4647

WT-18
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
ID Registration ProcedureNES000JY
ID REGISTRATION WITH ACTIVATION TOOL
This procedure must be done after replacement of a tire pressure transmitter, low tire pressure warn-
ing control unit, or tire rotation.
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “ID REGIST” on “SELECT WORK ITEM”.
4. With the activation tool (J-45295) pushed against the front-left
tire pressure transmitter position of the tire air valve, press and
hold the button for 5 seconds.
5. Register the IDs in order from FR LH, FR RH, RR RH, RR LH.
When ID registration of each wheel has been completed, turn
signal lamp blinks.
6. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnosis results
display will not function properly.
ID REGISTRATION WITHOUT ACTIVATION TOOL
This procedure must be done after replacement of a tire pressure transmitter, low tire pressure warn-
ing control unit, or tire rotation.
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “ID REGIST” on “SELECT WORK ITEM”.
4. Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for a few minutes.
5. After completing all ID registrations, press “END” to complete the procedure.
6. Inflate all tires to proper pressure. Refer to WT-41, "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
SEIA0460E
Activation tire position Turn signal lamp CONSULT-II
1 Front LH
2 times flashing“YET”
↓
“DONE” 2 Front RH
3Rear RH
4 Rear LH
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front LH 240 (2.4, 34)
Front RH 220 (2.2, 31)
Rear RH 200 (2.0, 29)
Rear LH 180 (1.8, 26)
Activation tire position CONSULT-II
Front LH
“YET”
↓
“DONE” Front RH
Rear RH
Rear LH
Page 4568 of 4647

TROUBLE DIAGNOSES
WT-19
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
Transmitter Wake Up OperationNES000JZ
WITH TRANSMITTER ACTIVATION TOOL

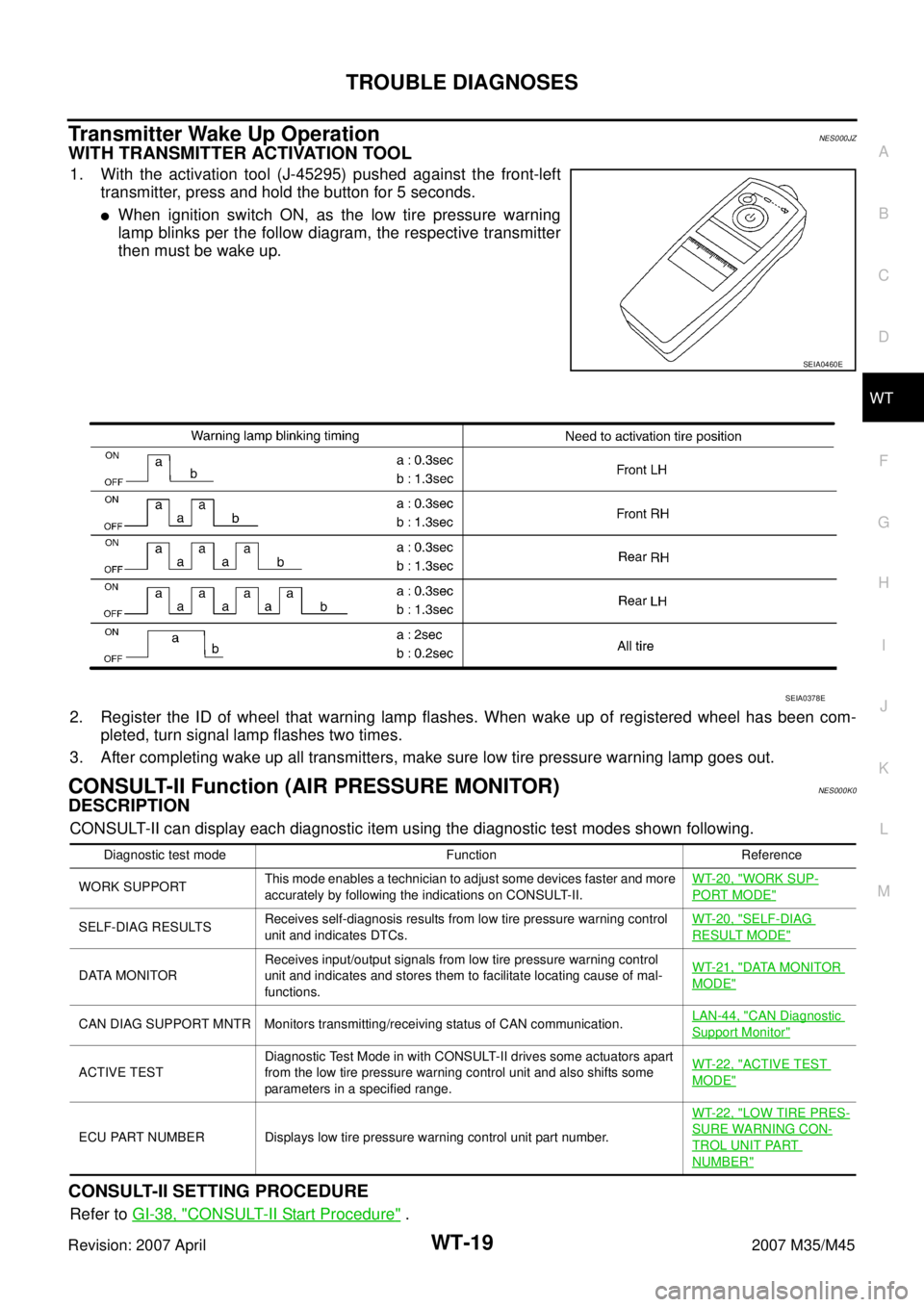

1. With the activation tool (J-45295) pushed against the front-left
transmitter, press and hold the button for 5 seconds.
When ignition switch ON, as the low tire pressure warning
lamp blinks per the follow diagram, the respective transmitter
then must be wake up.
2. Register the ID of wheel that warning lamp flashes. When wake up of registered wheel has been com-
pleted, turn signal lamp flashes two times.
3. After completing wake up all transmitters, make sure low tire pressure warning lamp goes out.
CONSULT-II Function (AIR PRESSURE MONITOR)NES000K0
DESCRIPTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
SEIA0460E
SEIA0378E
Diagnostic test mode Function Reference
WORK SUPPORTThis mode enables a technician to adjust some devices faster and more
accurately by following the indications on CONSULT-II.WT-20, "
WORK SUP-
PORT MODE"
SELF-DIAG RESULTSReceives self-diagnosis results from low tire pressure warning control
unit and indicates DTCs. WT-20, "SELF-DIAG
RESULT MODE"
DATA MONITORReceives input/output signals from low tire pressure warning control
unit and indicates and stores them to facilitate locating cause of mal-
functions.WT-21, "DATA MONITOR
MODE"
CAN DIAG SUPPORT MNTR Monitors transmitting/receiving status of CAN communication.LAN-44, "CAN Diagnostic
Support Monitor"
ACTIVE TESTDiagnostic Test Mode in with CONSULT-II drives some actuators apart
from the low tire pressure warning control unit and also shifts some
parameters in a specified range.WT-22, "ACTIVE TEST
MODE"
ECU PART NUMBER Displays low tire pressure warning control unit part number. WT-22, "
LOW TIRE PRES-
SURE WARNING CON-
TROL UNIT PART
NUMBER"
