Page 865 of 4647
AV-240
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
BLUETOOTH
Confirm/Change Passkey
The passkey of Bluetooth can be confirmed and changed.
The passkey can be changed by four digits within 0 to 9.
Confirm/Change Device Name
The device name of Bluetooth can be confirmed and changed.
The device name can be changed by sixteen digits within A to Z
(small characters can be used) and - (hyphen).
DELETE UNIT CONNECTION LOG
Erase the connection history of unit and error history that is recorded
in AV (NAVI) control unit (clear the connection history of the removed
unit).
SKIB3669E
SKIB3670E
SKIB3671E
Page 866 of 4647
![INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-241
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Rear View Monitor Guiding Line AdjustmentNKS004B0
1. Draw lines on rearward area o INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-241
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Rear View Monitor Guiding Line AdjustmentNKS004B0
1. Draw lines on rearward area o](/manual-img/42/57024/w960_57024-865.png)
DIAGNOSIS SYSTEM
AV-241
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Rear View Monitor Guiding Line AdjustmentNKS004B0
1. Draw lines on rearward area of the vehicle passing through the
following points: 20 cm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.
2. Set into “Adjust offset of rear view camera” mode of Confirma-
tion/Adjustment mode.
3. Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.
4. Make fine adjustment to the correction line of the rear of the vehicle with up/down/left/right switches so
that its position is aligned with the guiding line. Press “OK” switch and record the adjusted guiding line
position to the camera control unit.
CAUTION:
Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
Remove battery for five min. Then reconnect battery.
Remove camera control unit connector for five min. Then reconnect camera control unit con-
nector.
SKIB3691E
Selected pattern : 7
SKIB3689E
Up/Down adjustment range : –20 - 20
Left/Right adjustment range : –20 - 20
Page 867 of 4647
![INFINITI M35 2007 Factory Service Manual AV-242
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
CONSULT-II Functions (Multi AV)NKS004B1
CONSULT-II can display each diagnostic item using the diagnostic tes INFINITI M35 2007 Factory Service Manual AV-242
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
CONSULT-II Functions (Multi AV)NKS004B1
CONSULT-II can display each diagnostic item using the diagnostic tes](/manual-img/42/57024/w960_57024-866.png)
AV-242
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
CONSULT-II Functions (Multi AV)NKS004B1
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
OPERATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, and turn ignition switch ON.
3. Touch “START (NISSAN BASED VHCL)”.
4. Touch “MULTI AV”
If “MULTI AV” is not indicated, check the following item.
AV (NAVI) control unit power supply and ground circuit.
CONSULT-II data link connector (DLC) circuit
Refer to LAN-42, "
Precautions When Using CONSULT-II" .
Diagnosis mode Description
SELF DIAG RESULTS
Performs the connection diagnosis of communication circuit between AV (NAVI) control unit
and system and displays the current and past malfunctions collectively.
The DVD-ROM drive diagnosis of NAVI control unit and the connection diagnosis between
NAVI control unit and GPS antenna can be performed (DVD-ROM drive will not be diagnosed
when no map DVD-ROM is in it)
DATA MONITOR The diagnosis of vehicle signal that input to the AV (NAVI) control unit can be performed
CAN DIAG SUPPORT MNTRThe transmitting/receiving of CAN communication can be monitored. Refer to LAN-44, "
CAN
Diagnostic Support Monitor" .
AV COMM MONITOR The transmitting/receiving of a system can be monitored
ECU PART NUMBER The part number of AV (NAVI) control unit can be checked
SKIB3794E
BCIA0029E
BCIA0030E
Page 868 of 4647
![INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-243
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45

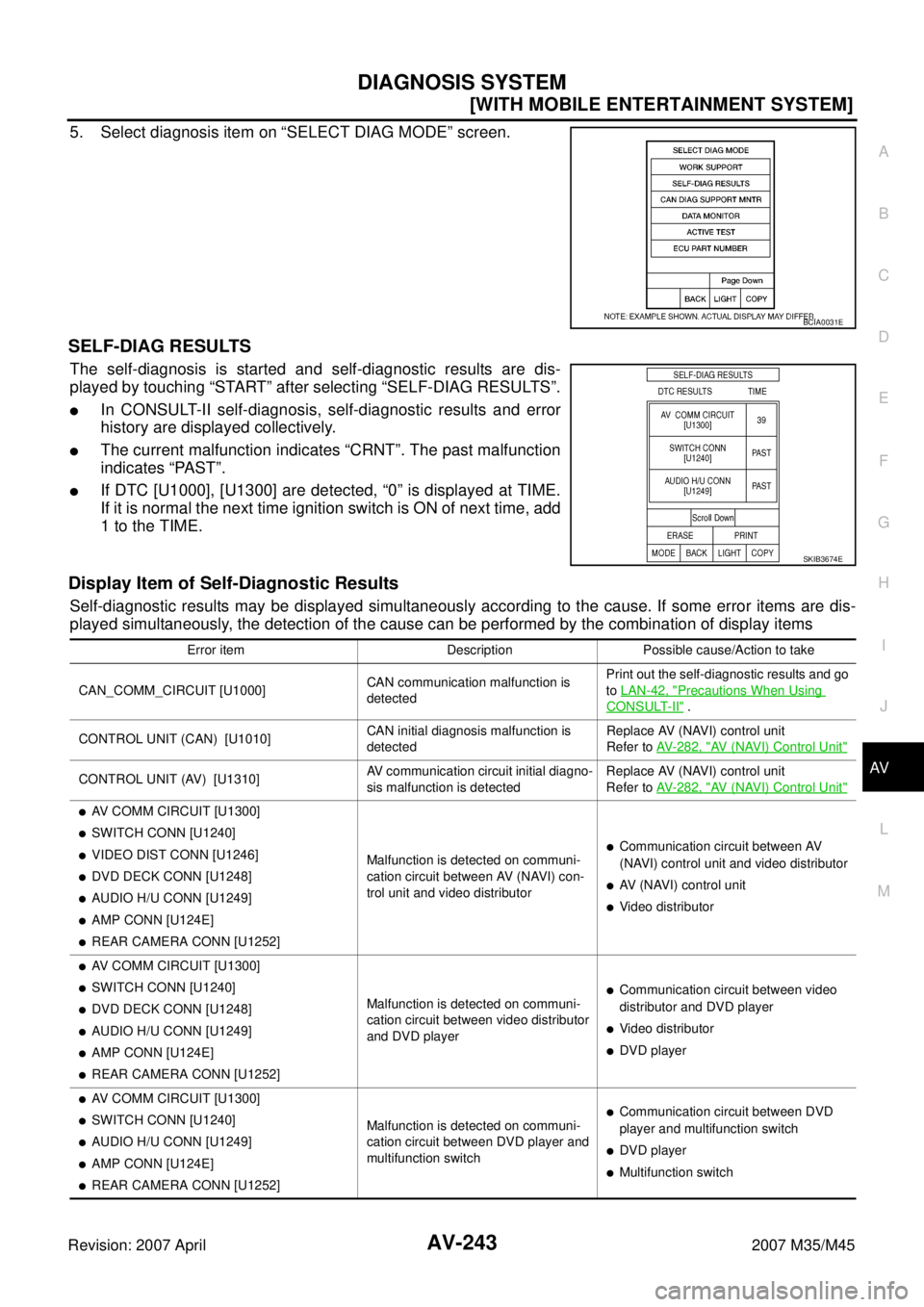

5. Select diagnosis item on “SELECT DIAG MODE” screen.
SELF-DIAG RESULTS
The s INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-243
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
5. Select diagnosis item on “SELECT DIAG MODE” screen.
SELF-DIAG RESULTS
The s](/manual-img/42/57024/w960_57024-867.png)
DIAGNOSIS SYSTEM
AV-243
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
5. Select diagnosis item on “SELECT DIAG MODE” screen.
SELF-DIAG RESULTS
The self-diagnosis is started and self-diagnostic results are dis-
played by touching “START” after selecting “SELF-DIAG RESULTS”.
In CONSULT-II self-diagnosis, self-diagnostic results and error
history are displayed collectively.
The current malfunction indicates “CRNT”. The past malfunction
indicates “PAST”.
If DTC [U1000], [U1300] are detected, “0” is displayed at TIME.
If it is normal the next time ignition switch is ON of next time, add
1 to the TIME.
Display Item of Self-Diagnostic Results
Self-diagnostic results may be displayed simultaneously according to the cause. If some error items are dis-
played simultaneously, the detection of the cause can be performed by the combination of display items
BCIA0031E
SKIB3674E
Error item Description Possible cause/Action to take
CAN_COMM_CIRCUIT [U1000]CAN communication malfunction is
detectedPrint out the self-diagnostic results and go
to LAN-42, "
Precautions When Using
CONSULT-II" .
CONTROL UNIT (CAN) [U1010]CAN initial diagnosis malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-282, "
AV (NAVI) Control Unit"
CONTROL UNIT (AV) [U1310]AV communication circuit initial diagno-
sis malfunction is detectedReplace AV (NAVI) control unit
Refer to AV-282, "AV (NAVI) Control Unit"
AV COMM CIRCUIT [U1300]
SWITCH CONN [U1240]
VIDEO DIST CONN [U1246]
DVD DECK CONN [U1248]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is detected on communi-
cation circuit between AV (NAVI) con-
trol unit and video distributor
Communication circuit between AV
(NAVI) control unit and video distributor
AV ( N AV I ) c o n t r o l u n i t
Video distributor
AV COMM CIRCUIT [U1300]
SWITCH CONN [U1240]
DVD DECK CONN [U1248]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is detected on communi-
cation circuit between video distributor
and DVD player
Communication circuit between video
distributor and DVD player
Video distributor
DVD player
AV COMM CIRCUIT [U1300]
SWITCH CONN [U1240]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is detected on communi-
cation circuit between DVD player and
multifunction switch
Communication circuit between DVD
player and multifunction switch
DVD player
Multifunction switch
Page 869 of 4647
![INFINITI M35 2007 Factory Service Manual AV-244
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is d INFINITI M35 2007 Factory Service Manual AV-244
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is d](/manual-img/42/57024/w960_57024-868.png)
AV-244
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
REAR CAMERA CONN [U1252]Malfunction is detected on communi-
cation circuit between multifunction
switch and camera control unit
Communication circuit between multi-
function switch and camera control unit
Multifunction switch
Camera control unit
AV COMM CIRCUIT [U1300]
AUDIO H/U CONN [U1249]
AMP CONN [U124E]
Malfunction is detected on communi-
cation circuit between camera con-
trol unit and BOSE ampCommunication circuit between camera
control unit and BOSE amp
Camera control unit
BOSE amp
AV COMM CIRCUIT [U1300]
AUDIO H/U CONN [U1249]With rear control switch
Audio unit power supply and ground
circuit malfunction is detected
Malfunction is detected on communi-
cation circuit between BOSE amp
and rear control switch
Malfunction is detected on communi-
cation circuit between rear control
switch and audio unit
Malfunction is detected on communi-
cation signal between audio unit and
AV (NAVI) control unit
Communication circuit between BOSE
amp and rear control switch
Communication circuit between rear
control switch and audio unit
BOSE amp
Rear control switch
Audio unit
AV (NAVI) control unit
Without rear control switch
Audio unit power supply and ground
circuit malfunction is detected
Malfunction is detected on communi-
cation circuit between BOSE amp
and audio unit
Malfunction is detected on communi-
cation signal between audio unit and
AV (NAVI) control unit
Audio unit power supply and ground cir-
cuit
Communication circuit between BOSE
amp and audio unit
Audio unit
AV (NAVI) control unit
BOSE amp
AV COMM CIRCUIT [U1300]
VIDEO DIST CONN [U1246]
Video distributor power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between video distribu-
tor and AV (NAVI) control unit
Video distributor power supply and
ground circuit
Video distributor
AV (NAVI) control unit
AV COMM CIRCUIT [U1300]
REAR CAMERA CONN [U1252]
Camera control unit power supply
and ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between camera con-
trol unit and AV (NAVI) control unit
Camera control unit power supply and
ground circuit
Camera control unit
AV (NAVI) control unit
AV COMM CIRCUIT [U1300]
SWITCH CONN [U1240]
Multifunction switch power supply
and ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between multifunction
switch and AV (NAVI) control unit
Multifunction switch power supply and
ground circuit
Multifunction switch
AV (NAVI) control unit
AV COMM CIRCUIT [U1300]
DVD DECK CONN [U1248]
DVD player power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between DVD player
and AV (NAVI) control unit
DVD player power supply and ground
circuit
DVD player
AV (NAVI) control unit Error item Description Possible cause/Action to take
Page 870 of 4647
![INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-245
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AMP CONN [U124E]
BOSE amp power supply and
ground circ INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-245
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AMP CONN [U124E]
BOSE amp power supply and
ground circ](/manual-img/42/57024/w960_57024-869.png)
DIAGNOSIS SYSTEM
AV-245
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
AV COMM CIRCUIT [U1300]
AMP CONN [U124E]
BOSE amp power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between BOSE amp
and AV (NAVI) control unit
BOSE amp power supply and ground
circuit
BOSE amp
AV ( N AV I ) c o n t r o l u n i t
FRONT DISP CONN [U1243]
Front display unit power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation circuit between front display
unit and AV (NAVI) control unit
Malfunction is detected on communi-
cation signal between front display
unit and AV (NAVI) control unit
Front display unit power supply and
ground circuit
Communication circuit between front
display unit and AV (NAVI) control unit
Front display unit
AV ( N AV I ) c o n t r o l u n i t
REAR DISP CONN [U1247]
Rear display unit power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation circuit between rear display
unit and video distributor
Malfunction is detected on communi-
cation signal between rear display
unit and video distributor
Rear display unit power supply and
ground circuit
Rear display unit
Video distributor
Communication circuit between rear
display unit and video distributor
GPS ANTENNA CONN [U1244]GPS antenna connection malfunction
is detected
GPS antenna feeder
GPS antenna
NAVI control unit
CAMERA CONT CONN [U1250]Camera and connection recognition
signal circuit malfunction is detected
Camera-connection recognition signal
circuit
Camera control unit
AV ( N AV I ) c o n t r o l u n i t
Count Unit FLASH-ROM [U1200]AV (NAVI) control unit malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-282, "
AV (NAVI) Control Unit"
Gyro NO CONN [U1201]NAVI control unit malfunction is
detectedReplace NAVI control unit
Refer to AV-282, "AV (NAVI) Control Unit"
GPS COMM [U1204]
GPS malfunction is detectedIf the symptoms such as the GPS receipt
malfunction occur, intermittent malfunction
caused by strong radio interference may
be detected.
If the malfunction always occurs, replace
NAVI control unit. GPS ROM [U1205]
GPS RAM [U1206]
GPS RTC [U1207]Error item Description Possible cause/Action to take
Page 871 of 4647
![INFINITI M35 2007 Factory Service Manual AV-246
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
DATA MONITOR
When “DATA MONITOR” is selected, “ALL SIGNALS” and “SELEC-
TION FROM MENU” are disp INFINITI M35 2007 Factory Service Manual AV-246
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
DATA MONITOR
When “DATA MONITOR” is selected, “ALL SIGNALS” and “SELEC-
TION FROM MENU” are disp](/manual-img/42/57024/w960_57024-870.png)
AV-246
[WITH MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2007 April2007 M35/M45
DATA MONITOR
When “DATA MONITOR” is selected, “ALL SIGNALS” and “SELEC-
TION FROM MENU” are displayed.
ALL SIGNALS
When “ALL SIGNALS” is selected and “START” is touched, the
following vehicle signal condition that is input to AV (NAVI) con-
trol unit is displayed.
For each signal, a comparison of actual operating status and the
status recognized by the system can be checked.
DVD-ROM COMM [U1208]
Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit
There is dirt and damage on the map
disc
Map disc
NAVI control unit
Refer to AV-282, "
AV ( N AV I ) C o n t r o l
Unit"
DVD-ROM READ [U1209]
DVD-ROM DISC [U120A]
DVD-ROM MECHA DETECT [U120C]
DVD-ROM DRIVE MECHA [U120D]
DVD-ROM FOCUS [U120E]
DVD-ROM TOC [U120F]
DVD-ROM SEEK [U1210]
DVD-ROM ERR CORRECTION [U1211]
DVD-ROM DATA FORWARD [U1212]
DVD-ROM DATA [U1213]
DVD-ROM TIMEOUT [U1214]
DVD-ROM LOAD [U1215]
CAN CONT [U1216]
AV (NAVI) control unit malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-282, "
AV (NAVI) Control Unit"BLUETOOTH CONN [U1217]Error item Description Possible cause/Action to take
SKIB3675E
SKIB3676E
Page 872 of 4647
![INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-247
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Display Condition
SELECTION FROM MENU
When “SELECTION FROM MENU” is selected, INFINITI M35 2007 Factory Service Manual DIAGNOSIS SYSTEM
AV-247
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Display Condition
SELECTION FROM MENU
When “SELECTION FROM MENU” is selected,](/manual-img/42/57024/w960_57024-871.png)
DIAGNOSIS SYSTEM
AV-247
[WITH MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2007 April2007 M35/M45
Display Condition
SELECTION FROM MENU
When “SELECTION FROM MENU” is selected, the vehicle signal display can be selected. After that, the
selected vehicle signal condition is displayed when “START” is touched.
AV C O M M M O N I T O R
When “AV COMM MONITOR” is selected, “AV&NAVI C/U” and “AUDIO” are displayed.
AV&NAVI C/U
When “AV&NAVI C/U” is selected, the communication condition
from AV (NAVI) control unit to each unit and malfunction counter
are displayed.
Error counter displays OK if any malfunction is not detected in
the past. If the malfunction is detected, it displays 0. When turn-
ing the ignition switch ON, if it is normal, it displays 1. The upper
limit of the counter is 39.
Display ItemDis-
playVehicle status Remarks
VHCL SPD SIGON Vehicle speed > 0 km/h (0 MPH)
Changes in indication may be delayed. This is
normal. OFF Vehicle speed = 0 km/h (0 MPH)
PKB SIGON Parking brake is applied.
OFF Parking brake is released.
ILLUM SIGON Light switch ON
–
OFF Light switch OFF
IGN SIGON Ignition switch ON
–
OFF Ignition switch in ACC position
REV SIGON Selector lever in R position
Changes in indication may be delayed. This is
normal.
OFFOther than selector lever in R posi-
tion
Item to be selected Description
VHCL SPD SIG
As well as selecting “ALL SIGNALS” PKB SIG
ILLUM SIG
IGN SIG
REV SIG
Items Display (PRSNT) Error counter (PAST)
TRANSMIT DIAG OK / UNKWN OK / 0 - 39
PANEL SWITCH OK / UNKWN OK / 0 - 39
SW SECONDARY - -
RR CONTROL SW OK / UNKWN OK / 0 - 39
STEERING SW OK / UNKWN OK / 0 - 39
AUDIO OK / UNKWN OK / 0 - 39
SPEAKER AMP OK / UNKWN OK / 0 - 39
SIDE CAMERA - -
REAR CAMERA OK / UNKWN OK / 0 - 39
TV TUNER - -
DVD PLAYER OK / UNKWN OK / 0 - 39
VIDEO DIST OK / UNKWN OK / 0 - 39
ETC - -
SKIB4054E
