Page 1345 of 4647

INFINITI M35 2007 Factory Service Manual BRC-44
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
Yaw Rate/Side G Sensor CircuitNFS000QV
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc

BRC-44
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
Yaw Rate/Side G Sensor CircuitNFS000QV
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc., when VDC function is off (VDC
OFF switch “ON”) may cause yaw rate/side G sensor system to indicate a malfunction. However,
this is not a malfunction, if normal operation can be resumed after restarting engine. Then erase
memory of self-diagnosis.
If vehicle is on turn-table at entrance to parking garage, or on other moving surface, VDC OFF
indicator lamp may illuminate and CONSULT-II self-diagnosis may indicate yaw rate sensor sys-
tem malfunction. However, in this case there is no malfunction in yaw rate sensor system. Take
vehicle off of turn-table or other moving surface, and start engine. Results will return to normal.
And after doing spin turns or acceleration turns with VDC function is being off (VDC OFF switch
“ON”), too, the results will return to a normal condition by re-starting vehicle.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect yaw rate/side G sensor connector M145 and ABS actuator and
electric unit (control unit) connector E30, check terminal for deformation, disconnection, looseness, and
so on. If any malfunction is found, repair or replace terminal.
2. Reconnect connector and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.

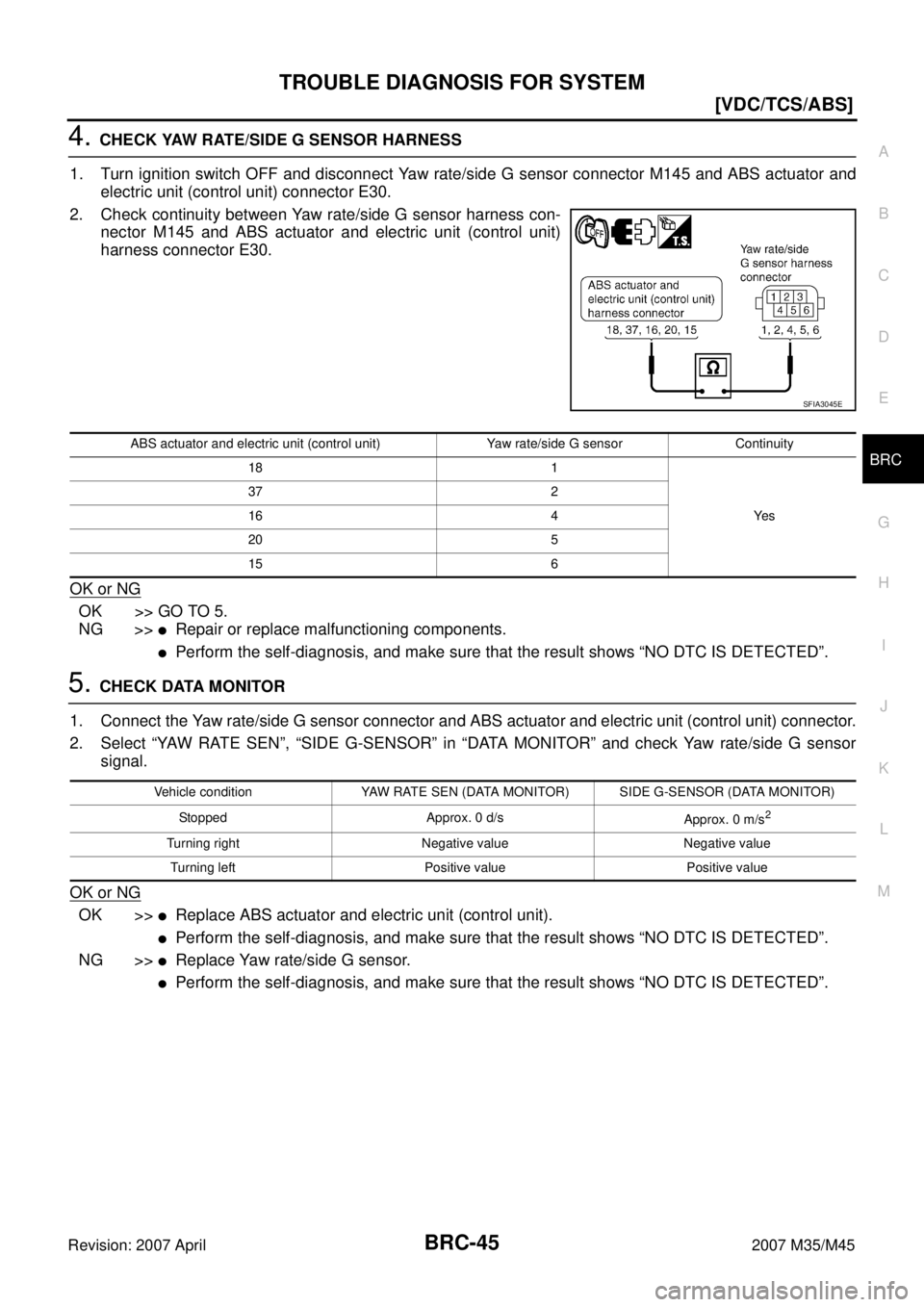

3. CHECK YAW RATE/SIDE G SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect yaw rate/side G sensor connector M145.
2. Turn ignition switch ON or OFF and check voltage between yaw
rate/side G sensor harness connector M145 terminal 3 and
ground.
OK or NG
OK >> GO TO 4.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
Self-diagnosis results
YAW RATE SENSOR
SIDE G-SEN CIRCUIT
Yaw rate/side G sensor Ground Condition Voltage
3—Ignition switch ONBattery voltage
(Approx. 12 V)
Ignition switch OFF Approx. 0 V
SFIA3044E

Page 1346 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-45
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
4. CHECK YAW RATE/SIDE G SENSOR HARNESS
1. Turn ignition switch OFF and disconnect Yaw rat

Page 1347 of 4647

INFINITI M35 2007 Factory Service Manual BRC-46
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45

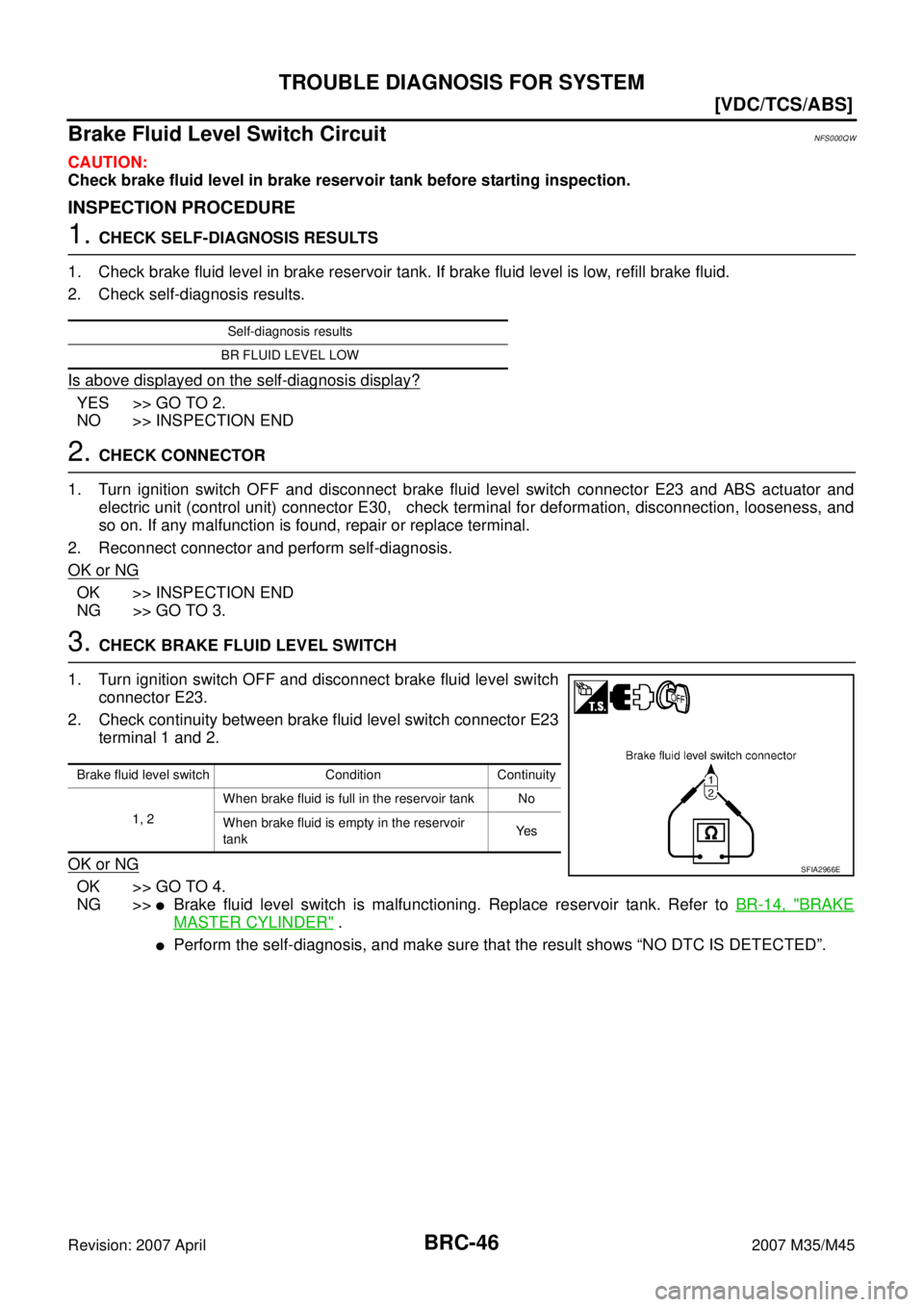

Brake Fluid Level Switch CircuitNFS000QW
CAUTION:
Check brake fluid level in brake reservoir tank before starting ins

Page 1348 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-47
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45

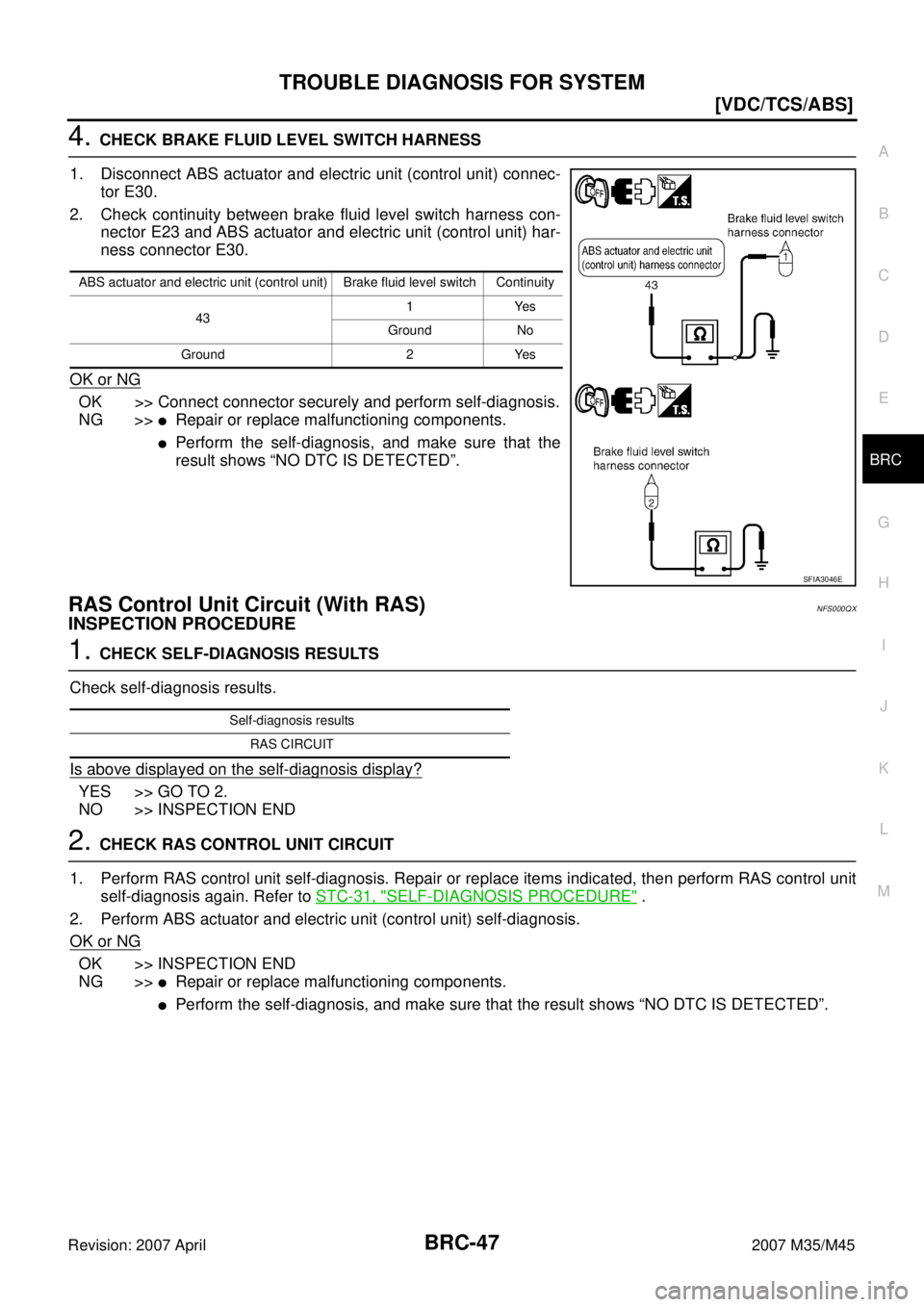

4. CHECK BRAKE FLUID LEVEL SWITCH HARNESS
1. Disconnect ABS actuator and electric unit (co

Page 1349 of 4647

INFINITI M35 2007 Factory Service Manual BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
ICC Sensor Integrated Unit Circuit (With ICC)NFS000QY
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self

Page 1350 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-49
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45

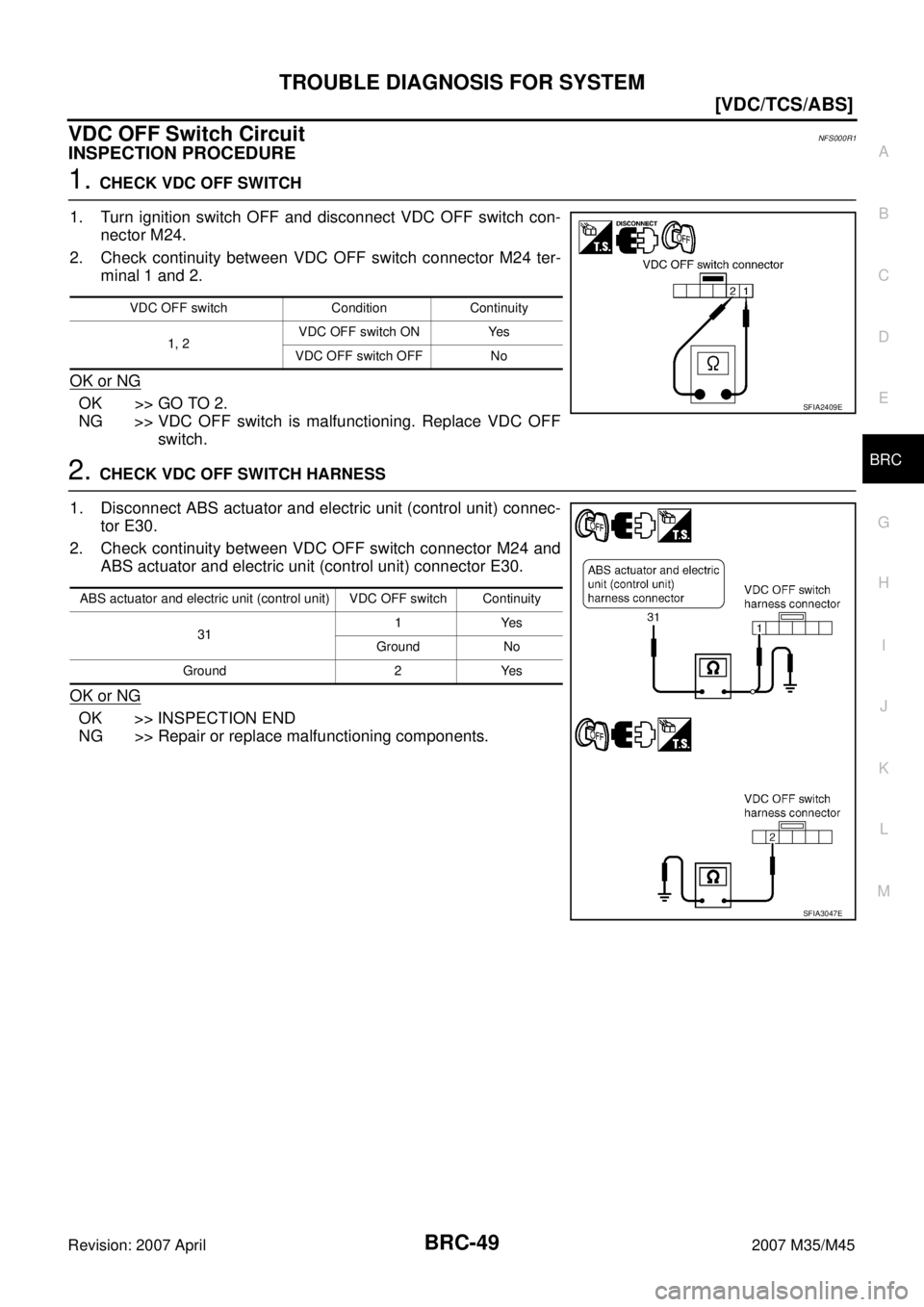

VDC OFF Switch CircuitNFS000R1
INSPECTION PROCEDURE
1. CHECK VDC OFF SWITCH
1. Turn igniti

Page 1351 of 4647

INFINITI M35 2007 Factory Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45

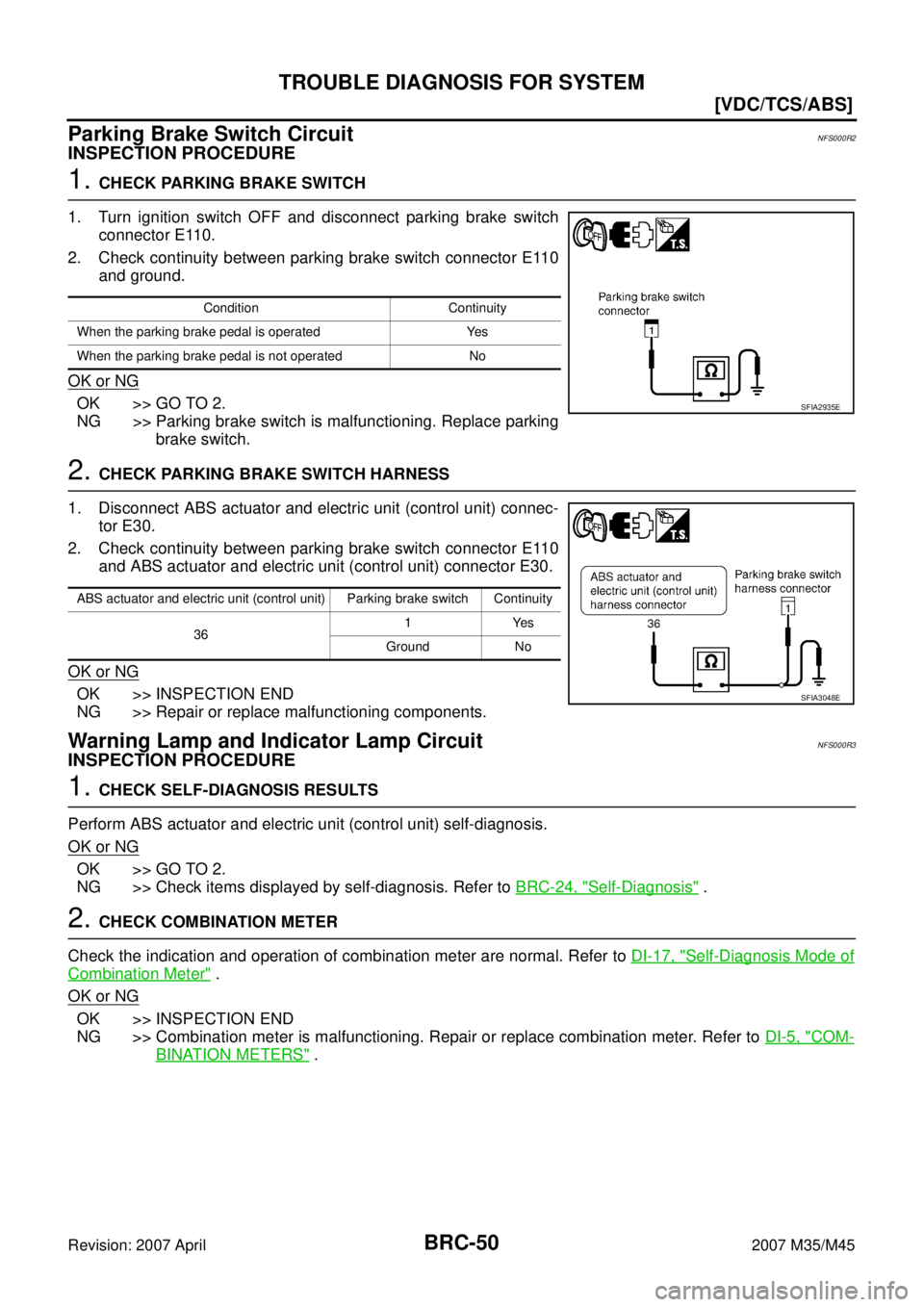

Parking Brake Switch CircuitNFS000R2
INSPECTION PROCEDURE
1. CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF a

Page 1352 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyNFS000

TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyNFS000R4
1. CHECK START
Check front and rear brake force distribution using a brake tester. Refer to BR-34, "
SERVICE DATA AND
SPECIFICATIONS (SDS)" .
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
2. CHECK FRONT AND REAR AXLE
Make sure that there is no excessive play in the front and rear axles. Refer to front: FAX-5, "
WHEEL BEAR-
ING INSPECTION" , Rear: RAX-5, "WHEEL BEARING INSPECTION" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning components.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Check the following.
Wheel sensor installation for damage.
Sensor rotor installation for damage.
Wheel sensor connector connection.
Wheel sensor harness inspection.
OK or NG
OK >> GO TO 4.
NG >>
Replace wheel sensor or sensor rotor.
Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-24, "
Self-Diagnosis" .
Unexpected Pedal ReactionNFS000R5
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke. Refer to BR-6, "
Inspection and Adjustment" .
Is the stroke too big?
YES >>Bleed air from brake tube and hose. Refer to BR-10, "Bleeding Brake System" .
Check brake pedal, brake booster, and master cylinder for mount play, looseness, brake sys-
tem fluid leakage, etc. Refer to brake pedal: BR-7, "
COMPONENTS" , brake booster and mas-
ter cylinder: BR-18, "
COMPONENTS" .
NO >> GO TO 2.
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force is
normal in this condition. Connect connector after inspection.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR”. Refer to BRC-51,
"Excessive ABS Function Operation Frequency" .
NG >> Check brake system.
