Page 1777 of 4647

INFINITI M35 2007 Factory Service Manual EC-248
[VQ35DE]
DTC P0131, P0151 A/F SENSOR 1
Revision: 2007 April2007 M35/M45

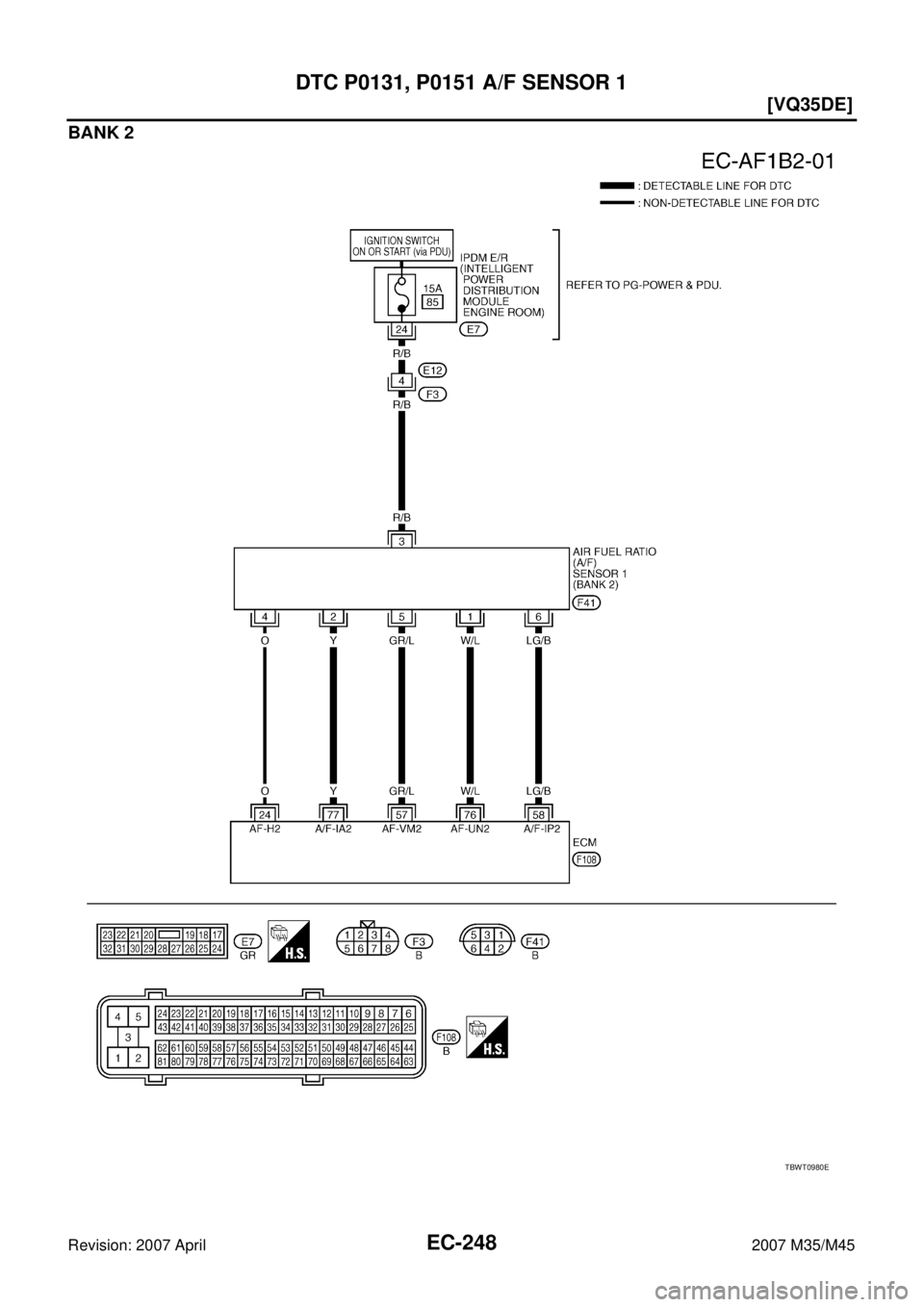

BANK 2
TBWT0980E

Page 1778 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0131, P0151 A/F SENSOR 1
EC-249
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Puls

Page 1779 of 4647

INFINITI M35 2007 Factory Service Manual EC-250
[VQ35DE]
DTC P0131, P0151 A/F SENSOR 1
Revision: 2007 April2007 M35/M45
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector.
2. Turn ignitio

Page 1780 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0131, P0151 A/F SENSOR 1
EC-251
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. D

Page 1781 of 4647

INFINITI M35 2007 Factory Service Manual EC-252
[VQ35DE]
DTC P0131, P0151 A/F SENSOR 1
Revision: 2007 April2007 M35/M45
Removal and InstallationNBS004WM
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-28, "EXHAUST MANIFOLD" .

Page 1782 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0132, P0152 A/F SENSOR 1
EC-253
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0132, P0152 A/F SENSOR 1PFP:22693
Component DescriptionNBS004WN
The air fuel ratio (A/F) s

DTC P0132, P0152 A/F SENSOR 1
EC-253
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0132, P0152 A/F SENSOR 1PFP:22693
Component DescriptionNBS004WN
The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range (0.7 <
< air).
The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.
An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800°C (1,292 - 1,472°F).
CONSULT-II Reference Value in Data Monitor ModeNBS004WO
Specification data are reference values.
On Board Diagnosis LogicNBS004WP
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately high.
DTC Confirmation ProcedureNBS004WQ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.
SEF579Z
SEF580Z
MONITOR ITEM CONDITION SPECIFICATION
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at 2,000 rpm Fluctuates around 1.5 V
DTC No. Trouble diagnosis name DTC detecting condition Possible Cause
P0132
0132
(Bank 1)
Air fuel ratio (A/F) sensor 1
circuit high voltage
The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5V.
Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)
A/F sensor 1 P0152
0152
(Bank 2)

Page 1783 of 4647

INFINITI M35 2007 Factory Service Manual EC-254
[VQ35DE]
DTC P0132, P0152 A/F SENSOR 1
Revision: 2007 April2007 M35/M45
3. Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 5V, go to EC-258,

Page 1784 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0132, P0152 A/F SENSOR 1
EC-255
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

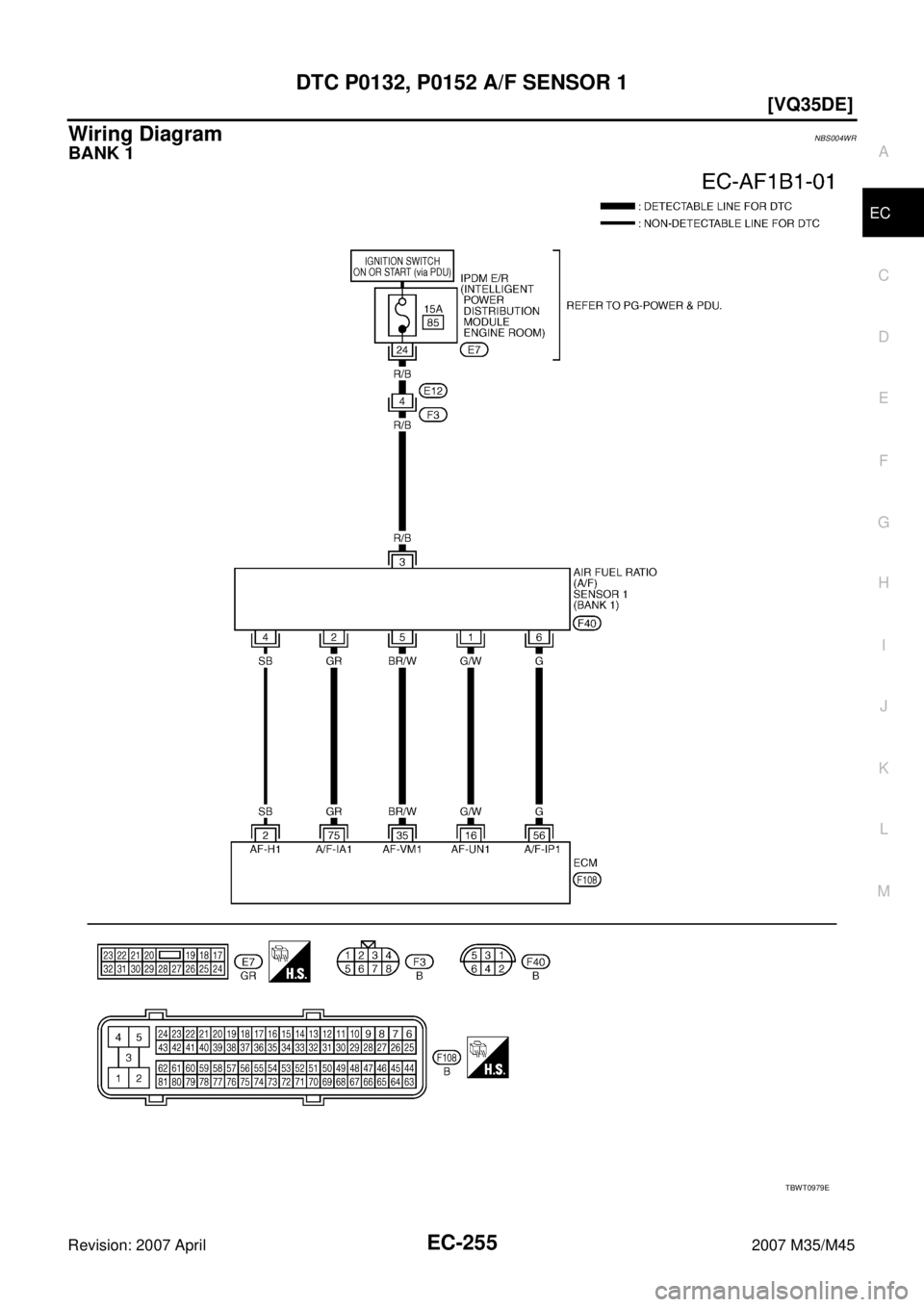

Wiring DiagramNBS004WR
BANK 1
TBWT0979E
