BRC-36
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
Engine SystemNFS000QM
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to EC-90, "
TROUBLE DIAGNOSIS" (VQ35DE), EC-792, "TROUBLE DIAGNOSIS" (VK45DE).
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
ABS Actuator and Electric Unit (Control Unit)NFS000QN
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
CAUTION:
Replace ABS actuator and electric unit (control unit) when self-diagnostic result shows items other
than those above.
Is above displayed on the self-diagnosis display?
YES >>Replace ABS actuator and electric unit (control unit).
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
NO >> INSPECTION END
Self-diagnosis results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6
Self-diagnosis results
CONTROLLER FAILURE
EMERGENCY BRAKE
VARIANT CODING
Page 1338 of 4647
![INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-37
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
ABS Actuator and Electric Unit (Control Unit) Power Supply and Ground CircuitNFS000QO
INSP INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-37
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
ABS Actuator and Electric Unit (Control Unit) Power Supply and Ground CircuitNFS000QO
INSP](/manual-img/42/57024/w960_57024-1337.png)

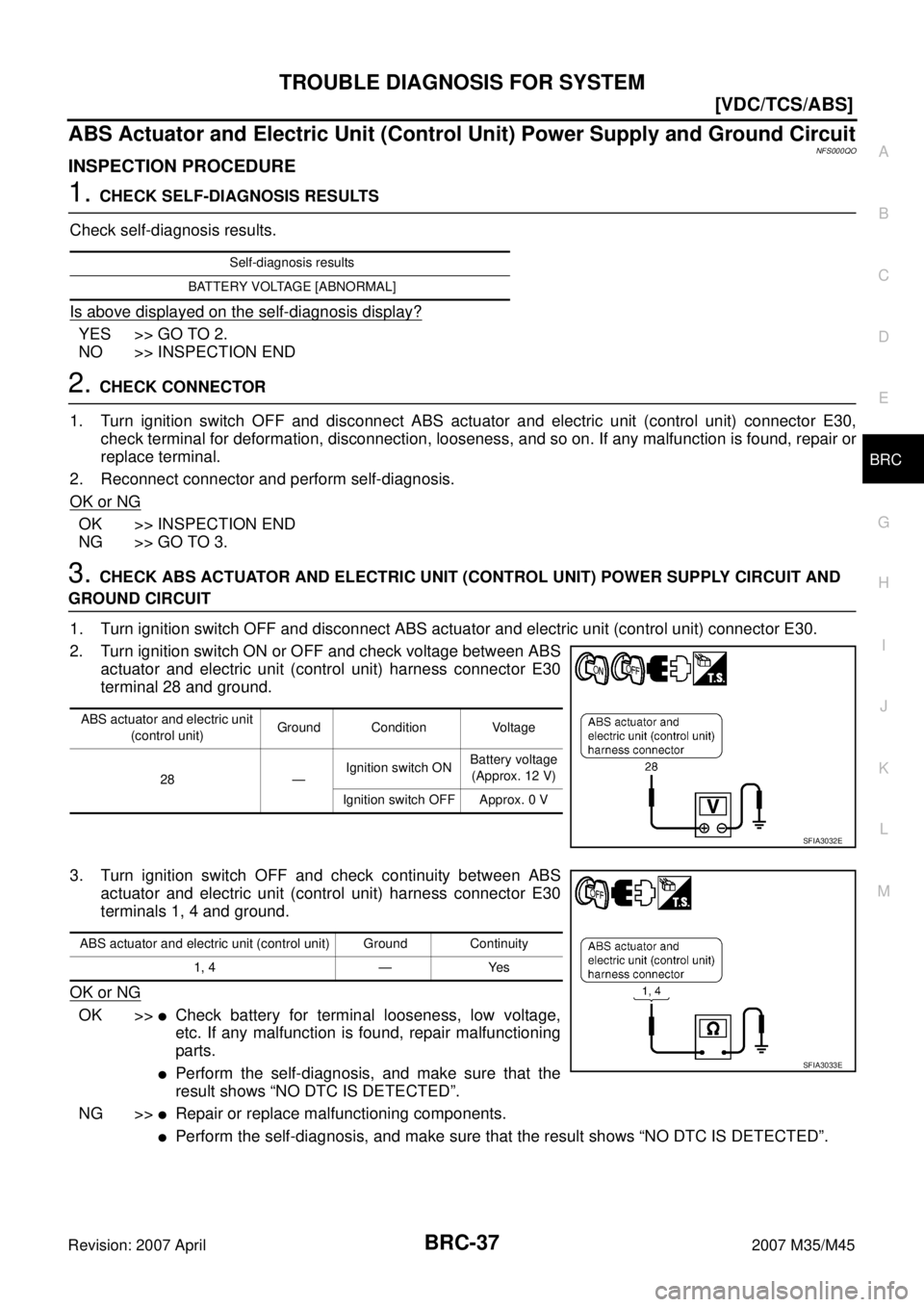

TROUBLE DIAGNOSIS FOR SYSTEM
BRC-37
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
ABS Actuator and Electric Unit (Control Unit) Power Supply and Ground CircuitNFS000QO
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connector and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT AND
GROUND CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30.
2. Turn ignition switch ON or OFF and check voltage between ABS
actuator and electric unit (control unit) harness connector E30
terminal 28 and ground.
3. Turn ignition switch OFF and check continuity between ABS
actuator and electric unit (control unit) harness connector E30
terminals 1, 4 and ground.
OK or NG
OK >>Check battery for terminal looseness, low voltage,
etc. If any malfunction is found, repair malfunctioning
parts.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
Self-diagnosis results
BATTERY VOLTAGE [ABNORMAL]
ABS actuator and electric unit
(control unit)Ground Condition Voltage
28 —Ignition switch ONBattery voltage
(Approx. 12 V)
Ignition switch OFF Approx. 0 V
SFIA3032E
ABS actuator and electric unit (control unit) Ground Continuity
1, 4 — Yes
SFIA3033E
Page 1339 of 4647
![INFINITI M35 2007 Factory Service Manual BRC-38
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
ABS Motor and Motor Relay CircuitNFS000QP
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis r INFINITI M35 2007 Factory Service Manual BRC-38
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
ABS Motor and Motor Relay CircuitNFS000QP
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis r](/manual-img/42/57024/w960_57024-1338.png)
BRC-38
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
ABS Motor and Motor Relay CircuitNFS000QP
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connector and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK ABS MOTOR AND MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30.
2. Check voltage between the ABS actuator and electric unit (con-
trol unit) harness connector E30 terminal 2 and ground.
OK or NG
OK >> GO TO 4.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
4. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E30 terminals 1, 4 and ground.
OK or NG
OK >>Replace ABS actuator and electric unit (control unit).
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
Self-diagnosis results
PUMP MOTOR
ABS actuator and electric unit (control unit) Ground Voltage
2—Battery voltage
(Approx. 12 V)
SFIA3034E
ABS actuator and electric unit (control unit) Ground Continuity
1, 4 — Yes
SFIA3033E
Page 1340 of 4647
![INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-39
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Solenoid, VDC Change-Over Valve and Actuator Relay CircuitNFS000QQ
INSPECTION PROCEDURE
1. INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-39
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Solenoid, VDC Change-Over Valve and Actuator Relay CircuitNFS000QQ
INSPECTION PROCEDURE
1.](/manual-img/42/57024/w960_57024-1339.png)
TROUBLE DIAGNOSIS FOR SYSTEM
BRC-39
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Solenoid, VDC Change-Over Valve and Actuator Relay CircuitNFS000QQ
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connector and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK SOLENOID, VDC CHANGE-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIR-
CUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30.
2. Check voltage between ABS actuator and electric unit (control
unit) harness connector E30 terminal 3 and ground.
OK or NG
OK >> GO TO 4.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
Self-diagnosis results
FR RH IN ABS SOL
FR RH OUT ABS SOL
FR LH IN ABS SOL
FR LH OUT ABS SOL
RR RH IN ABS SOL
RR RH OUT ABS SOL
RR LH IN ABS SOL
RR LH OUT ABS SOL
USV LINE [FL-RR]
USV LINE [FR-RL]
HSV LINE [FL-RR]
HSV LINE [FR-RL]
MAIN RELAY
ABS actuator and electric unit (control unit) Ground Voltage
3—Battery Voltage
(Approx. 12 V)
SFIA3035E
Page 1341 of 4647
![INFINITI M35 2007 Factory Service Manual BRC-40
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
4. CHECK SOLENOID, VDC CHANGE-OVER VALVE, ACTUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and ele INFINITI M35 2007 Factory Service Manual BRC-40
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
4. CHECK SOLENOID, VDC CHANGE-OVER VALVE, ACTUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and ele](/manual-img/42/57024/w960_57024-1340.png)
BRC-40
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
4. CHECK SOLENOID, VDC CHANGE-OVER VALVE, ACTUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E30 terminals 1, 4 and ground.
OK or NG
OK >>Replace ABS actuator and electric unit (control unit).
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
Pressure Sensor CircuitNFS000QR
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK STOP LAMP SWITCH CONNECTOR
1. Disconnect stop lamp switch connector and ABS actuator and electric unit (control unit) connector.
2. Check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair
or replace terminal.
3. Reconnect connectors securely.
4. Start engine.
5. Repeat pumping brake pedal carefully several times, then perform the self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector E124.
3. Operate stop lamp switch and check continuity between stop lamp switch harness connector terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace stop lamp switch. Refer to BR-7, "
Removal and Installation" .
ABS actuator and electric unit (control unit) Ground Continuity
1, 4 — Yes
SFIA3033E
Self-diagnosis results
PRESS SEN CIRCUIT
Terminal Condition Continuity
3 − 4Release stop lamp switch
(When brake pedal is depressed.)Ye s
Push stop lamp switch
(When brake pedal is released.)No
Page 1342 of 4647
![INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-41
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
4. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp swi INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-41
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
4. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp swi](/manual-img/42/57024/w960_57024-1341.png)
TROUBLE DIAGNOSIS FOR SYSTEM
BRC-41
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
4. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch connector E124 and ABS actuator and electric unit (control unit) connector
E30.
3. Check continuity between stop lamp switch harness connector and ABS actuator and electric unit (control
unit) harness connector.
OK or NG
OK >> GO TO 5.
NG >> Open or short in harness between stop lamp switch and ABS actuator and electric unit (control
unit). Repair or replace applied harness.
5. CHECK PRESSURE SENSOR
1. Connect ABS actuator and electric unit (control unit) connector.
2. Perform “DATA MONITOR” of the “PRESS SENSOR” to check if the status is normal.
OK or NG
OK >> INSPECTION END
NG >> If the pressure sensor is damaged or malfunctioning, replace the ABS actuator and electric unit
(control unit).
Steering Angle Sensor CircuitNFS000QS
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connector and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
ABS actuator and electric unit (control unit) Stop lamp switch Continuity
30 4 Yes
Condition Data monitor display
When brake pedal is depressed.−40 to 300 bar
When brake pedal is released. Approx. 0 bar
Self-diagnosis results
ST ANG SEN CIRCUIT
Page 1343 of 4647
![INFINITI M35 2007 Factory Service Manual BRC-42
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45

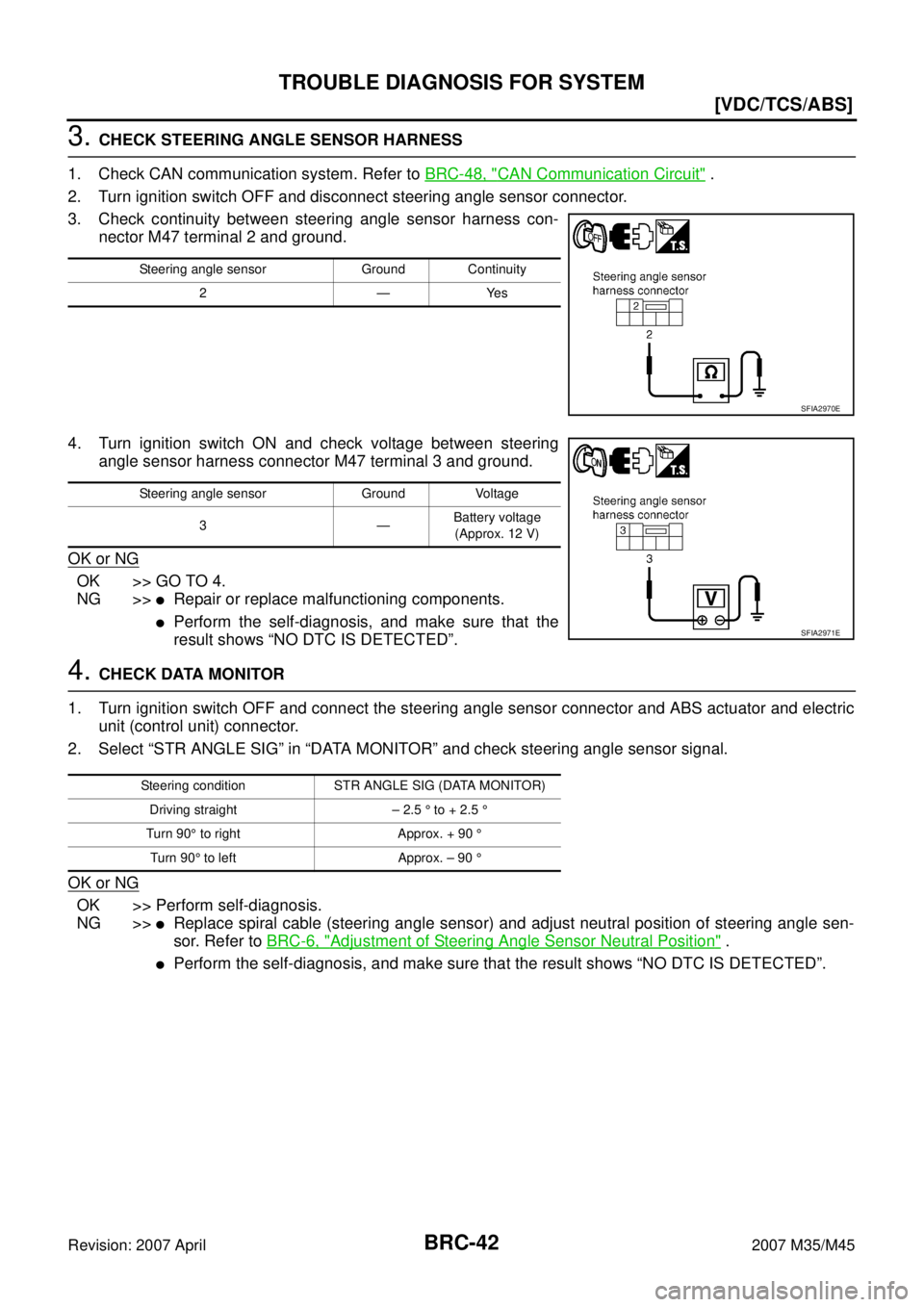

3. CHECK STEERING ANGLE SENSOR HARNESS
1. Check CAN communication system. Refer to BRC-48, "
CAN Communication Circui INFINITI M35 2007 Factory Service Manual BRC-42
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
3. CHECK STEERING ANGLE SENSOR HARNESS
1. Check CAN communication system. Refer to BRC-48, "
CAN Communication Circui](/manual-img/42/57024/w960_57024-1342.png)
BRC-42
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
3. CHECK STEERING ANGLE SENSOR HARNESS
1. Check CAN communication system. Refer to BRC-48, "
CAN Communication Circuit" .
2. Turn ignition switch OFF and disconnect steering angle sensor connector.
3. Check continuity between steering angle sensor harness con-
nector M47 terminal 2 and ground.
4. Turn ignition switch ON and check voltage between steering
angle sensor harness connector M47 terminal 3 and ground.
OK or NG
OK >> GO TO 4.
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the
result shows “NO DTC IS DETECTED”.
4. CHECK DATA MONITOR
1. Turn ignition switch OFF and connect the steering angle sensor connector and ABS actuator and electric
unit (control unit) connector.
2. Select “STR ANGLE SIG” in “DATA MONITOR” and check steering angle sensor signal.
OK or NG
OK >> Perform self-diagnosis.
NG >>
Replace spiral cable (steering angle sensor) and adjust neutral position of steering angle sen-
sor. Refer to BRC-6, "
Adjustment of Steering Angle Sensor Neutral Position" .
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
Steering angle sensor Ground Continuity
2—Yes
SFIA2970E
Steering angle sensor Ground Voltage
3—Battery voltage
(Approx. 12 V)
SFIA2971E
Steering condition STR ANGLE SIG (DATA MONITOR)
Driving straight – 2.5 ° to + 2.5 °
Turn 90° to right Approx. + 90 °
Turn 90° to left Approx. – 90 °
Page 1344 of 4647
![INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-43
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Stop Lamp Switch CircuitNFS000QU
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Chec INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
BRC-43
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Stop Lamp Switch CircuitNFS000QU
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Chec](/manual-img/42/57024/w960_57024-1343.png)
TROUBLE DIAGNOSIS FOR SYSTEM
BRC-43
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Stop Lamp Switch CircuitNFS000QU
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect stop lamp switch connector E124 and ABS actuator and electric
unit (control unit) connector E30, check terminal for deformation, disconnection, looseness, and so on. If
any malfunction is found, repair or replace terminal.
2. Reconnect connectors securely.
3. Start engine.
4. Repeat pumping brake pedal carefully several times, and perform self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.

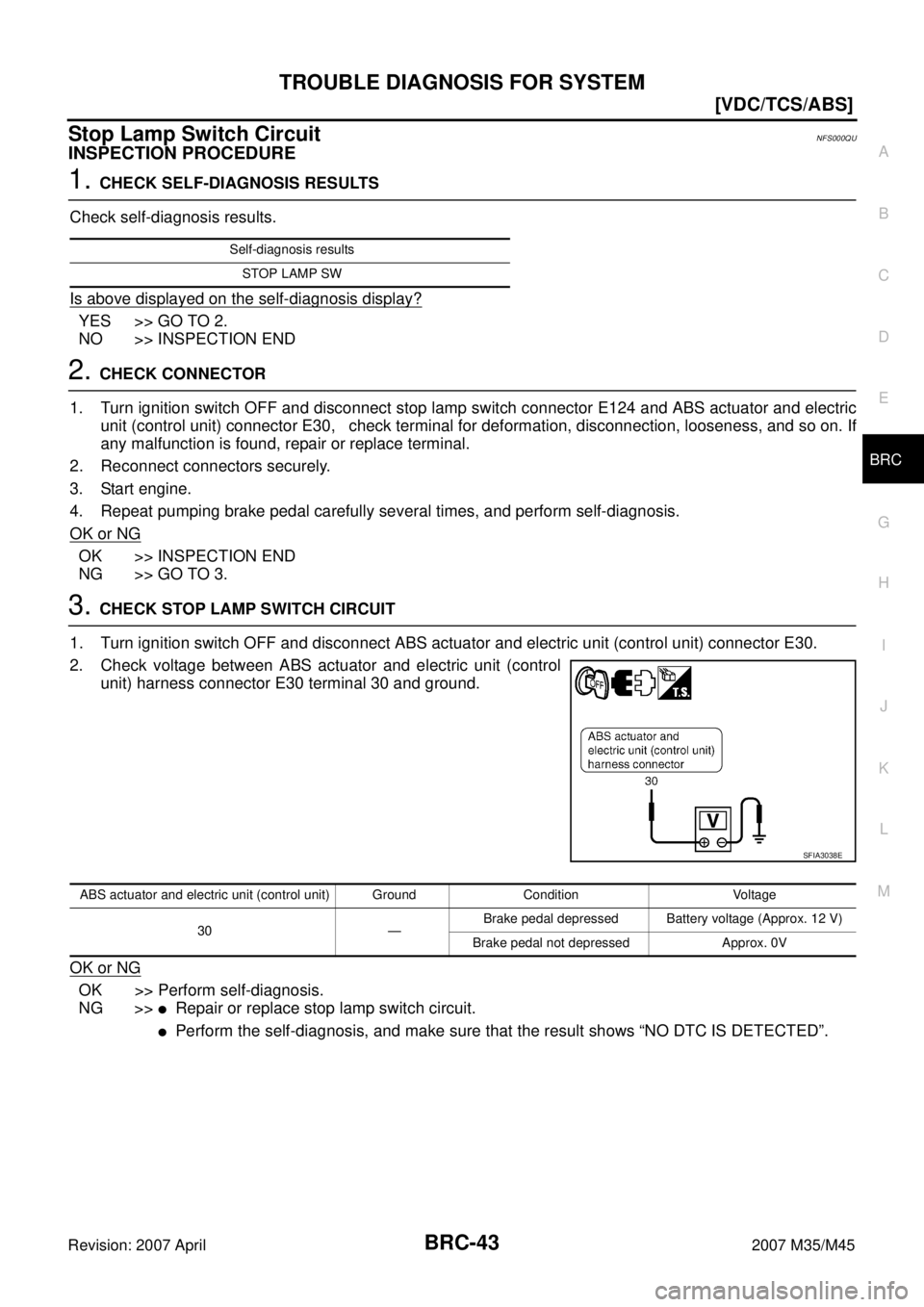

3. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30.
2. Check voltage between ABS actuator and electric unit (control
unit) harness connector E30 terminal 30 and ground.
OK or NG
OK >> Perform self-diagnosis.
NG >>
Repair or replace stop lamp switch circuit.
Perform the self-diagnosis, and make sure that the result shows “NO DTC IS DETECTED”.
Self-diagnosis results
STOP LAMP SW
SFIA3038E
ABS actuator and electric unit (control unit) Ground Condition Voltage
30 —Brake pedal depressed Battery voltage (Approx. 12 V)
Brake pedal not depressed Approx. 0V
