Page 2521 of 4647

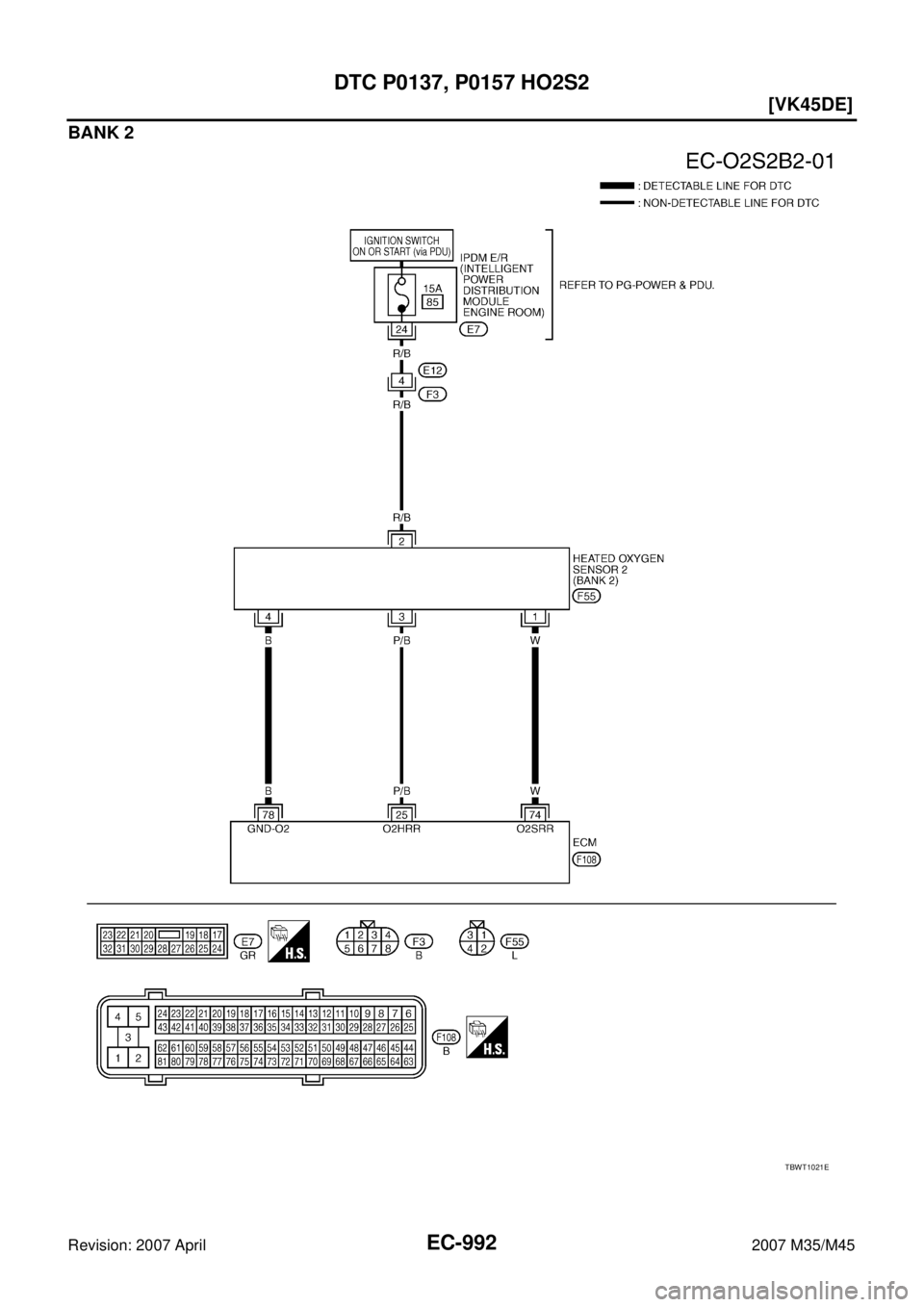

INFINITI M35 2007 Factory Service Manual EC-992
[VK45DE]
DTC P0137, P0157 HO2S2
Revision: 2007 April2007 M35/M45
BANK 2
TBWT1021E

Page 2522 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0137, P0157 HO2S2
EC-993
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

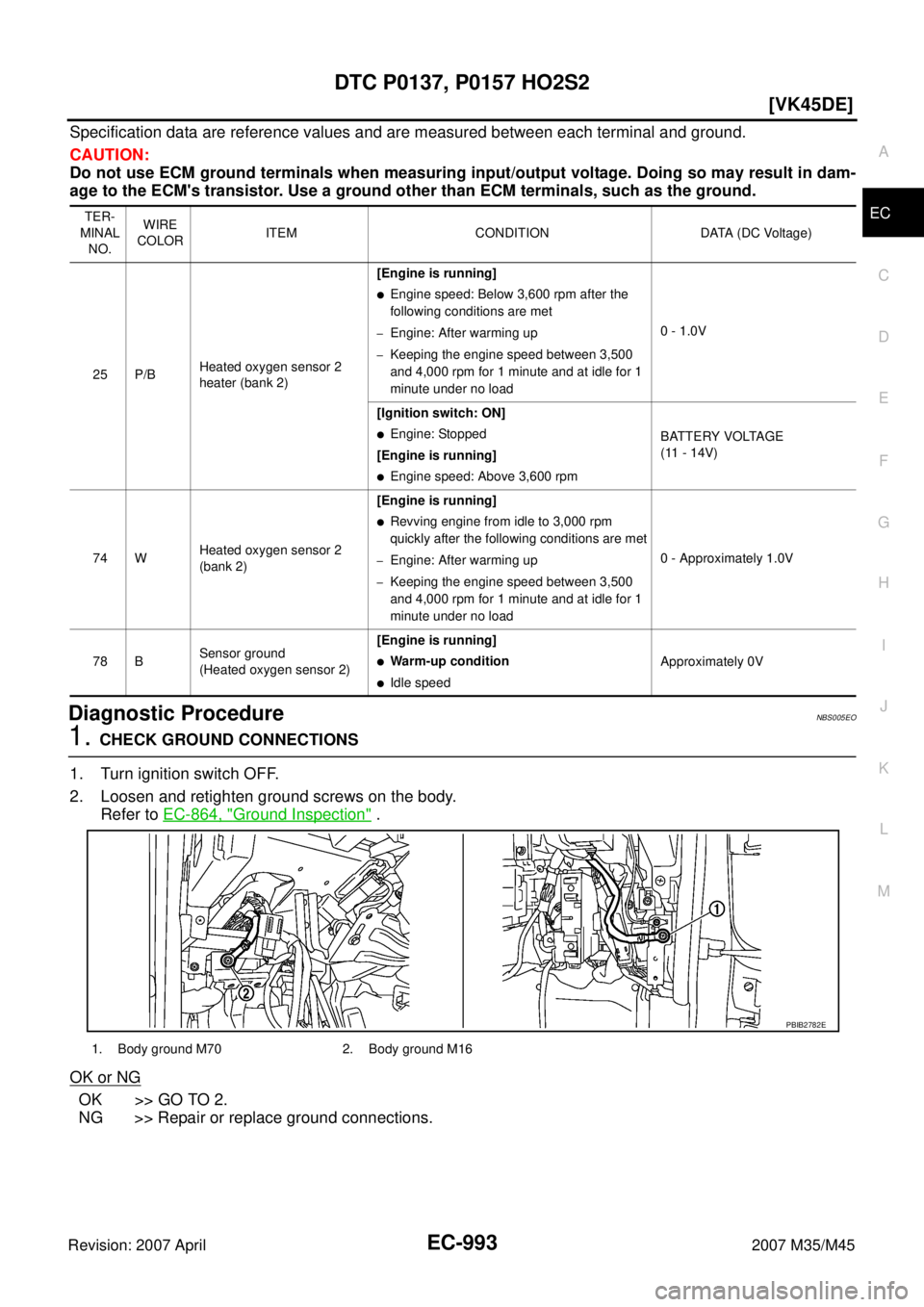

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do

Page 2523 of 4647

INFINITI M35 2007 Factory Service Manual EC-994
[VK45DE]
DTC P0137, P0157 HO2S2
Revision: 2007 April2007 M35/M45

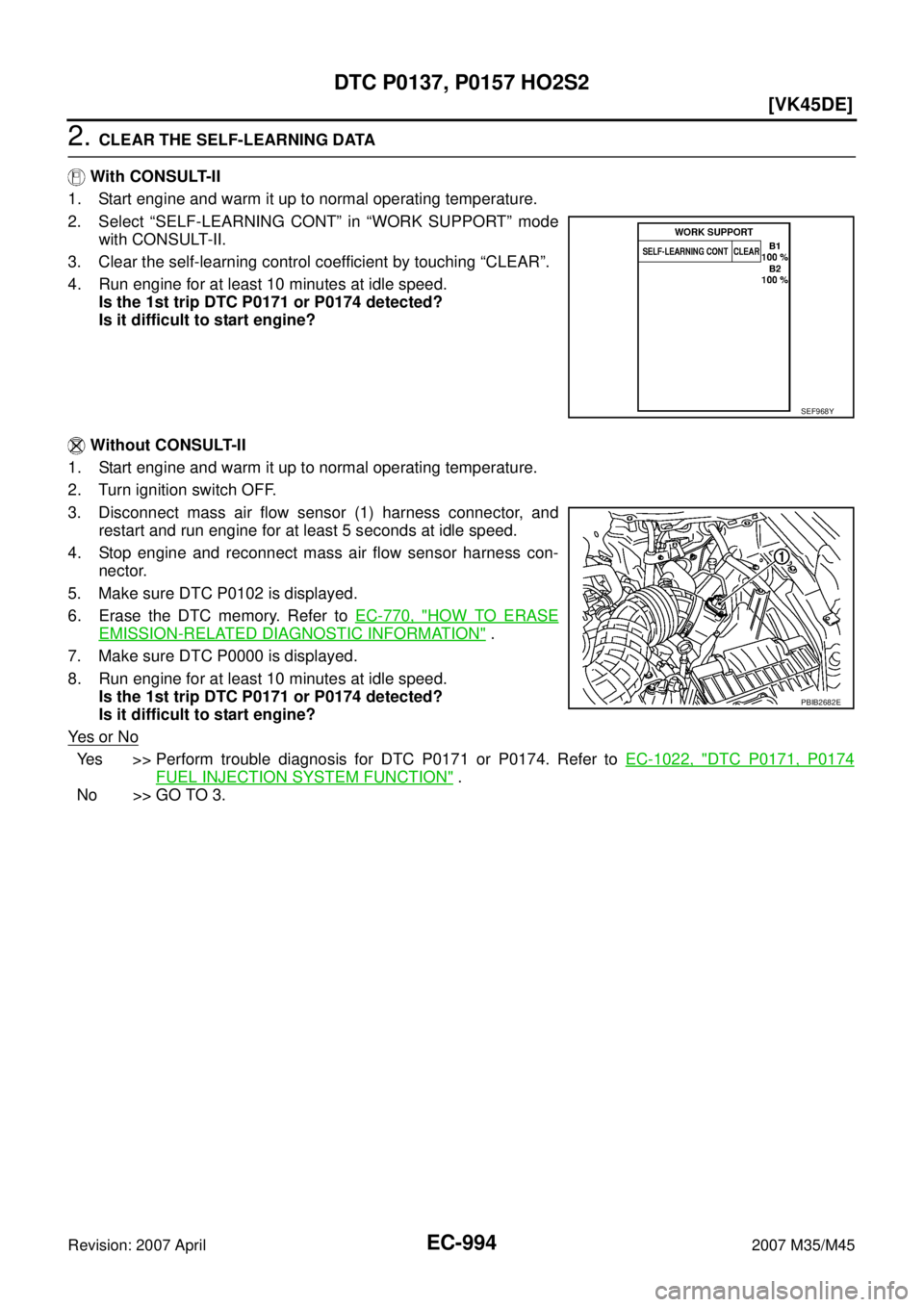

2. CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “SE

Page 2524 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0137, P0157 HO2S2
EC-995
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

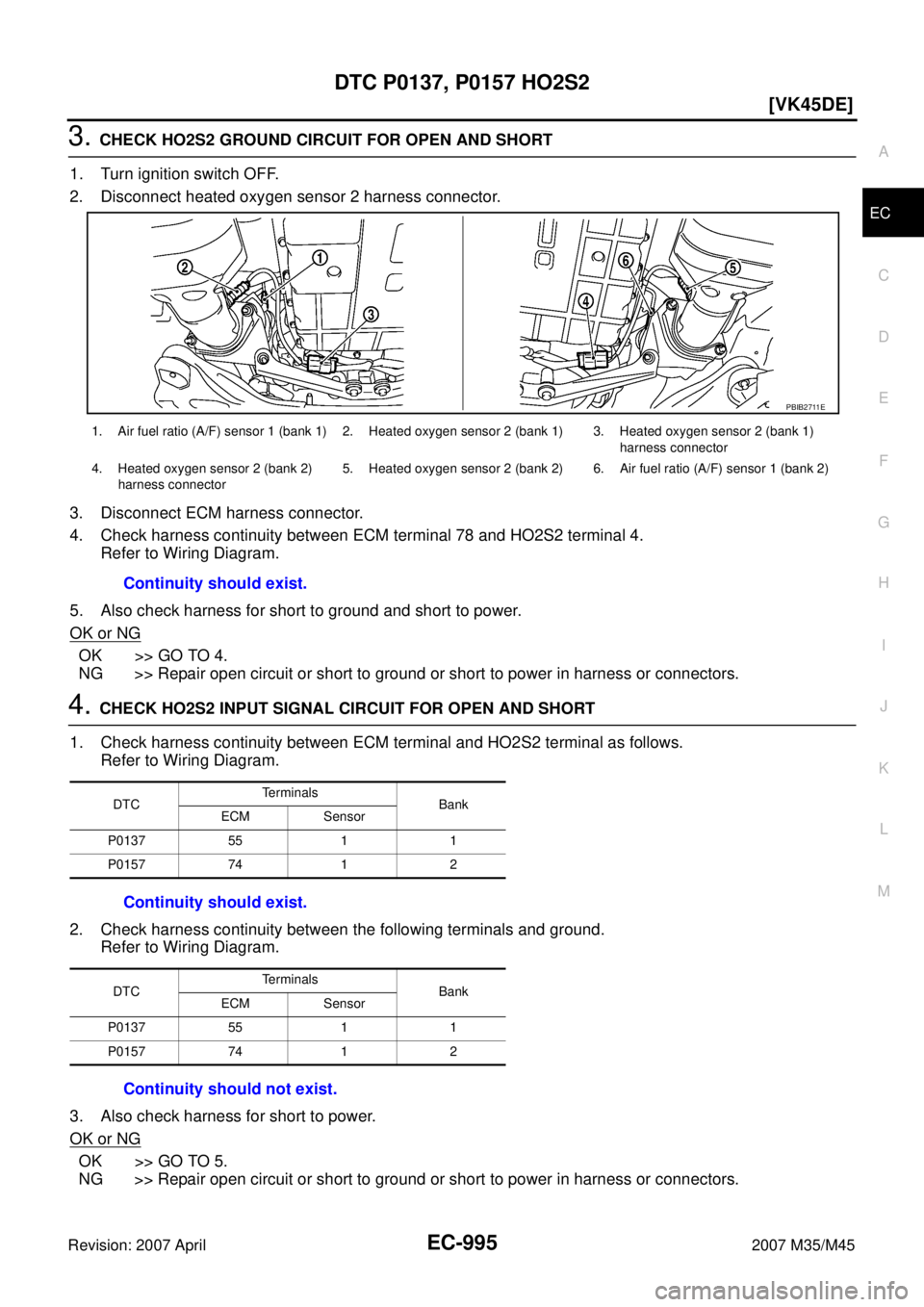

3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxy

Page 2525 of 4647

INFINITI M35 2007 Factory Service Manual EC-996
[VK45DE]
DTC P0137, P0157 HO2S2
Revision: 2007 April2007 M35/M45

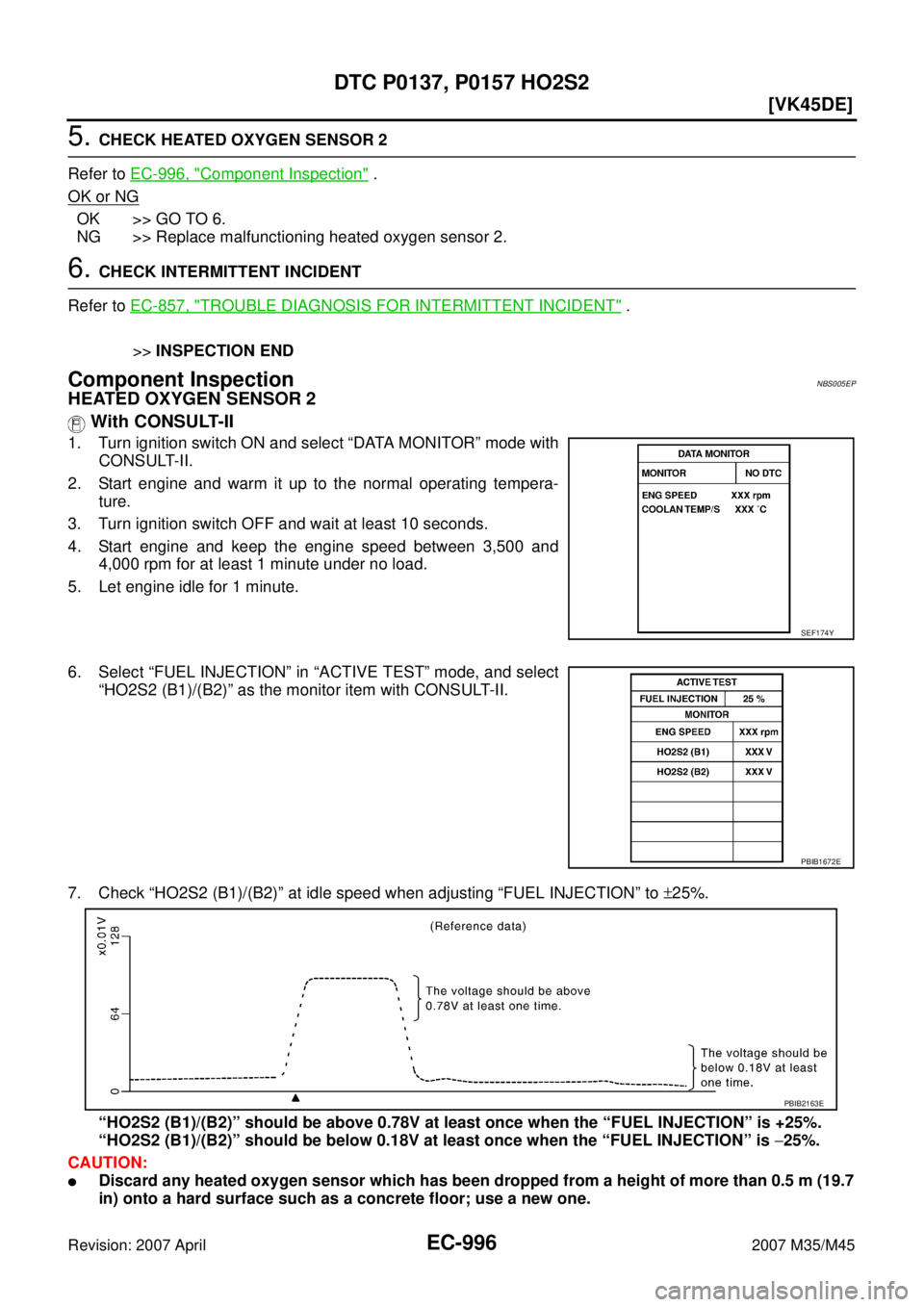

5. CHECK HEATED OXYGEN SENSOR 2
Refer to EC-996, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning

Page 2526 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0137, P0157 HO2S2
EC-997
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

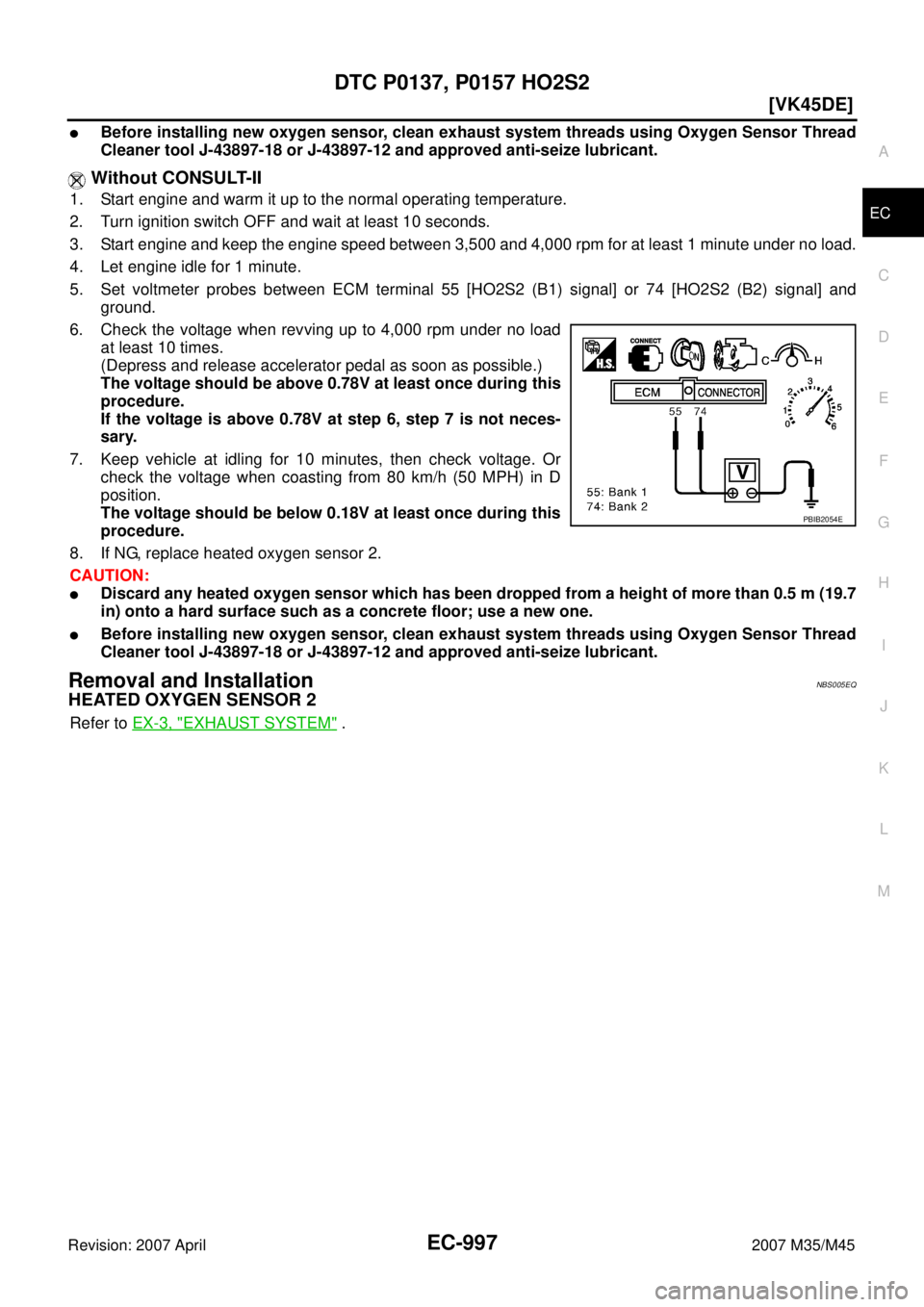

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner

Page 2527 of 4647

INFINITI M35 2007 Factory Service Manual EC-998
[VK45DE]
DTC P0138, P0158 HO2S2
Revision: 2007 April2007 M35/M45
DTC P0138, P0158 HO2S2PFP:226A0
Component DescriptionNBS005ER

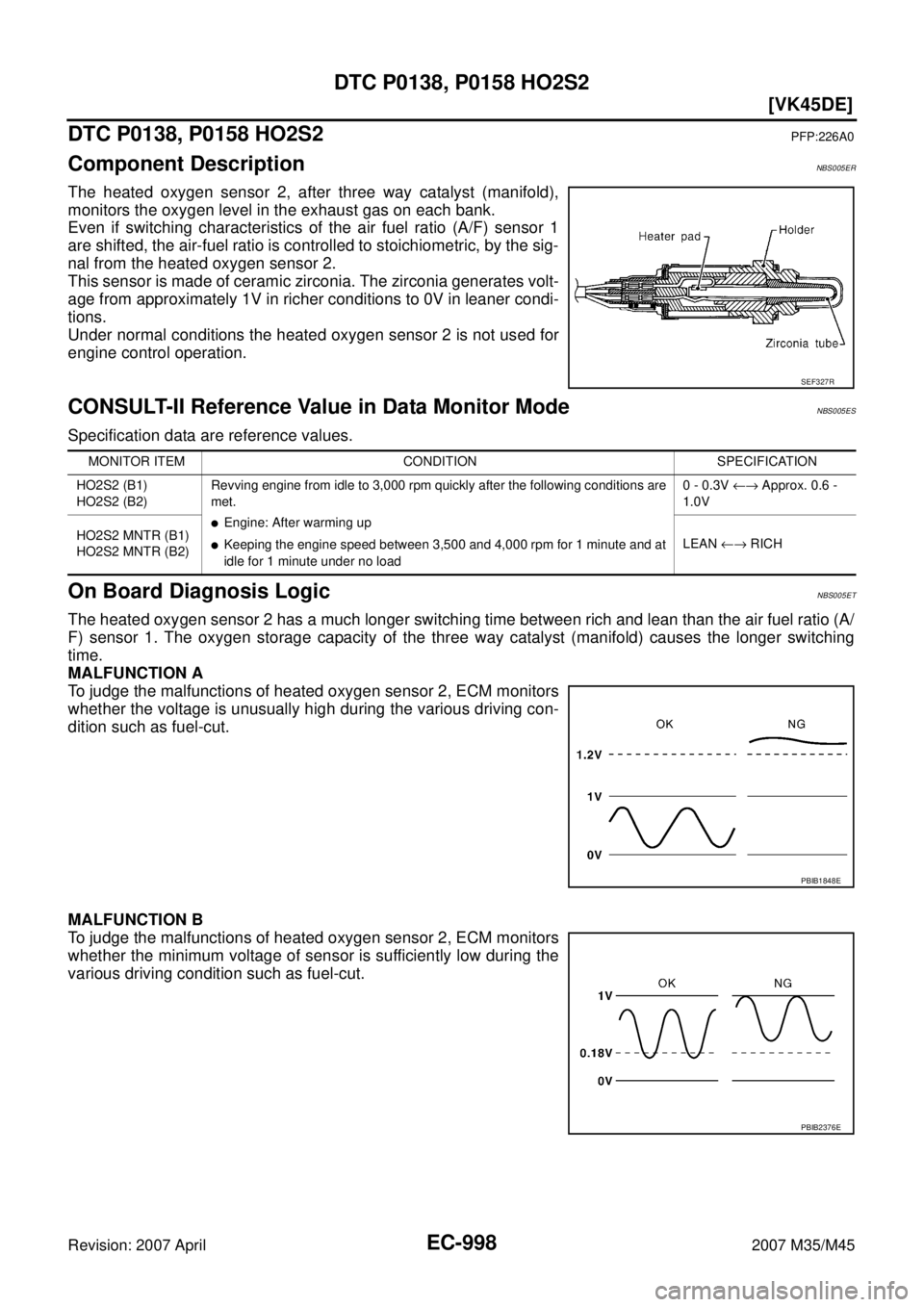

The heated oxygen sensor 2, after three way catalyst (manifold),
m

Page 2528 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0138, P0158 HO2S2
EC-999
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

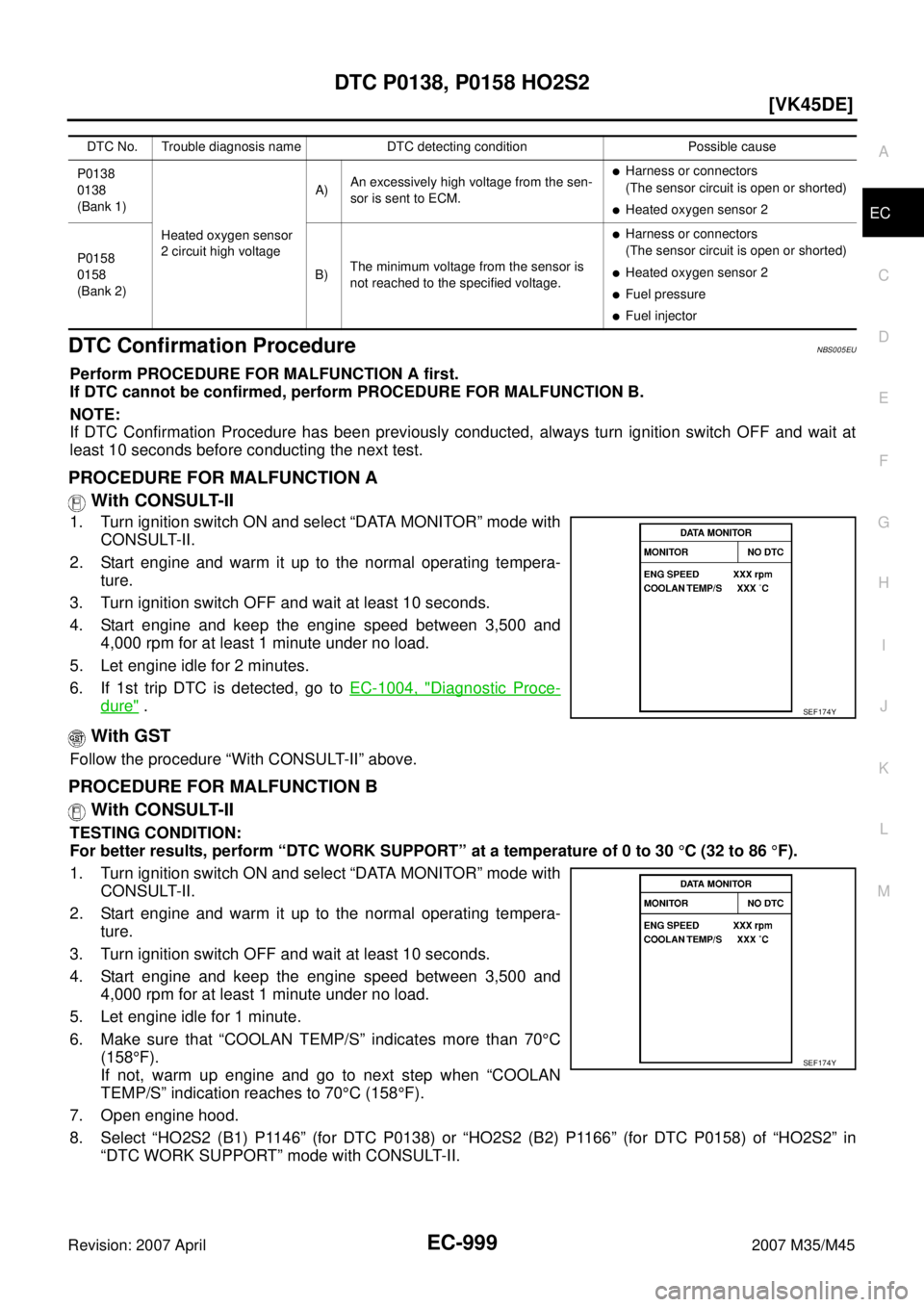

DTC Confirmation ProcedureNBS005EU
Perform PROCEDURE FOR MALFUNCTION A first.
If DTC cannot be confirm

DTC P0138, P0158 HO2S2
EC-999
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005EU
Perform PROCEDURE FOR MALFUNCTION A first.
If DTC cannot be confirmed, perform PROCEDURE FOR MALFUNCTION B.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-1004, "
Diagnostic Proce-
dure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30 °C (32 to 86 °F).
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. Make sure that “COOLAN TEMP/S” indicates more than 70°C
(158°F).
If not, warm up engine and go to next step when “COOLAN
TEMP/S” indication reaches to 70°C (158°F).
7. Open engine hood.
8. Select “HO2S2 (B1) P1146” (for DTC P0138) or “HO2S2 (B2) P1166” (for DTC P0158) of “HO2S2” in
“DTC WORK SUPPORT” mode with CONSULT-II.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0138
0138
(Bank 1)
Heated oxygen sensor
2 circuit high voltageA)An excessively high voltage from the sen-
sor is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted)
Heated oxygen sensor 2
P0158
0158
(Bank 2)B)The minimum voltage from the sensor is
not reached to the specified voltage.
Harness or connectors
(The sensor circuit is open or shorted)
Heated oxygen sensor 2
Fuel pressure
Fuel injector
SEF174Y
SEF174Y
