Page 1137 of 4647

INFINITI M35 2007 Factory Service Manual BL-204 TRUNK LID Revision: 2007 April2007 M35/M45 Removal and Installation of Trunk Lid LockNIS001ZK REMOVAL 1. Remove the trunk lid finisher. Refer to EI-56, "Removal and Installation for Trunk Room

Page 1138 of 4647

INFINITI M35 2007 Factory Service Manual TRUNK LID BL-205 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 Removal and Installation of Trunk Lid StrikerNIS001ZL REMOVAL 1. Remove the trunk rear plate and trunk rear finisher. Refer

Page 1139 of 4647

INFINITI M35 2007 Factory Service Manual BL-206 TRUNK LID Revision: 2007 April2007 M35/M45 Removal and Installation of Trunk Lid WeatherstripNIS001ZM REMOVAL Pull up and remove engagement with body from weatherstrip joint. CAUTION: After rem

Page 1140 of 4647

INFINITI M35 2007 Factory Service Manual TRUNK LID OPENER BL-207 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 TRUNK LID OPENERPFP:84640 Component Parts and Harness Connector LocationNIS001ZN 1. Fuse block (J / B) fuse layout 2

Page 1141 of 4647

INFINITI M35 2007 Factory Service Manual BL-208 TRUNK LID OPENER Revision: 2007 April2007 M35/M45 System DescriptionNIS001ZO Power is supplied at all times through 50A fusible link (letter F, located in the fuse and fusible link box) to B

Page 1142 of 4647

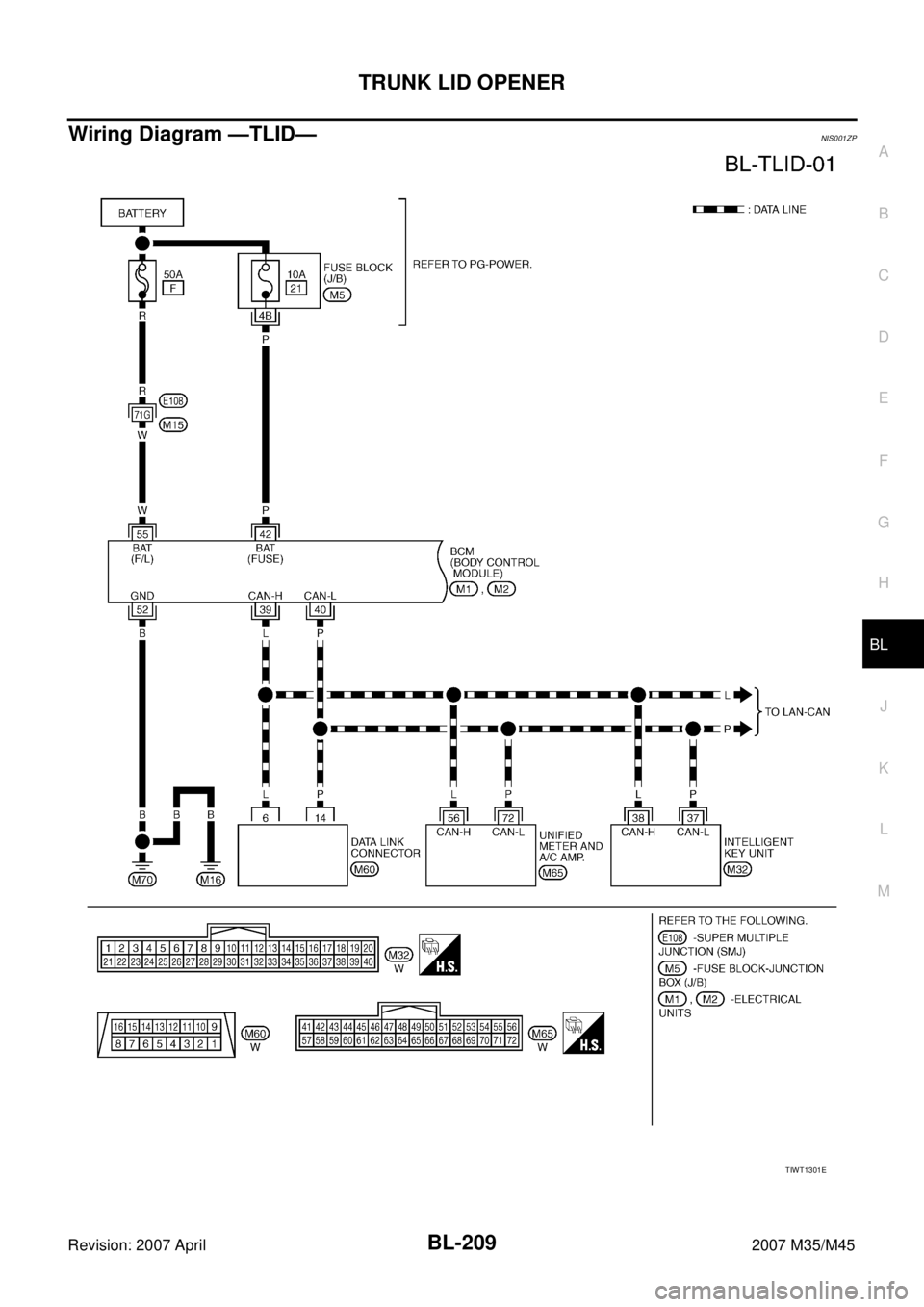

INFINITI M35 2007 Factory Service Manual TRUNK LID OPENER BL-209 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 Wiring Diagram —TLID—NIS001ZP TIWT1301E

Page 1143 of 4647

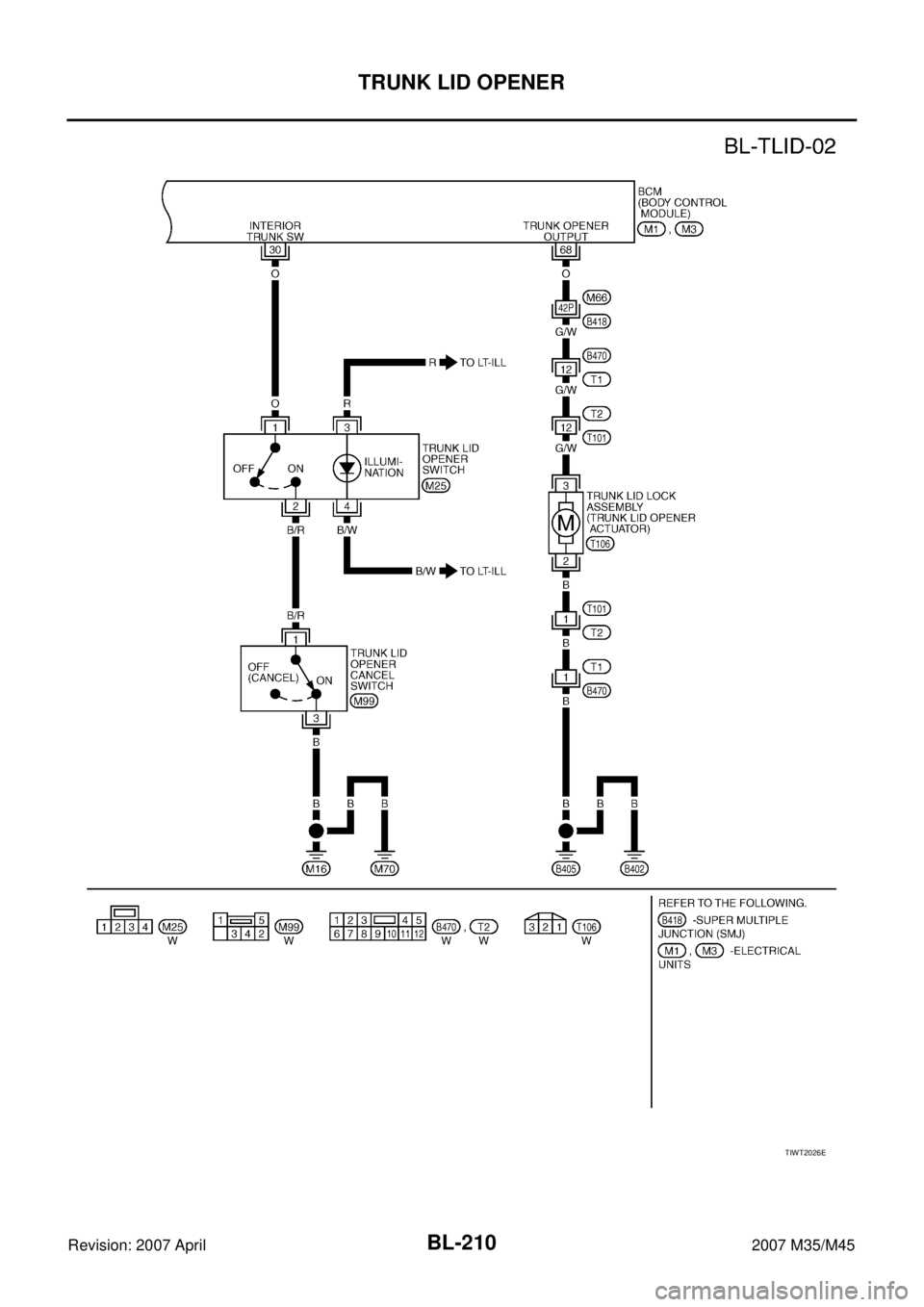

INFINITI M35 2007 Factory Service Manual BL-210 TRUNK LID OPENER Revision: 2007 April2007 M35/M45 TIWT2026E

Page 1144 of 4647

INFINITI M35 2007 Factory Service Manual TRUNK LID OPENER BL-211 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 Terminals and Reference Value for BCMNIS001ZQ Te r m i - nalWire colorItemSignal Input/ OutputConditionVoltage (V) (
