INFINITI M35 2007 Factory Service Manual EC-472
[VQ35DE]
DTC P0507 ISC SYSTEM
Revision: 2007 April2007 M35/M45
DTC P0507 ISC SYSTEMPFP:23781
DescriptionNBS0051X
NOTE:
If DTC P0507 is displayed with other DTC, first perform the trouble diagno

EC-472
[VQ35DE]
DTC P0507 ISC SYSTEM
Revision: 2007 April2007 M35/M45
DTC P0507 ISC SYSTEMPFP:23781
DescriptionNBS0051X
NOTE:
If DTC P0507 is displayed with other DTC, first perform the trouble diagnosis for the other DTC.
The ECM controls the engine idle speed to a specified level through the fine adjustment of the air, which is let
into the intake manifold, by operating the electric throttle control actuator. The operating of the throttle valve is
varied to allow for optimum control of the engine idling speed. The crankshaft position sensor (POS) detects
the actual engine speed and sends a signal to the ECM.
The ECM controls the electric throttle control actuator so that the engine speed coincides with the target value
memorized in the ECM. The target engine speed is the lowest speed at which the engine can operate steadily.
The optimum value stored in the ECM is determined by taking into consideration various engine conditions,
such as during warming up, deceleration, and engine load (air conditioner, power steering and cooling fan
operation, etc.).
On Board Diagnosis LogicNBS0051Y
DTC Confirmation ProcedureNBS0051Z
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
If the target idle speed is out of the specified value, perform EC-86, "Idle Air Volume Learning" ,
before conducting DTC Confirmation Procedure. For the target idle speed, refer to the EC-716,
"SERVICE DATA AND SPECIFICATIONS (SDS)" .
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Always perform the test at a temperature above −10°C (14°F).
WITH CONSULT-II
1. Open engine hood.
2. Start engine and warm it up to normal operating temperature.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON again and select “DATA MONITOR”
mode with CONSULT-II.
5. Start engine and run it for at least 1 minute at idle speed.
6. If 1st trip DTC is detected, go to EC-473, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0507
0507Idle speed control sys-
tem RPM higher than
expectedThe idle speed is more than the target idle
speed by 200 rpm or more.
Electric throttle control actuator
Intake air leak
PCV system
SEF174Y

Page 2002 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0507 ISC SYSTEM
EC-473
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS00520
1. CHECK PCV HOSE CONNECTION
Confirm that PCV hose is connected correctly.

Page 2003 of 4647

INFINITI M35 2007 Factory Service Manual EC-474
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2007 April2007 M35/M45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionNBS00521
Power steering pressure (PSP) sensor is installed to the power
steerin

Page 2004 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-475
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

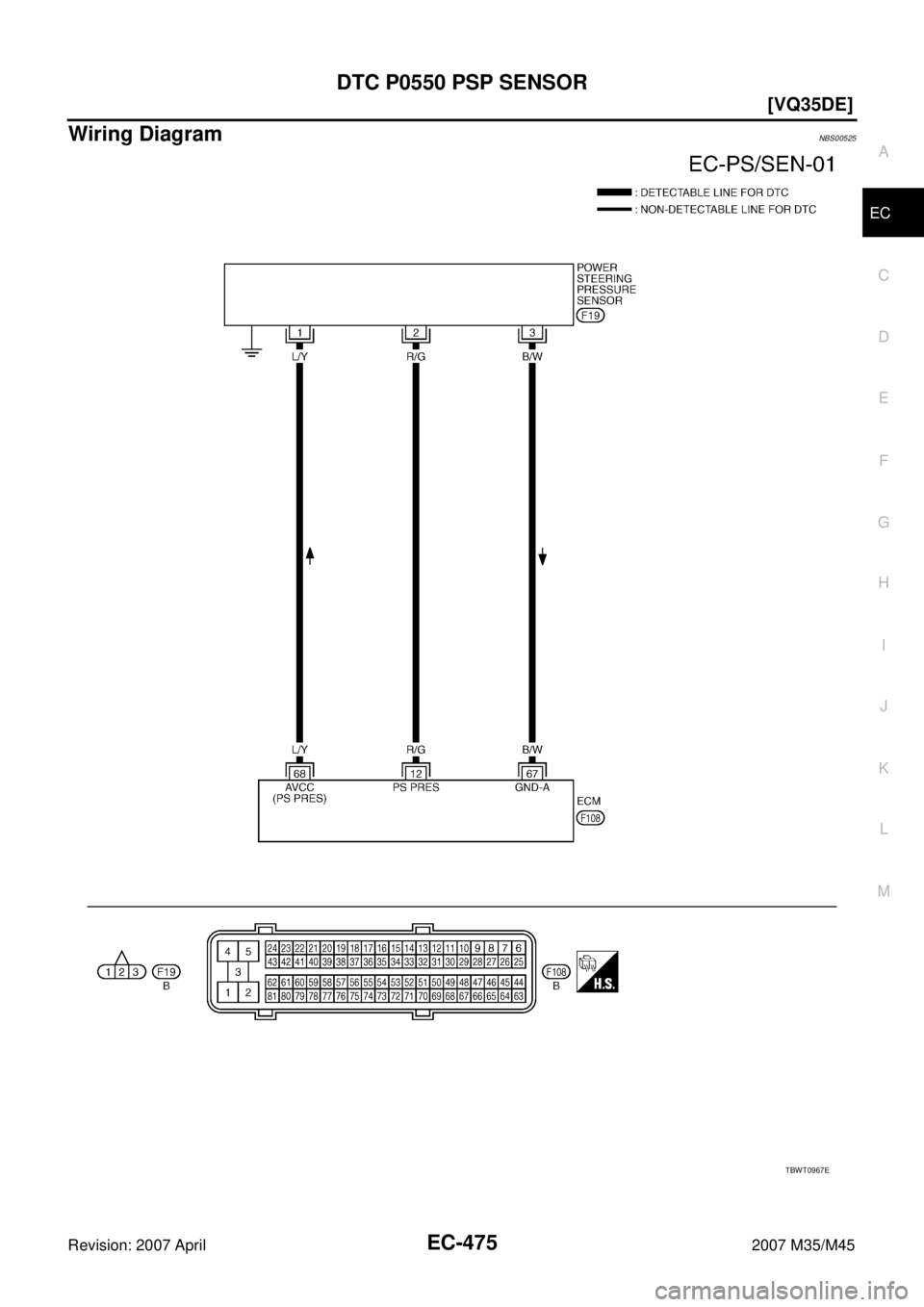

Wiring DiagramNBS00525
TBWT0967E

Page 2005 of 4647

INFINITI M35 2007 Factory Service Manual EC-476
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminal

Page 2006 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-477
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness con-

Page 2007 of 4647

INFINITI M35 2007 Factory Service Manual EC-478
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2007 April2007 M35/M45
6. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component Inspec

Page 2008 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0603 ECM POWER SUPPLY
EC-479
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS00529
Battery voltage is supplied to t
