Page 1041 of 4647
BL-108
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
Check Outside Key Antenna (Trunk Room)NIS001XV
1. CHECK OUTSIDE KEY ANTENNA FUNCTION
With CONSULT-II
1. Check the operation with (“ANTENNA”) in the ACTIVE TEST.
2. Touch “BD/TR ANT” on screen.
3. Carry the Intelligent Key into the antenna detection area.
Do the hazard lamps flash?
Yes >> Outside key antenna (trunk room) is OK.
No >> GO TO 2.
2. CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between Intelligent Key unit connector and ground with oscilloscope.
OK or NG
OK >> Check the condition of harness and connector.
NG >> GO TO 3.
Test item Corresponding antenna
BD/TR ANT Outside key antenna trunk room
PIIB6345E
Te r m i n a l s
ConditionSignal
(Reference value.) (+)
(–) Intelligent
Key unit
connectorTerminal
M32 17 GroundTrunk
request
switch is
pushed
PIIB8925E
SIIA1910J
Page 1042 of 4647

INTELLIGENT KEY SYSTEM
BL-109
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

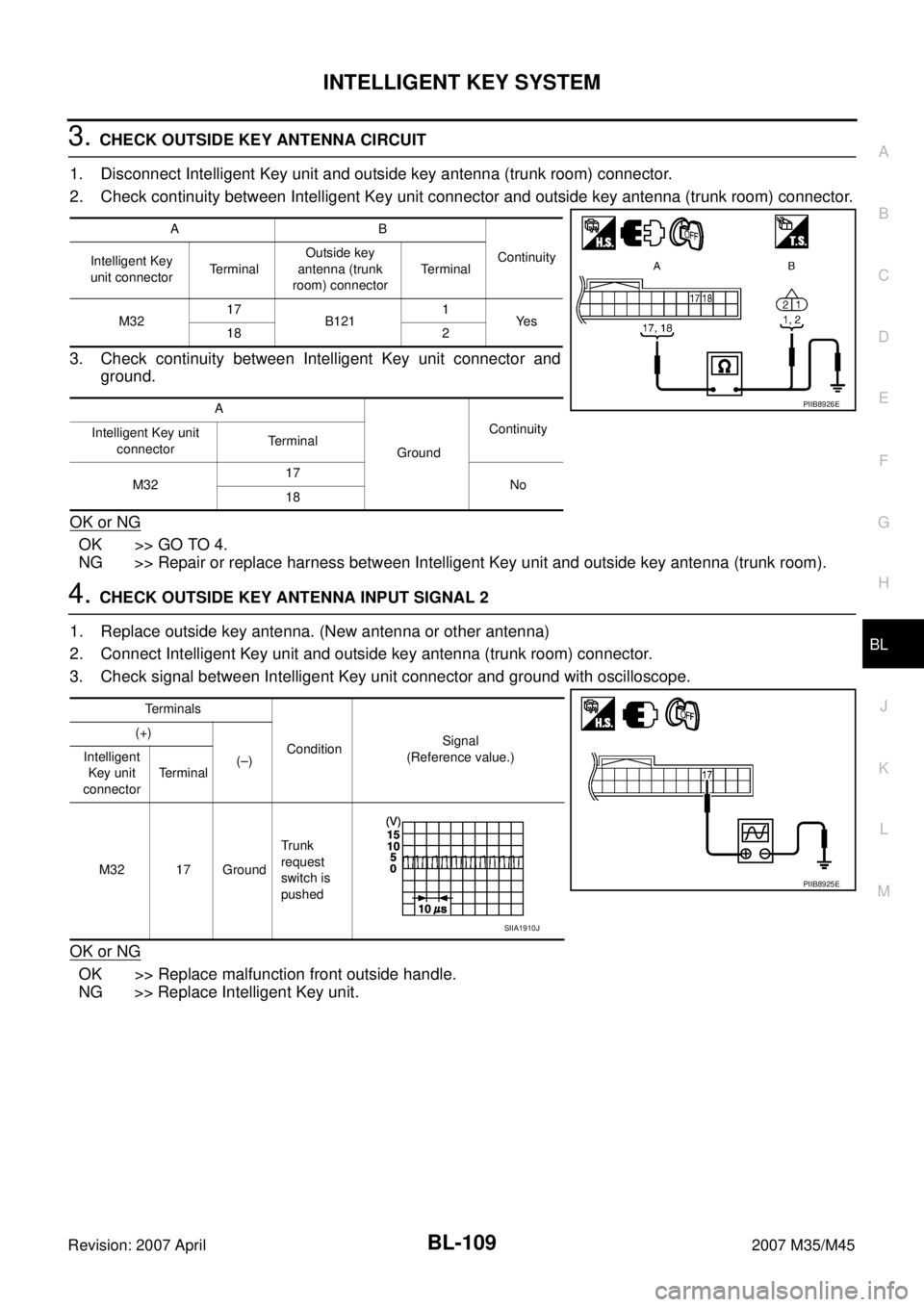

3. CHECK OUTSIDE KEY ANTENNA CIRCUIT
1. Disconnect Intelligent Key unit and outside key antenna (trunk room) connector.
2. Check continuity between Intelligent Key unit connector and outside key antenna (trunk room) connector.
3. Check continuity between Intelligent Key unit connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between Intelligent Key unit and outside key antenna (trunk room).
4. CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2
1. Replace outside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit and outside key antenna (trunk room) connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
OK or NG
OK >> Replace malfunction front outside handle.
NG >> Replace Intelligent Key unit.
AB
Continuity
Intelligent Key
unit connectorTerminalOutside key
antenna (trunk
room) connectorTerminal
M3217
B1211
Ye s
18 2
A
GroundContinuity
Intelligent Key unit
connectorTerminal
M3217
No
18
PIIB8926E
Te r m i n a l s
ConditionSignal
(Reference value.) (+)
(–) Intelligent
Key unit
connectorTerminal
M32 17 GroundTrunk
request
switch is
pushed
PIIB8925E
SIIA1910J
Page 1043 of 4647

BL-110
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45

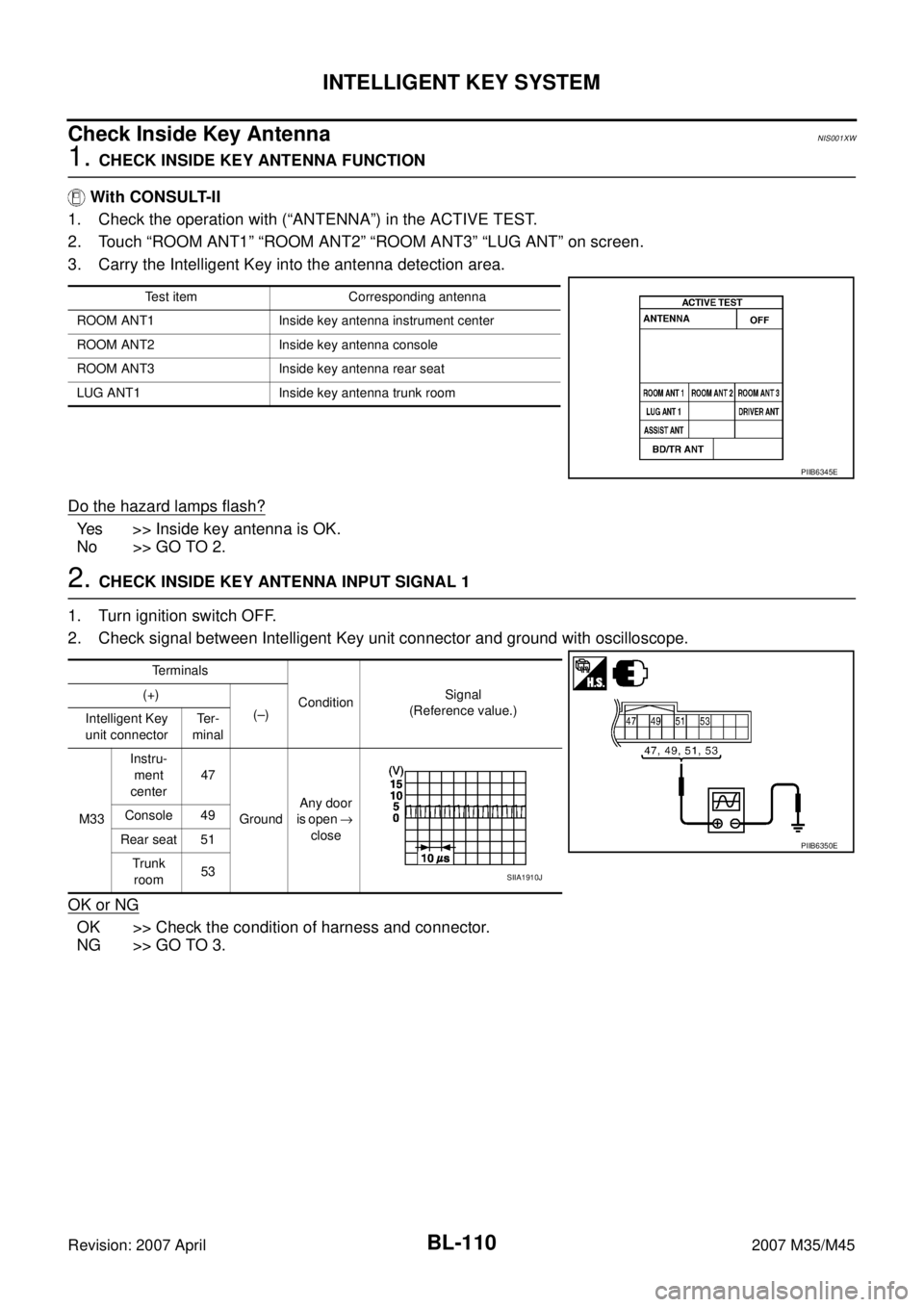

Check Inside Key AntennaNIS001XW
1. CHECK INSIDE KEY ANTENNA FUNCTION
With CONSULT-II
1. Check the operation with (“ANTENNA”) in the ACTIVE TEST.
2. Touch “ROOM ANT1” “ROOM ANT2” “ROOM ANT3” “LUG ANT” on screen.
3. Carry the Intelligent Key into the antenna detection area.
Do the hazard lamps flash?
Yes >> Inside key antenna is OK.
No >> GO TO 2.
2. CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between Intelligent Key unit connector and ground with oscilloscope.
OK or NG
OK >> Check the condition of harness and connector.
NG >> GO TO 3.
Test item Corresponding antenna
ROOM ANT1 Inside key antenna instrument center
ROOM ANT2 Inside key antenna console
ROOM ANT3 Inside key antenna rear seat
LUG ANT1 Inside key antenna trunk room
PIIB6345E
Terminals
ConditionSignal
(Reference value.) (+)
(–)
Intelligent Key
unit connectorTe r -
minal
M33Instru-
ment
center47
GroundAny door
is open →
close Console 49
Rear seat 51
Trunk
room53
PIIB6350E
SIIA1910J
Page 1044 of 4647
INTELLIGENT KEY SYSTEM
BL-111
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
3. CHECK INSIDE KEY ANTENNA CIRCUIT
1. Disconnect Intelligent Key unit and inside key antenna connector.
2. Check continuity between Intelligent Key unit connector and inside key antenna connector.
3. Check continuity between Intelligent Key unit connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between Intelligent Key unit and inside key antenna.
AB
Continuity
Intelligent Key
unit connectorTerminalInside key antenna
connectorTerminal
M3347
M83Instrument
center1
Ye s 48 2
49
M142 Console1
50 2
51
B45 Rear seat1
52 2
53
B473 Trunk room1
54 2
A
GroundContinuity
Intelligent Key unit
connectorTerminal
M33Instrument center47
No 48
Console49
50
Rear seat51
52
Trunk room53
54
PIIB6351E
Page 1045 of 4647
BL-112
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45

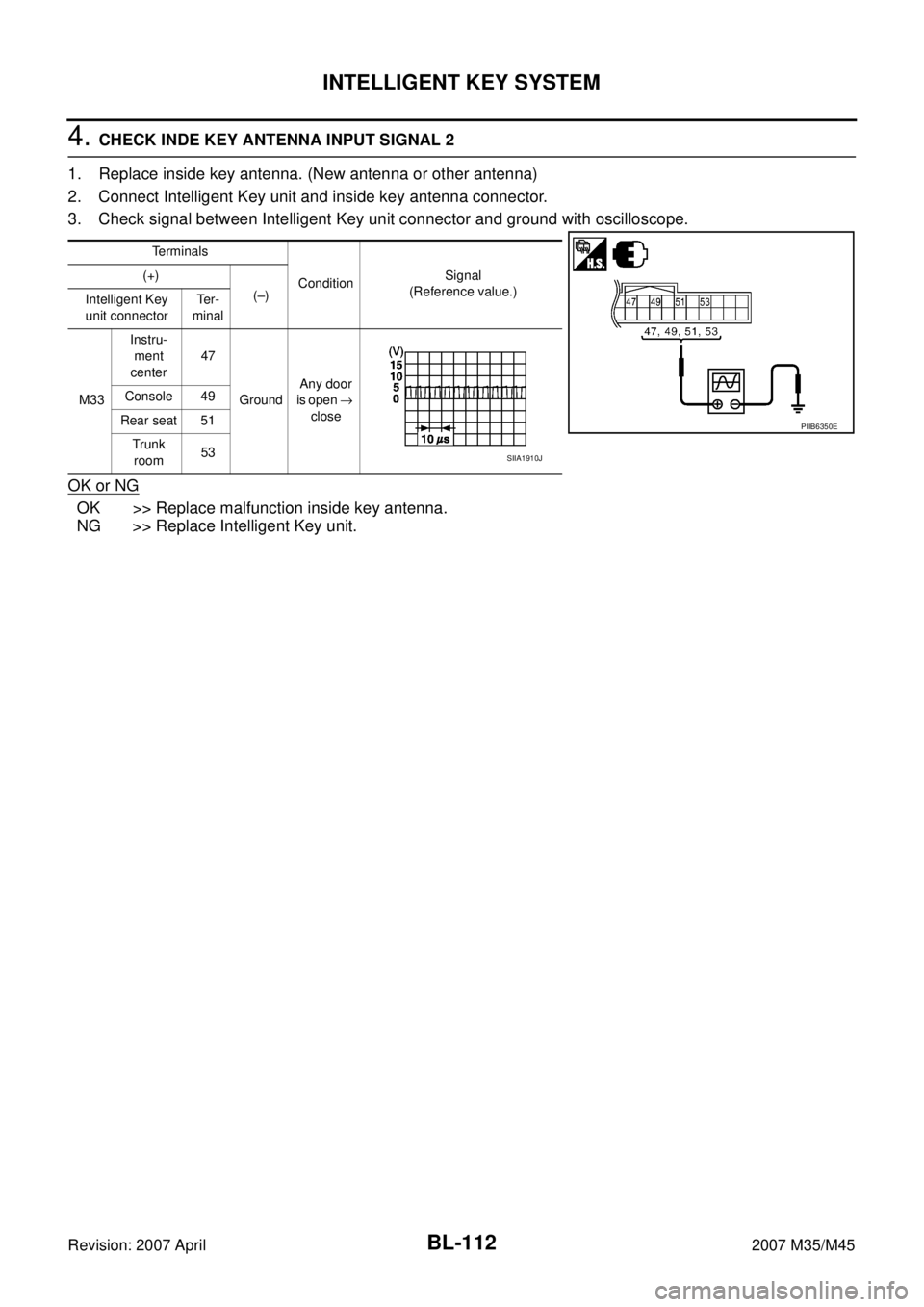

4. CHECK INDE KEY ANTENNA INPUT SIGNAL 2
1. Replace inside key antenna. (New antenna or other antenna)
2. Connect Intelligent Key unit and inside key antenna connector.
3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
OK or NG
OK >> Replace malfunction inside key antenna.
NG >> Replace Intelligent Key unit.
Terminals
ConditionSignal
(Reference value.) (+)
(–)
Intelligent Key
unit connectorTe r -
minal
M33Instru-
ment
center47
GroundAny door
is open →
close Console 49
Rear seat 51
Trunk
room53
PIIB6350E
SIIA1910J
Page 1046 of 4647

INTELLIGENT KEY SYSTEM
BL-113
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

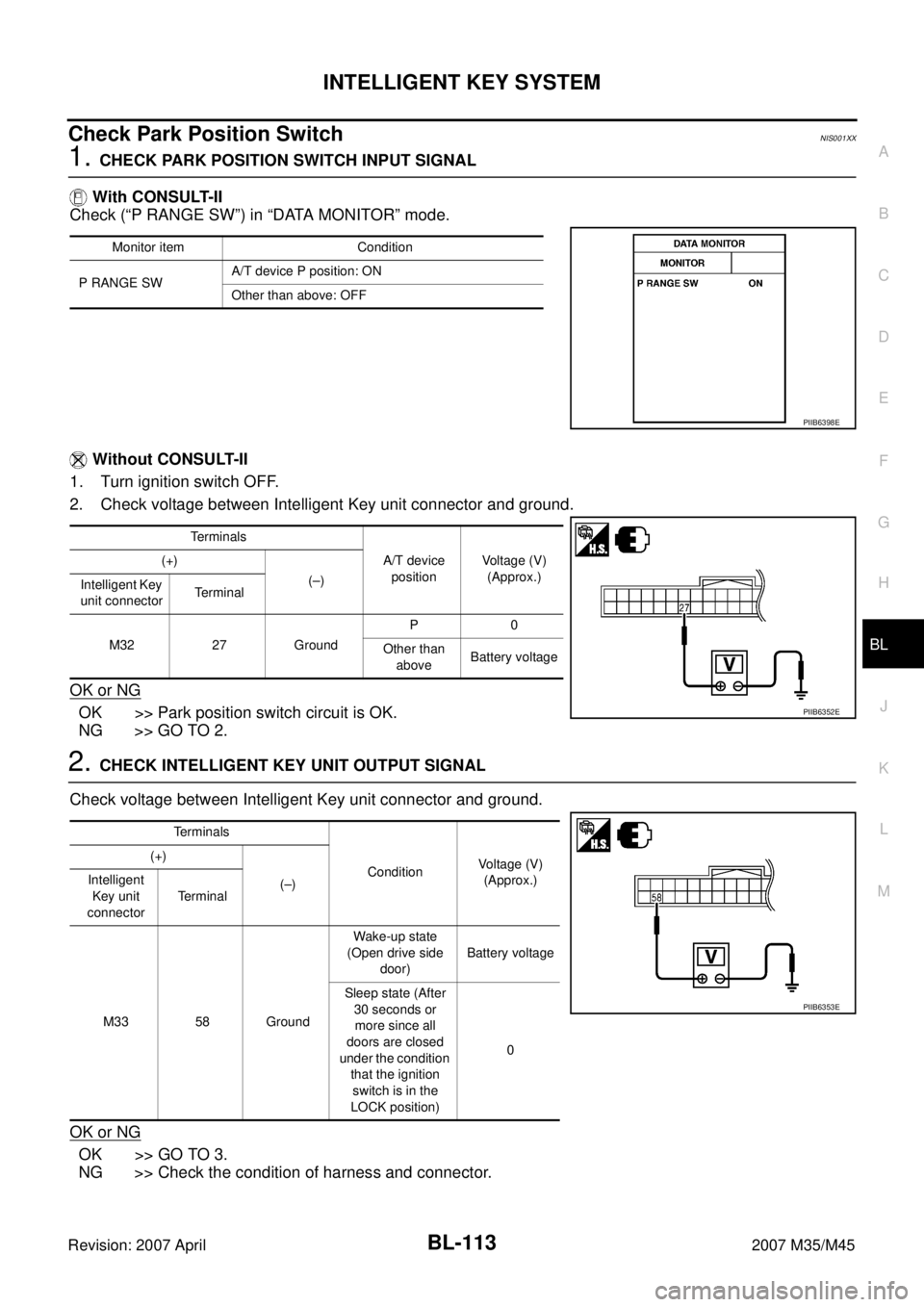

Check Park Position SwitchNIS001XX
1. CHECK PARK POSITION SWITCH INPUT SIGNAL
With CONSULT-II
Check (“P RANGE SW”) in “DATA MONITOR” mode.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between Intelligent Key unit connector and ground.
OK or NG
OK >> Park position switch circuit is OK.
NG >> GO TO 2.
2. CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL
Check voltage between Intelligent Key unit connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the condition of harness and connector.
Monitor item Condition
P RANGE SWA/T device P position: ON
Other than above: OFF
PIIB6398E
Te r m i n a l s
A/T device
positionVoltage (V)
(Approx.) (+)
(–)
Intelligent Key
unit connectorTerminal
M32 27 GroundP0
Other than
aboveBattery voltage
PIIB6352E
Terminals
ConditionVoltage (V)
(Approx.) (+)
(–) Intelligent
Key unit
connectorTerminal
M33 58 GroundWake-up state
(Open drive side
door)Battery voltage
Sleep state (After
30 seconds or
more since all
doors are closed
under the condition
that the ignition
switch is in the
LOCK position)0
PIIB6353E
Page 1047 of 4647

BL-114
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45

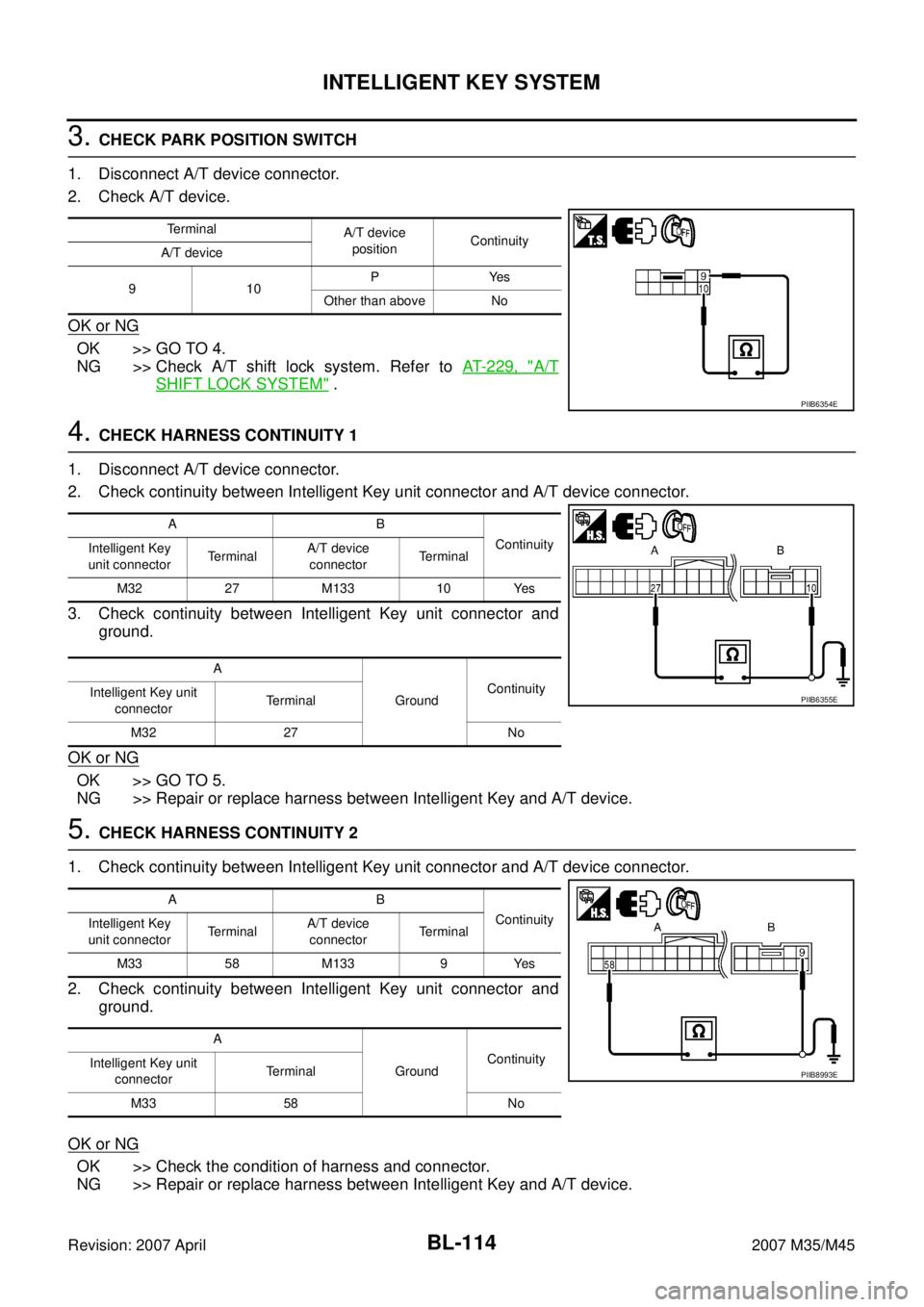

3. CHECK PARK POSITION SWITCH
1. Disconnect A/T device connector.
2. Check A/T device.
OK or NG
OK >> GO TO 4.
NG >> Check A/T shift lock system. Refer to AT- 2 2 9 , "
A/T
SHIFT LOCK SYSTEM" .
4. CHECK HARNESS CONTINUITY 1
1. Disconnect A/T device connector.
2. Check continuity between Intelligent Key unit connector and A/T device connector.
3. Check continuity between Intelligent Key unit connector and
ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness between Intelligent Key and A/T device.
5. CHECK HARNESS CONTINUITY 2
1. Check continuity between Intelligent Key unit connector and A/T device connector.
2. Check continuity between Intelligent Key unit connector and
ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Repair or replace harness between Intelligent Key and A/T device.
Terminal
A/T device
positionContinuity
A/T device
910PYes
Other than above No
PIIB6354E
AB
Continuity
Intelligent Key
unit connectorTe r m i n a lA/T device
connectorTerminal
M32 27 M133 10 Yes
A
GroundContinuity
Intelligent Key unit
connectorTerminal
M32 27 No
PIIB6355E
AB
Continuity
Intelligent Key
unit connectorTe r m i n a lA/T device
connectorTerminal
M33 58 M133 9 Yes
A
GroundContinuity
Intelligent Key unit
connectorTerminal
M33 58 No
PIIB8993E
Page 1048 of 4647

INTELLIGENT KEY SYSTEM
BL-115
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Check Ignition Switch PositionNIS001XY
1. CHECK IGNITION POWER SUPPLY
Check voltage between Intelligent Key unit connector and ground.
OK or NG
OK >> Ignition power supply is OK.
NG >> Check the following.
Repair or replace Intelligent Key unit power supply circuit.
Check 10A fuse [No. 6, located in the fuse block (J/B)]
Check 10A fuse [No. 12, located in the fuse block (J/B)]
Check Remote Keyless Entry ReceiverNIS001XZ
1. CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.
OK or NG
OK >> Remote keyless entry receiver is OK.
NG >> GO TO 2.
Te r m i n a l s
Ignition switch position
(+)
(–) Intelligent
Key unit
connectorTerminal OFF ACC ON
M3230
Ground0 Battery voltage Battery voltage
31 0 0 Battery voltage
PIIB6357E
Terminals
Keyfob
conditionSignal
(Reference value) (+)
(–) Remote
keyless
entry
receiver
connectorTerminal
M89 2 GroundNo function
Any button
is pressed
PIIB6358E
OCC3879D
OCC3880D
