Page 3609 of 4647
LT-158
ACTIVE AFS
Revision: 2007 April2007 M35/M45
CAUTION:
*: The value can be slightly different between that is displayed on “SWVL SEN RH/LH” and that on “SWVL ANGLE RH/LH”.SWVL ANGLE RH* “ ° ”Low beam headlamp
(right) swivelOFF Approx. 0°Displays swivel motor drive signal
(right) based on AFS control unit inter-
pretation of various vehicle sensor
signals. ON +°
SWVL ANGLE LH* “ ° ”Low beam headlamp
(left) swivelOFF Approx. 0°Displays swivel motor drive signal
(left) based on AFS control unit inter-
pretation of various vehicle sensor
signals. ON +° Monitors itemMeasuring condition
Description
Operation or conditionReference
value
Page 3610 of 4647

ACTIVE AFS
LT-159
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
ACTIVE TEST
Operation Procedure
1. Start the engine. (Swivel actuator is initialized.)
2. Touch “ADAPTIVE LIGHT” on “SELECT SYSTEM” screen.
3. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Touch “LOW BEAM TEST RIGHT”, “LOW BEAM TEST LEFT”, or “LEVELIZER TEST” on “SELECT TEST
ITEM” screen.
CAUTION:
Can be tested only when swivel actuator initialization is completed. If initialization is not com-
pleted, “RETRY COMMAND” is displayed and cannot be tested.
LOW BEAM TEST RIGHT
Low beam headlamp (right) can be operated to swivel angle
0° by touching “ORIGIN”, and to maximum angle by “PEAK”.
LOW BEAM TEST LEFT
Low beam headlamp (left) can be operated to swivel angle 0°
by touching “ORIGIN”, and to maximum angle by “PEAK”.
LEVELIZER TEST
Aiming motor drive signal can be changed to approx. 85%
(ratio to IGN power supply) by touching “ORIGIN”, and to
approx. 15% by “PEAK”. That angles headlamp LO up and
down.
5. During the operation check, touching “BACK” deactivates the operation.
Test Item Swivel Speed Mode
ORIGIN/PEAK - FAST Three times fast as SLOW Normal operation
ORIGIN/PEAK - SLOW — Initialization
SKIB4794E
Test Item Swivel Speed Mode
ORIGIN/PEAK - FAST Three times fast as SLOW Normal operation
ORIGIN/PEAK - SLOW — Initialization
SKIB4795E
Te s t I t e mAiming Motor Drive Signal
Light Axis
(Reference Value) Ratio to IGN
power supplyVo l ta g e
ORIGIN Approx. 85% Approx. 10.6 V 0°
PEAK Approx. 15% Approx. 1.9 VApprox. 2.5°
(Relatively lower than
that of origin)
SKIB4796E
Page 3611 of 4647

LT-160
ACTIVE AFS
Revision: 2007 April2007 M35/M45
Symptom ChartNKS003QN
CAUTION:
The low beam headlamps performs small movements when AFS control unit detects the engine start.
This is normal with initialization of swivel actuator by AFS control unit.
SymptomAFS OFF
indicatorCausal system Reference
AFS operates, but cannot judge normal/
abnormal.
(AFS function test)NormalCheck swivel operation.LT- 1 8 2 , "AFS
Operation
Check (Func-
tion Test)"
Check steering angle sensor neutral point (straight-ahead
position).
Auto aiming operates, but cannot judge
normal/abnormal.
(Auto aiming function test)NormalCheck auto aiming operation.LT- 1 8 4 , "Auto
Aiming Opera-
tion Check
(Function
Test)"
Check height sensor signal value recognized by AFS con-
trol unit at unloaded vehicle position.
Check height sensor signal and aiming motor drive signal.
Neither AFS operates nor auto aiming
operates.BlinkingCheck AFS control unit self-diagnostic results. LT- 1 5 3 ,
"SELF-DIAG
RESULTS"
Check AFS control unit power supply and ground circuit.
NOTE:
Check only when “ADAPTIVE LIGHT” is not displayed on
CONSULT-II “SELECT SYSTEM” screen.LT- 1 5 1 , "Pre-
liminary
Check"
AFS does not operate.
(Auto aiming operation is normal.)Blinking Check AFS control unit self-diagnostic results. LT- 1 5 3 ,
"SELF-DIAG
RESULTS"
Illuminated Check AFS switch system circuit.LT- 1 8 6 , "
AFS
Switch Does
Not Operate"
Auto aiming does not operate.
(AFS operation is normal.)NormalCheck AFS control unit self-diagnostic results. LT- 1 5 3 ,
"SELF-DIAG
RESULTS"
Check aiming motor system circuit.LT- 1 8 8 , "
Auto
Aiming Does
Not Operate
(Check Aiming
Motor System
Circuit)"
Auto aiming operates in the reverse way.
(Lowering vehicle height angles light
axis up.)Normal Replace AFS control unit.LT- 1 9 2 , "Removal and
Installation of
AFS Control
Unit"
AFS OFF indicator does not illuminate.
(AFS operation and auto aiming opera-
tion are normal.)Not
illuminatedCheck circuit between unified meter and A/C amp. and
combination meter.LT- 1 9 1 , "
AFS
OFF Indicator
Does Not
Operate"AFS OFF indicator blinks.
(AFS operation and auto aiming opera-
tion are normal.)BlinkingCheck receive state of AFS off indicator signal from uni-
fied meter and A/C amp.
AFS cannot be cancelled.
(AFS switch does not operate.)Normal Check AFS switch system circuit.LT- 1 8 6 , "AFS
Switch Does
Not Operate"
Page 3612 of 4647

ACTIVE AFS
LT-161
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

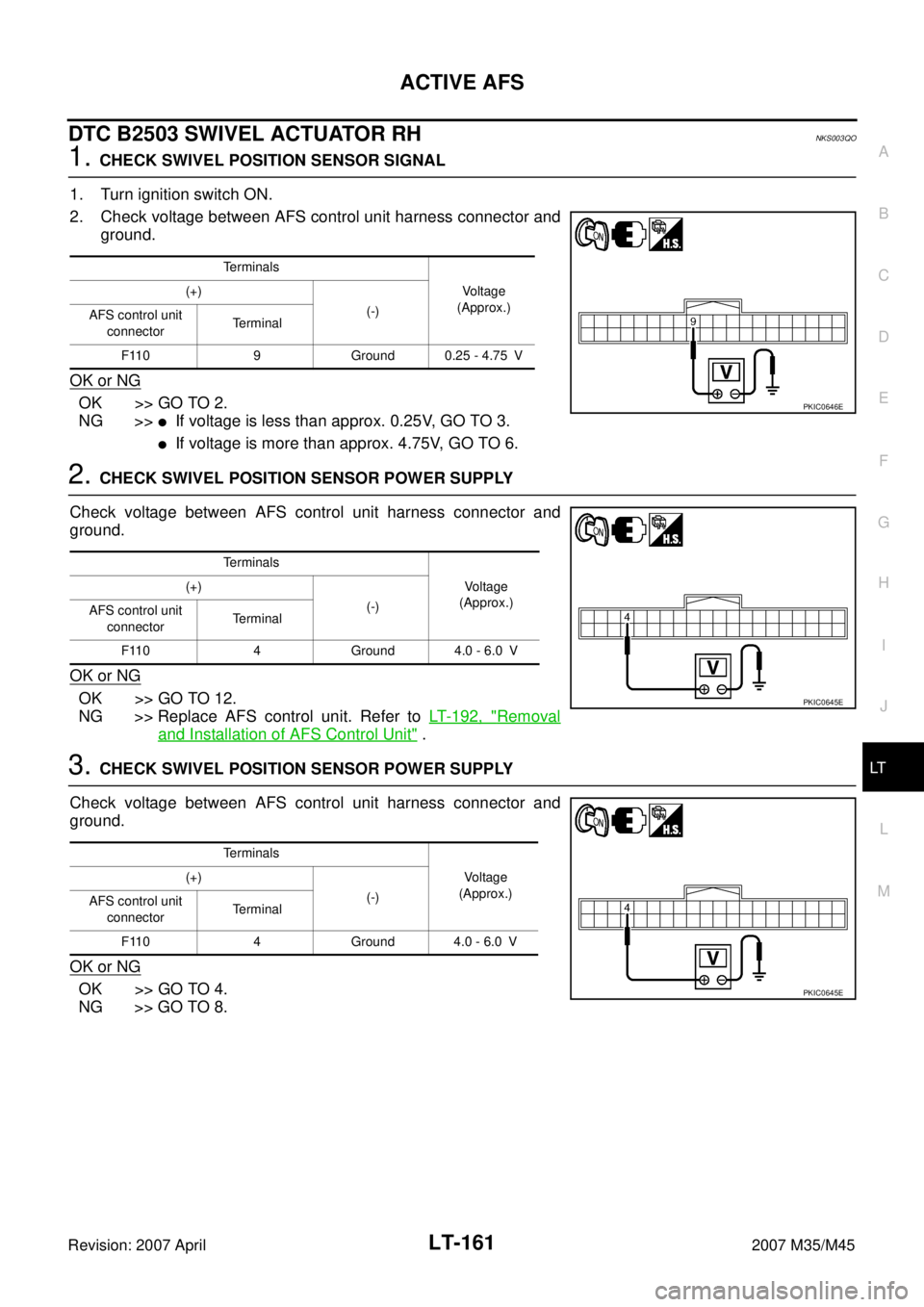

DTC B2503 SWIVEL ACTUATOR RHNKS003QO
1. CHECK SWIVEL POSITION SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 2.
NG >>
If voltage is less than approx. 0.25V, GO TO 3.
If voltage is more than approx. 4.75V, GO TO 6.
2. CHECK SWIVEL POSITION SENSOR POWER SUPPLY
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 12.
NG >> Replace AFS control unit. Refer to LT- 1 9 2 , "
Removal
and Installation of AFS Control Unit" .
3. CHECK SWIVEL POSITION SENSOR POWER SUPPLY
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 8.
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 9 Ground 0.25 - 4.75 V
PKIC0646E
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 4 Ground 4.0 - 6.0 V
PKIC0645E
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 4 Ground 4.0 - 6.0 V
PKIC0645E
Page 3613 of 4647

LT-162
ACTIVE AFS
Revision: 2007 April2007 M35/M45

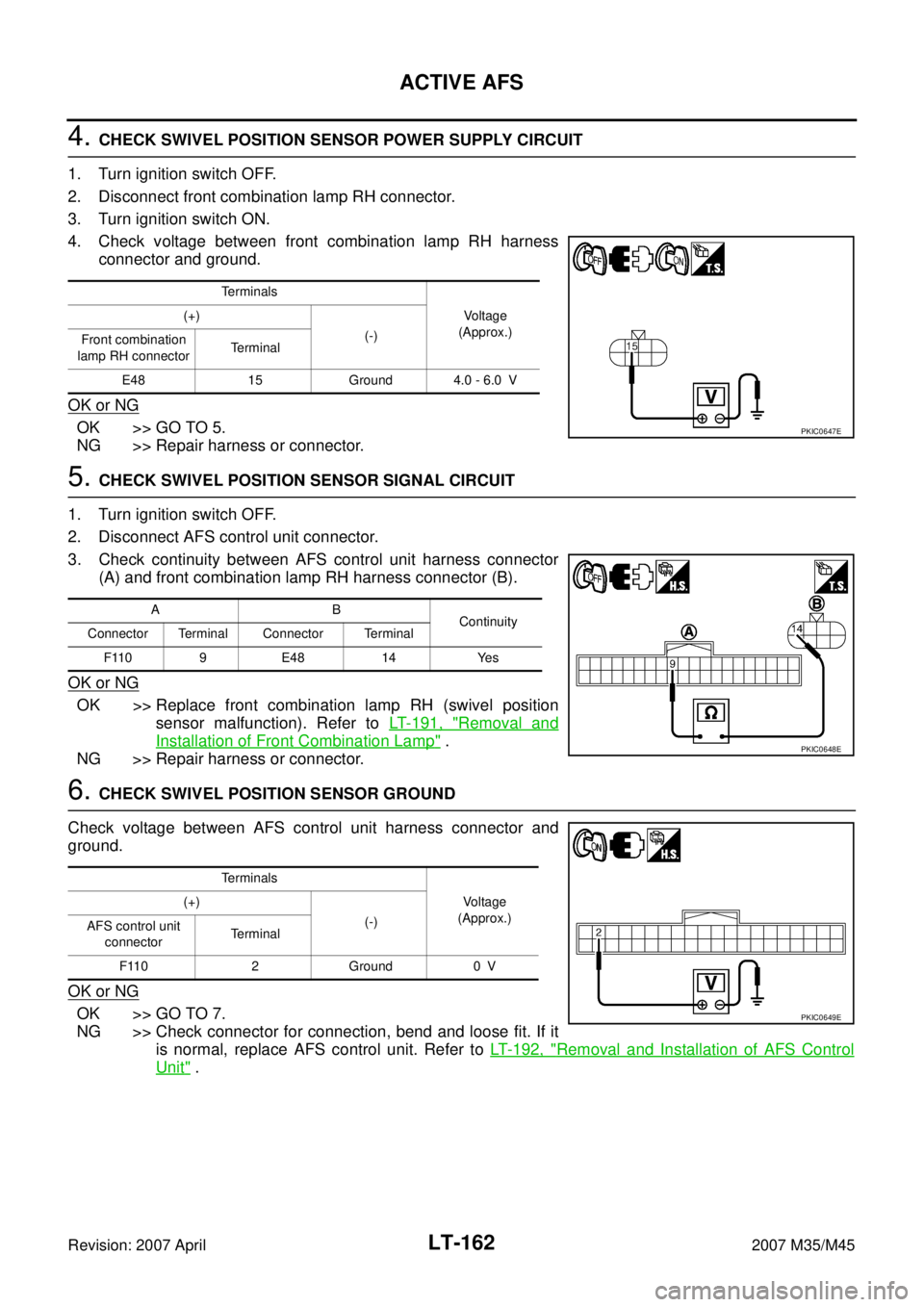

4. CHECK SWIVEL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH connector.
3. Turn ignition switch ON.
4. Check voltage between front combination lamp RH harness
connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK SWIVEL POSITION SENSOR SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
(A) and front combination lamp RH harness connector (B).
OK or NG
OK >> Replace front combination lamp RH (swivel position
sensor malfunction). Refer to LT- 1 9 1 , "
Removal and
Installation of Front Combination Lamp" .
NG >> Repair harness or connector.
6. CHECK SWIVEL POSITION SENSOR GROUND
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 7.
NG >> Check connector for connection, bend and loose fit. If it
is normal, replace AFS control unit. Refer to LT- 1 9 2 , "
Removal and Installation of AFS Control
Unit" .
Te r m i n a l s
Voltage
(Approx.) (+)
(-)
Front combination
lamp RH connectorTerminal
E48 15 Ground 4.0 - 6.0 V
PKIC0647E
AB
Continuity
Connector Terminal Connector Terminal
F110 9 E48 14 Yes
PKIC0648E
Te r m i n a l s
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 2 Ground 0 V
PKIC0649E
Page 3614 of 4647

ACTIVE AFS
LT-163
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

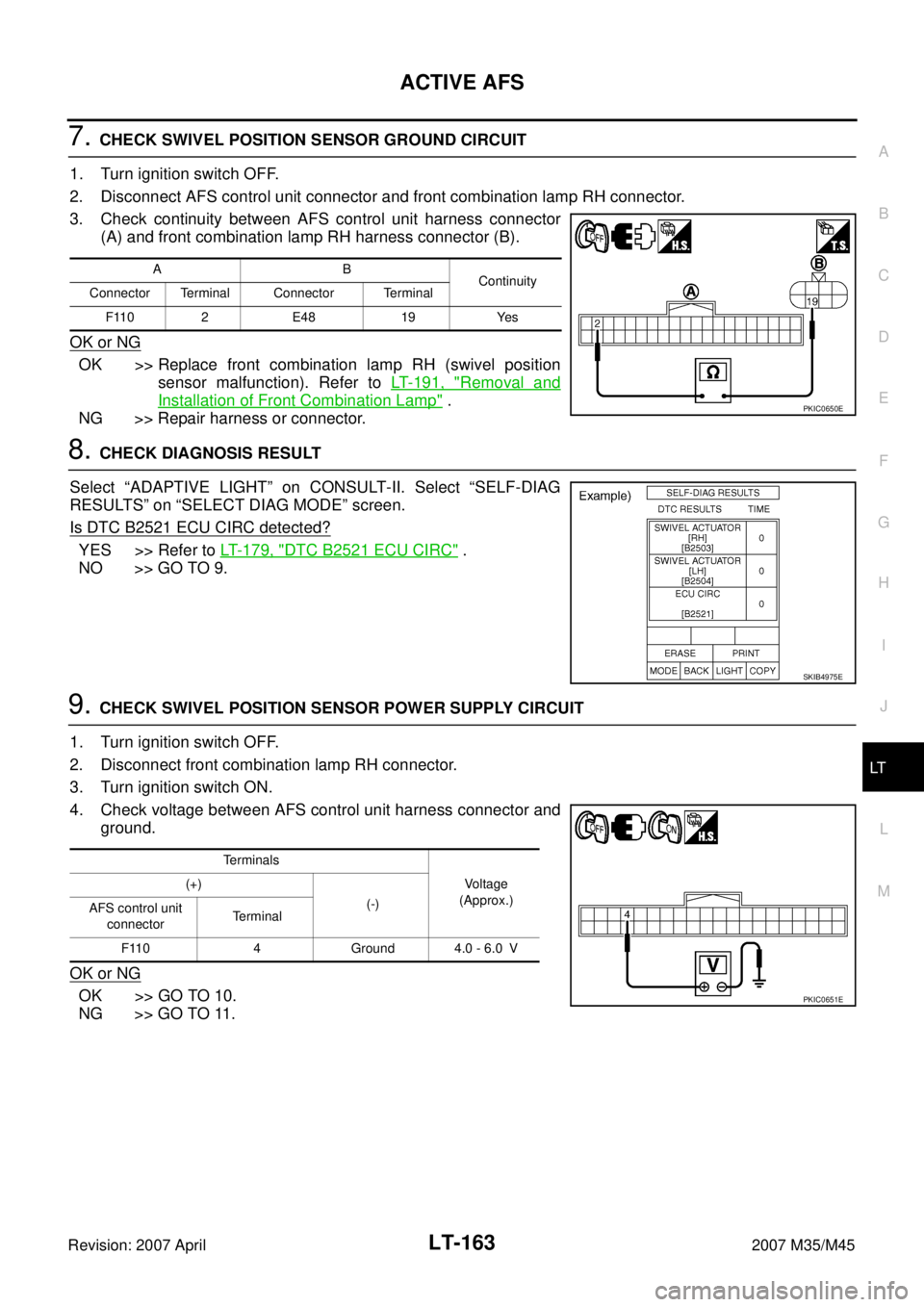

7. CHECK SWIVEL POSITION SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector and front combination lamp RH connector.
3. Check continuity between AFS control unit harness connector
(A) and front combination lamp RH harness connector (B).
OK or NG
OK >> Replace front combination lamp RH (swivel position
sensor malfunction). Refer to LT- 1 9 1 , "
Removal and
Installation of Front Combination Lamp" .
NG >> Repair harness or connector.
8. CHECK DIAGNOSIS RESULT
Select “ADAPTIVE LIGHT” on CONSULT-II. Select “SELF-DIAG
RESULTS” on “SELECT DIAG MODE” screen.
Is DTC B2521 ECU CIRC detected?
YES >> Refer to LT- 1 7 9 , "DTC B2521 ECU CIRC" .
NO >> GO TO 9.
9. CHECK SWIVEL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH connector.
3. Turn ignition switch ON.
4. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 10.
NG >> GO TO 11.
AB
Continuity
Connector Terminal Connector Terminal
F110 2 E48 19 Yes
PKIC0650E
SKIB4975E
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 4 Ground 4.0 - 6.0 V
PKIC0651E
Page 3615 of 4647
LT-164
ACTIVE AFS
Revision: 2007 April2007 M35/M45

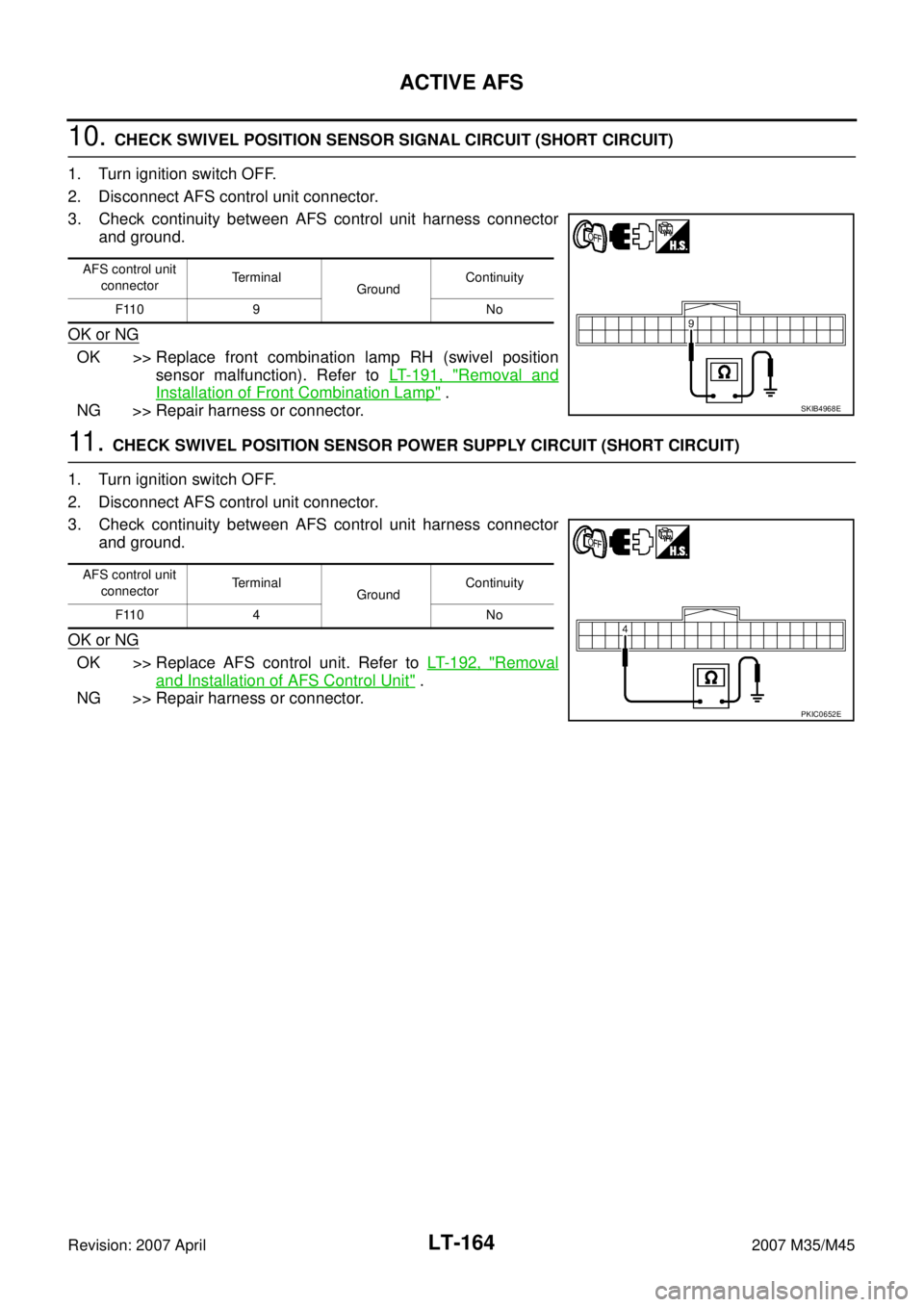

10. CHECK SWIVEL POSITION SENSOR SIGNAL CIRCUIT (SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace front combination lamp RH (swivel position
sensor malfunction). Refer to LT- 1 9 1 , "
Removal and
Installation of Front Combination Lamp" .
NG >> Repair harness or connector.
11 . CHECK SWIVEL POSITION SENSOR POWER SUPPLY CIRCUIT (SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> Repair harness or connector.
AFS control unit
connectorTerminal
GroundContinuity
F110 9 No
SKIB4968E
AFS control unit
connectorTerminal
GroundContinuity
F110 4 No
PKIC0652E
Page 3616 of 4647
ACTIVE AFS
LT-165
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

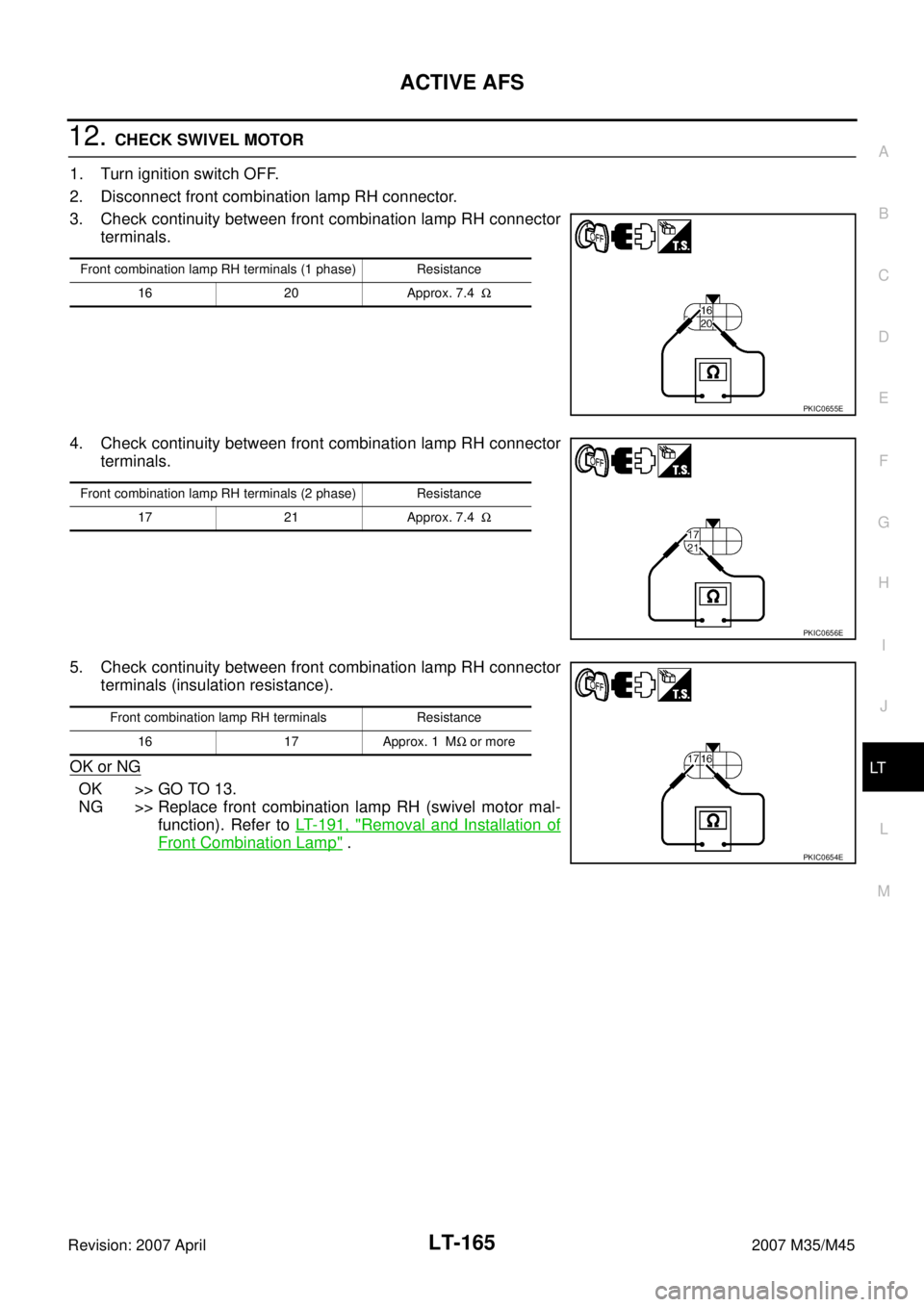

12. CHECK SWIVEL MOTOR
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH connector.
3. Check continuity between front combination lamp RH connector
terminals.
4. Check continuity between front combination lamp RH connector
terminals.
5. Check continuity between front combination lamp RH connector
terminals (insulation resistance).
OK or NG
OK >> GO TO 13.
NG >> Replace front combination lamp RH (swivel motor mal-
function). Refer to LT- 1 9 1 , "
Removal and Installation of
Front Combination Lamp" .
Front combination lamp RH terminals (1 phase) Resistance
16 20 Approx. 7.4Ω
PKIC0655E
Front combination lamp RH terminals (2 phase) Resistance
17 21 Approx. 7.4Ω
PKIC0656E
Front combination lamp RH terminals Resistance
16 17 Approx. 1 MΩ or more
PKIC0654E
