EC-1272
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionNBS005ME
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-738, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeNBS005MF
Specification data are reference values.
On Board Diagnosis LogicNBS005MG
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-1190, "
DTC P0605 ECM" .
1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. SET/COAST switch
4. CANCEL switch 5. DISTANCE switch (Models with ICC) 6. MAIN switch
PBIB2709E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW
Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1564
1564ASCD steering switch
An excessively high voltage signal from the
ASCD steering switch is sent to ECM.
ECM detects that input signal from the ASCD
steering switch is out of the specified range.
ECM detects that the ASCD steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ASCD steering switch
ECM
Page 2802 of 4647
DTC P1564 ASCD STEERING SWITCH
EC-1273
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005MH
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and
wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds,
then release it and wait at least 10 seconds.
7. Press SET/COAST switch for at least 10 seconds, then release
it and wait at least 10 seconds.
8. If DTC is detected, go to EC-1275, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2803 of 4647
EC-1274
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45

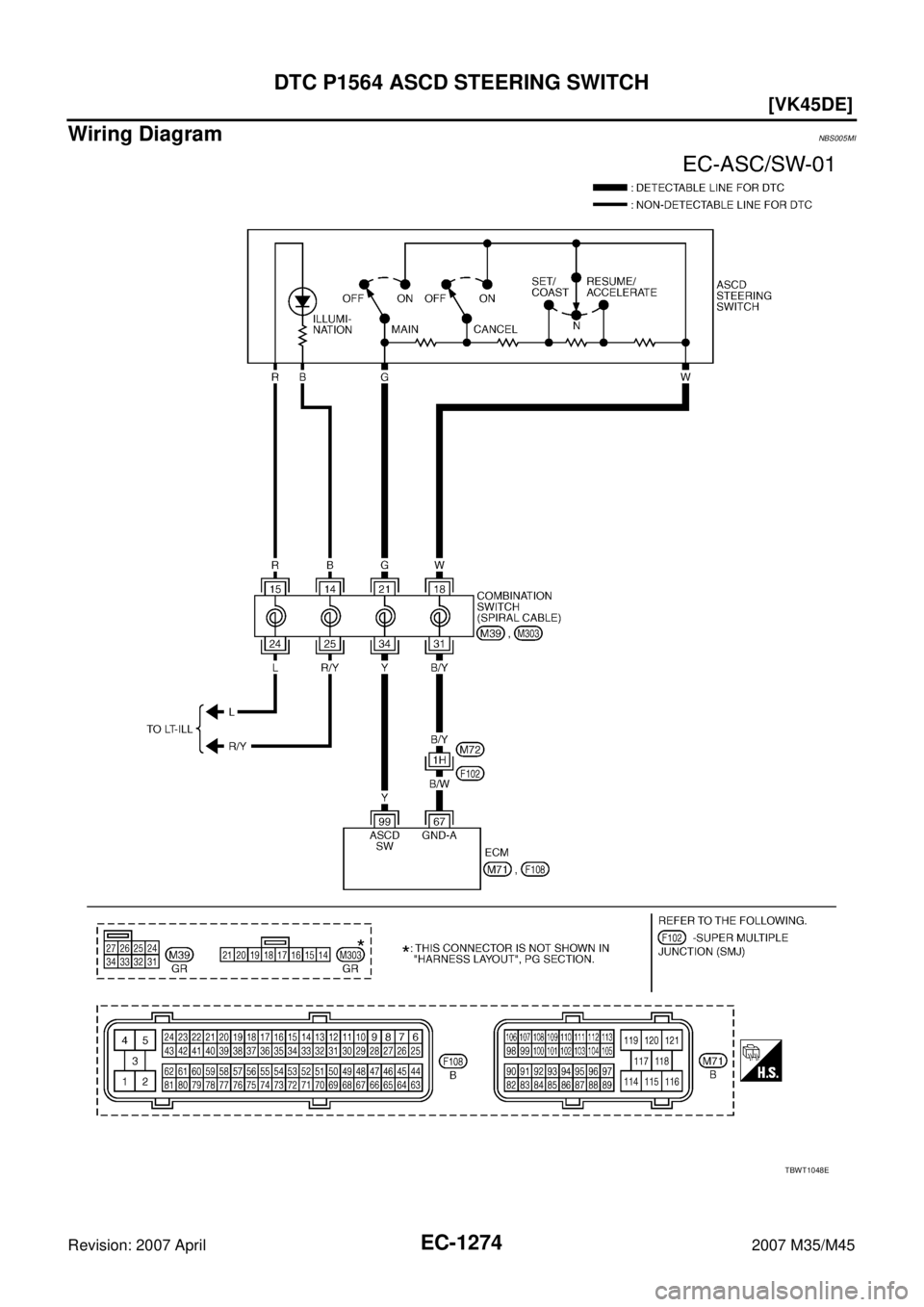

Wiring DiagramNBS005MI
