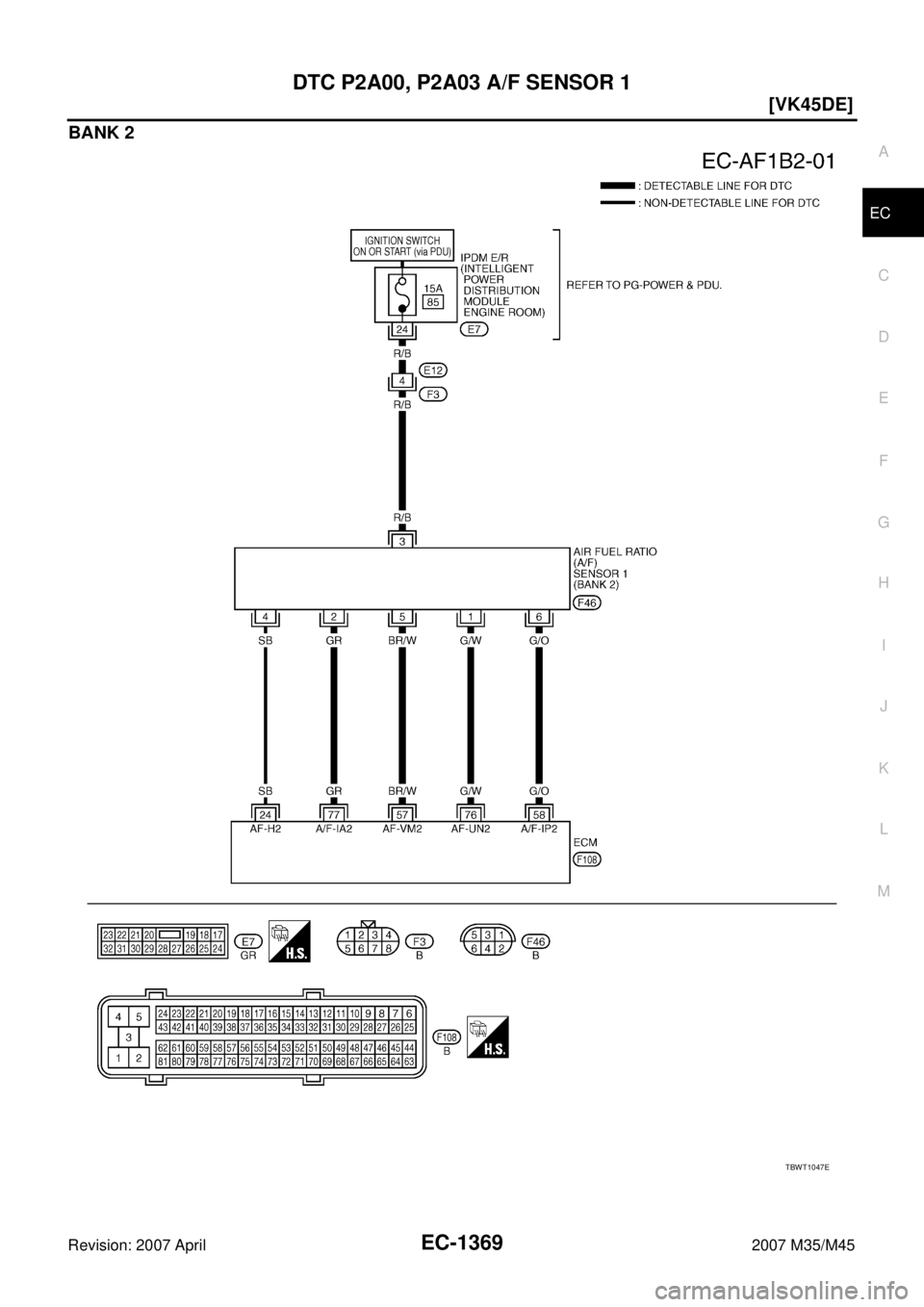

Page 2897 of 4647

INFINITI M35 2007 Factory Service Manual EC-1368 [VK45DE] DTC P2A00, P2A03 A/F SENSOR 1 Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by C

Page 2898 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2A00, P2A03 A/F SENSOR 1 EC-1369 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 BANK 2 TBWT1047E

Page 2899 of 4647

INFINITI M35 2007 Factory Service Manual EC-1370 [VK45DE] DTC P2A00, P2A03 A/F SENSOR 1 Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by C

Page 2900 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2A00, P2A03 A/F SENSOR 1 EC-1371 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 2. RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1 1. Loosen and retighten the air fuel ratio (A/F) se

Page 2901 of 4647

INFINITI M35 2007 Factory Service Manual EC-1372 [VK45DE] DTC P2A00, P2A03 A/F SENSOR 1 Revision: 2007 April2007 M35/M45 4. CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Sele

Page 2902 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2A00, P2A03 A/F SENSOR 1 EC-1373 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 5. CHECK HARNESS CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect A/F sensor 1 harness con

Page 2903 of 4647

INFINITI M35 2007 Factory Service Manual EC-1374 [VK45DE] DTC P2A00, P2A03 A/F SENSOR 1 Revision: 2007 April2007 M35/M45 8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect ECM harness con

Page 2904 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2A00, P2A03 A/F SENSOR 1 EC-1375 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 11 . REPLACE AIR FUEL RATIO (A/F) SENSOR 1 Replace malfunctioning air fuel ratio (A/F) sensor
