Page 3625 of 4647
LT-174
ACTIVE AFS
Revision: 2007 April2007 M35/M45
16. CHECK SWIVEL MOTOR CIRCUIT 2
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector and front combination lamp LH connector.
3. Check continuity between AFS control unit harness connector
(A) and front combination lamp LH harness connector (B).
4. Check continuity between AFS control unit harness connector
(A) and ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal and Installation of AFS Control Unit" .
NG >> Repair or replace harness or connector.
AB
Continuity
Connector Terminal Connector Terminal
F11015
E5317
Ye s 17 16
36 20
38 21
A
GroundContinuity
Connector Terminal
F11015
No 17
36
38
PKIC0666E
Page 3626 of 4647

ACTIVE AFS
LT-175
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
DTC B2514 HI SEN UNUSUAL RRNKS003QQ
1. CHECK HEIGHT SENSOR SIGNAL
1. Turn ignition switch ON.
2. Select “ADAPTIVE LIGHT” on CONSULT-II. Select “DATA
MONITOR” on “SELECT DIAG MODE” screen.
3. Check “HI SEN OTP RR” in “Data Monitor”.
OK or NG
OK >> GO TO 2.
NG >>
If voltage is less than approx. 0.25V, GO TO 3.
If voltage is more than approx. 4.75V, GO TO 7.
2. CHECK HEIGHT SENSOR POWER SUPPLY
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> The height sensor system is normal at present.
NG >> Replace AFS control unit. Refer to LT- 1 9 2 , "
Removal
and Installation of AFS Control Unit" .
3. CHECK HEIGHT SENSOR SIGNAL
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >>
If voltage is less than approx. 0.25V, GO TO 4.
If voltage is more than approx. 4.75V, GO TO 7. HI SEN OTP RR : Approx. 0.25 – 4.75 V
SKIB4793E
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 6 Ground 4.0 - 6.0 V
PKIC0667E
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 28 Ground 0.25 - 4.75 V
PKIC0668E
Page 3627 of 4647

LT-176
ACTIVE AFS
Revision: 2007 April2007 M35/M45
4. CHECK HEIGHT SENSOR POWER SUPPLY
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 9.
5. CHECK HEIGHT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect height sensor connector.
3. Turn ignition switch ON.
4. Check voltage between height sensor harness connector and
ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK HEIGHT SENSOR SIGNAL CIRCUIT
1. Disconnect AFS control unit connector.
2. Check continuity between AFS control unit harness connector
(A) and height sensor harness connector (B).
OK or NG
OK >> Replace height sensor. Refer to LT- 1 9 3 , "Removal and
Installation of Height Sensor" .
NG >> Repair harness or connector.
Te r m i n a l s
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 6 Ground 4.0 - 6.0 V
PKIC0667E
Terminals
Voltage
(Approx.) (+)
(-)
Height sensor
connectorTerminal
B468 1 Ground 4.0 - 6.0 V
PKIC0669E
AB
Continuity
Connector Terminal Connector Terminal
F110 28 B103 2 Yes
PKIC0670E
Page 3628 of 4647

ACTIVE AFS
LT-177
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
7. CHECK HEIGHT SENSOR GROUND
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 8.
NG >> Check connector for connection, bend and loose fit. If it
is normal, replace AFS control unit. Refer to LT- 1 9 2 , "
Removal and Installation of AFS Control
Unit" .
8. CHECK HEIGHT SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector and height sensor connector.
3. Check continuity between AFS control unit harness connector
(A) and height sensor harness connector (B).
OK or NG
OK >> Replace height sensor. Refer to LT- 1 9 3 , "Removal and
Installation of Height Sensor" .
NG >> Repair harness or connector.
9. CHECK DIAGNOSIS RESULT
Select “ADAPTIVE LIGHT” on CONSULT-II. Select “SELF-DIAG
RESULTS” on “SELECT DIAG MODE” screen.
Is DTC B2521 ECU CIRC detected?
YES >> Refer to LT- 1 7 9 , "DTC B2521 ECU CIRC" .
NO >> GO TO 10.
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 8 Ground 0 V
PKIC0671E
AB
Continuity
Connector Terminal Connector Terminal
F110 8 B468 3 Yes
PKIC0672E
SKIB4973E

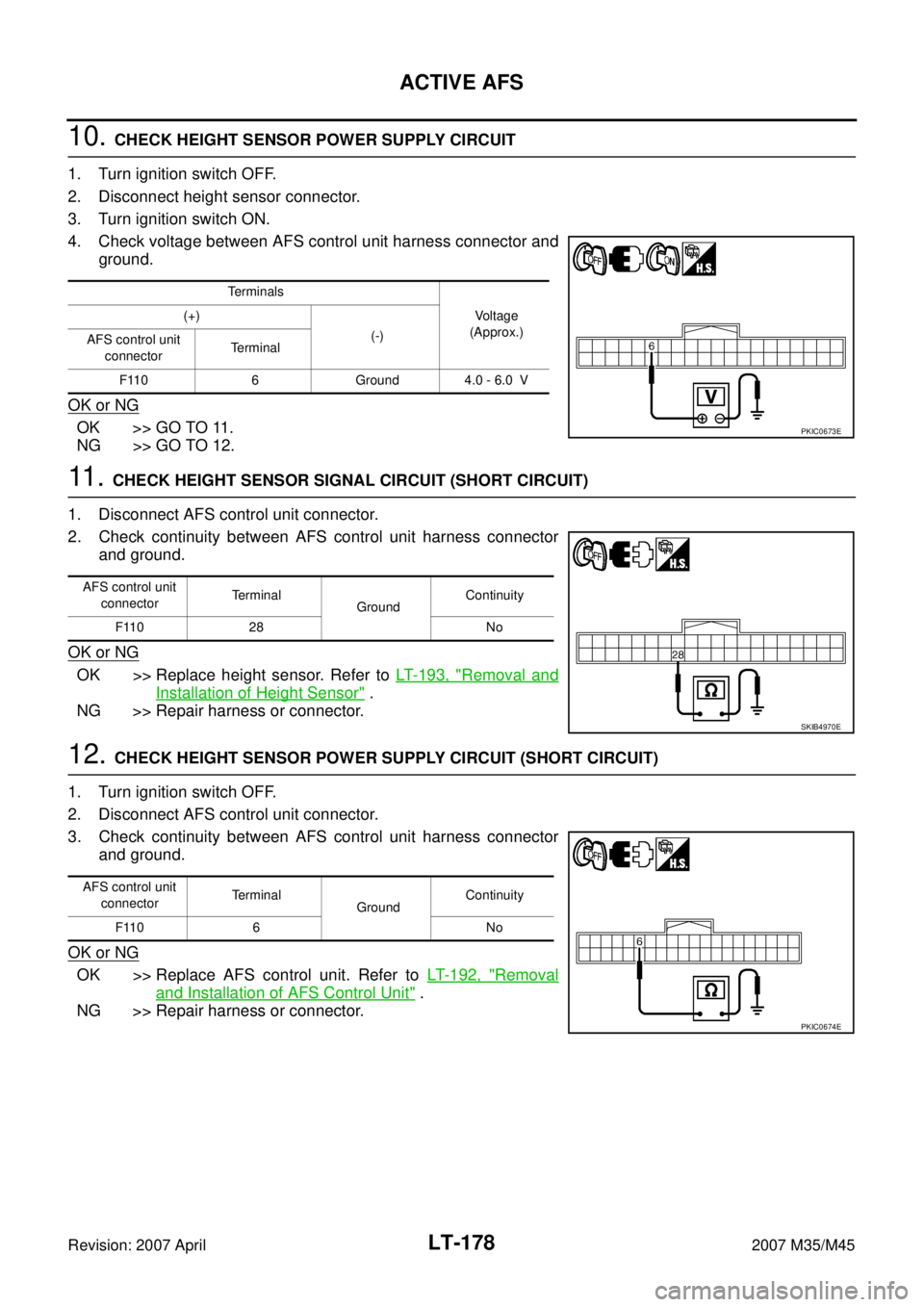

Page 3629 of 4647

LT-178
ACTIVE AFS
Revision: 2007 April2007 M35/M45
10. CHECK HEIGHT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect height sensor connector.
3. Turn ignition switch ON.
4. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 11.
NG >> GO TO 12.
11 . CHECK HEIGHT SENSOR SIGNAL CIRCUIT (SHORT CIRCUIT)
1. Disconnect AFS control unit connector.
2. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace height sensor. Refer to LT- 1 9 3 , "Removal and
Installation of Height Sensor" .
NG >> Repair harness or connector.
12. CHECK HEIGHT SENSOR POWER SUPPLY CIRCUIT (SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> Repair harness or connector.
Terminals
Voltage
(Approx.) (+)
(-)
AFS control unit
connectorTerminal
F110 6 Ground 4.0 - 6.0 V
PKIC0673E
AFS control unit
connectorTerminal
GroundContinuity
F110 28 No
SKIB4970E
AFS control unit
connectorTerminal
GroundContinuity
F110 6 No
PKIC0674E

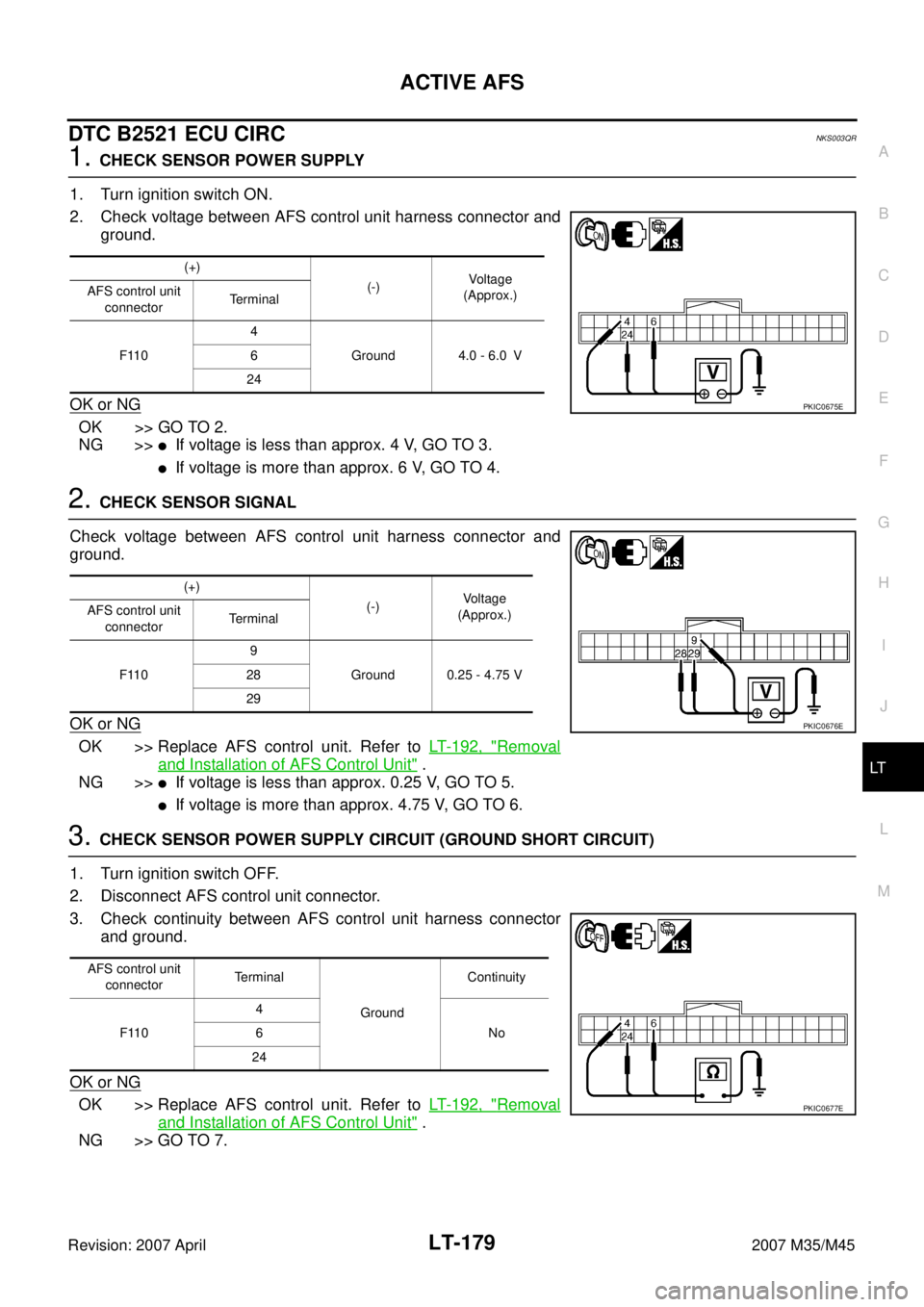

Page 3630 of 4647

ACTIVE AFS
LT-179
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
DTC B2521 ECU CIRCNKS003QR
1. CHECK SENSOR POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> GO TO 2.
NG >>
If voltage is less than approx. 4 V, GO TO 3.
If voltage is more than approx. 6 V, GO TO 4.
2. CHECK SENSOR SIGNAL
Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >>
If voltage is less than approx. 0.25 V, GO TO 5.
If voltage is more than approx. 4.75 V, GO TO 6.
3. CHECK SENSOR POWER SUPPLY CIRCUIT (GROUND SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> GO TO 7.
(+)
(-)Voltage
(Approx.) AFS control unit
connectorTe r m i n a l
F1104
Ground 4.0 - 6.0 V 6
24
PKIC0675E
(+)
(-)Voltage
(Approx.) AFS control unit
connectorTe r m i n a l
F1109
Ground 0.25 - 4.75 V 28
29
PKIC0676E
AFS control unit
connectorTerminal
GroundContinuity
F1104
No 6
24
PKIC0677E
Page 3631 of 4647

LT-180
ACTIVE AFS
Revision: 2007 April2007 M35/M45
4. CHECK SENSOR POWER SUPPLY CIRCUIT (IGN POWER SUPPLY SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Turn ignition switch ON.
4. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> GO TO 8.
5. CHECK SENSOR SIGNAL CIRCUIT (GROUND SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> GO TO 7.
6. CHECK SENSOR SIGNAL CIRCUIT (IGN POWER SUPPLY SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Turn ignition switch ON.
4. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 1 9 2 , "Removal
and Installation of AFS Control Unit" .
NG >> GO TO 8.
(+)
(-)Voltage
(Approx.) AFS control
unit connectorTerminal
F1104
Ground 0 V 6
24
PKIC0678E
AFS control unit
connectorTe r m i n a l
GroundContinuity
F1109
No 28
29
PKIC0679E
(+)
(-)Voltage
(Approx.) AFS control unit
connectorTerminal
F1109
Ground 0 V 8
29
PKIC0680E

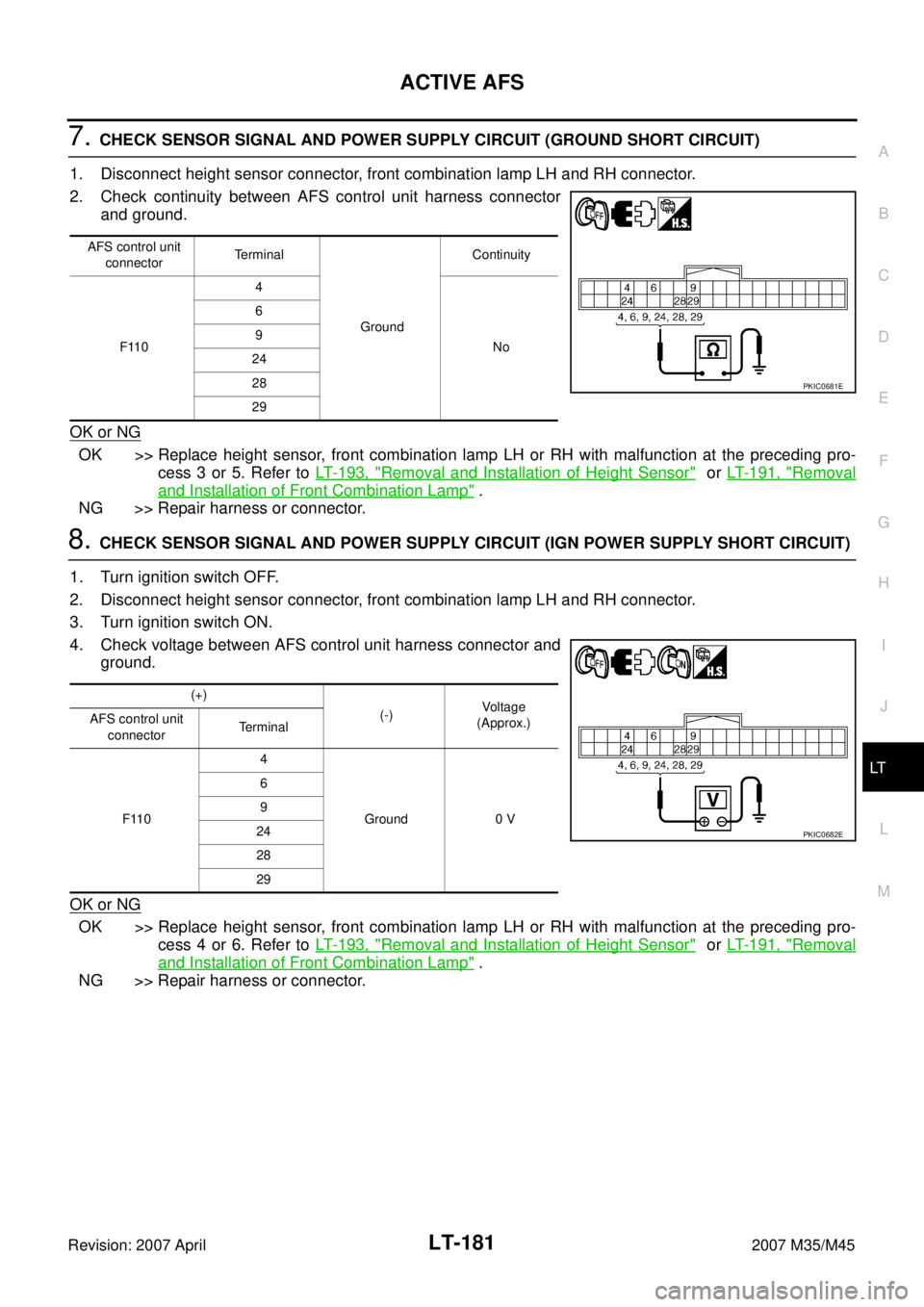

Page 3632 of 4647

ACTIVE AFS
LT-181
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
7. CHECK SENSOR SIGNAL AND POWER SUPPLY CIRCUIT (GROUND SHORT CIRCUIT)
1. Disconnect height sensor connector, front combination lamp LH and RH connector.
2. Check continuity between AFS control unit harness connector
and ground.
OK or NG
OK >> Replace height sensor, front combination lamp LH or RH with malfunction at the preceding pro-
cess 3 or 5. Refer to LT- 1 9 3 , "
Removal and Installation of Height Sensor" or LT- 1 9 1 , "Removal
and Installation of Front Combination Lamp" .
NG >> Repair harness or connector.
8. CHECK SENSOR SIGNAL AND POWER SUPPLY CIRCUIT (IGN POWER SUPPLY SHORT CIRCUIT)
1. Turn ignition switch OFF.
2. Disconnect height sensor connector, front combination lamp LH and RH connector.
3. Turn ignition switch ON.
4. Check voltage between AFS control unit harness connector and
ground.
OK or NG
OK >> Replace height sensor, front combination lamp LH or RH with malfunction at the preceding pro-
cess 4 or 6. Refer to LT- 1 9 3 , "
Removal and Installation of Height Sensor" or LT- 1 9 1 , "Removal
and Installation of Front Combination Lamp" .
NG >> Repair harness or connector.
AFS control unit
connectorTerminal
GroundContinuity
F1104
No 6
9
24
28
29
PKIC0681E
(+)
(-)Voltage
(Approx.) AFS control unit
connectorTerminal
F1104
Ground 0 V 6
9
24
28
29
PKIC0682E
