RF-10
SUNROOF
Revision: 2007 April2007 M35/M45
SUNROOFPFP:91210

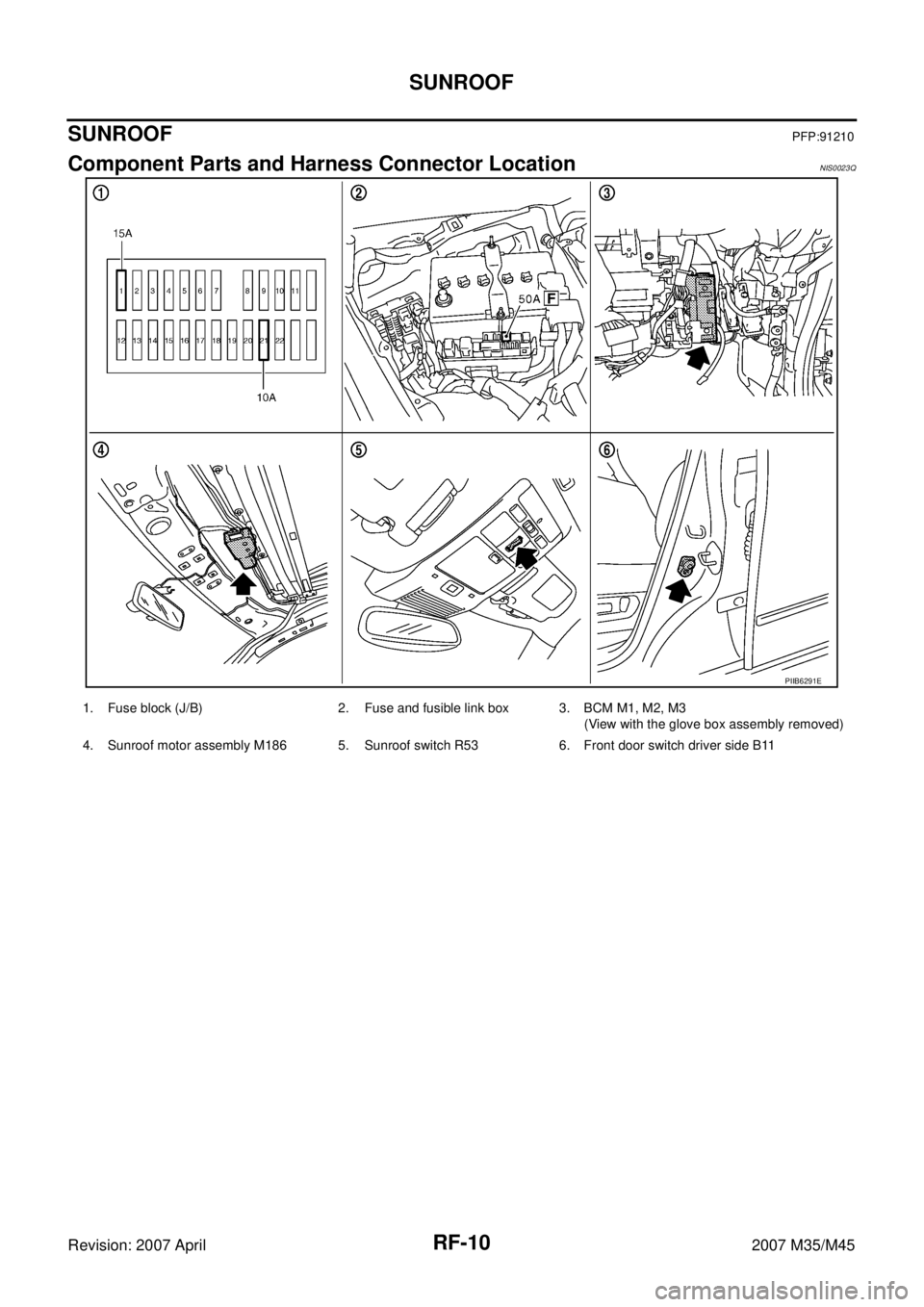

Component Parts and Harness Connector LocationNIS0023Q
PIIB6291E
1. Fuse block (J/B) 2. Fuse and fusible link box 3. BCM M1, M2, M3
(View with the glove box assembly removed)
4. Sunroof motor assembly M186 5. Sunroof switch R53 6. Front door switch driver side B11
Page 4052 of 4647

SUNROOF
RF-11
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2007 April2007 M35/M45
System DescriptionNIS0023R
Power supplied at all time
through 50A fusible link (letter F , located in the fuse and fusible link box)
to BCM terminal 55.
through 10A fuse [No.21, located in the fuse block (J/B)]
to BCM terminal 42.
through BCM terminal 54
to sunroof motor assembly terminal 1.
When ignition switch ON or START position,
Power is supplied
through 15A fuse [No.1, located in the fuse block (J/B)]
to BCM terminal 38.
through BCM terminal 53
to sunroof motor assembly terminal 6.
Ground is supplied
to BCM terminal 52
through body grounds M16 and M70.
to sunroof motor assembly terminal 8
through body ground M16 and M70.
TILT UP / SLIDE CLOSE OPERATION
When tilt up / slide close switch is pressed,
Ground is supplied
to sunroof motor assembly terminal 11
through sunroof switch terminal 3
through sunroof switch terminal 2
through sunroof motor assembly terminal 9.
Then, the sunroof tilt up / slide close.
TILT DOWN / SLIDE OPEN OPERATION
When tilt down / slide open switch is pressed,
Ground is supplied
to sunroof motor assembly terminal 4
through sunroof switch terminal 1
through sunroof switch terminal 2
through sunroof motor assembly terminal 9.
Then, the sunroof tilt down / slide open.
AUTO OPERATION
The power sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the
sunroof without holding the sunroof switch in the SLIDE OPEN/TILT DOWN or SLIDE CLOSE/TILT UP posi-
tion.
RETAINED POWER OPERATION
When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds.
through BCM terminal 53.
to sunroof motor assembly terminal 6.
When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II. Refer to RF-16, "
CONSULT-II Function (BCM)" .
Page 4053 of 4647

RF-12
SUNROOF
Revision: 2007 April2007 M35/M45
ANTI-PINCH FUNCTION
The CPU of sunroof motor assembly monitors the sunroof motor operation and the sunroof position (fully-
closed or other) by the signals from sunroof motor.
When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof
motor assembly controls the motor until full up position (when tilt down operate) or 125 mm (4.92 in) or more to
open direction (when slide close operate).
The function is operated in the following conditions.
close operation and tilt down when ignition switch is in the ON position.
close operation and tilt down during retained power operation.
INITIALIZATION PROCEDURE
If the battery is disconnected, the sunroof motor connector is disconnected sunroof does not close or open
automatically, use the following procedure to return sunroof operation to normal.
1. Close the sunroof if it is not in the closed position. It may be necessary to repeatedly push the switch to
close the sunroof.
2. Press the SLIDE OPEN/TILT DOWN switch for approximately 1 second or more.
3. Initialization procedure is completed. Confirm proper operation of the sunroof (slide open, slide close, tilt
up, tilt down.)
Page 4054 of 4647
SUNROOF
RF-13
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2007 April2007 M35/M45

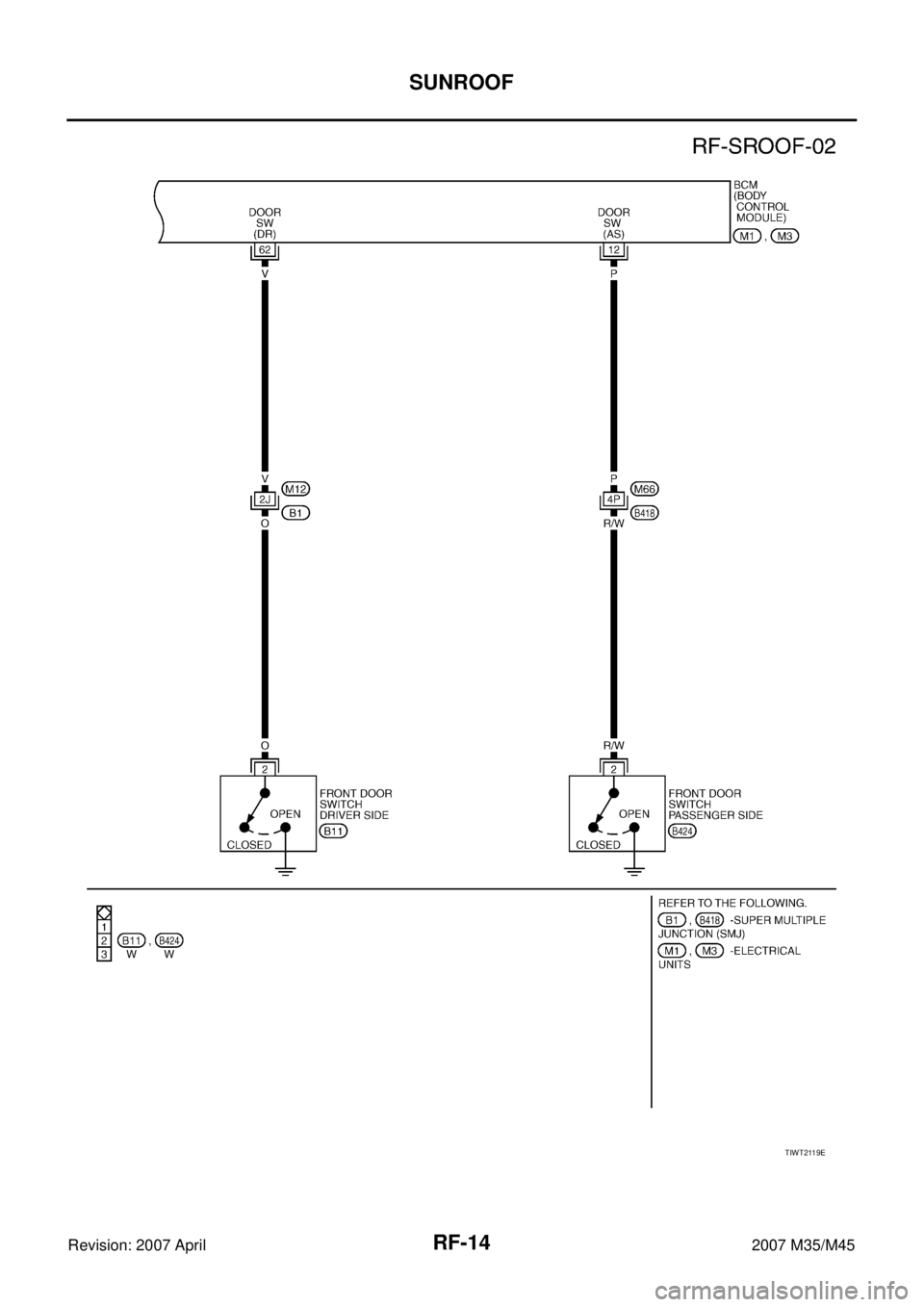

Wiring Diagram — SROOF —NIS0023S
TIWT1334E
Page 4055 of 4647
RF-14
SUNROOF
Revision: 2007 April2007 M35/M45
TIWT2119E
Page 4056 of 4647

SUNROOF
RF-15
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for BCMNIS0023T
Terminals and Reference Value for Sunroof Motor AssemblyNIS0023U
Termi-
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
12 PFront door switch
(passenger side)InputOPEN (ON) 0
CLOSE (OFF) Battery voltage
38 W Power source (IGN) Input Ignition switch (ON or START) position Battery voltage
42 P Power source (Fuse) Input — Battery voltage
52 B Ground (power) — — 0
53 BR RAP signal OutputIgnition switch ON Battery voltage
Within 45 seconds after ignition switch is
turned to OFF positionBattery voltage
When driver side or passenger side door is
opened during retained power operation.0
54 OPower window power supply
(BAT)Output — Battery voltage
55 W Power source (Fusible link) Input — Battery voltage
62 V Front door switch (driver side) InputOPEN (ON) 0
CLOSE (OFF) Battery voltage
Te r m i -
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1 O BAT power supply (BCM) Input — Battery voltage
4LGSunroof
(TILT DOWN/SLIDE OPEN)
switch signalInputIgnition switch ON and sunroof switch in
TILT DOWN / SLIDE OPEN position0
Other than above Battery voltage
6 Y RAP signal InputIgnition switch ON Battery voltage
Within 45 seconds after ignition switch is
turned to OFF positionBattery voltage
When driver side or passenger side door is
opened during retained power operation.0
8 B Ground — — 0
9 Y Sunroof switch ground — — 0
11 LSunroof
(TILT UP/SLIDE CLOSE)
switch signalInputIgnition switch ON and sunroof switch in
TILT UP / SLIDE CLOSE position0
Other than above Battery voltage
