Page 2065 of 4647

INFINITI M35 2007 Factory Service Manual EC-536
[VQ35DE]
DTC P1551, P1552 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45

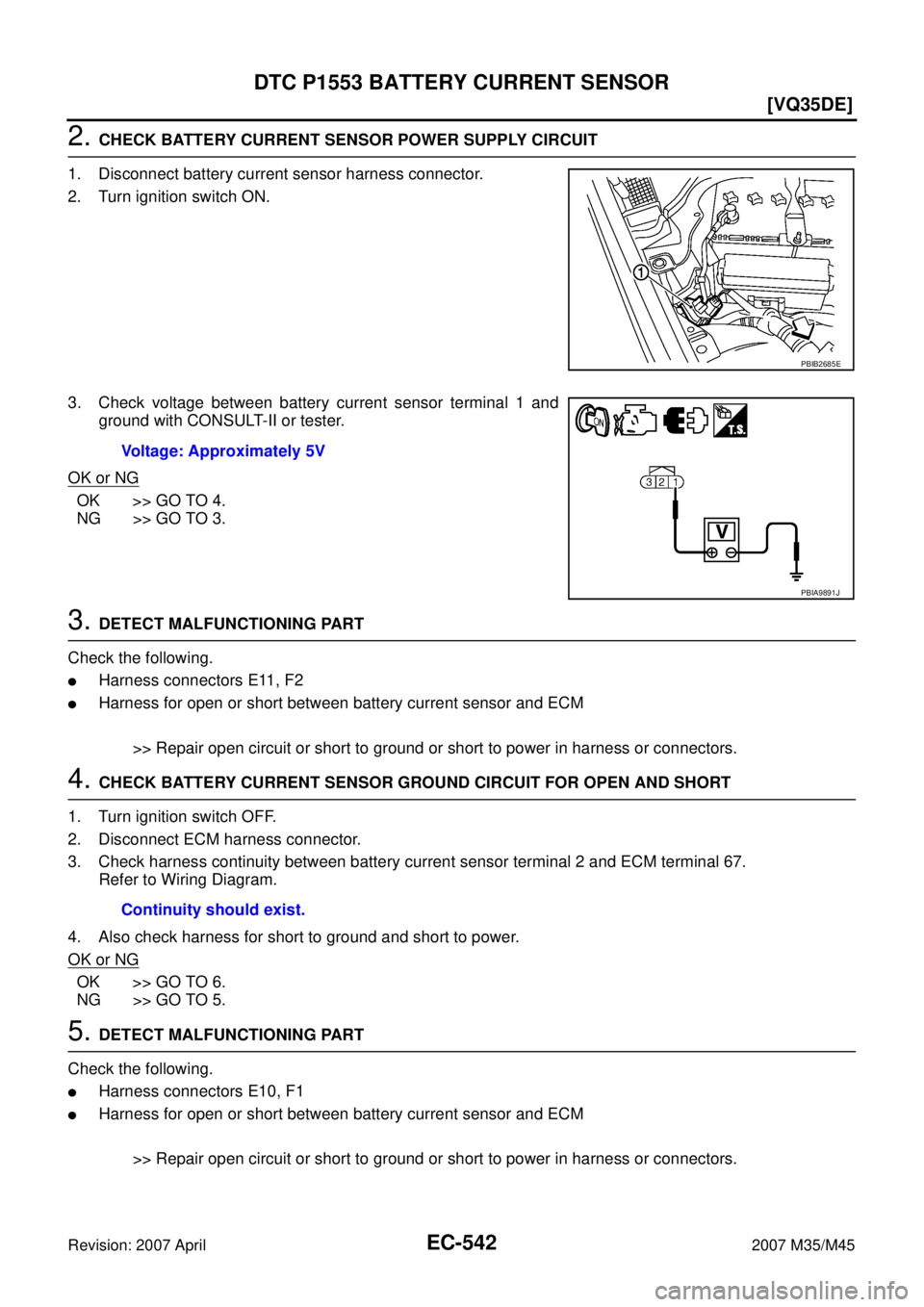

6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between bat

Page 2066 of 4647

INFINITI M35 2007 Factory Service Manual DTC P1551, P1552 BATTERY CURRENT SENSOR
EC-537
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
5. Check voltage between ECM terminal 71 (battery current sensor
signal) and ground.

Page 2067 of 4647

INFINITI M35 2007 Factory Service Manual EC-538
[VQ35DE]
DTC P1553 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1553 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS00545
The power generation voltage variable control

EC-538
[VQ35DE]
DTC P1553 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1553 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS00545

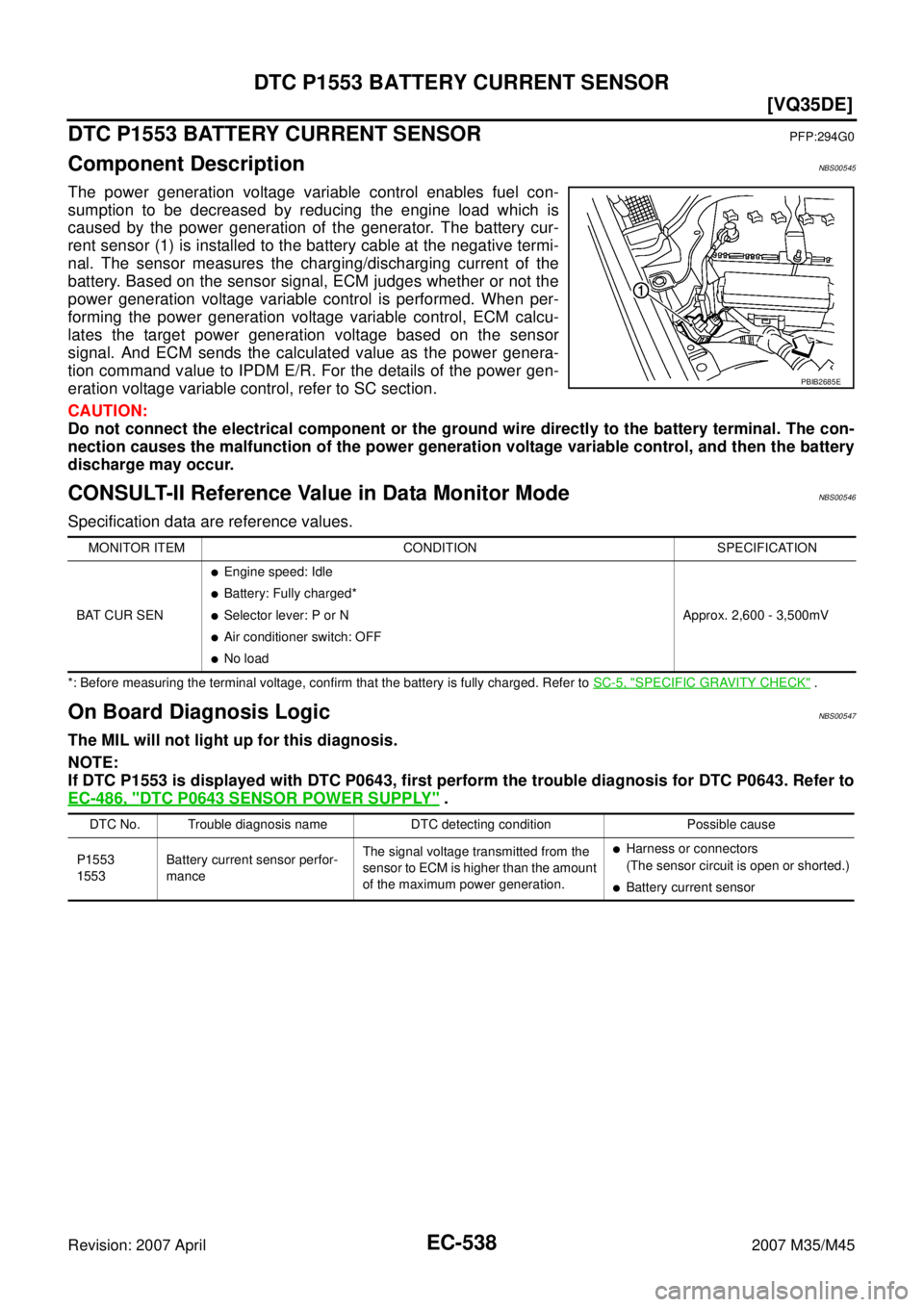

The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to SC section.
CAUTION:
Do not connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the power generation voltage variable control, and then the battery
discharge may occur.
CONSULT-II Reference Value in Data Monitor ModeNBS00546
Specification data are reference values.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
On Board Diagnosis LogicNBS00547
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1553 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-486, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB2685E
MONITOR ITEM CONDITION SPECIFICATION
BAT CUR SEN
Engine speed: Idle
Battery: Fully charged*
Selector lever: P or N
Air conditioner switch: OFF
No loadApprox. 2,600 - 3,500mV
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1553
1553Battery current sensor perfor-
manceThe signal voltage transmitted from the
sensor to ECM is higher than the amount
of the maximum power generation.
Harness or connectors
(The sensor circuit is open or shorted.)
Battery current sensor

Page 2068 of 4647

INFINITI M35 2007 Factory Service Manual DTC P1553 BATTERY CURRENT SENSOR
EC-539
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS00548
If DTC Confirmation Procedure has been previously conduct

Page 2069 of 4647

INFINITI M35 2007 Factory Service Manual EC-540
[VQ35DE]
DTC P1553 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45

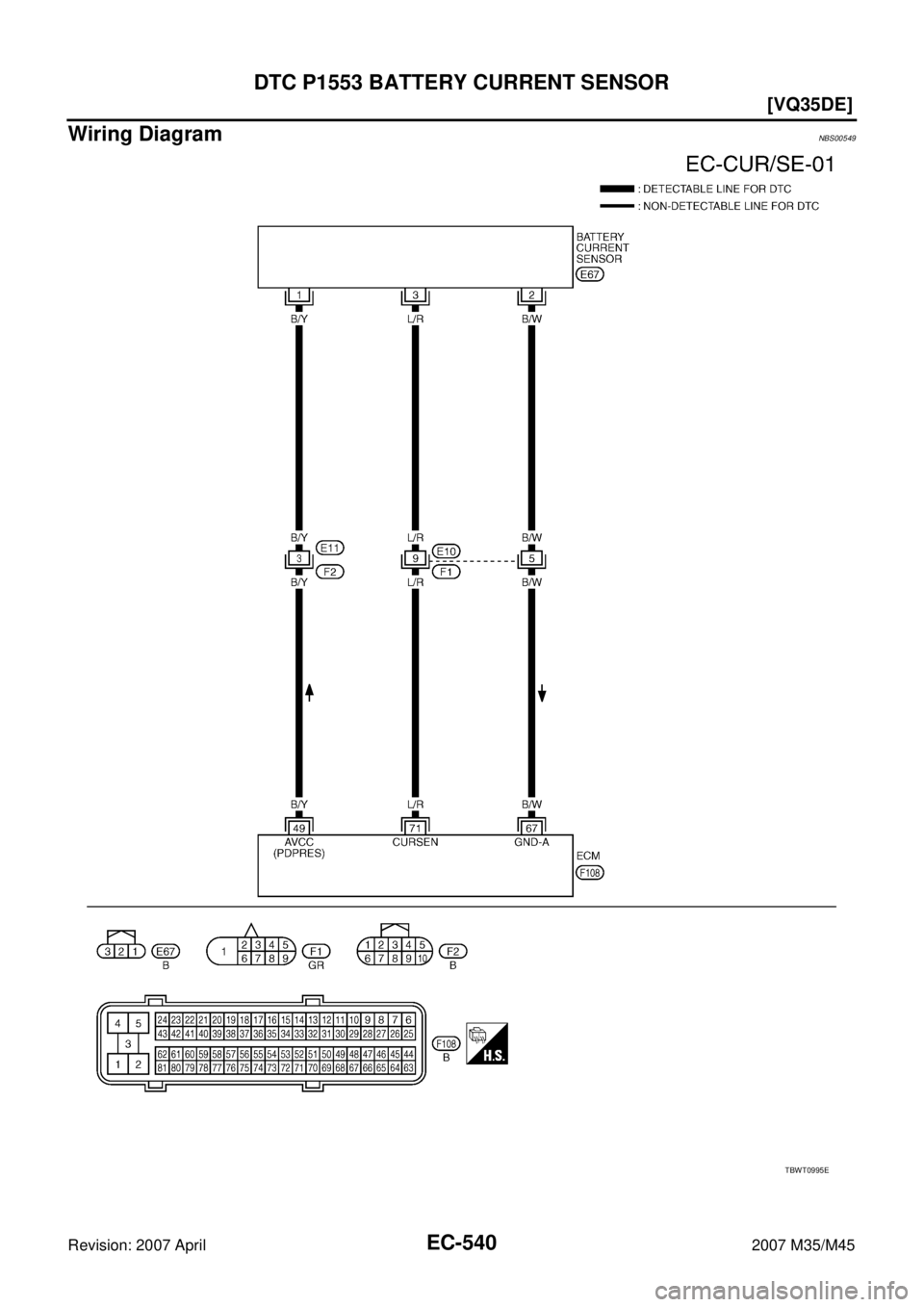

Wiring DiagramNBS00549
TBWT0995E

Page 2070 of 4647

INFINITI M35 2007 Factory Service Manual DTC P1553 BATTERY CURRENT SENSOR
EC-541
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

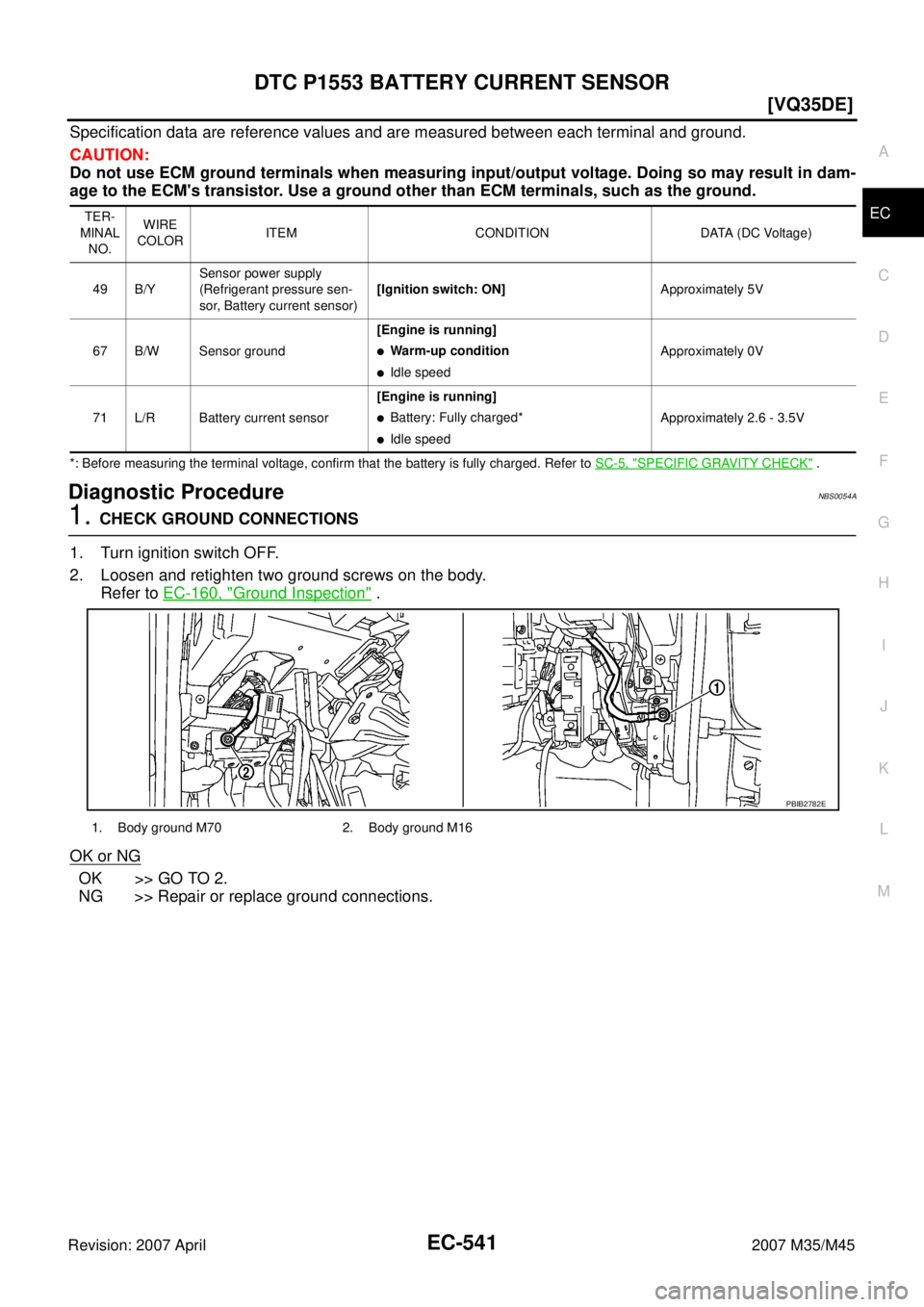

Specification data are reference values and are measured between each terminal and ground.
C

Page 2071 of 4647

INFINITI M35 2007 Factory Service Manual EC-542
[VQ35DE]
DTC P1553 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor harness connector.
2. Turn i

Page 2072 of 4647

INFINITI M35 2007 Factory Service Manual DTC P1553 BATTERY CURRENT SENSOR
EC-543
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

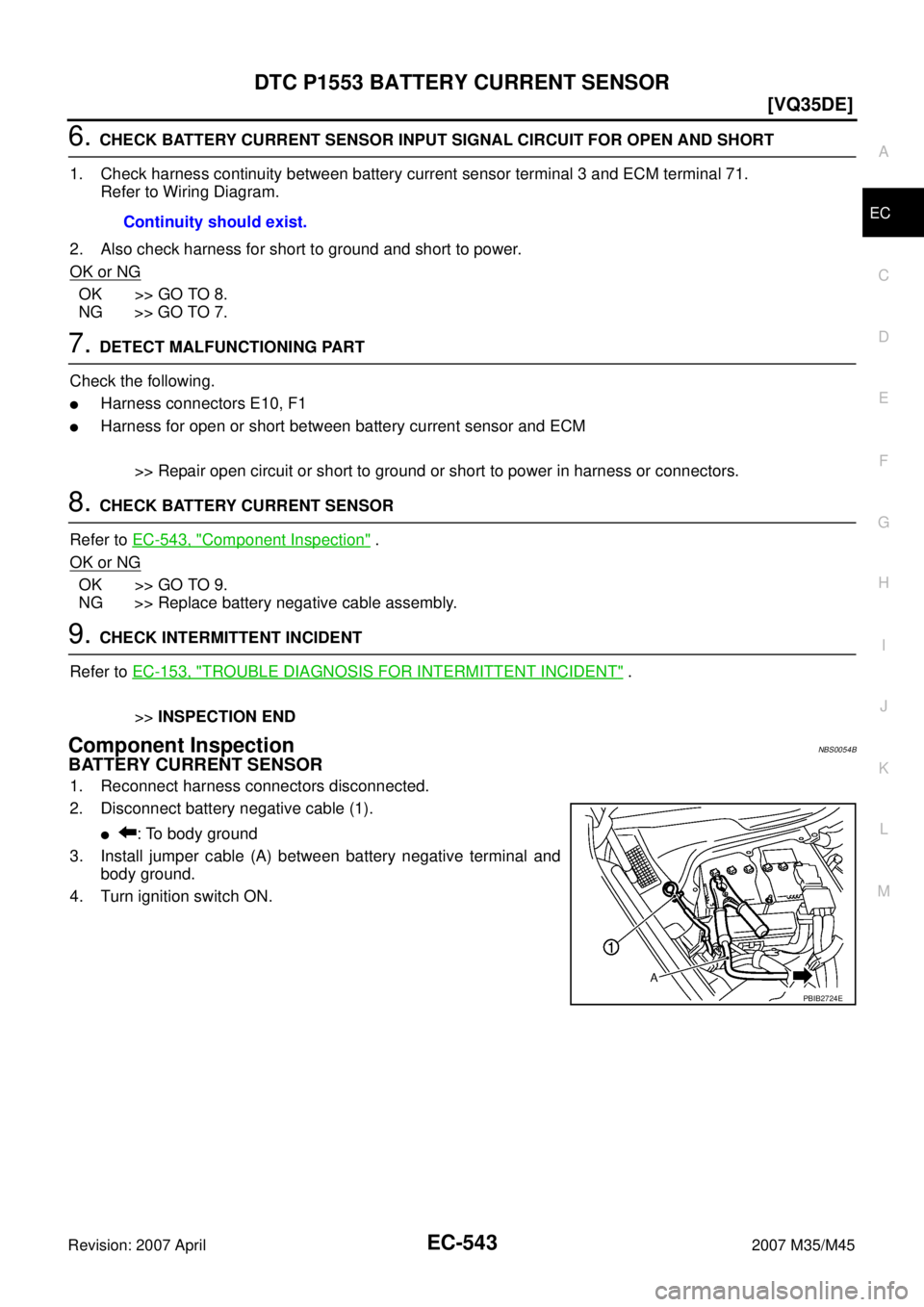

6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness con
