Page 4089 of 4647

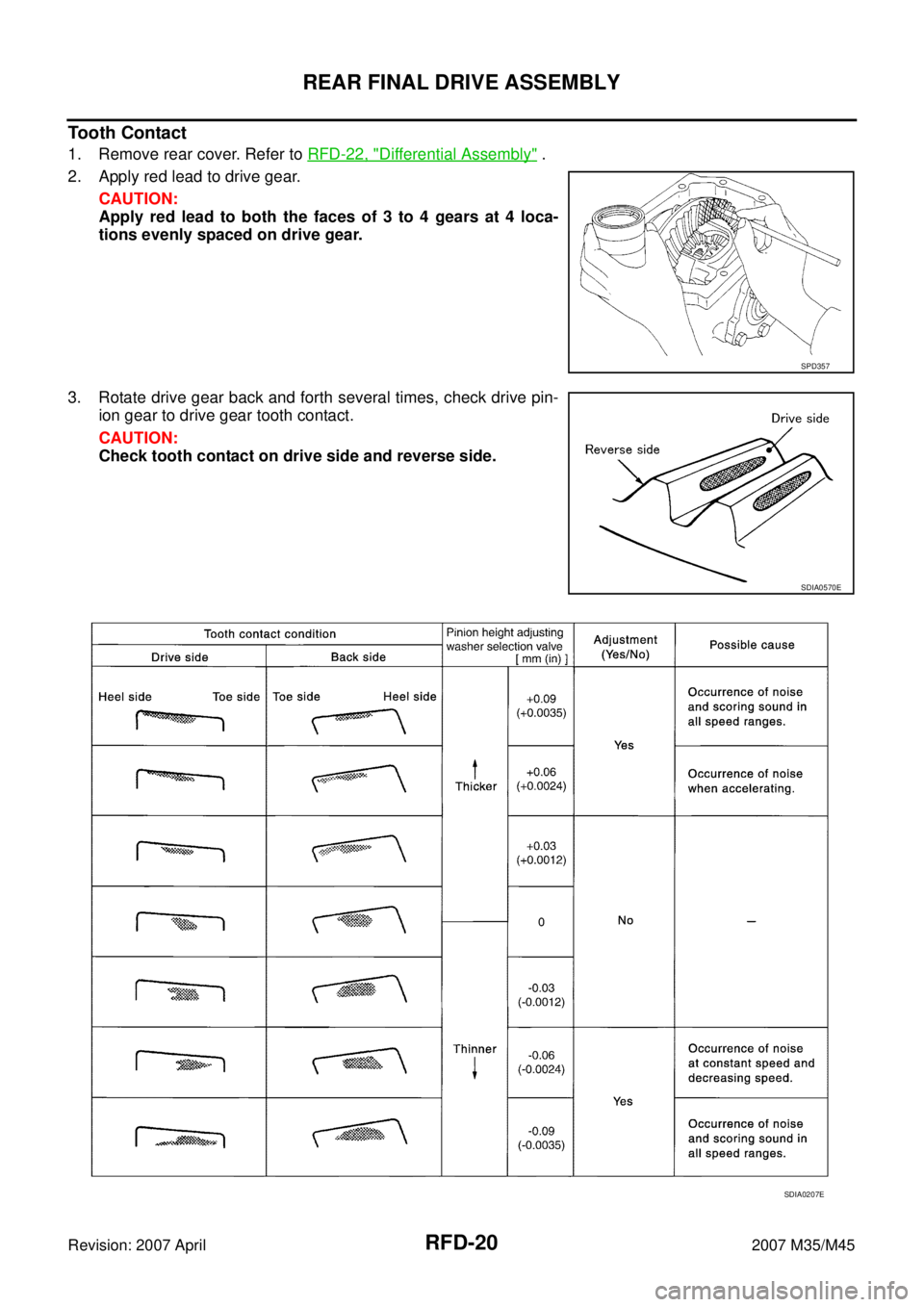

INFINITI M35 2007 Factory Service Manual RFD-20 REAR FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 Tooth Contact 1. Remove rear cover. Refer to RFD-22, "Differential Assembly" . 2. Apply red lead to drive gear. CAUTION: Apply red lea

Page 4090 of 4647

INFINITI M35 2007 Factory Service Manual REAR FINAL DRIVE ASSEMBLY RFD-21 C E F G H I J K L MA B RFD Revision: 2007 April2007 M35/M45 4. If tooth contact is improperly adjusted, follow the procedure below to adjust the pinion height (dimensi

Page 4091 of 4647

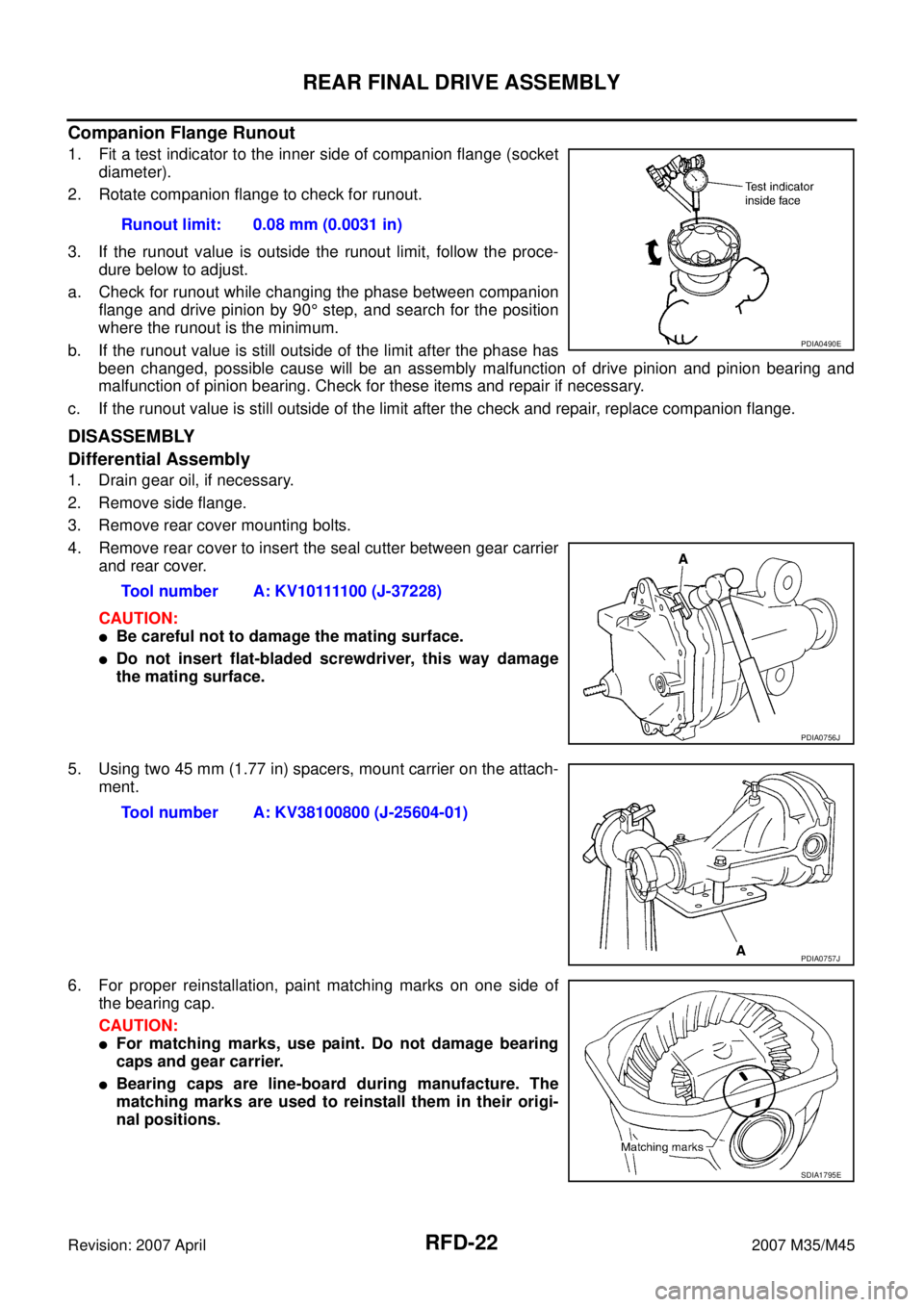

INFINITI M35 2007 Factory Service Manual RFD-22 REAR FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 Companion Flange Runout 1. Fit a test indicator to the inner side of companion flange (socket diameter). 2. Rotate companion flange to

Page 4092 of 4647

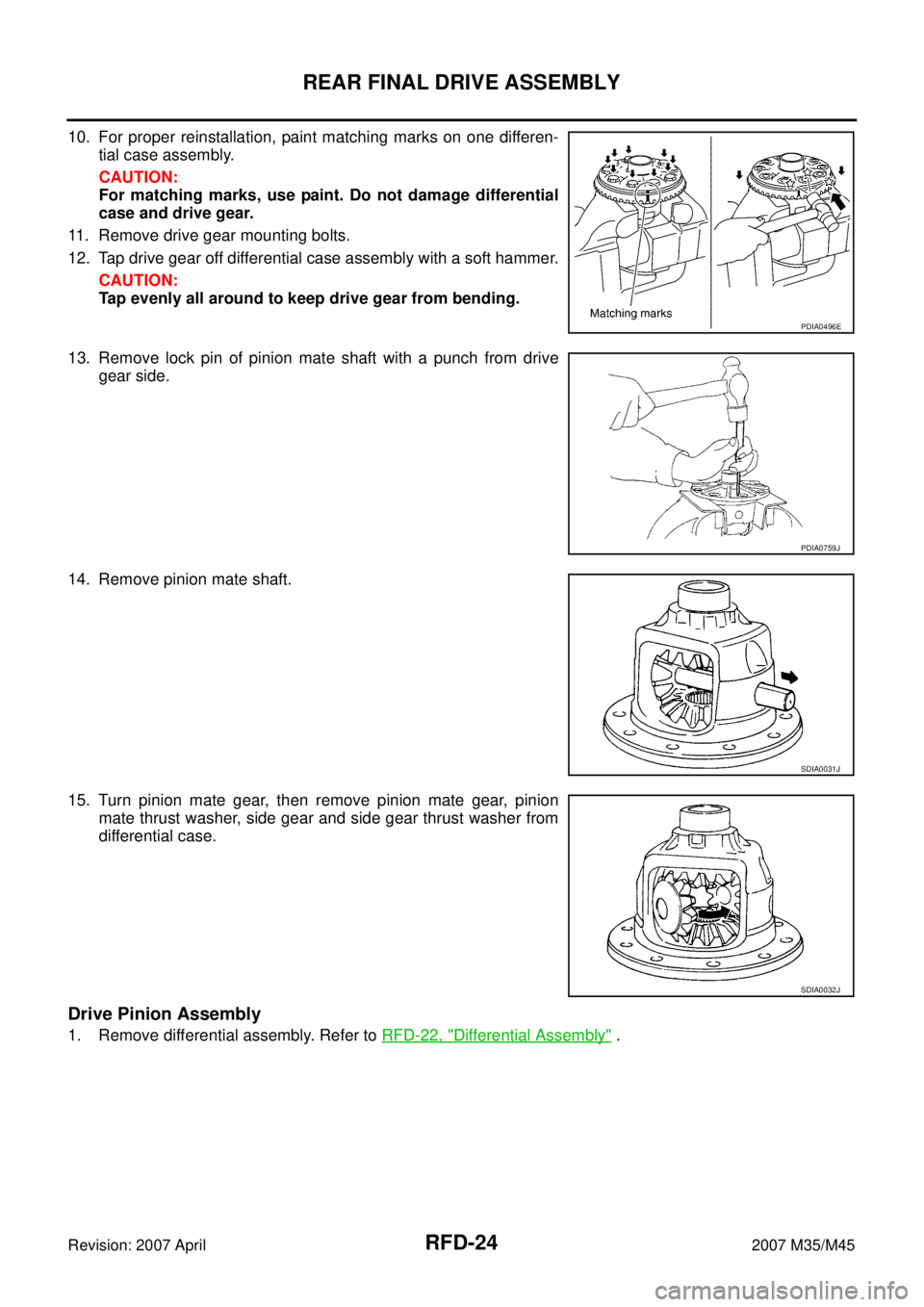

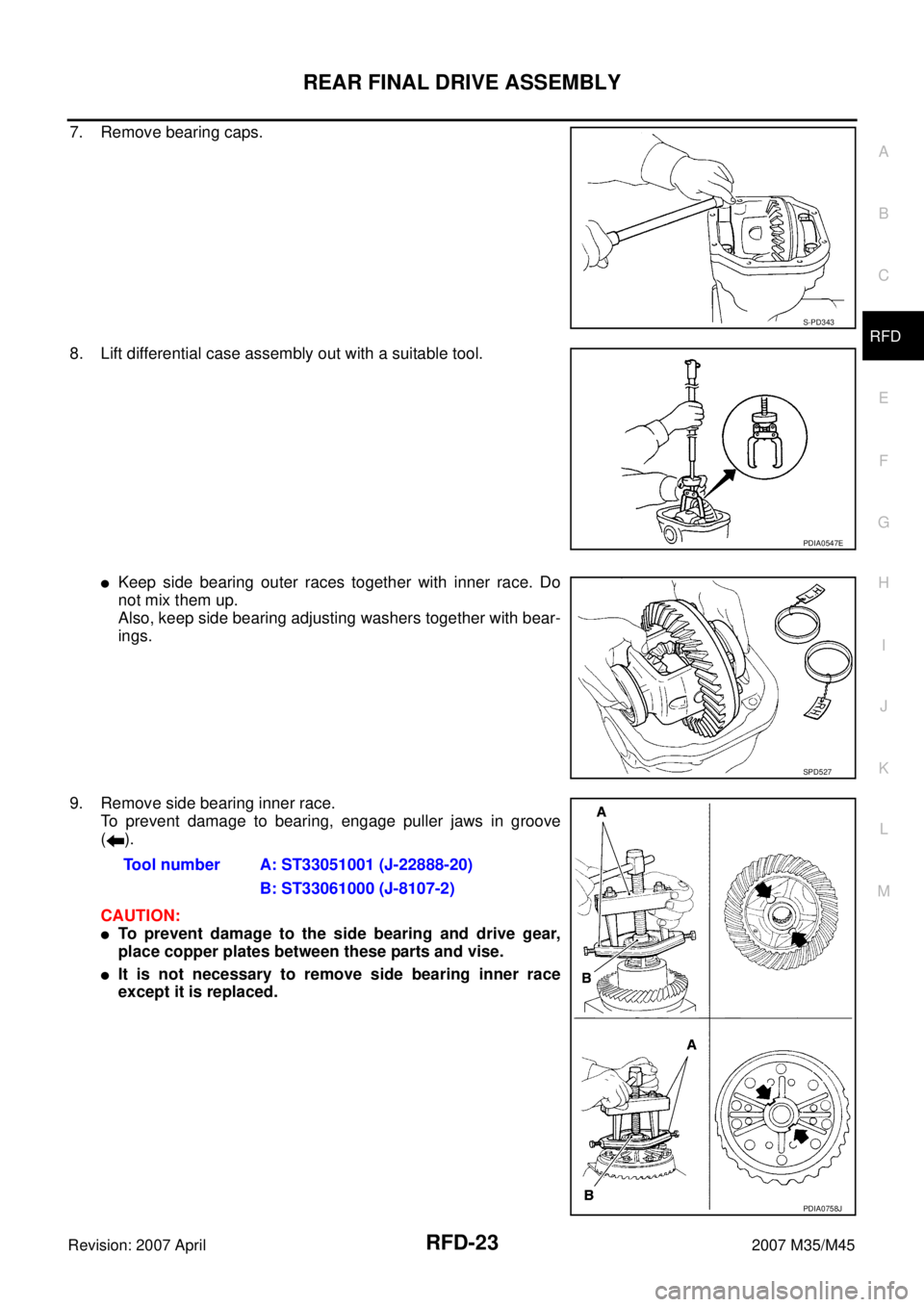

INFINITI M35 2007 Factory Service Manual REAR FINAL DRIVE ASSEMBLY RFD-23 C E F G H I J K L MA B RFD Revision: 2007 April2007 M35/M45 7. Remove bearing caps. 8. Lift differential case assembly out with a suitable tool. Keep side bearing out

Page 4093 of 4647

INFINITI M35 2007 Factory Service Manual RFD-24 REAR FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 10. For proper reinstallation, paint matching marks on one differen- tial case assembly. CAUTION: For matching marks, use paint. Do no

Page 4094 of 4647

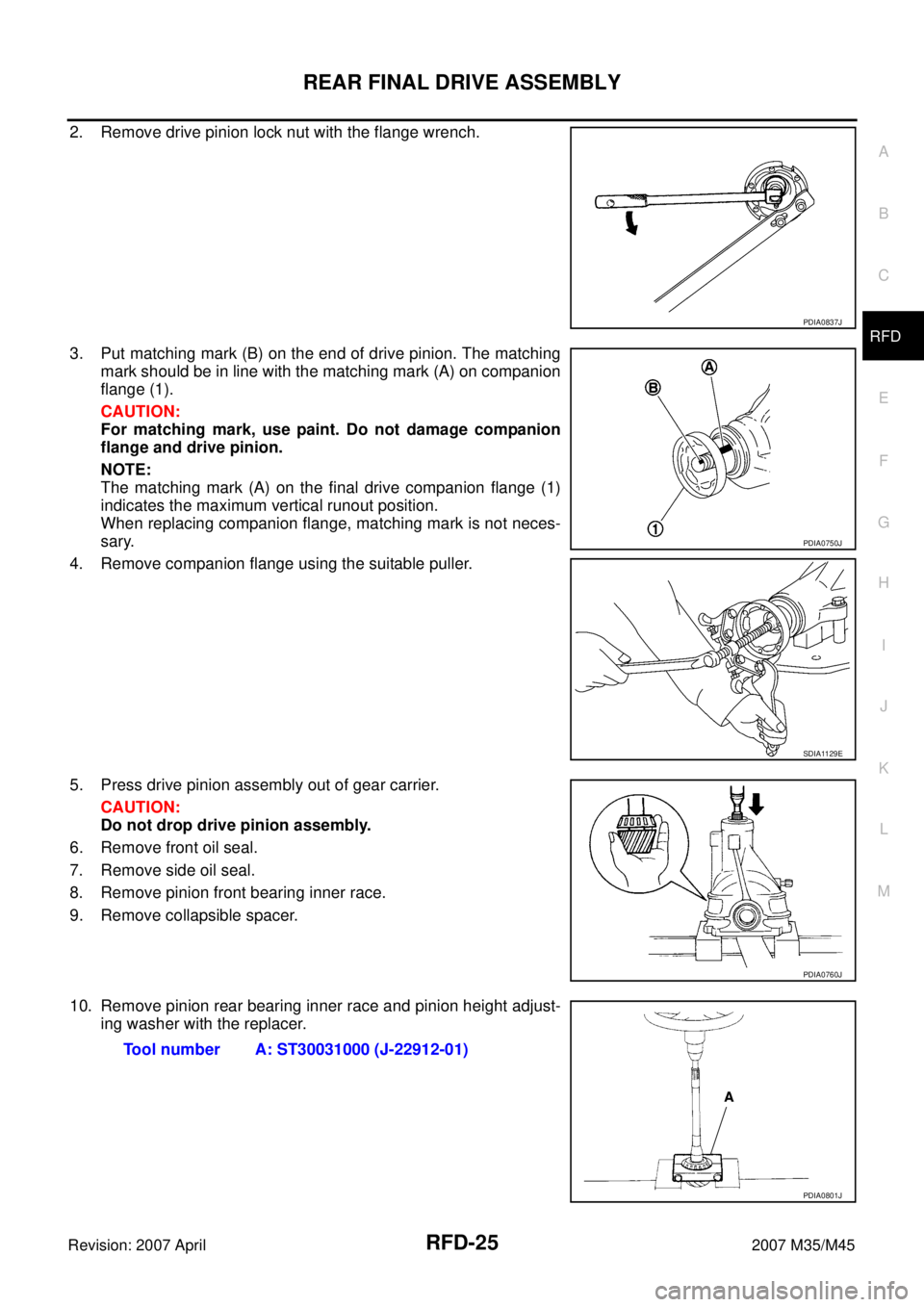

INFINITI M35 2007 Factory Service Manual REAR FINAL DRIVE ASSEMBLY RFD-25 C E F G H I J K L MA B RFD Revision: 2007 April2007 M35/M45 2. Remove drive pinion lock nut with the flange wrench. 3. Put matching mark (B) on the end of drive pinion

Page 4095 of 4647

INFINITI M35 2007 Factory Service Manual RFD-26 REAR FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 11. Tap pinion front/rear bearing outer races uniformly a brass rod or equivalent to removed. CAUTION: Be careful not to damage gear c

Page 4096 of 4647

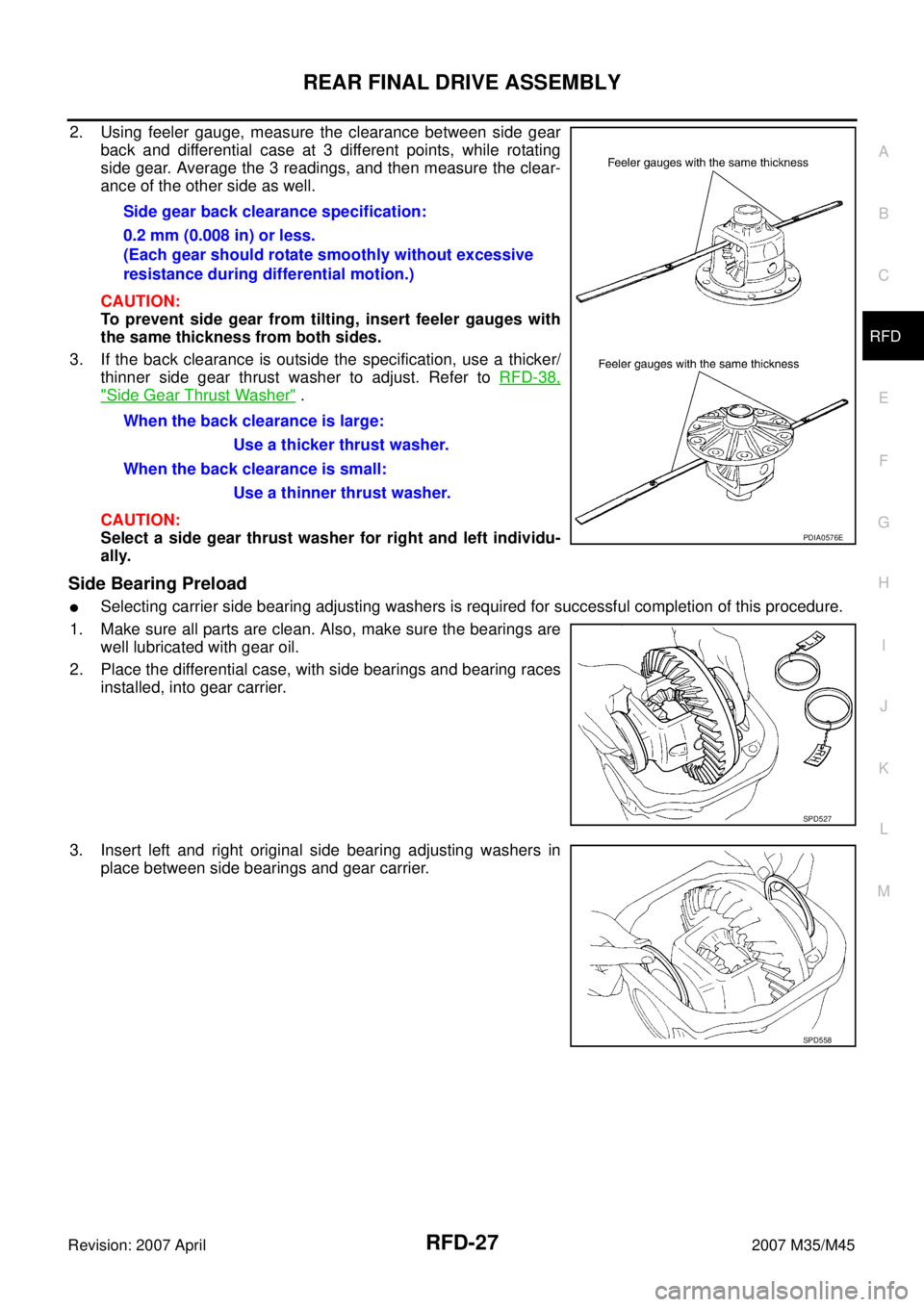

INFINITI M35 2007 Factory Service Manual REAR FINAL DRIVE ASSEMBLY RFD-27 C E F G H I J K L MA B RFD Revision: 2007 April2007 M35/M45 2. Using feeler gauge, measure the clearance between side gear back and differential case at 3 different po
Load next 8 pages
