DTC P0500 VSS
Revision: 2007 April2007 M35/M45
Overall Function CheckNBS005J7
Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a 1st
trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine.
3. Read vehicle speed sensor signal in Service $01 with GST.
The vehicle speed sensor on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with
suitable gear position.
4. If NG, go to EC-1176, "
Diagnostic Procedure" .
Diagnostic ProcedureNBS005J8
1. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-10, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-5, "
COMBINATION METERS" .
>>INSPECTION END
Page 2706 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0506 ISC SYSTEM
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0506 ISC SYSTEMPFP:23781
DescriptionNBS005J9
NOTE:
If DTC P0506 is displayed with other DTC, first INFINITI M35 2007 Factory Service Manual DTC P0506 ISC SYSTEM
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0506 ISC SYSTEMPFP:23781
DescriptionNBS005J9
NOTE:
If DTC P0506 is displayed with other DTC, first](/manual-img/42/57024/w960_57024-2705.png)

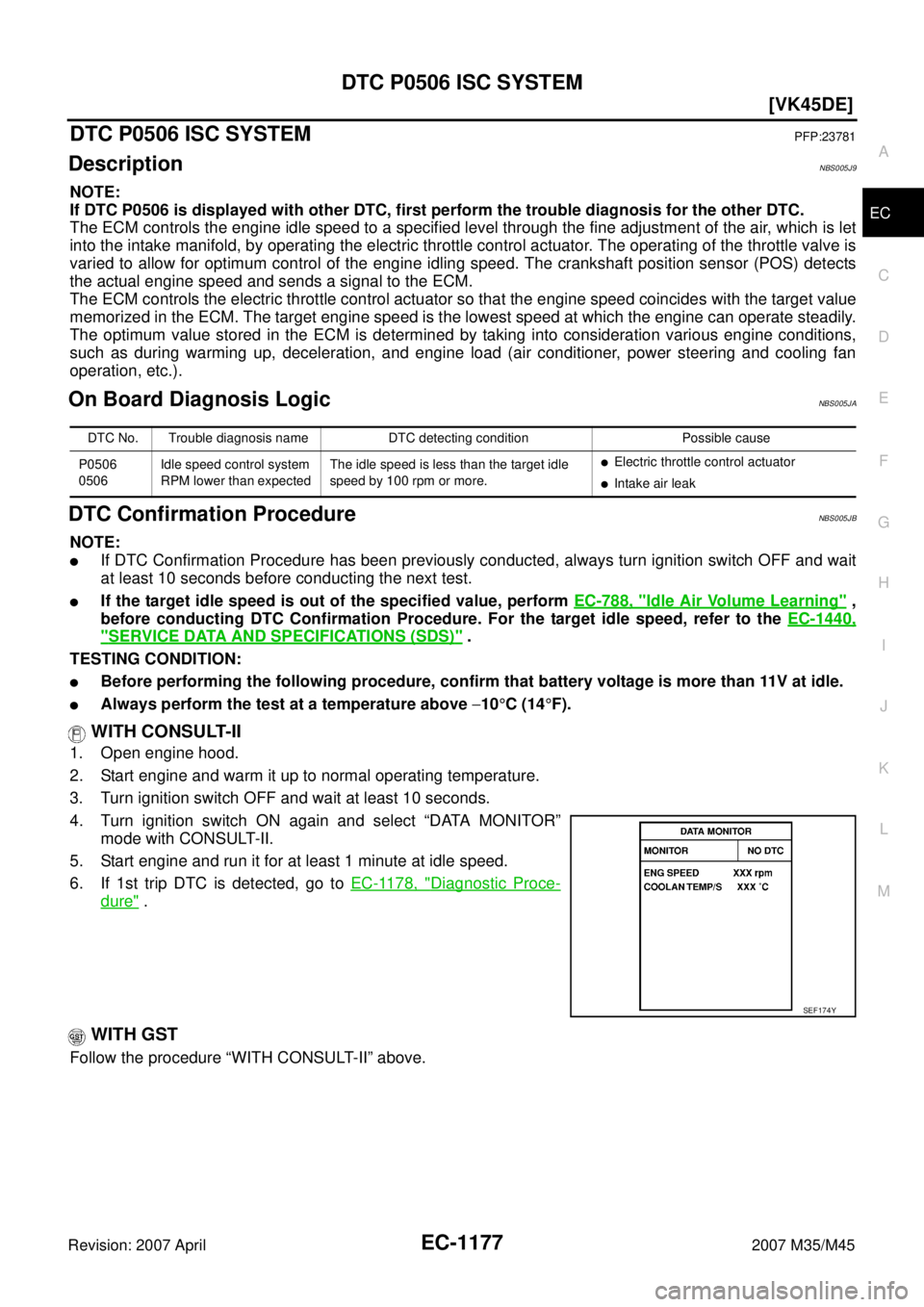

DTC P0506 ISC SYSTEM
EC-1177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0506 ISC SYSTEMPFP:23781
DescriptionNBS005J9
NOTE:
If DTC P0506 is displayed with other DTC, first perform the trouble diagnosis for the other DTC.
The ECM controls the engine idle speed to a specified level through the fine adjustment of the air, which is let
into the intake manifold, by operating the electric throttle control actuator. The operating of the throttle valve is
varied to allow for optimum control of the engine idling speed. The crankshaft position sensor (POS) detects
the actual engine speed and sends a signal to the ECM.
The ECM controls the electric throttle control actuator so that the engine speed coincides with the target value
memorized in the ECM. The target engine speed is the lowest speed at which the engine can operate steadily.
The optimum value stored in the ECM is determined by taking into consideration various engine conditions,
such as during warming up, deceleration, and engine load (air conditioner, power steering and cooling fan
operation, etc.).
On Board Diagnosis LogicNBS005JA
DTC Confirmation ProcedureNBS005JB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
If the target idle speed is out of the specified value, perform EC-788, "Idle Air Volume Learning" ,
before conducting DTC Confirmation Procedure. For the target idle speed, refer to the EC-1440,
"SERVICE DATA AND SPECIFICATIONS (SDS)" .
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Always perform the test at a temperature above −10°C (14°F).
WITH CONSULT-II
1. Open engine hood.
2. Start engine and warm it up to normal operating temperature.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON again and select “DATA MONITOR”
mode with CONSULT-II.
5. Start engine and run it for at least 1 minute at idle speed.
6. If 1st trip DTC is detected, go to EC-1178, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0506
0506Idle speed control system
RPM lower than expectedThe idle speed is less than the target idle
speed by 100 rpm or more.
Electric throttle control actuator
Intake air leak
SEF174Y
Page 2707 of 4647
EC-1178
[VK45DE]
DTC P0506 ISC SYSTEM
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS005JC
1. CHECK INTAKE AIR LEAK
1. Start engine and let it idle.
2. Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 2.
NG >> Discover air leak location and repair.
2. REPLACE ECM
1. Stop engine.
2. Replace ECM.
3. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to
BL-248, "
ECM Re-Communicating Function" .
4. Perform EC-787, "
VIN Registration" .
5. Perform EC-788, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-788, "
Throttle Valve Closed Position Learning" .
7. Perform EC-788, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 2708 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0507 ISC SYSTEM
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0507 ISC SYSTEMPFP:23781
DescriptionNBS005JD
NOTE:
If DTC P0507 is displayed with other DTC, first INFINITI M35 2007 Factory Service Manual DTC P0507 ISC SYSTEM
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0507 ISC SYSTEMPFP:23781
DescriptionNBS005JD
NOTE:
If DTC P0507 is displayed with other DTC, first](/manual-img/42/57024/w960_57024-2707.png)

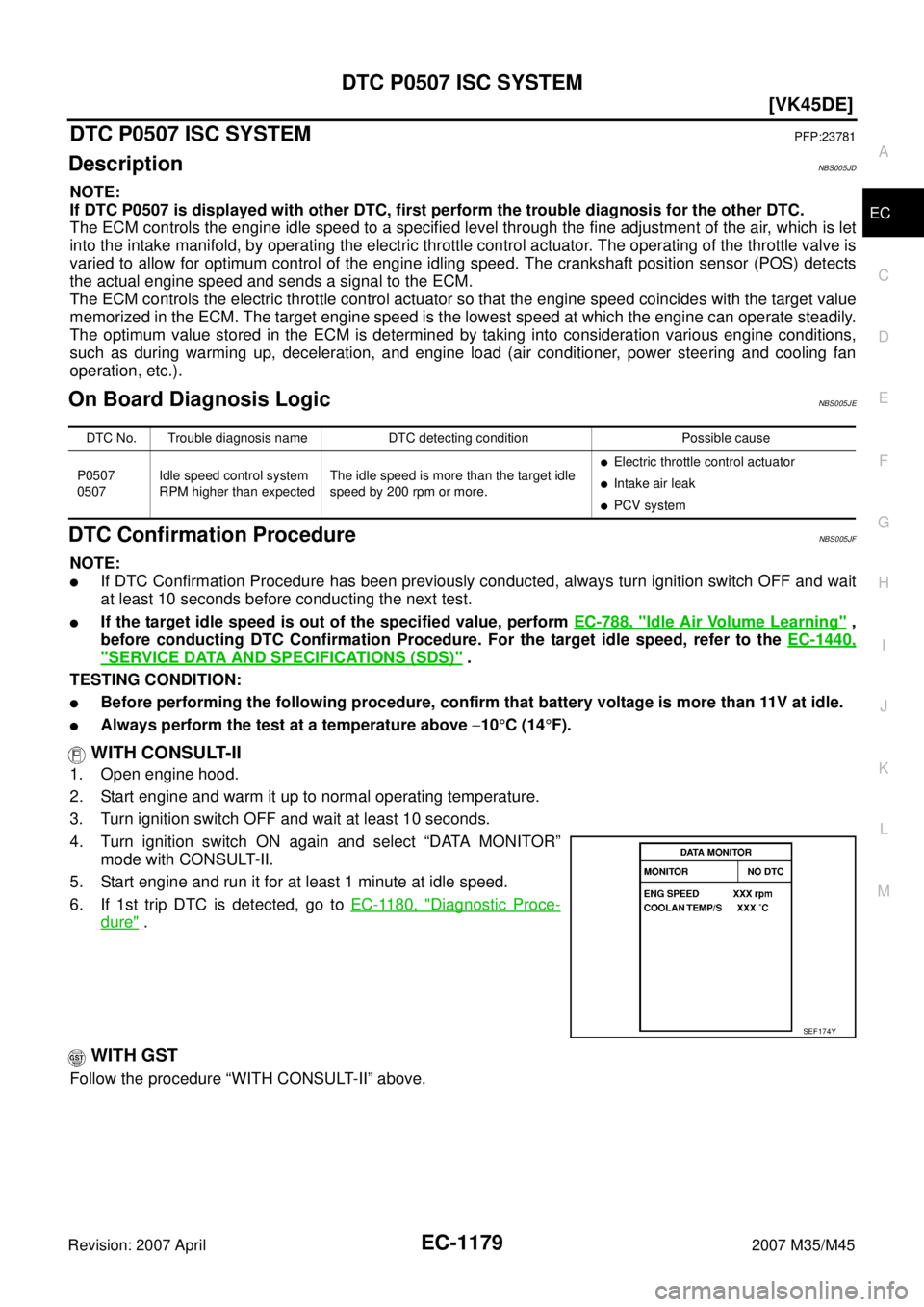

DTC P0507 ISC SYSTEM
EC-1179
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0507 ISC SYSTEMPFP:23781
DescriptionNBS005JD
NOTE:
If DTC P0507 is displayed with other DTC, first perform the trouble diagnosis for the other DTC.
The ECM controls the engine idle speed to a specified level through the fine adjustment of the air, which is let
into the intake manifold, by operating the electric throttle control actuator. The operating of the throttle valve is
varied to allow for optimum control of the engine idling speed. The crankshaft position sensor (POS) detects
the actual engine speed and sends a signal to the ECM.
The ECM controls the electric throttle control actuator so that the engine speed coincides with the target value
memorized in the ECM. The target engine speed is the lowest speed at which the engine can operate steadily.
The optimum value stored in the ECM is determined by taking into consideration various engine conditions,
such as during warming up, deceleration, and engine load (air conditioner, power steering and cooling fan
operation, etc.).
On Board Diagnosis LogicNBS005JE
DTC Confirmation ProcedureNBS005JF
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
If the target idle speed is out of the specified value, perform EC-788, "Idle Air Volume Learning" ,
before conducting DTC Confirmation Procedure. For the target idle speed, refer to the EC-1440,
"SERVICE DATA AND SPECIFICATIONS (SDS)" .
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Always perform the test at a temperature above −10°C (14°F).
WITH CONSULT-II
1. Open engine hood.
2. Start engine and warm it up to normal operating temperature.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON again and select “DATA MONITOR”
mode with CONSULT-II.
5. Start engine and run it for at least 1 minute at idle speed.
6. If 1st trip DTC is detected, go to EC-1180, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0507
0507Idle speed control system
RPM higher than expectedThe idle speed is more than the target idle
speed by 200 rpm or more.
Electric throttle control actuator
Intake air leak
PCV system
SEF174Y
Page 2709 of 4647
EC-1180
[VK45DE]
DTC P0507 ISC SYSTEM
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS005JG
1. CHECK PCV HOSE CONNECTION
Confirm that PCV hose is connected correctly.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK INTAKE AIR LEAK
1. Start engine and let it idle.
2. Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Discover air leak location and repair.
3. REPLACE ECM
1. Stop engine.
2. Replace ECM.
3. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to
BL-248, "
ECM Re-Communicating Function" .
4. Perform EC-787, "
VIN Registration" .
5. Perform EC-788, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-788, "
Throttle Valve Closed Position Learning" .
7. Perform EC-788, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 2710 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionNBS005JH
Power steering pressure (PSP) sensor (1) is INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionNBS005JH
Power steering pressure (PSP) sensor (1) is](/manual-img/42/57024/w960_57024-2709.png)

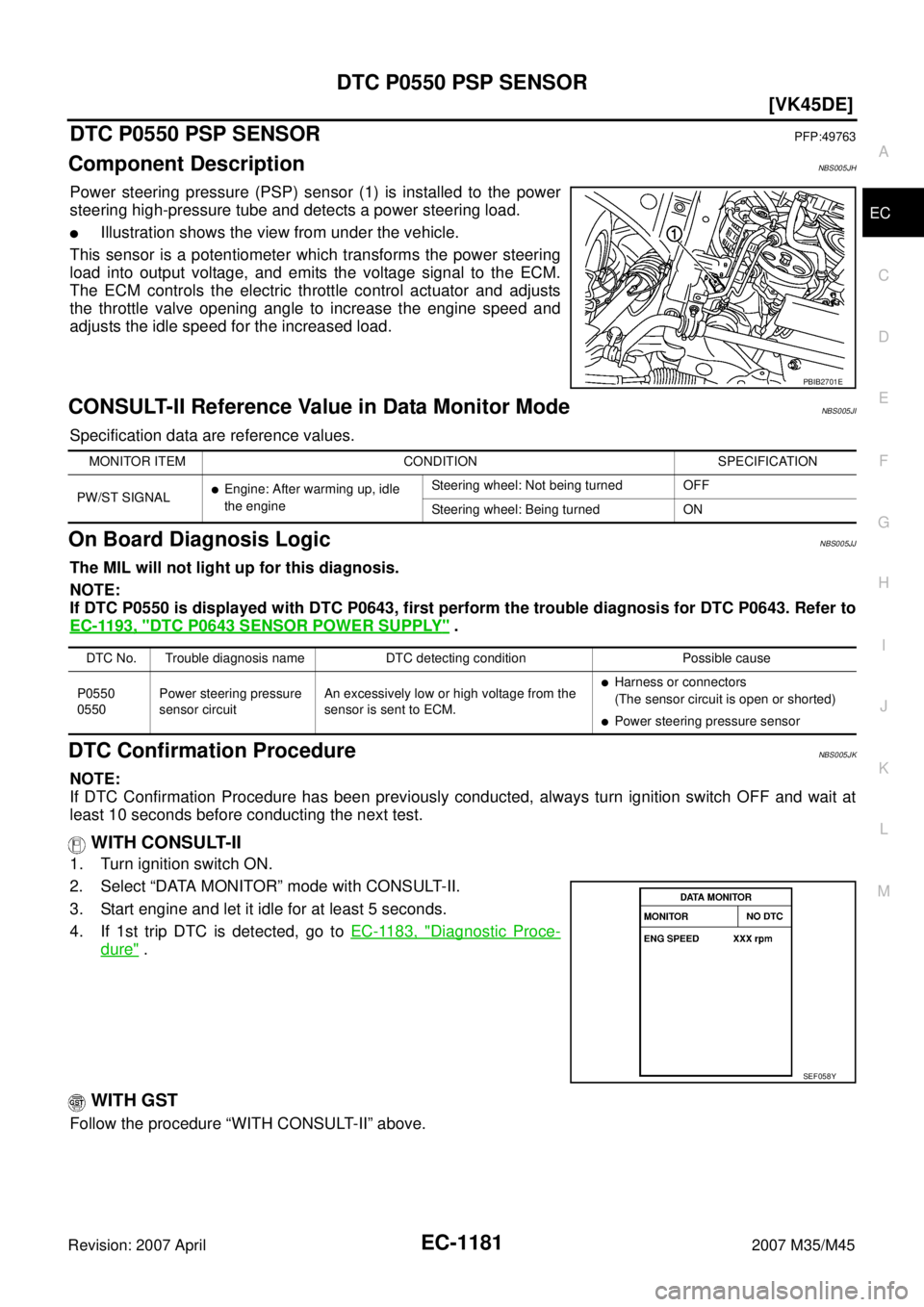

DTC P0550 PSP SENSOR
EC-1181
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionNBS005JH
Power steering pressure (PSP) sensor (1) is installed to the power
steering high-pressure tube and detects a power steering load.
Illustration shows the view from under the vehicle.
This sensor is a potentiometer which transforms the power steering
load into output voltage, and emits the voltage signal to the ECM.
The ECM controls the electric throttle control actuator and adjusts
the throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeNBS005JI
Specification data are reference values.
On Board Diagnosis LogicNBS005JJ
The MIL will not light up for this diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-1193, "
DTC P0643 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureNBS005JK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1183, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB2701E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel: Not being turned OFF
Steering wheel: Being turned ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pressure
sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted)
Power steering pressure sensor
SEF058Y
Page 2711 of 4647
EC-1182
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2007 April2007 M35/M45

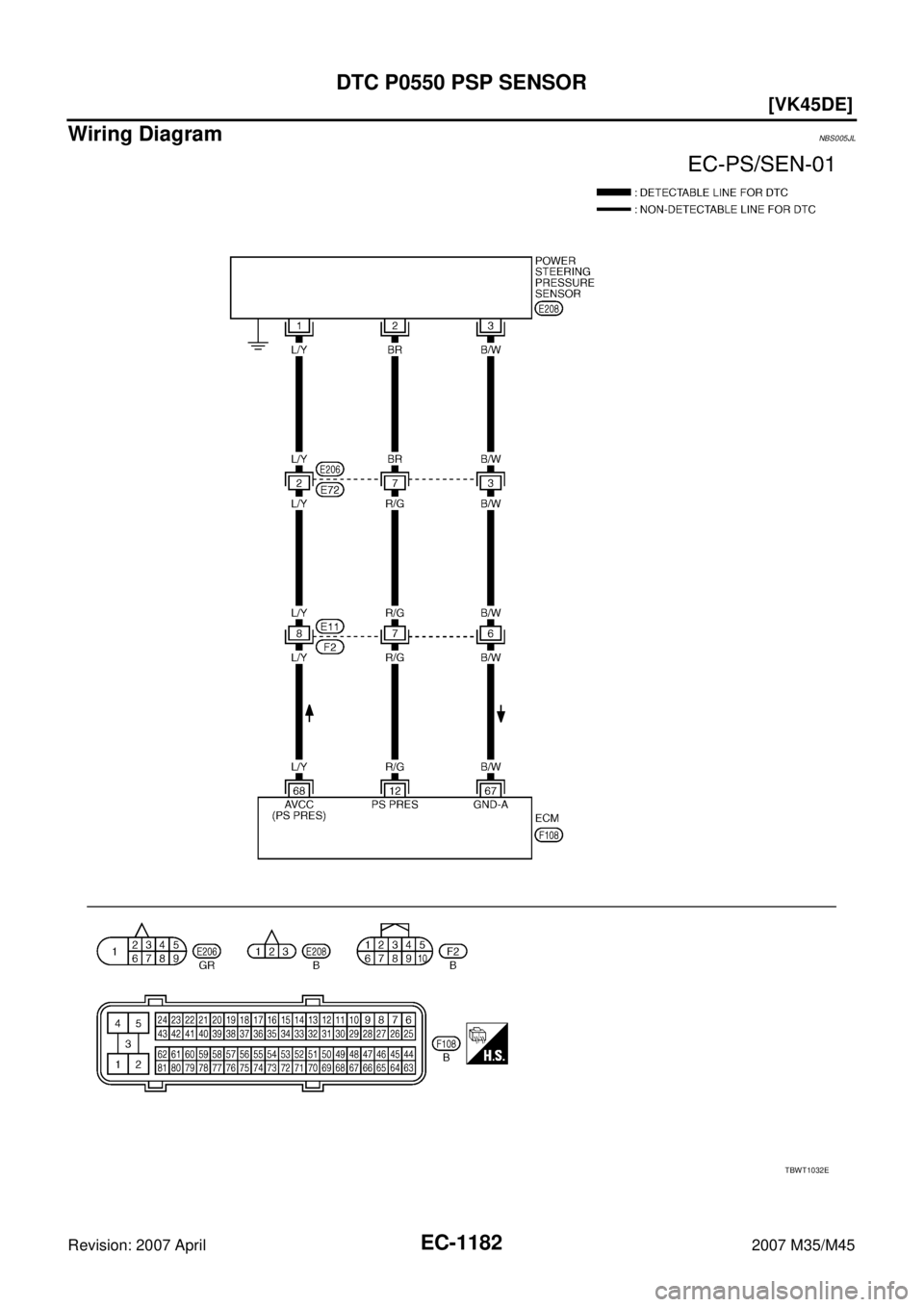

Wiring DiagramNBS005JL
TBWT1032E
Page 2712 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-1183
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do INFINITI M35 2007 Factory Service Manual DTC P0550 PSP SENSOR
EC-1183
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do](/manual-img/42/57024/w960_57024-2711.png)
DTC P0550 PSP SENSOR
EC-1183
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005JM

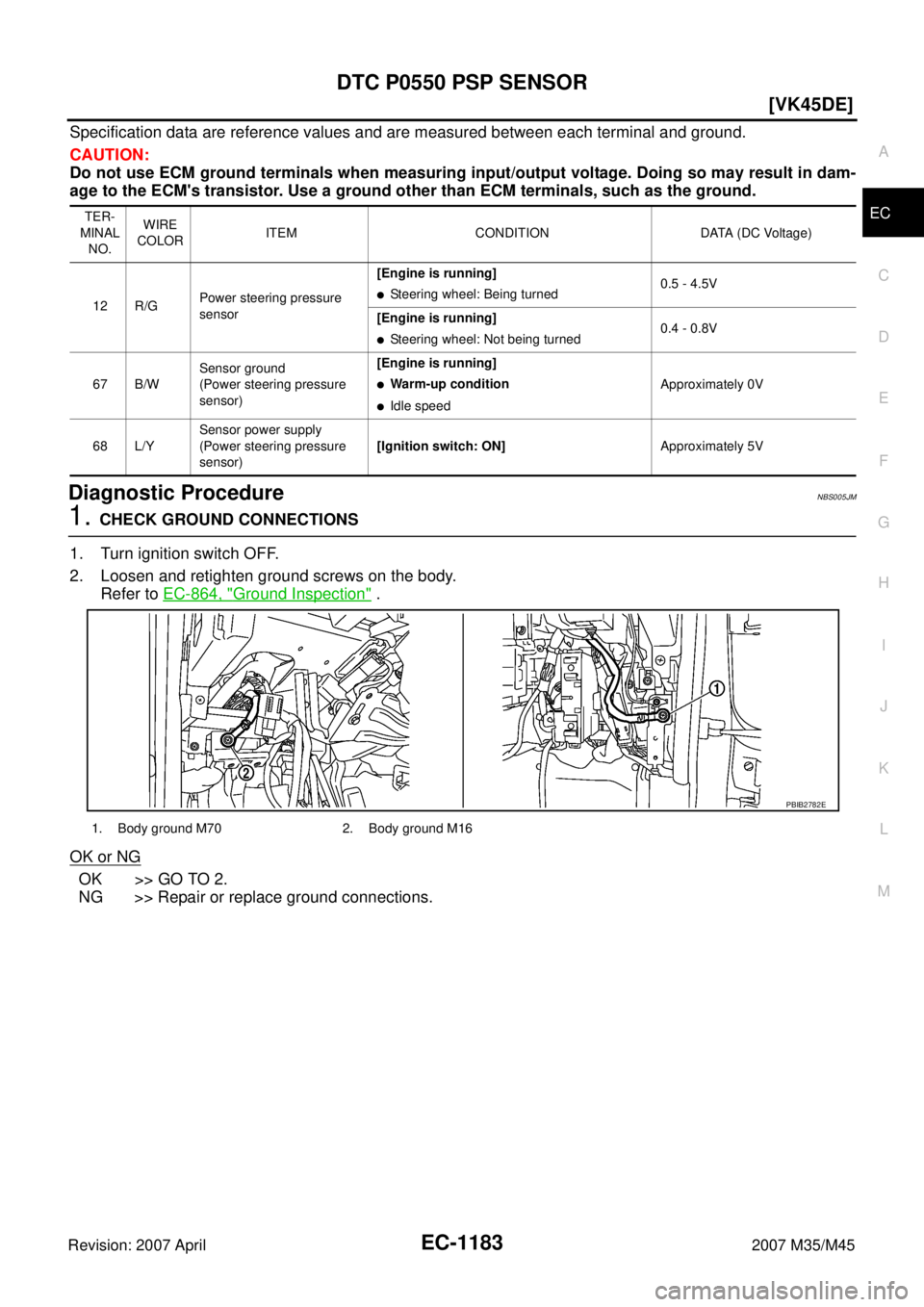

1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-864, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12 R/GPower steering pressure
sensor[Engine is running]
Steering wheel: Being turned0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned0.4 - 0.8V
67 B/WSensor ground
(Power steering pressure
sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
68 L/YSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
1. Body ground M70 2. Body ground M16
PBIB2782E
