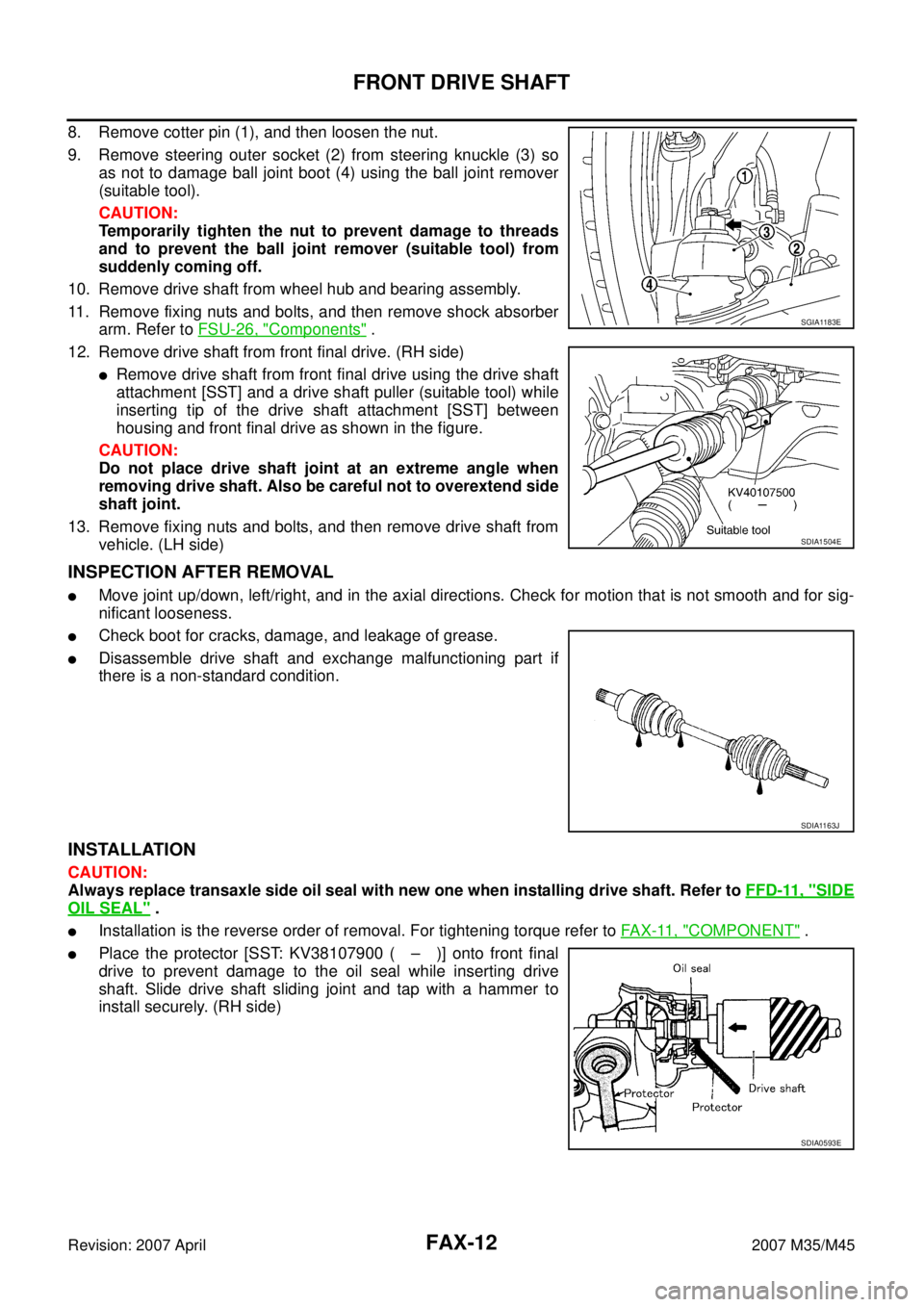

8. Remove cotter pin (1), and then loosen the nut.
9. Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using the ball joint remover
(suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover (suitable tool) from
suddenly coming off.
10. Remove drive shaft from wheel hub and bearing assembly.
11. Remove fixing nuts and bolts, and then remove shock absorber
arm. Refer to FSU-26, "
Components" .
12. Remove drive shaft from front final drive. (RH side)
Remove drive shaft from front final drive using the drive shaft
attachment [SST] and a drive shaft puller (suitable tool) while
inserting tip of the drive shaft attachment [SST] between
housing and front final drive as shown in the figure.
CAUTION:
Do not place drive shaft joint at an extreme angle when
removing drive shaft. Also be careful not to overextend side
shaft joint.
13. Remove fixing nuts and bolts, and then remove drive shaft from
vehicle. (LH side)
INSPECTION AFTER REMOVAL
Move joint up/down, left/right, and in the axial directions. Check for motion that is not smooth and for sig-
nificant looseness.
Check boot for cracks, damage, and leakage of grease.
Disassemble drive shaft and exchange malfunctioning part if
there is a non-standard condition.
INSTALLATION
CAUTION:
Always replace transaxle side oil seal with new one when installing drive shaft. Refer to FFD-11, "
SIDE
OIL SEAL" .
Installation is the reverse order of removal. For tightening torque refer to FA X - 11 , "COMPONENT" .
Place the protector [SST: KV38107900 ( – )] onto front final
drive to prevent damage to the oil seal while inserting drive
shaft. Slide drive shaft sliding joint and tap with a hammer to
install securely. (RH side)
SGIA1183E
SDIA1504E
SDIA1163J
SDIA0593E
Page 3050 of 4647

FRONT DRIVE SHAFT
FAX-13
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
Disassembly and AssemblyNDS000G2
COMPONENT
DISASSEMBLY
Front Final Drive Side
1. Place shaft in a vise.
CAUTION:
Protect shaft when securing in a vise using aluminum or copper plates.
2. Remove boot bands, and then remove boot from housing.
3. If plug needs to be removed, move boot to wheel side, and dive it out with a plastic hammer. (LH side)
4. Put matching marks on housing and shaft, and then pull out housing from shaft.
CAUTION:
Use paint or similar substance for matching marks. Do not scratch the surfaces.
5. Put matching marks on the shaft and spider assembly.
CAUTION:
Use paint or similar substance for matching marks. Do not
scratch the surfaces.

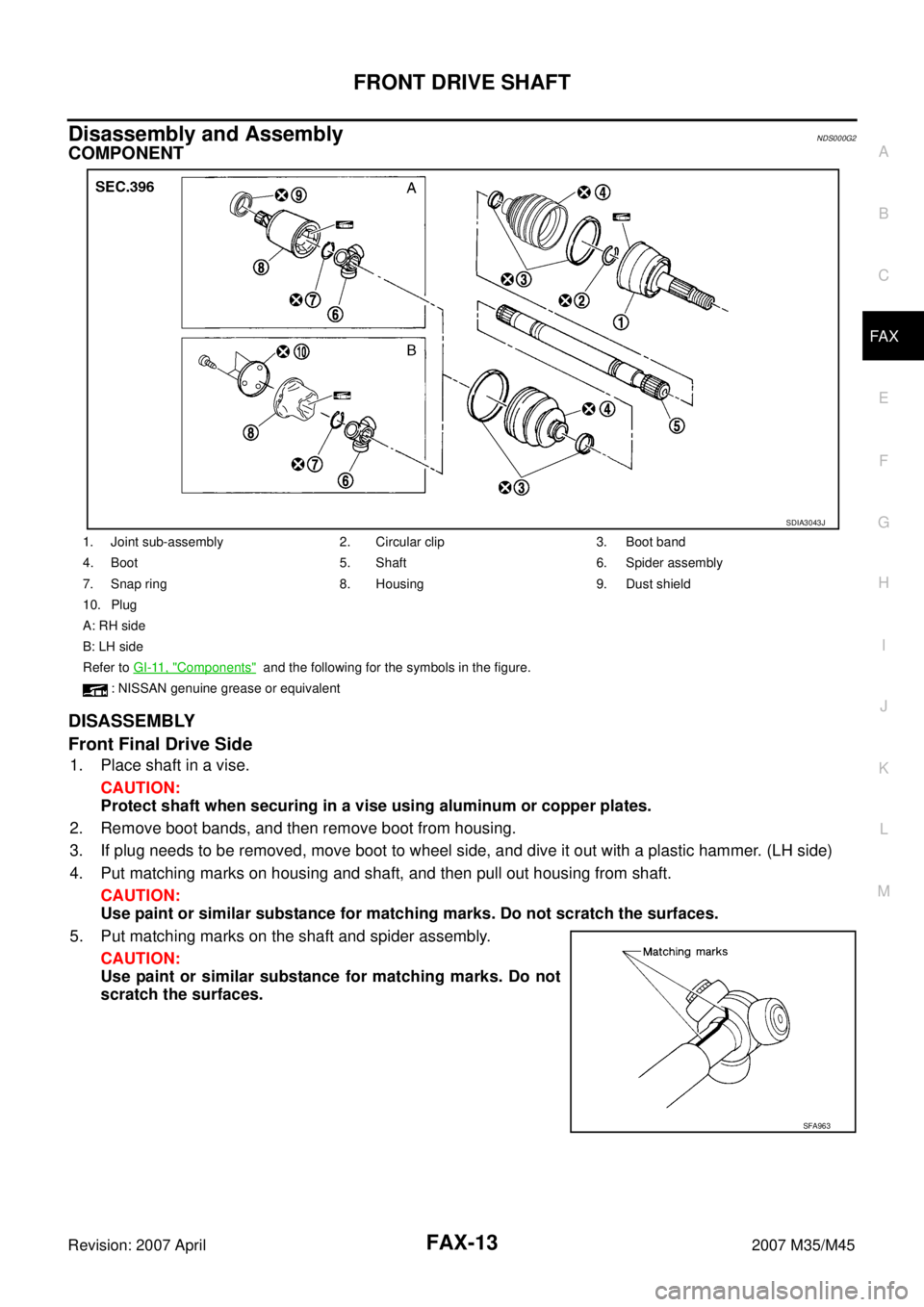

1. Joint sub-assembly 2. Circular clip 3. Boot band
4. Boot 5. Shaft 6. Spider assembly
7. Snap ring 8. Housing 9. Dust shield
10. Plug
A: RH side
B: LH side
Refer to GI-11, "
Components" and the following for the symbols in the figure.
: NISSAN genuine grease or equivalent
SDIA3043J
SFA963
Page 3051 of 4647

FAX-14
FRONT DRIVE SHAFT
Revision: 2007 April2007 M35/M45

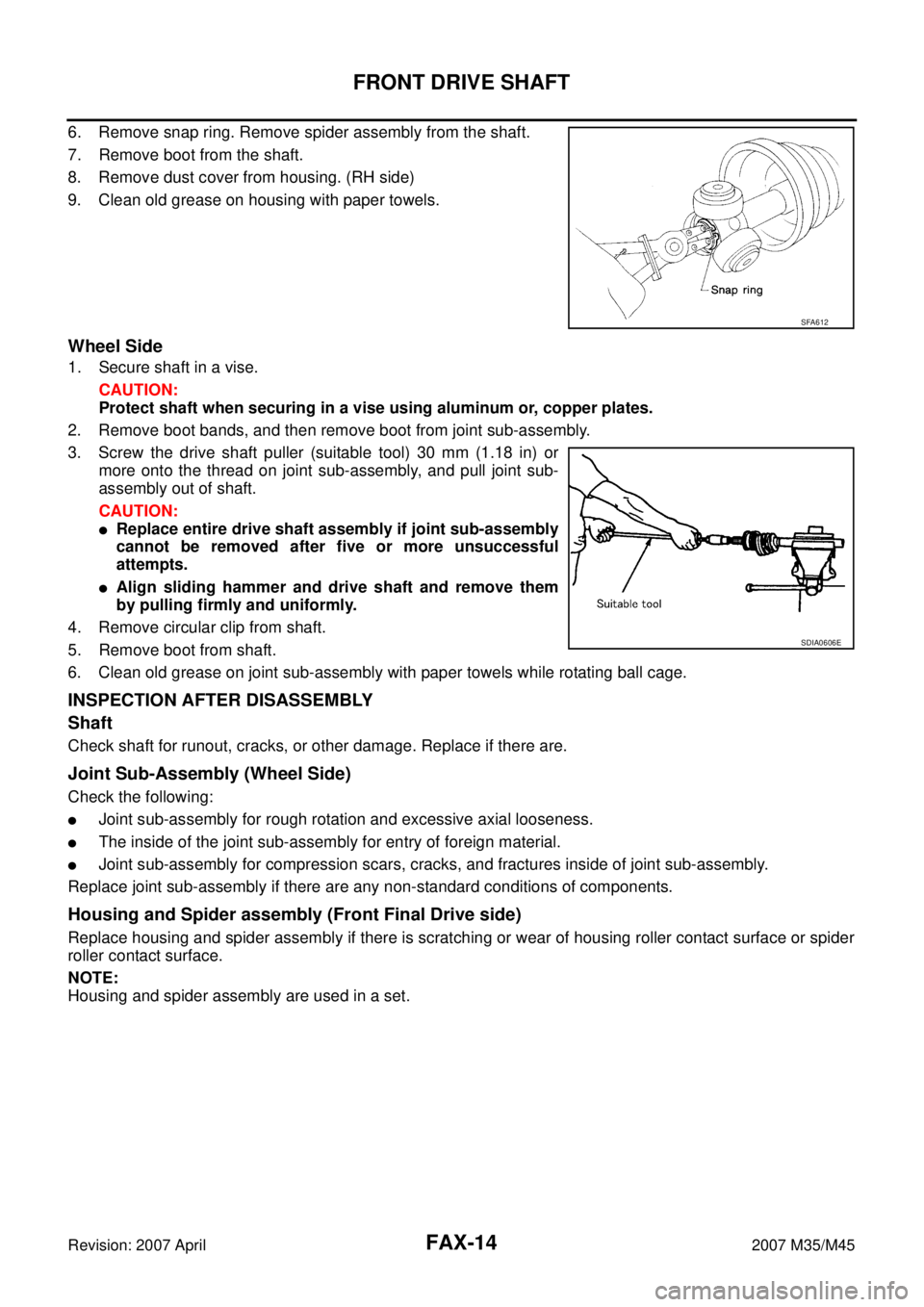

6. Remove snap ring. Remove spider assembly from the shaft.
7. Remove boot from the shaft.
8. Remove dust cover from housing. (RH side)
9. Clean old grease on housing with paper towels.
Wheel Side
1. Secure shaft in a vise.
CAUTION:
Protect shaft when securing in a vise using aluminum or, copper plates.
2. Remove boot bands, and then remove boot from joint sub-assembly.
3. Screw the drive shaft puller (suitable tool) 30 mm (1.18 in) or
more onto the thread on joint sub-assembly, and pull joint sub-
assembly out of shaft.
CAUTION:
Replace entire drive shaft assembly if joint sub-assembly
cannot be removed after five or more unsuccessful
attempts.
Align sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.
4. Remove circular clip from shaft.
5. Remove boot from shaft.
6. Clean old grease on joint sub-assembly with paper towels while rotating ball cage.
INSPECTION AFTER DISASSEMBLY
Shaft
Check shaft for runout, cracks, or other damage. Replace if there are.
Joint Sub-Assembly (Wheel Side)
Check the following:
Joint sub-assembly for rough rotation and excessive axial looseness.
The inside of the joint sub-assembly for entry of foreign material.
Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly.
Replace joint sub-assembly if there are any non-standard conditions of components.
Housing and Spider assembly (Front Final Drive side)
Replace housing and spider assembly if there is scratching or wear of housing roller contact surface or spider
roller contact surface.
NOTE:
Housing and spider assembly are used in a set.
SFA612
SDIA0606E
Page 3052 of 4647
![INFINITI M35 2007 Factory Service Manual FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
ASSEMBLY
Front Final Drive Side

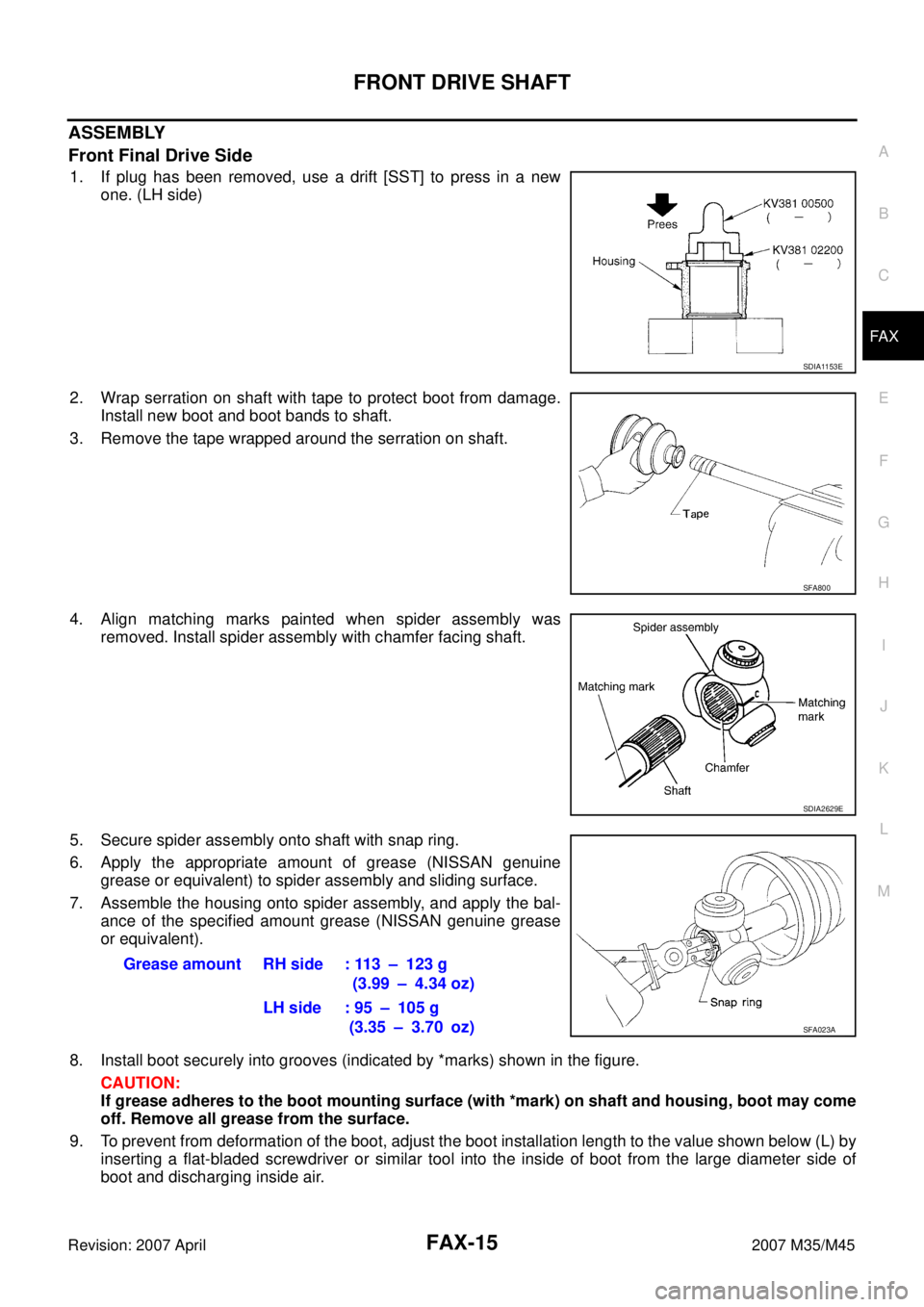

1. If plug has been removed, use a drift [SST] to press in a new
one. (LH side)
2. INFINITI M35 2007 Factory Service Manual FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
ASSEMBLY
Front Final Drive Side
1. If plug has been removed, use a drift [SST] to press in a new
one. (LH side)
2.](/manual-img/42/57024/w960_57024-3051.png)
FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
ASSEMBLY
Front Final Drive Side
1. If plug has been removed, use a drift [SST] to press in a new
one. (LH side)
2. Wrap serration on shaft with tape to protect boot from damage.
Install new boot and boot bands to shaft.
3. Remove the tape wrapped around the serration on shaft.
4. Align matching marks painted when spider assembly was
removed. Install spider assembly with chamfer facing shaft.
5. Secure spider assembly onto shaft with snap ring.
6. Apply the appropriate amount of grease (NISSAN genuine
grease or equivalent) to spider assembly and sliding surface.
7. Assemble the housing onto spider assembly, and apply the bal-
ance of the specified amount grease (NISSAN genuine grease
or equivalent).
8. Install boot securely into grooves (indicated by *marks) shown in the figure.
CAUTION:
If grease adheres to the boot mounting surface (with *mark) on shaft and housing, boot may come
off. Remove all grease from the surface.
9. To prevent from deformation of the boot, adjust the boot installation length to the value shown below (L) by
inserting a flat-bladed screwdriver or similar tool into the inside of boot from the large diameter side of
boot and discharging inside air.
SDIA1153E
SFA800
SDIA2629E
Grease amount RH side : 113 – 123 g
(3.99–4.34 oz)
LH side : 95 – 105 g
(3.35 – 3.70 oz)
SFA023A
Page 3053 of 4647

FAX-16
FRONT DRIVE SHAFT
Revision: 2007 April2007 M35/M45
CAUTION:
If the boot installation length is outside the standard, it may cause breakage in boot.
Be careful not to touch the inside of the boot with the tip of a flat-bladed screwdriver.
10. Install new larger and smaller boot bands securely.
a. For one-touch clamp band (LH side)
i. Secure the large and small ends of boot with new boot bands as
shown in the figure.
b. For low profile type band (RH side)
i. Put boot band in the groove on drive shaft boot. Then fit pawls
( ) into holes to temporary installation.
NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.
ii. Pinch projection on the band with suitable pliers to tighten band.
iii. Insert tip of band below end of the pawl.
11. Align matching marks painted when housing was removed.
12. Secure housing and shaft, and then make sure that they are in
the correct position when rotating boot. Install them with new
boot band when the mounting positions become incorrect.
13. Install dust cover to housing. (RH side)
RH side LH side
Boot installation length (L) RH side : 158 mm (6.22 in)
LH side : 150.9 – 152.9 mm (5.94 – 6.02 in)
SDIA3250ESDIA3249E
SFA395
SDIA3557E
SDIA3558E
Page 3054 of 4647
FRONT DRIVE SHAFT
FAX-17
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
Wheel Side
Assemble in steps 18 to 27 of FAX-8, "DRIVE SHAFT BOOT REPLACEMENT" , “ON-Vehicle Inspection and
Service”.
Page 3055 of 4647
FAX-18
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2007 April2007 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel BearingNDS000FK
Drive ShaftNDS000FL
Axial end play0.05 mm (0.002 in) or less
Joint type Wheel side Front final drive side
Grease quantity 77 – 97 g (2.71 – 3.42 oz)113 – 123 g (3.99 – 4.34 oz) (RH side)
95 – 105 g (3.35 – 3.70 oz) (LH side)
Boots installed length 136 mm (5.35 in)158 mm (6.22 in) (RH side)
150.9 – 152.9 mm (5.94 – 6.02 in) (LH side)
Page 3056 of 4647

FFD-1
FRONT FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION FFD
A
B
FFD
Revision: 2007 April2007 M35/M45
FRONT FINAL DRIVE
PRECAUTIONS .......................................................... 2
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 2
OPERATION PROCEDURE ................................. 2
Service Notice or Precautions .................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 5
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 6
NVH Troubleshooting Chart ..................................... 6
DESCRIPTION ............................................................ 7
Cross-Sectional View ............................................... 7
DIFFERENTIAL GEAR OIL ........................................ 8
Changing Differential Gear Oil ................................. 8
DRAINING ............................................................. 8
FILLING ................................................................. 8
Checking Differential Gear Oil .................................. 8
OIL LEAKAGE AND OIL LEVEL ........................... 8
FRONT OIL SEAL ...................................................... 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ................................................... 10SIDE OIL SEAL ......................................................... 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSTALLATION ................................................... 11
FRONT FINAL DRIVE ASSEMBLY .......................... 13
Removal and Installation ........................................ 13
COMPONENTS ................................................... 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
Disassembly and Assembly .................................... 15
COMPONENTS ................................................... 15
ASSEMBLY INSPECTION AND ADJUSTMENT ... 16
DISASSEMBLY ................................................... 20
INSPECTION AFTER DISASSEMBLY ................ 24
ADJUSTMENT AND SELECTION OF ADJUST-
ING WASHERS (SHIMS) .................................... 25
ASSEMBLY ......................................................... 28
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 35
General Specifications ............................................ 35
Inspection and Adjustment ..................................... 35
DRIVE GEAR RUNOUT ...................................... 35
DIFFERENTIAL SIDE GEAR CLEARANCE ....... 35
PRELOAD TORQUE ........................................... 35
BACKLASH ......................................................... 35
COMPANION FLANGE RUNOUT ....................... 35
SELECTIVE PARTS ............................................ 35
