Page 593 of 4647

INFINITI M35 2007 Factory Service Manual ATC-142 HEATER CORE Revision: 2007 April2007 M35/M45 HEATER COREPFP:27140 Removal and InstallationNJS000HK REMOVAL 1. Remove heater & cooling unit assembly. Refer to ATC-134, "HEATER & COOLING UNIT AS

Page 594 of 4647

INFINITI M35 2007 Factory Service Manual DUCTS AND GRILLES ATC-143 C D E F G H I K L MA B AT C Revision: 2007 April2007 M35/M45 DUCTS AND GRILLESPFP:27860 Removal and InstallationNJS000HL COMPONENT LAYOUT Grilles, Ducts and Nozzles 1. Side d

Page 595 of 4647

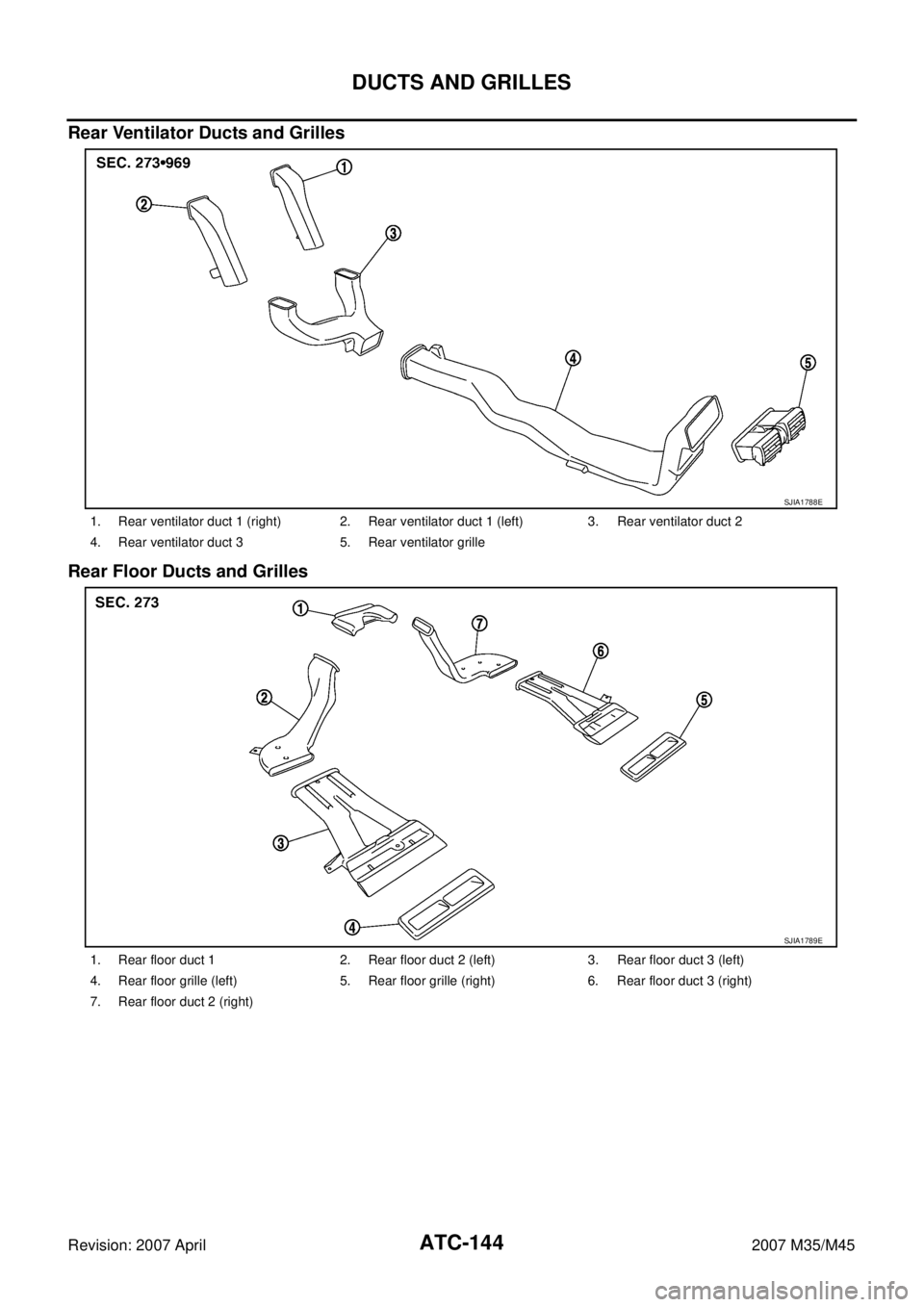

INFINITI M35 2007 Factory Service Manual ATC-144 DUCTS AND GRILLES Revision: 2007 April2007 M35/M45 Rear Ventilator Ducts and Grilles Rear Floor Ducts and Grilles 1. Rear ventilator duct 1 (right) 2. Rear ventilator duct 1 (left) 3. Rear ven

Page 596 of 4647

INFINITI M35 2007 Factory Service Manual DUCTS AND GRILLES ATC-145 C D E F G H I K L MA B AT C Revision: 2007 April2007 M35/M45 REMOVAL Removal of Center Ventilator Grilles Remove center ventilator assembly. Refer to IP-10, "INSTRUMENT PANEL

Page 597 of 4647

INFINITI M35 2007 Factory Service Manual ATC-146 DUCTS AND GRILLES Revision: 2007 April2007 M35/M45 Removal of Front Defroster Nozzle, Side Defroster Nozzles and Ventilator Duct 1. Remove instrument panel & pad. Refer to IP-10, "INSTRUMENT P

Page 598 of 4647

INFINITI M35 2007 Factory Service Manual DUCTS AND GRILLES ATC-147 C D E F G H I K L MA B AT C Revision: 2007 April2007 M35/M45 Removal of Rear Ventilator Grille 1. Remove console rear finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .

Page 599 of 4647

INFINITI M35 2007 Factory Service Manual ATC-148 DUCTS AND GRILLES Revision: 2007 April2007 M35/M45 Removal of Foot Grilles 1. Remove mounting clips, and then remove foot grille (left). 2. Remove mounting clips, and then remove foot grille (

Page 600 of 4647

INFINITI M35 2007 Factory Service Manual DUCTS AND GRILLES ATC-149 C D E F G H I K L MA B AT C Revision: 2007 April2007 M35/M45 Removal of Rear Floor Grilles 1. Slide front seats toward vehicle front. 2. Remove mounting clips, and then remov
