INFINITI M35 2007 Factory Service Manual BL-332
BODY REPAIR
Revision: 2007 April2007 M35/M45
Change parts
Rear floor rearDifferential mounting bracket assembly

Page 1266 of 4647

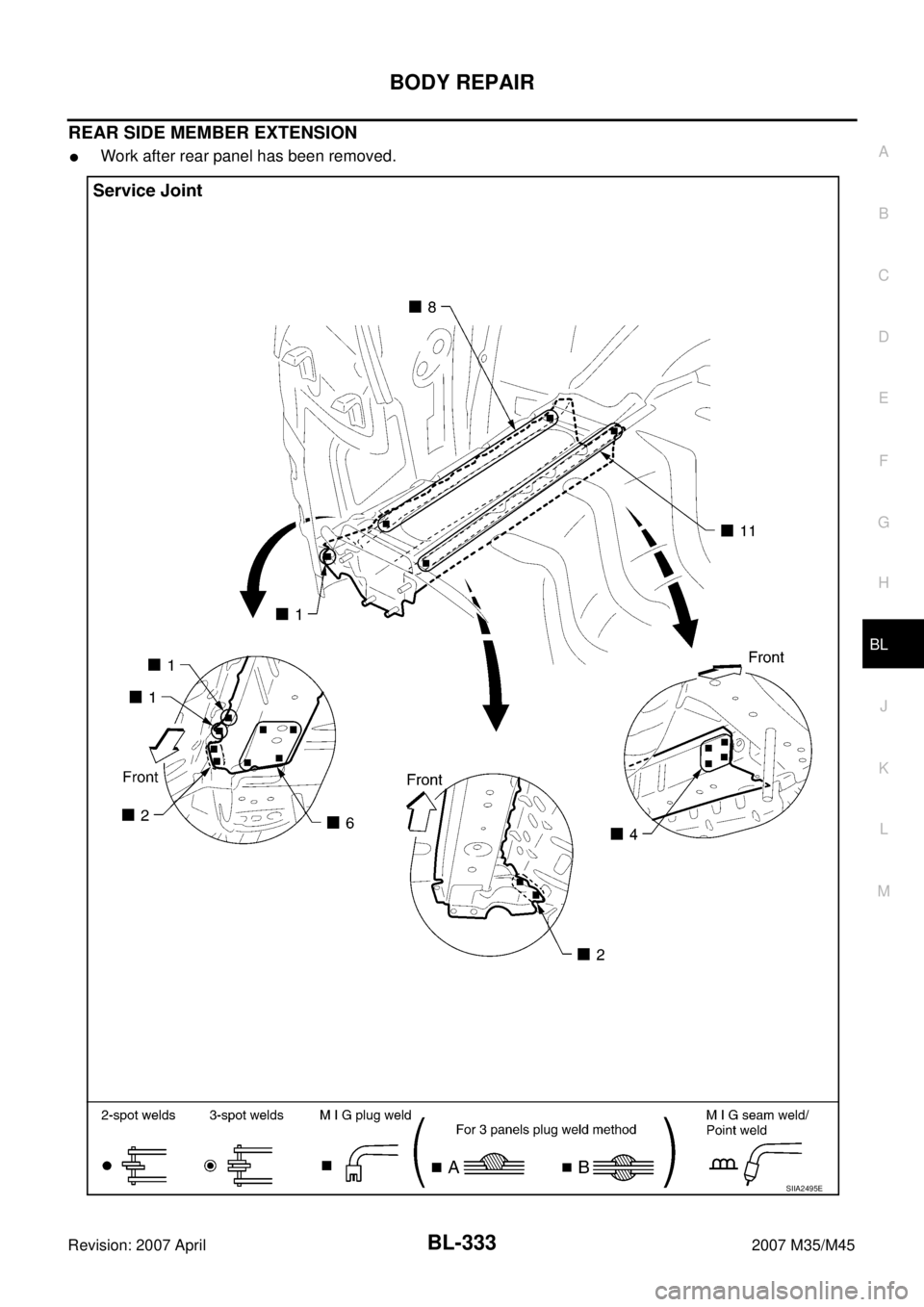

INFINITI M35 2007 Factory Service Manual BODY REPAIR
BL-333
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
REAR SIDE MEMBER EXTENSION
Work after rear panel has been removed.
SIIA2495E

Page 1267 of 4647

INFINITI M35 2007 Factory Service Manual BL-334
BODY REPAIR
Revision: 2007 April2007 M35/M45
Change parts
Rear side member extension (LH)

Page 1268 of 4647

INFINITI M35 2007 Factory Service Manual BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BR
A
B
BR
Revision: 2007 April2007 M35/M45
BRAKE SYSTEM
PRECAUTIONS .......................................................... 3
Precau

BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BR
A
B
BR
Revision: 2007 April2007 M35/M45
BRAKE SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Procedures without Cowl Top Cover ..... 3
Precautions for Brake System .................................. 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
BRAKE PEDAL .......................................................... 6
Inspection and Adjustment ....................................... 6
ADJUSTMENT ...................................................... 6
Removal and Installation .......................................... 7
COMPONENTS .................................................... 7
REMOVAL ............................................................. 8
INSPECTION AFTER REMOVAL ......................... 8
INSTALLATION ..................................................... 8
BRAKE FLUID ............................................................ 9
On-Board Inspection ................................................ 9
CHECKING BRAKE FLUID LEVEL ...................... 9
Checking Brake Line ................................................ 9
Drain and Refill ......................................................... 9
Bleeding Brake System .......................................... 10
BRAKE TUBE AND HOSE ........................................11
Hydraulic Circuit ...................................................... 11
Removal and Installation of Front Brake Tube and
Brake Hose ............................................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Removal and Installation of Rear Brake Tube and
Brake Hose ............................................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
Inspection after Installation .................................... 13
BRAKE MASTER CYLINDER .................................. 14
On-Board Inspection .............................................. 14
LEAK INSPECTION ............................................ 14
Removal and Installation ........................................ 14REMOVAL ........................................................... 14
INSTALLATION ................................................... 14
Disassembly and Assembly .................................... 15
COMPONENTS ................................................... 15
DISASSEMBLY ................................................... 15
ASSEMBLY ......................................................... 16
BRAKE BOOSTER ................................................... 17
On-Board Inspection and Service ........................... 17
OPERATION CHECK .......................................... 17
AIR TIGHT CHECK ............................................. 17
Removal and Installation ........................................ 18
COMPONENTS ................................................... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18
VACUUM LINES ....................................................... 20
Components ........................................................... 20
Removal and Installation ........................................ 21
Inspection ............................................................... 21
VISUAL INSPECTION ......................................... 21
CHECK VALVE INSPECTION ............................. 21
FRONT DISC BRAKE ............................................... 22
On-Board Inspection ............................................... 22
PAD WEAR INSPECTION ................................... 22
Components ........................................................... 22
Removal and Installation of Brake Pad .................. 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
Removal and Installation of Brake Caliper Assembly
... 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly of Brake Caliper
Assembly ................................................................ 25
DISASSEMBLY ................................................... 25
INSPECTION AFTER DISASSEMBLY ................ 25
ASSEMBLY ......................................................... 26
DISC ROTOR INSPECTION ............................... 27
BRAKE BURNISHING PROCEDURE ................. 27
REAR DISC BRAKE ................................................. 28
On-Board Inspection ............................................... 28

Page 1269 of 4647

INFINITI M35 2007 Factory Service Manual BR-2Revision: 2007 April2007 M35/M45 PAD WEAR INSPECTION ................................... 28
Components ........................................................... 28
Removal and Installation of Br

Page 1270 of 4647

INFINITI M35 2007 Factory Service Manual PRECAUTIONS
BR-3
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NF

PRECAUTIONS
BR-3
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000RO
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Procedures without Cowl Top CoverNFS000RP
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions for Brake SystemNFS000RQ
Clean dust on front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.
Recommended fluid is brake fluid “DOT 3”. Refer to MA-12, "Fluids and Lubricants" .
Never reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed
on painted areas, wash it away with water immediately.
Use clean brake fluid, to clean or wash all parts of master cylinder and disc brake caliper, etc.
Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.
Use flare nut torque wrench when installing brake tube.
When installing brake tube and hose, be sure to check torque.
Before working, turn ignition switch OFF and disconnect con-
nectors of ABS actuator and electric unit (control unit) or battery
cable from the negative terminal.
Burnish the brake contact surfaces after refinishing or replacing
rotors, after replacing pads, or if a soft pedal occurs at very low
mileage. Refer to BR-27, "
BRAKE BURNISHING PROCE-
DURE" (front disc brake), BR-33, "BRAKE BURNISHING PRO-
CEDURE" (rear disc brake).
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.
PIIB3706J
SBR686C

Page 1271 of 4647

INFINITI M35 2007 Factory Service Manual BR-4
PREPARATION
Revision: 2007 April2007 M35/M45
PREPARATIONPFP:00002
Commercial Service ToolsNFS000RR
Tool nameDescription
1. Flare nut crowfoot
a:10 mm (0.39 in) / 12 mm (0.47 in)
2. Torque wrenchI

Page 1272 of 4647

INFINITI M35 2007 Factory Service Manual NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
BR-5
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2007 April2007 M35/M45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting C
