Page 3345 of 4647

INFINITI M35 2007 Factory Service Manual IP-18
INSTRUMENT PANEL ASSEMBLY
Revision: 2007 April2007 M35/M45
4. Remove cluster lid C.
Pull back.
Disconnect harness connector.
INSTALLATION
Install in the reverse order of removal.
Removal and I

Page 3346 of 4647

INFINITI M35 2007 Factory Service Manual INSTRUMENT PANEL ASSEMBLY
IP-19
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2007 April2007 M35/M45
Disassembly and AssemblyNIS0025H
CENTER CONSOLE ASSEMBLY
Disassembly
1. Remove console lid.
2. Remove rear co

Page 3347 of 4647

INFINITI M35 2007 Factory Service Manual IP-20
INSTRUMENT PANEL ASSEMBLY
Revision: 2007 April2007 M35/M45

Page 3348 of 4647

INFINITI M35 2007 Factory Service Manual LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN
Revision: 2007 April2007 M35/M45
LAN SYSTEM
CAN FUNDAMENTAL
PRECAUTIONS ................................................

LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN
Revision: 2007 April2007 M35/M45
LAN SYSTEM
CAN FUNDAMENTAL
PRECAUTIONS .......................................................... 3
Precautions When Using CONSULT-II ..................... 3
Precautions for Trouble Diagnosis ........................... 3
Precautions for Harness Repair ............................... 3
SYSTEM DESCRIPTION ............................................ 4
CAN Communication System ................................... 4
SYSTEM DIAGRAM .............................................. 4
CAN COMMUNICATION CONTROL CIRCUIT ..... 5
Diag on CAN ............................................................ 6
DESCRIPTION ...................................................... 6
SYSTEM DIAGRAM .............................................. 6
TROUBLE DIAGNOSIS .............................................. 7
Condition of Error Detection ..................................... 7
CAN COMMUNICATION SYSTEM ERROR ......... 7
WHEN “U1000” OR “U1001” IS INDICATED
EVEN THOUGH CAN COMMUNICATION SYS-
TEM IS NORMAL .................................................. 7
Symptom When Error Occurs in CAN Communi-
cation System ........................................................... 8
ERROR EXAMPLE ............................................... 8
Self-Diagnosis ........................................................ 12
CAN Diagnostic Support Monitor ........................... 13
MONITOR ITEM (CONSULT-II) .......................... 13
MONITOR ITEM (ON-BOARD DIAGNOSIS) ...... 14
TROUBLE DIAGNOSES WORK FLOW .................. 15
Information Needed for Trouble Diagnosis ............. 15
How to Use CAN Communication Signal Chart ..... 15
Trouble Diagnosis Flow Chart ................................ 16
Trouble Diagnosis Procedure ................................. 17
INTERVIEW WITH CUSTOMER ......................... 17
INSPECTION OF VEHICLE CONDITION ........... 18
CHECK OF CAN SYSTEM TYPE (HOW TO USE
CAN SYSTEM TYPE SPECIFICATION CHART) ... 19
CREATE INTERVIEW SHEET ............................ 21
CREATE DATA SHEET ....................................... 22
CREATE DIAGNOSIS SHEET ............................ 24
DETECT THE ROOT CAUSE ............................. 25
CAN
INDEX FOR DTC ....................................................... 40
DTC No. Index ........................................................ 40
HOW TO USE THIS SECTION ................................. 41
Caution ................................................................... 41
Abbreviation List ..................................................... 41
PRECAUTIONS ........................................................ 42
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 42
Precautions When Using CONSULT-II ................... 42
Precautions for Trouble Diagnosis ......................... 42
Precautions for Harness Repair ............................. 42
TROUBLE DIAGNOSIS ............................................ 44
CAN Diagnostic Support Monitor ............................ 44
MONITOR ITEM LIST (CONSULT-II) .................. 44
CAN System Specification Chart ............................ 50
VEHICLE EQUIPMENT IDENTIFICATION
INFORMATION .................................................... 51
CAN Communication Signal Chart ......................... 52
TYPE 1/TYPE 2/TYPE 3/TYPE 4/TYPE 5/TYPE
6/TYPE 7 ............................................................. 52
TYPE 8/TYPE 9/TYPE 10/TYPE 11 .................... 55
Schematic ............................................................... 58
Wiring Diagram — CAN — ..................................... 59
Interview Sheet ....................................................... 64
Data Sheet .............................................................. 65
CONSULT-II DATA ATTACHMENT SHEET ........ 65
CAN System (Type 1) ............................................. 70
DIAGNOSIS SHEET ........................................... 70
CAN System (Type 2) ............................................. 71
DIAGNOSIS SHEET ........................................... 71
CAN System (Type 3) ............................................. 72
DIAGNOSIS SHEET ........................................... 72
CAN System (Type 4) ............................................. 73
DIAGNOSIS SHEET ........................................... 73
CAN System (Type 5) ............................................. 74
DIAGNOSIS SHEET ........................................... 74
CAN System (Type 6) ............................................. 75
DIAGNOSIS SHEET ........................................... 75

Page 3349 of 4647

INFINITI M35 2007 Factory Service Manual LAN-2Revision: 2007 April2007 M35/M45 CAN System (Type 7) ............................................. 76
DIAGNOSIS SHEET ............................................ 76
CAN System (Type 8) .......

LAN-2Revision: 2007 April2007 M35/M45 CAN System (Type 7) ............................................. 76
DIAGNOSIS SHEET ............................................ 76
CAN System (Type 8) ............................................. 77
DIAGNOSIS SHEET ............................................ 77
CAN System (Type 9) ............................................. 78
DIAGNOSIS SHEET ............................................ 78
CAN System (Type 10) ........................................... 79
DIAGNOSIS SHEET ............................................ 79
CAN System (Type 11) ........................................... 80
DIAGNOSIS SHEET ............................................ 80
Component Parts Location ..................................... 81
Harness Layout ...................................................... 81
Malfunction Area Chart ........................................... 82
MAIN LINE ........................................................... 82
BRANCH LINE .................................................... 82
SHORT CIRCUIT ................................................ 82
Main Line Between TCM and Data Link Connector ... 83
Main Line Between Data Link Connector and Pre-
crash Seat Belt Control Unit ................................... 84
Main Line Between Data Link Connector and RAS
Control Unit ............................................................. 85
Main Line Between RAS Control Unit and Pre-crash
Seat Belt Control Unit ............................................. 86
Main Line Between Pre-crash Seat Belt Control Unit
and Driver Seat Control Unit ................................... 87
Main Line Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) ......... 88
Main Line Between ABS Actuator and Electric Unit
(Control Unit) and ICC Sensor Integrated Unit ....... 89
ECM Branch Line Circuit ......................................... 89
AWD Control Unit Branch Line Circuit .................... 90
AFS Control Unit Branch Line Circuit ...................... 91
BCM Branch Line Circuit ......................................... 91
LDW Camera Unit Branch Line Circuit ................... 92
TCM Branch Line Circuit ......................................... 93
NAVI Control Unit Branch Line Circuit .................... 93
AV Control Unit Branch Line Circuit ........................ 94
Data Link Connector Branch Line Circuit ................ 95
Intelligent Key Unit Branch Line Circuit ................... 95
Unified Meter and A/C Amp. Branch Line Circuit .... 96
Steering Angle Sensor Branch Line Circuit ............. 97
Low Tire Pressure Warning Control Unit Branch Line
Circuit ...................................................................... 97
RAS Control Unit Branch Line Circuit ..................... 98
Pre-Crash Seat Belt Control Unit Branch Line Circuit
... 99
Driver Seat Control Unit Branch Line Circuit ........... 99
ABS Actuator and Electric Unit (Control Unit) Branch
Line Circuit ............................................................100
ICC Sensor Integrated Unit Branch Line Circuit ...101
IPDM E/R Branch Line Circuit ...............................101
CAN Communication Circuit .................................102

Page 3350 of 4647

INFINITI M35 2007 Factory Service Manual PRECAUTIONS
LAN-3
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45

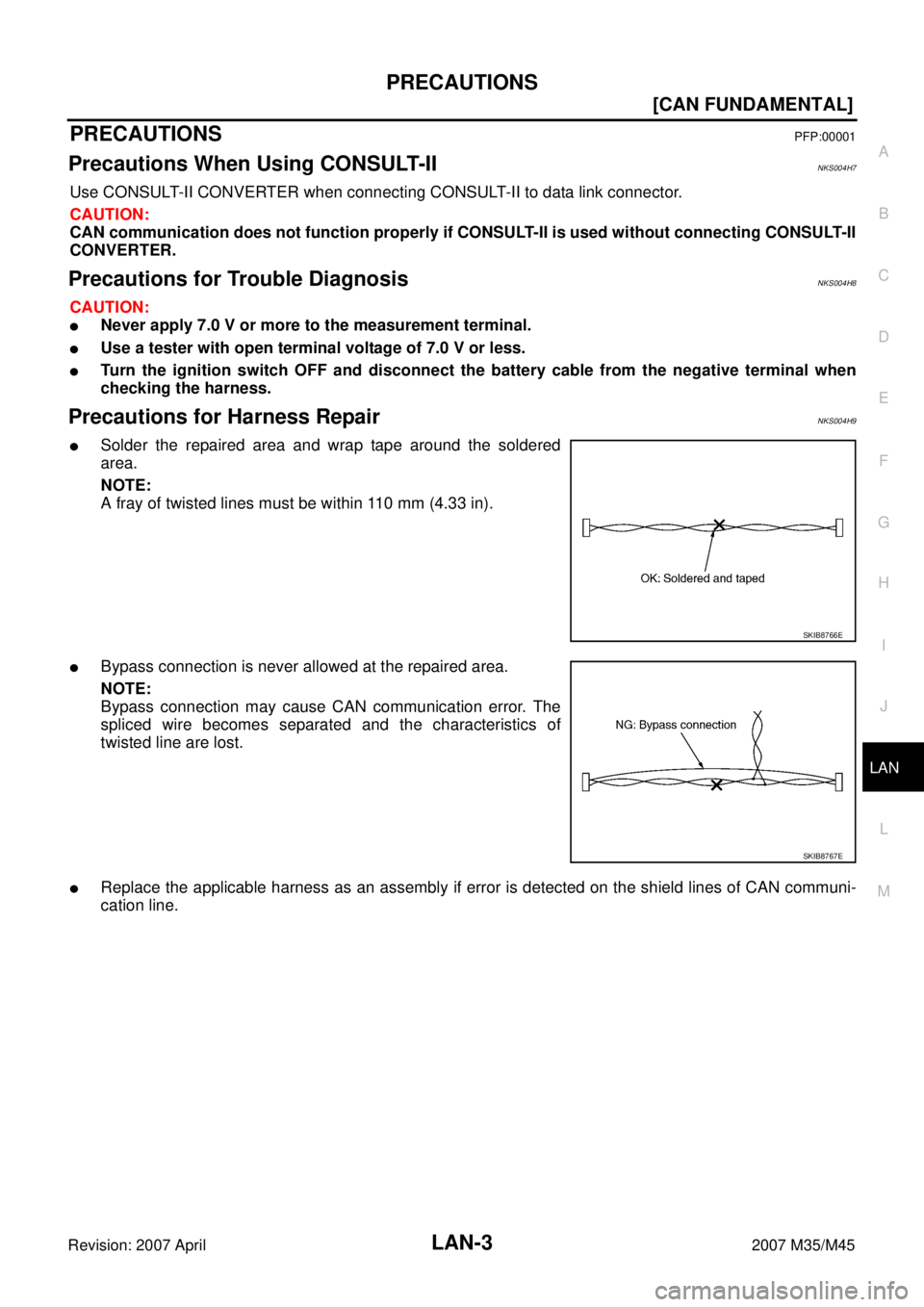

[CAN FUNDAMENTAL]PRECAUTIONSPFP:00001
Precautions When Using CONSULT-IINKS004H7
Use CONSULT-II CONVERTER

Page 3351 of 4647

INFINITI M35 2007 Factory Service Manual LAN-4
[CAN FUNDAMENTAL]
SYSTEM DESCRIPTION
Revision: 2007 April2007 M35/M45
SYSTEM DESCRIPTIONPFP:00000
CAN Communication SystemNKS004HA
CAN communication is a multiplex communication system. This en

Page 3352 of 4647

INFINITI M35 2007 Factory Service Manual SYSTEM DESCRIPTION
LAN-5
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45

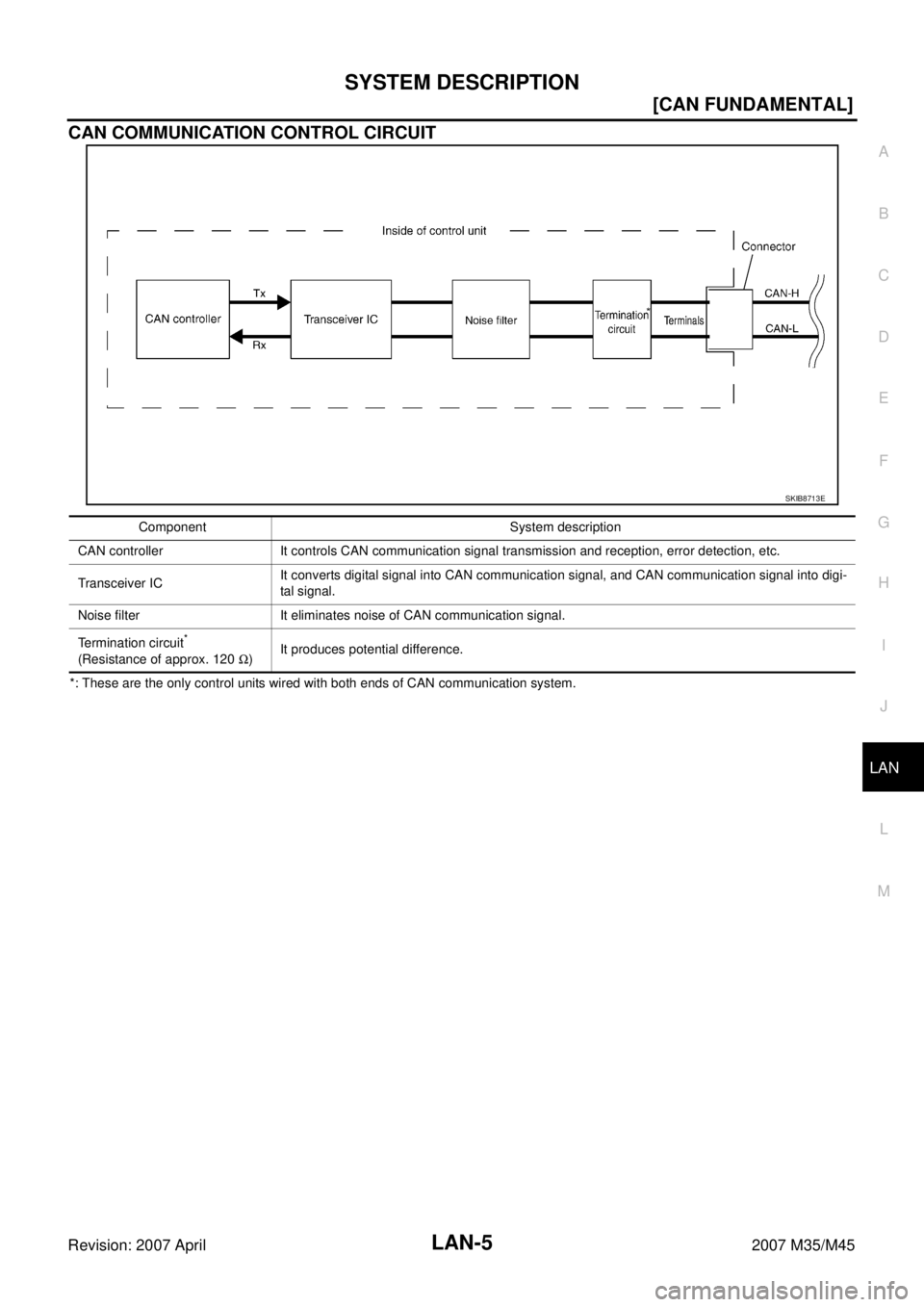

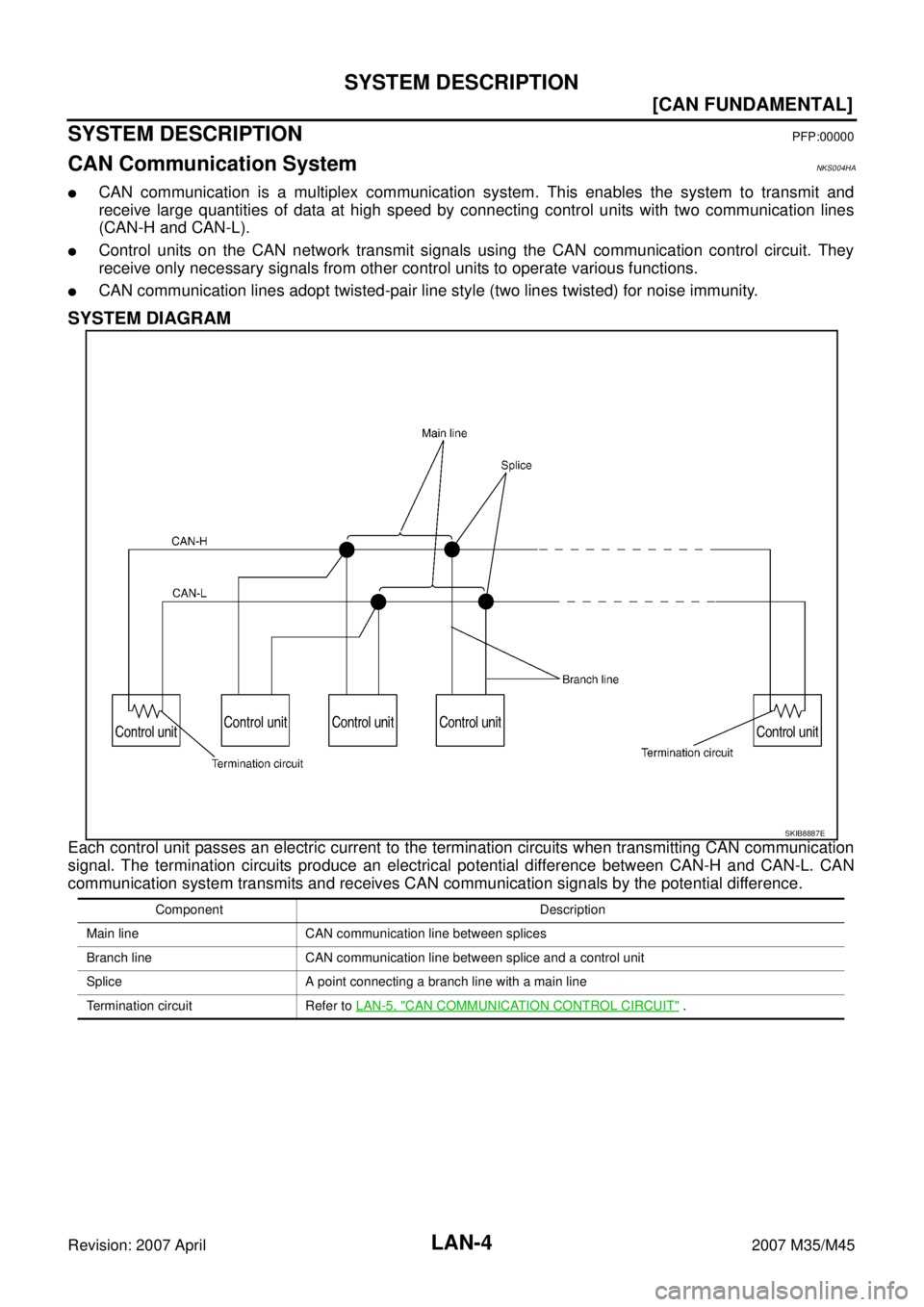

CAN COMMUNICATION CONTROL CIRCUIT
*: These are the only control units wired with both ends of CAN

Load next 8 pages
