Page 2089 of 4647
EC-560
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0054T
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and
wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds,
then release it and wait at least 10 seconds.
7. Press SET/COAST switch for at least 10 seconds, then release
it and wait at least 10 seconds.
8. If DTC is detected, go to EC-562, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2090 of 4647
DTC P1564 ASCD STEERING SWITCH
EC-561
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

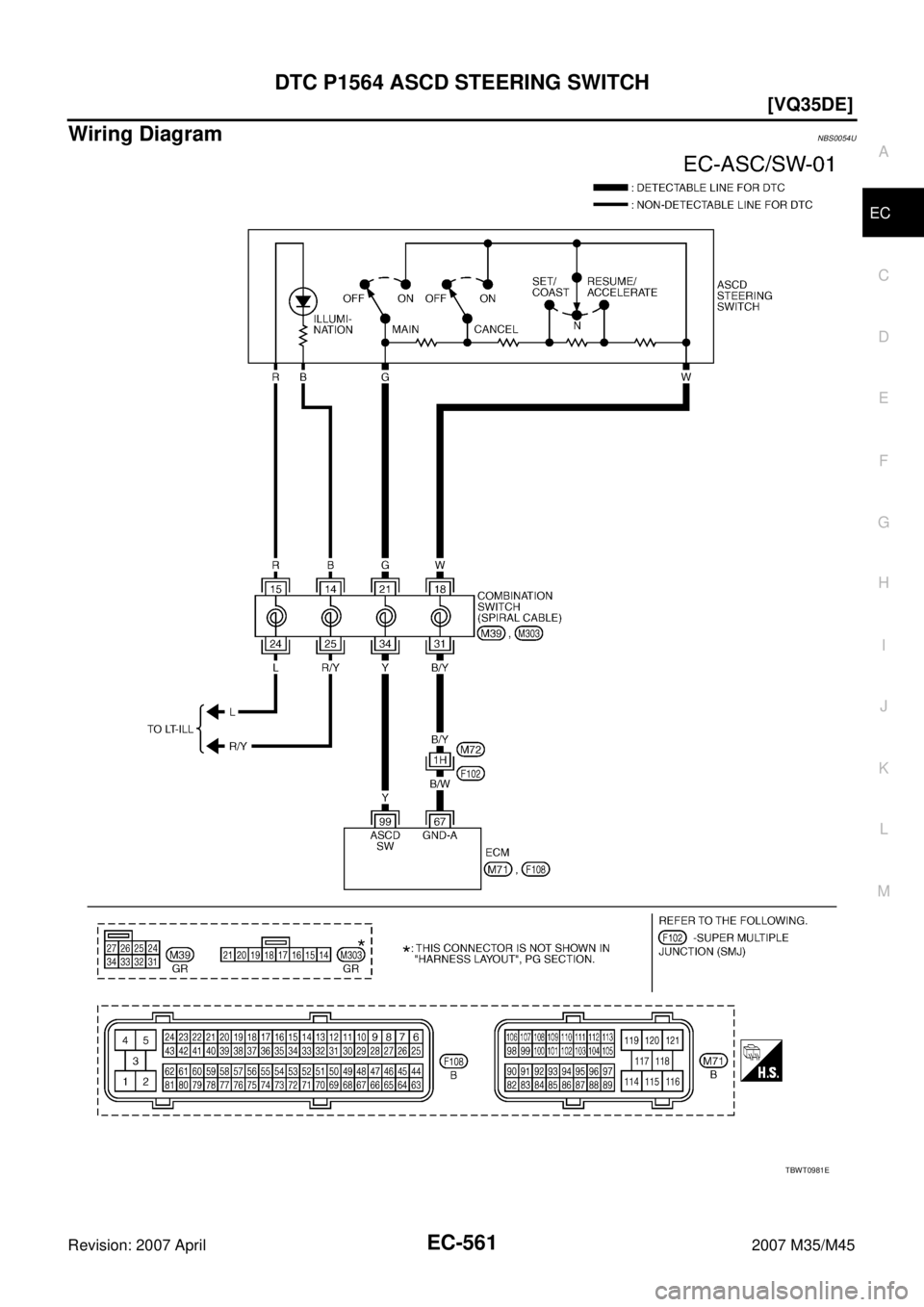

Wiring DiagramNBS0054U
TBWT0981E
Page 2091 of 4647
![INFINITI M35 2007 Factory Service Manual EC-562
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM groun INFINITI M35 2007 Factory Service Manual EC-562
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM groun](/manual-img/42/57024/w960_57024-2090.png)
EC-562
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0054V
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
67 B/W Sensor ground[Engine is running]
Warm-up condition
Idle speedApproximately 0V
99 YASCD steering switch
(models with ASCD system)[Ignition switch: ON]
ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]
MAIN switch: PressedApproximately 0V
[Ignition switch: ON]
CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]
RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]
SET/COAST switch: PressedApproximately 2V
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2092 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1564 ASCD STEERING SWITCH
EC-563
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select INFINITI M35 2007 Factory Service Manual DTC P1564 ASCD STEERING SWITCH
EC-563
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select](/manual-img/42/57024/w960_57024-2091.png)
DTC P1564 ASCD STEERING SWITCH
EC-563
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW” and “SET SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector M303.
4. Check harness continuity between combination switch terminal 18 and ECM terminal 67.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
MAIN switch MAIN SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
RESUME/ACCEL-
ERATE switchRESUME/ACC SWPressed ON
Released OFF
SET/COAST switch SET SWPressed ON
Released OFF
SEC006D
Switch Condition Voltage [V]
MAIN switchPressed Approx. 0
Released Approx. 4
CANCEL switchPressed Approx. 1
Released Approx. 4
RESUME/ACCELERATE
switchPressed Approx. 3
Released Approx. 4
SET/COAST switchPressed Approx. 2
Released Approx. 4
PBIB0311E
Continuity should exist.
Page 2093 of 4647
![INFINITI M35 2007 Factory Service Manual EC-564
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination switch (spiral cable)
Har INFINITI M35 2007 Factory Service Manual EC-564
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination switch (spiral cable)
Har](/manual-img/42/57024/w960_57024-2092.png)
EC-564
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-565, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ASCD steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 2094 of 4647
DTC P1564 ASCD STEERING SWITCH
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Component InspectionNBS0054W
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M303.
2. Check continuity between combination switch terminals 18 and
21 with pushing each switch.
If NG, replace ASCD steering switch.
Switch Condition Resistance [Ω]
MAIN switchPressed Approx. 0
Released Approx. 4,000
CANCEL switchPressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switchPressed Approx. 1,480
Released Approx. 4,000
SET/COAST switchPressed Approx. 660
Released Approx. 4,000
PBIB2739E
Page 2095 of 4647
![INFINITI M35 2007 Factory Service Manual EC-566
[VQ35DE]
DTC P1568 ICC FUNCTION
Revision: 2007 April2007 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS0054X
This self-diagnosis has the one trip detection logic.
The MIL INFINITI M35 2007 Factory Service Manual EC-566
[VQ35DE]
DTC P1568 ICC FUNCTION
Revision: 2007 April2007 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS0054X
This self-diagnosis has the one trip detection logic.
The MIL](/manual-img/42/57024/w960_57024-2094.png)
EC-566
[VQ35DE]
DTC P1568 ICC FUNCTION
Revision: 2007 April2007 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS0054X
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1568 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-161, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1568 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-164, "
DTC U1010 CAN COMMUNICATION" .
If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-483, "
DTC P0605 ECM".
DTC Confirmation ProcedureNBS0054Y
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch on ICC steering switch.
4. Drive the vehicle at more than 40 km/h (25 MPH).
5. Press SET/COAST switch.
6. If DTC is detected, go to EC-566, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS0054Z
1. REPLACE ICC SENSOR INTEGRATED UNIT
1. Replace ICC sensor integrated unit.
2. Perform ACS-12, "
ACTION TEST" .
3. Check DTC of ICC sensor integrated unit. Refer to ACS-40, "
TROUBLE DIAGNOSIS FOR SELF-DIAG-
NOSTIC ITEMS" .
>>INSPECTION END
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1568
1568ICC functionECM detects a difference between signals
from ICC sensor integrated unit is out of spec-
ified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
ICC sensor integrated unit
ECM
PBIB2673E
Page 2096 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS00550
When the brake pedal is depresse INFINITI M35 2007 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS00550
When the brake pedal is depresse](/manual-img/42/57024/w960_57024-2095.png)
DTC P1572 ICC BRAKE SWITCH
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS00550
When the brake pedal is depressed, ICC brake switch (2) is turned
OFF and stop lamp switch (1) is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS00551
Specification data are reference values.
On Board Diagnosis LogicNBS00552
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-483, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2705E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1572
1572ICC brake switchA)ON signals from the stop lamp switch and
the ICC brake switch are sent to ECM at
the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ICC brake switch circuit is shorted.)
Stop lamp switch
ICC brake switch
ICC brake hold relay
Incorrect stop lamp switch installation
Incorrect ICC brake switch installation
ECM B)ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving
