Page 2609 of 4647

INFINITI M35 2007 Factory Service Manual EC-1080 [VK45DE] DTC P0335 CKP SENSOR (POS) Revision: 2007 April2007 M35/M45 6. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Check harness con

Page 2610 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0335 CKP SENSOR (POS) EC-1081 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Component InspectionNBS005GJ CRANKSHAFT POSITION SENSOR (POS) 1. Loosen the fixing bolt of the se

Page 2611 of 4647

INFINITI M35 2007 Factory Service Manual EC-1082 [VK45DE] DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) Revision: 2007 April2007 M35/M45 DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)PFP:23731 Component DescriptionNBS005GL The camshaft

Page 2612 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) EC-1083 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 DTC Confirmation ProcedureNBS005GN NOTE: If DTC Confirmation Procedure has

Page 2613 of 4647

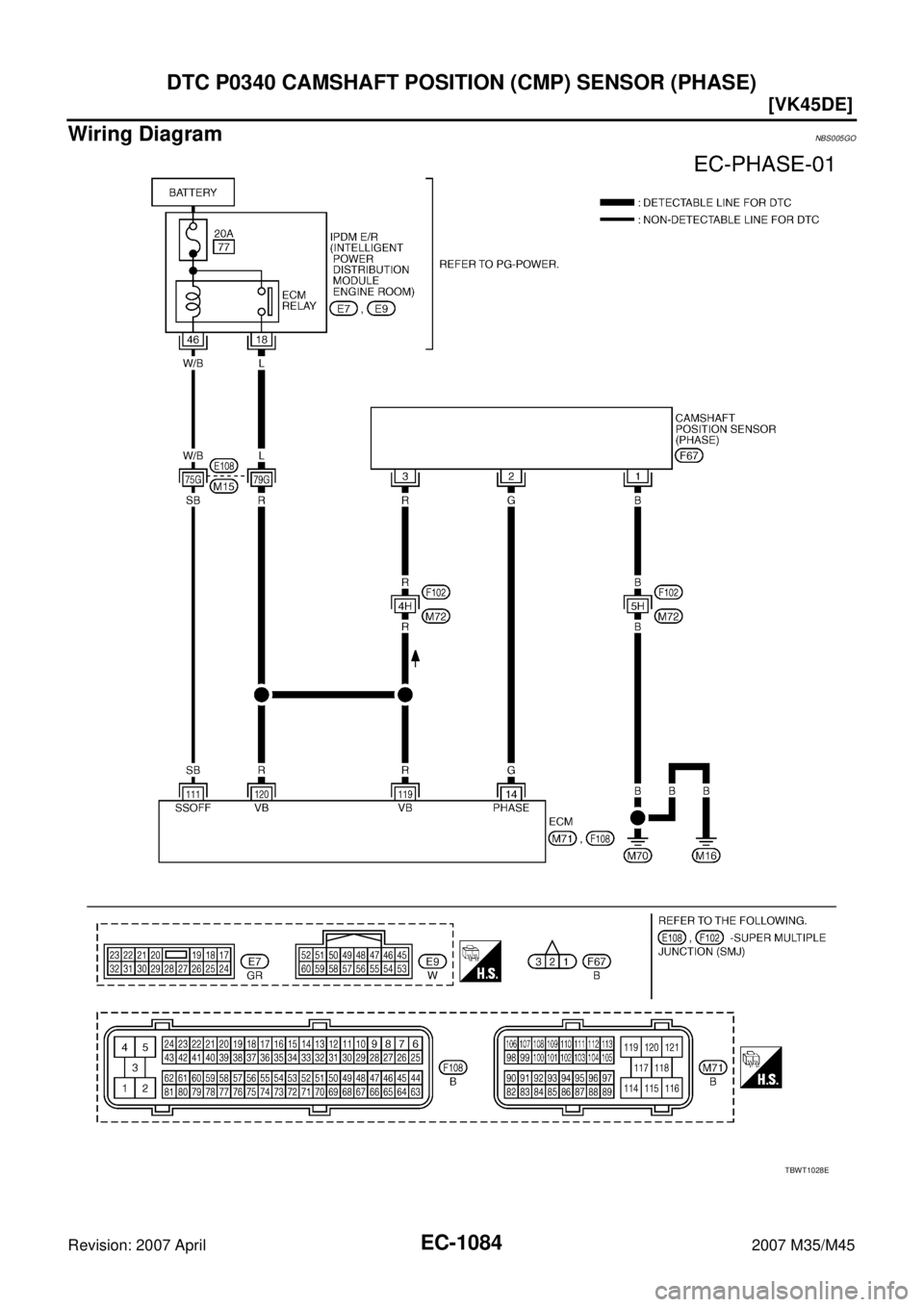

INFINITI M35 2007 Factory Service Manual EC-1084 [VK45DE] DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) Revision: 2007 April2007 M35/M45 Wiring DiagramNBS005GO TBWT1028E

Page 2614 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) EC-1085 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each termi

Page 2615 of 4647

INFINITI M35 2007 Factory Service Manual EC-1086 [VK45DE] DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) Revision: 2007 April2007 M35/M45 2. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten ground screws on the

Page 2616 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE) EC-1087 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 5. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignit
