EC-432
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0050R
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5°C (41°F) or more.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Make sure that “FUEL T/TMP SE” is more than 0°C (32°F).
6. Start engine and wait at least 20 seconds.
If 1st trip DTC is detected, go to EC-434, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem-
perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select Service $07 with GST.
If 1st trip DTC is detected, go to EC-434, "
Diagnostic Procedure"
.
SEF194Y
PBIB1110E
Page 1962 of 4647
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-433
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

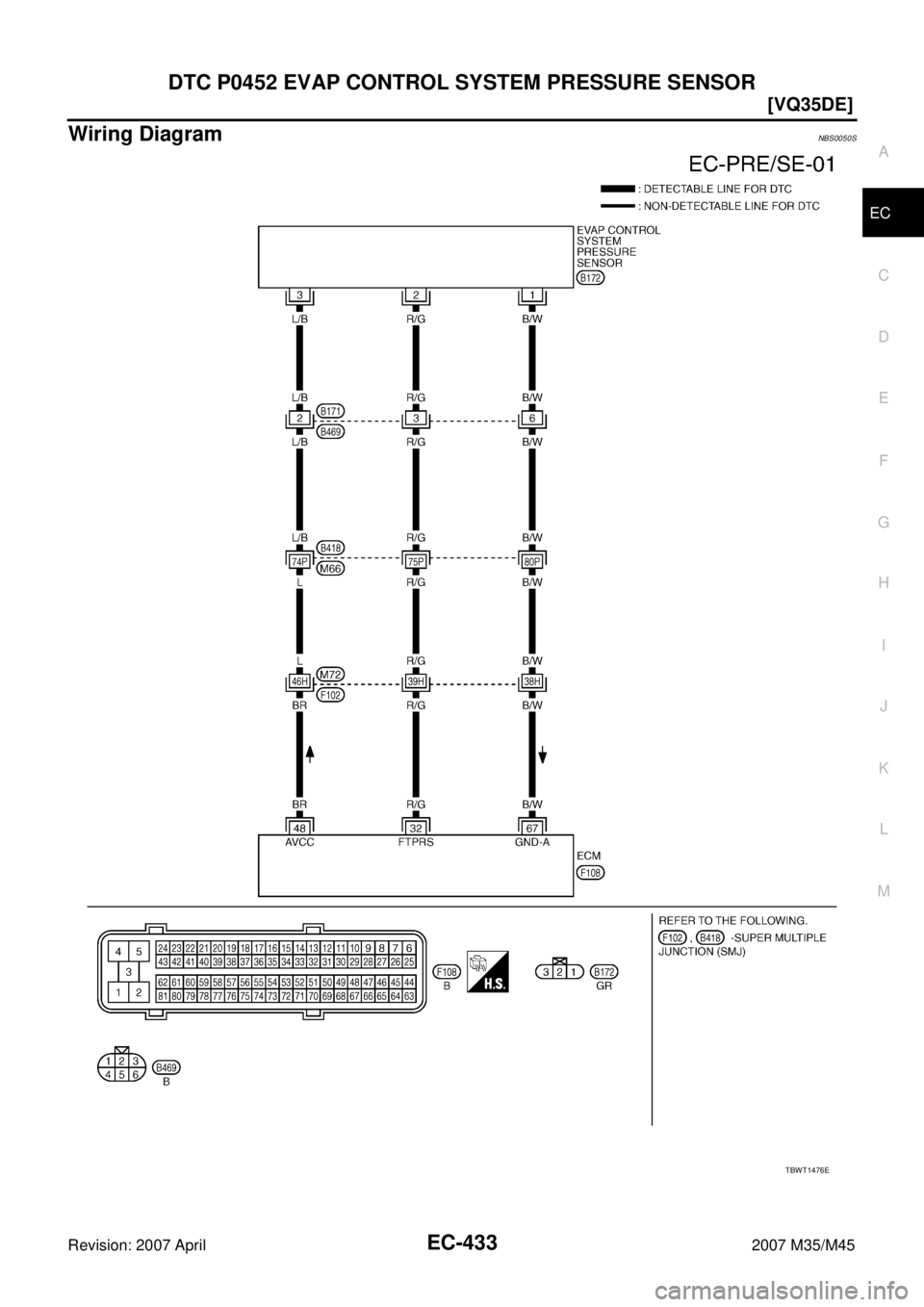

Wiring DiagramNBS0050S
TBWT1476E
Page 1963 of 4647
![INFINITI M35 2007 Factory Service Manual EC-434
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do no INFINITI M35 2007 Factory Service Manual EC-434
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do no](/manual-img/42/57024/w960_57024-1962.png)
EC-434
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0050T
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK CONNECTOR
1. Disconnect EVAP control system pressure sensor (3) harness
connector.
–Illustration shows the view from under the vehicle.
–: Vehicle front
–EVAP canister vent control valve (1)
–EVAP canister (2)
2. Check sensor harness connector for water.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness connector.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
32 R/GEVAP control system pres-
sure sensor[Ignition switch: ON]Approximately 1.8 - 4.8V
48 BRSensor power supply
(EVAP control system pres-
sure sensor)[Ignition switch: ON]Approximately 5V
67 B/W Sensor ground[Engine is running]
Warm-up condition
Idle speedApproximately 0V
1. Body ground M70 2. Body ground M16
PBIB2782E
Water should not exist.
PBIB2702E
Page 1964 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-435
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignit INFINITI M35 2007 Factory Service Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-435
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignit](/manual-img/42/57024/w960_57024-1963.png)
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-435
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B171, B469
Harness connectors B418, M66
Harness connectors M72, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B171, B469
Harness connectors B418, M66
Harness connectors M72, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Approximately 5V
PBIB0138E
Continuity should exist.
Page 1965 of 4647
![INFINITI M35 2007 Factory Service Manual EC-436
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness co INFINITI M35 2007 Factory Service Manual EC-436
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness co](/manual-img/42/57024/w960_57024-1964.png)
EC-436
[VQ35DE]
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors B171, B469
Harness connectors B418, M66
Harness connectors M72, F102
Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-436, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace EVAP control system pressure sensor.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS0050U
EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM
terminal 32 and ground under the following conditions.
CAUTION:
Always calibrate the vacuum pump gauge when using it.
Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
4. If NG, replace EVAP control system pressure sensor.Continuity should exist.
Applied vacuum kPa
(mmHg, inHg)Voltage V
Not applied 1.8 - 4.8
-26.7 (-200, -7.87) 2.1 to 2.5V lower than above value
PBIB1173E
Page 1966 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-437
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS INFINITI M35 2007 Factory Service Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-437
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS](/manual-img/42/57024/w960_57024-1965.png)
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-437
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSORPFP:25085
Component DescriptionNBS0050V

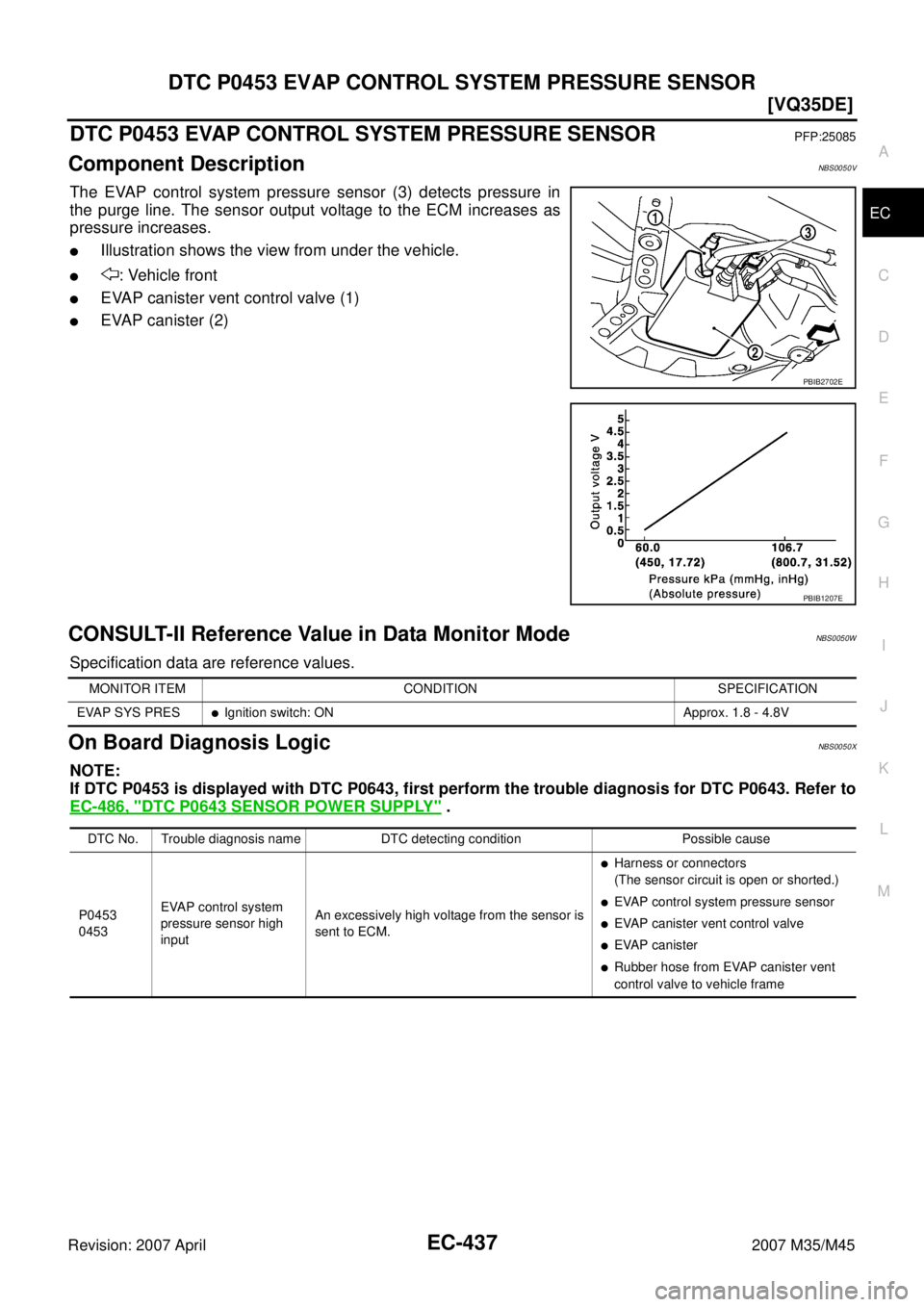

The EVAP control system pressure sensor (3) detects pressure in
the purge line. The sensor output voltage to the ECM increases as
pressure increases.
Illustration shows the view from under the vehicle.
: Vehicle front
EVAP canister vent control valve (1)
EVAP canister (2)
CONSULT-II Reference Value in Data Monitor ModeNBS0050W
Specification data are reference values.
On Board Diagnosis LogicNBS0050X
NOTE:
If DTC P0453 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-486, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB2702E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0453
0453EVAP control system
pressure sensor high
inputAn excessively high voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
EVAP control system pressure sensor
EVAP canister vent control valve
EVAP canister
Rubber hose from EVAP canister vent
control valve to vehicle frame
Page 1967 of 4647
![INFINITI M35 2007 Factory Service Manual EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0050Y
NOTE:
If DTC Confirmation Procedure has been previously conducted, alw INFINITI M35 2007 Factory Service Manual EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0050Y
NOTE:
If DTC Confirmation Procedure has been previously conducted, alw](/manual-img/42/57024/w960_57024-1966.png)
EC-438
[VQ35DE]
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0050Y
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5°C (41°F) or more.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Make sure that “FUEL T/TMP SE” is more than 0°C (32°F).
6. Start engine and wait at least 20 seconds.
7. If 1st trip DTC is detected, go to EC-440, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem-
perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select Service $07 with GST.
If 1st trip DTC is detected, go to EC-440, "
Diagnostic Procedure"
.
SEF194Y
PBIB1110E
Page 1968 of 4647
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-439
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Wiring DiagramNBS0050Z
TBWT1476E
