2007 INFINITI M35 Factory Service Manual

child seat change key battery mirror engine oil wheel size key fob battery

Load previous 8 pages

Page 4001 of 4647

INFINITI M35 2007 Factory Service Manual PS-20
POWER STEERING GEAR AND LINKAGE
Revision: 2007 April2007 M35/M45

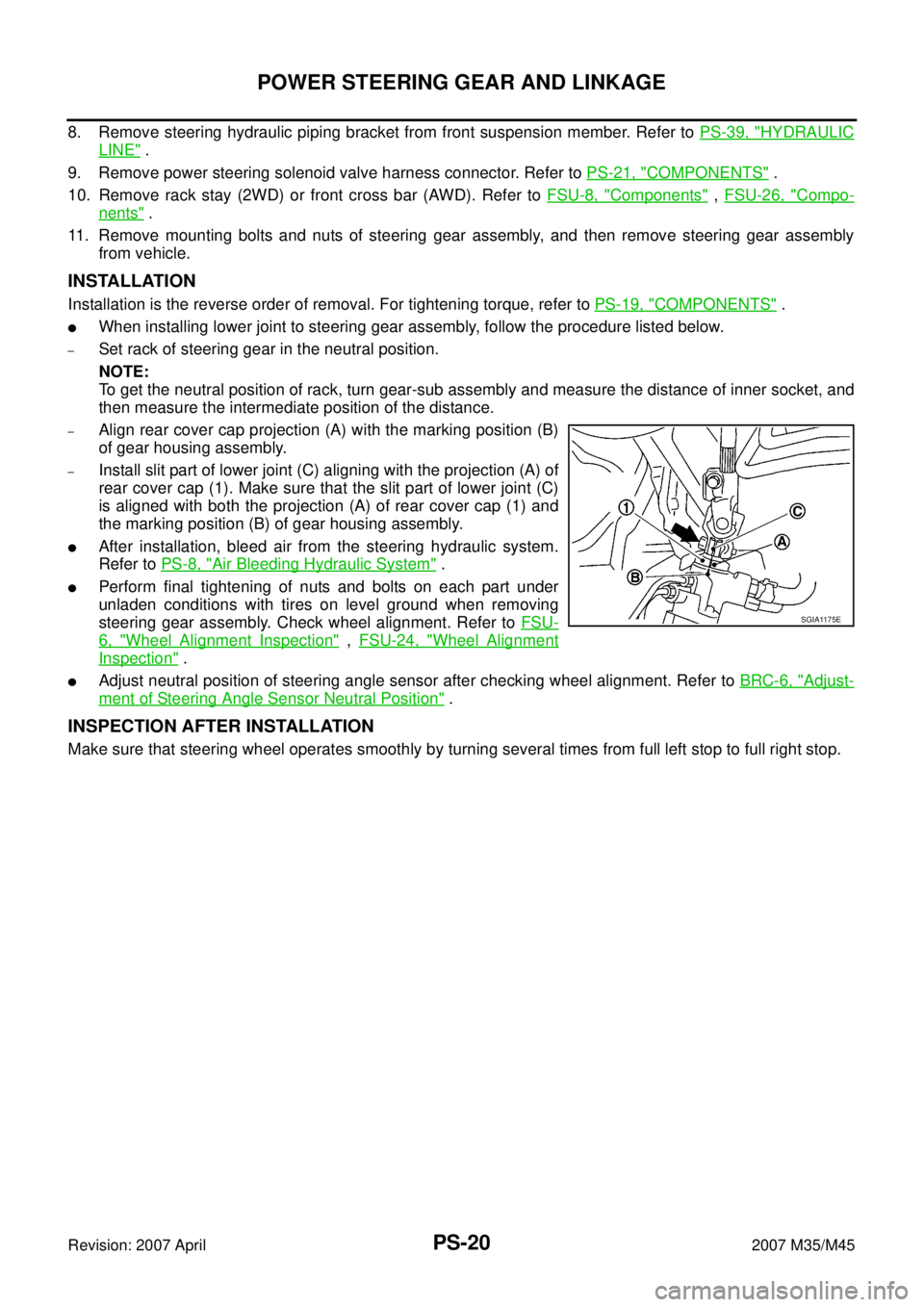

8. Remove steering hydraulic piping bracket from front suspension member. Refer to PS-39, "HYDRAULIC
LINE" .
9. Remove power stee

Page 4002 of 4647

INFINITI M35 2007 Factory Service Manual POWER STEERING GEAR AND LINKAGE
PS-21
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2007 April2007 M35/M45

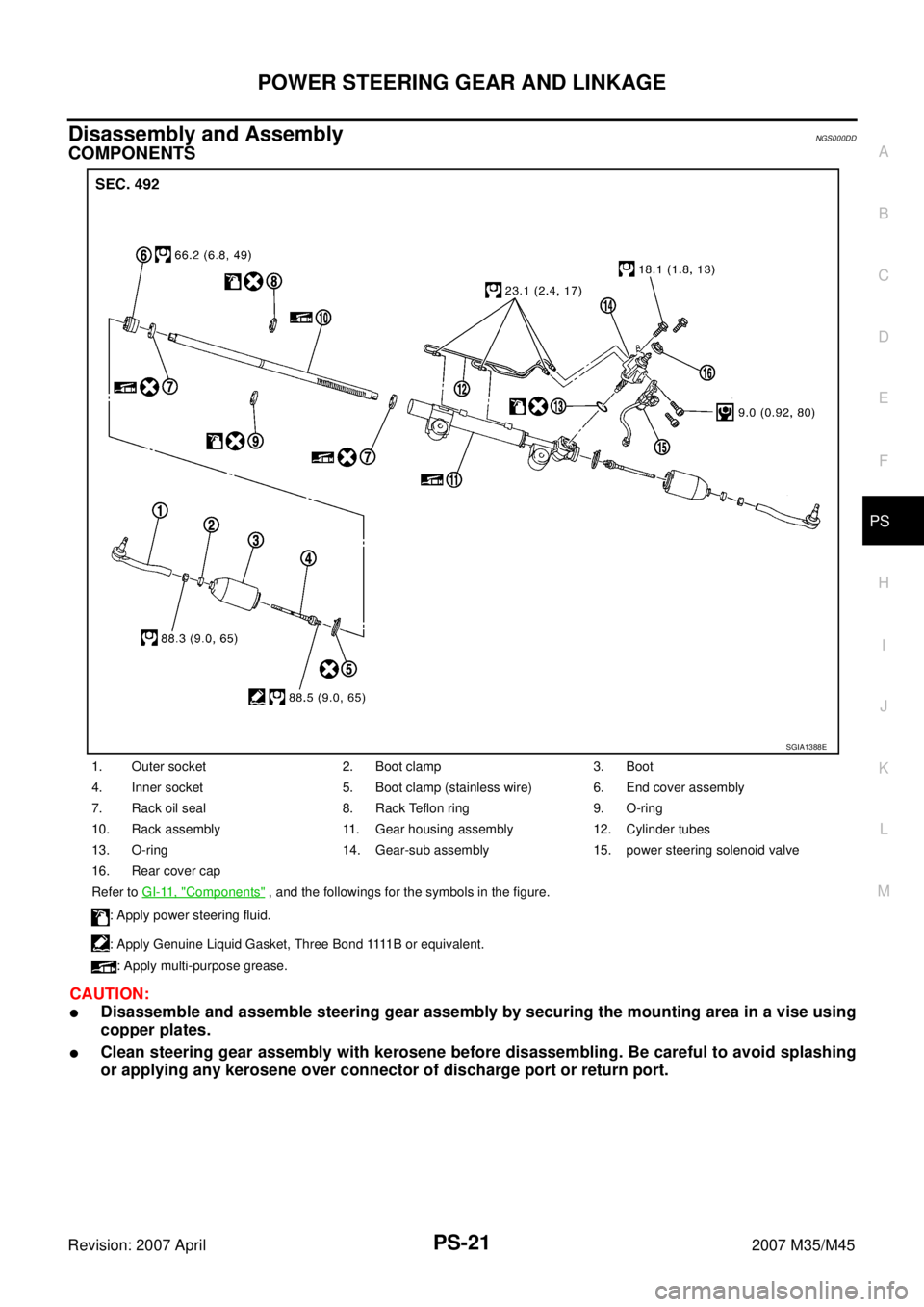

Disassembly and AssemblyNGS000DD
COMPONENTS
CAUTION:
Disassemble and assemble steering gear assembly b

Page 4003 of 4647

INFINITI M35 2007 Factory Service Manual PS-22
POWER STEERING GEAR AND LINKAGE
Revision: 2007 April2007 M35/M45
DISASSEMBLY
1. Remove fixing bolts of power steering solenoid valve, and then remove power steering solenoid valve
from gear-sub

PS-22
POWER STEERING GEAR AND LINKAGE
Revision: 2007 April2007 M35/M45
DISASSEMBLY
1. Remove fixing bolts of power steering solenoid valve, and then remove power steering solenoid valve
from gear-sub assembly.
2. Remove cylinder tubes from gear housing assembly.
3. Remove rear cover cap from gear-sub assembly.
4. Measure adjusting screw height “H”, and loosen adjusting
screw.
CAUTION:
Do not loosen adjusting screw 2 turns or more.
Replace steering gear assembly if adjusting screw is
loosened 2 turns or more and it is removed.
5. Remove fixing bolts of gear-sub assembly, and then remove
gear-sub assembly from gear housing assembly.
6. Remove O-ring from gear housing assembly.
7. Loosen outer socket lock nut, and remove outer socket.
8. Remove boot clamp, and then remove boot from inner socket.
CAUTION:
Do not damage inner socket and gear housing assembly when removing boot. Inner socket and
gear housing assembly must be replaced if inner socket and gear housing assembly are damaged
because it may cause foreign material interfusion.
9. Remove inner socket from gear housing assembly.
10. Drill out the clinching part of gear housing assembly (end cover
assembly side) outer rim with a 3 mm (0.12 in) drill bit. [Drill for
approximately 1.5 mm (0.059 in) depth.]
11. Remove end cover assembly with a 36 mm (1.42 in) open head
(suitable tool).
CAUTION:
Do not damage rack assembly surface when removing.
Rack assembly must be replaced if damaged because it
may cause fluid leakage.
12. Pull rack assembly together with rack oil seal (outer side) out
from gear housing assembly.
CAUTION:
Do not damage cylinder inner wall when removing rack
assembly. Gear housing assembly must be replaced if dam-
aged because it may cause fluid leakage.
13. Heat rack Teflon ring to approximately 40°C (104°F) with a
dryer, and remove rack Teflon ring and O-ring from rack assem-
bly.
CAUTION:
Do not damage rack assembly. Rack assembly must be
replaced if damaged because it may cause fluid leakage.
SGIA0624E
STC0013D
SST081B
SGIA0151E

Page 4004 of 4647

INFINITI M35 2007 Factory Service Manual POWER STEERING GEAR AND LINKAGE
PS-23
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2007 April2007 M35/M45
14. Push rack oil seal inside with a 29 mm (1.14 in) socket and an
extension bar to push out rack oil s

Page 4005 of 4647

INFINITI M35 2007 Factory Service Manual PS-24
POWER STEERING GEAR AND LINKAGE
Revision: 2007 April2007 M35/M45
Outer Socket and Inner Socket
1. Ball joint swinging torque
Hook a spring balance at the point shown in the figure and
pull the

Page 4006 of 4647

INFINITI M35 2007 Factory Service Manual POWER STEERING GEAR AND LINKAGE
PS-25
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2007 April2007 M35/M45

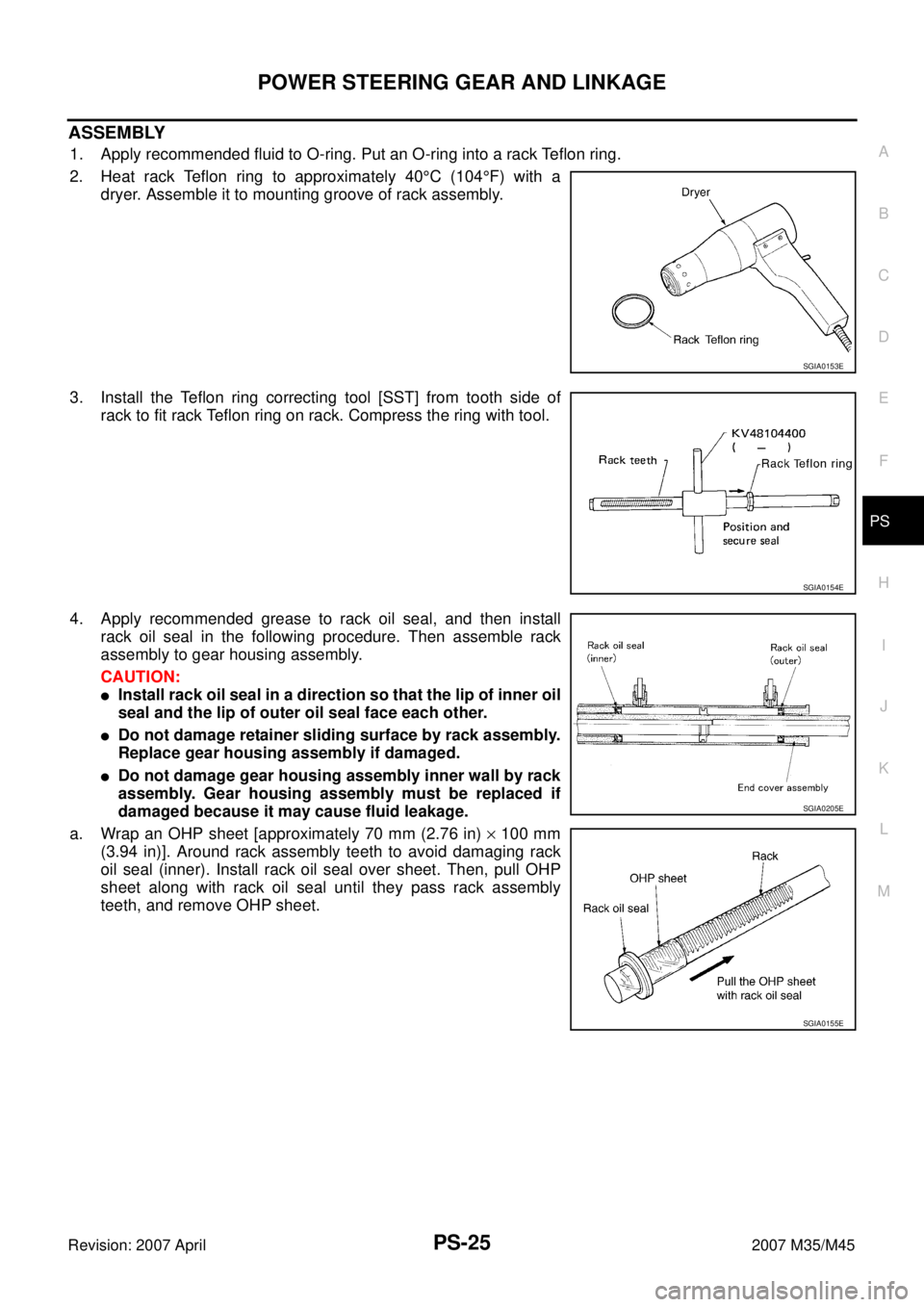

ASSEMBLY
1. Apply recommended fluid to O-ring. Put an O-ring into a rack Teflon ring.
2. Heat rack Tefl

Page 4007 of 4647

INFINITI M35 2007 Factory Service Manual PS-26
POWER STEERING GEAR AND LINKAGE
Revision: 2007 April2007 M35/M45

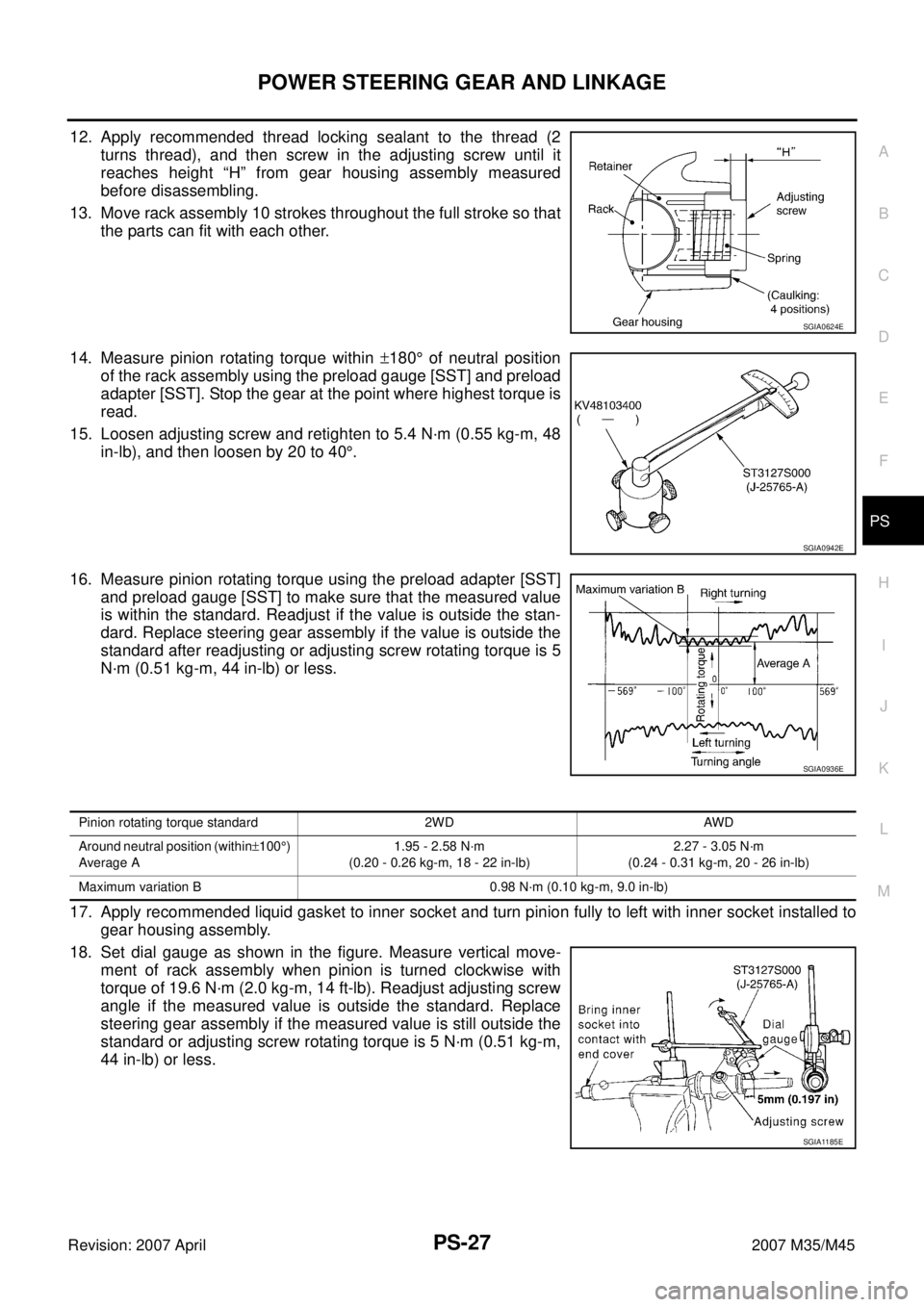

b. Insert rack oil seal (inner) into rack assembly piston (rack Teflon
ring).
c. Push retainer to adjusting screw side by hand, a

Page 4008 of 4647

INFINITI M35 2007 Factory Service Manual POWER STEERING GEAR AND LINKAGE
PS-27
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2007 April2007 M35/M45
12. Apply recommended thread locking sealant to the thread (2
turns thread), and then screw in the adju
